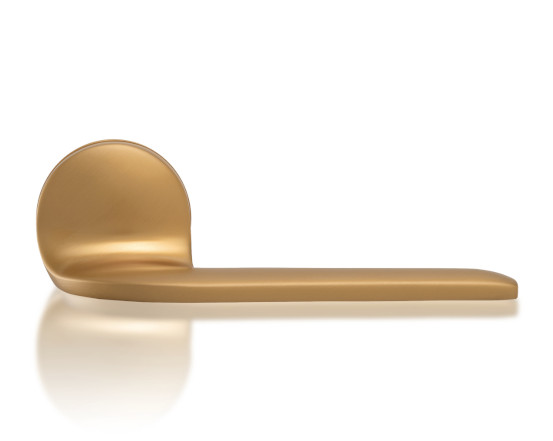

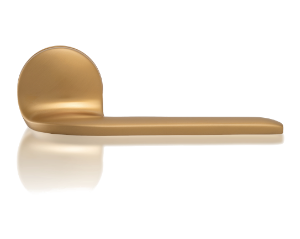

Door handle Down

Door handle DOWN

TiN-A titanium brass matt Design: Herrmann & Coufal

An exceptional design concept, where the change of position on the door can completely change the distinctive expression of the handle, its feeling and handling.
Massive brass handle with a choice of 12 finishes & colours, with a 3-15 year warranty depending on the type of design and the chosen surface finish, with magnetic rosette system, with quality M 2018 mechanics, for use on interior and exterior doors.

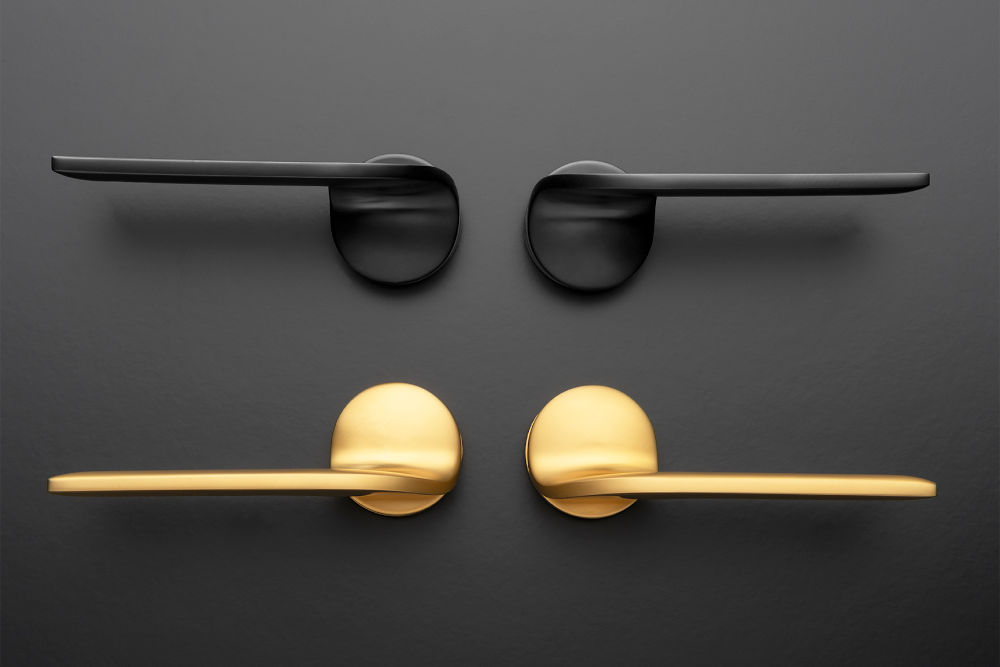

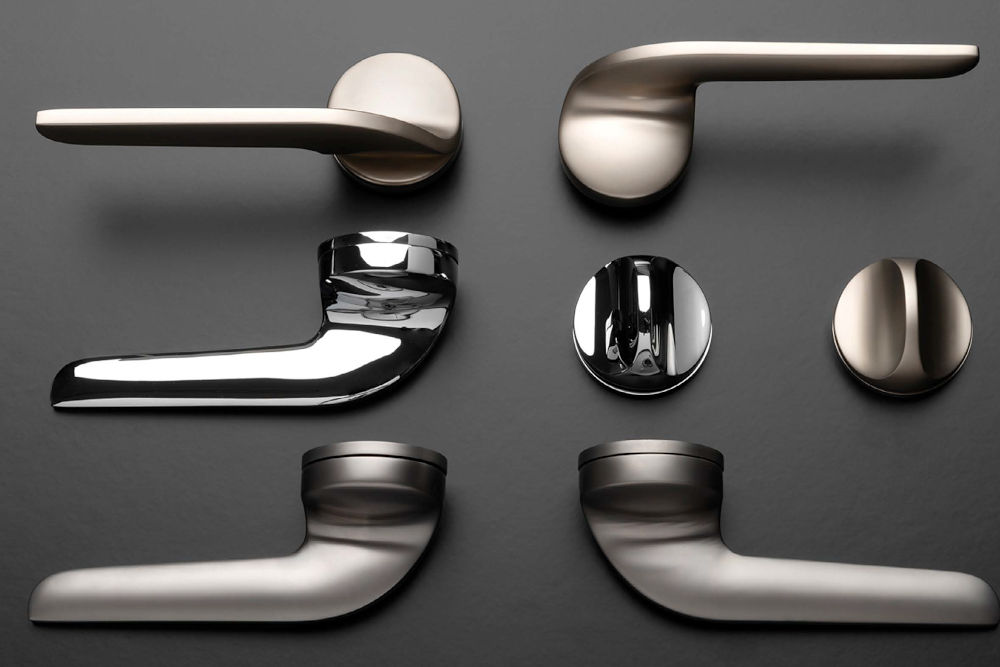

1 handle – 2 shapes

TECHNICAL INFORMATION

MATERIAL

The massive brass, brushed and polished

AVAILABLE SURFACE FINISHES

Matt nickel - brushed, polished chrome, titanium and sprayed baked surfaces

MOUNTING

Drilling with PROFI M&T template, screwing through with screw-together cases system, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.

MECHANICS

M 2018 Magnetic system with return spring, bolt-on bushing system and magnetic rosette

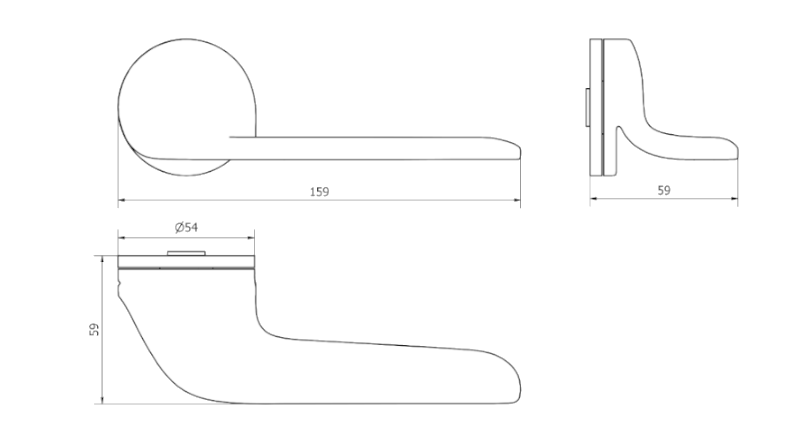

DIMENSIONAL APPLICATIONS

Standard for door thickness 39 - 41 mm, mounting options for door thickness from 39 to 70 mm. Door preparation: drilling a hole diameter of 24 - 25 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years
Surfaces satin nickel and chrome 3 years, titanium surfaces 15 years

APPLICATIONS

According to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

Design set without bottom rosettes, bottom rosettes to be ordered separately, exact mounting material in 4 mm increments according to door thickness included

3D model pro vizualizaci

Door handle Up R (DWG)
Door handle Up L (DWG)

Rosette Up & Down WC EX (DWG)
Rosette Up & Down WC IN (DWG)

Požární odolnost

Order numbers

DOWN	SNi nickel matt brushed	Cr glossy chrome	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt
DOWN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	147254	147285	158168	250688	158199	147315	147346	165364	147377

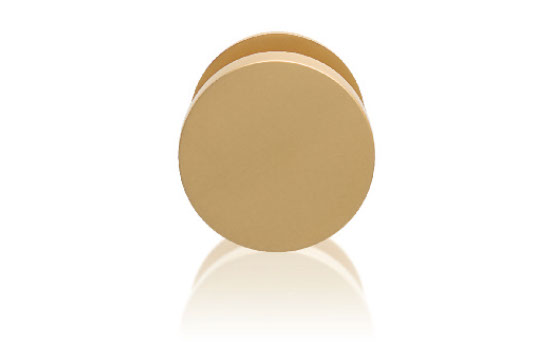

Knob / handle R	147261	147292	158175	250695	158205	147322	147353	165371	147384
Knob / handle L	147278	147308	158182	250701	158212	147339	147360	165388	147391

DOWN	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
DOWN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	165333	147407	165395	165425
Knob / handle R	165340	147414	165401	165432
Knob / handle L	165357	147421	165418	165449

MAGNETIC BOTTOM ROUND ROSETTES	SNi nickel matt brushed	Cr glossy chrome	Cr-K chrome black brushed 3D	TiN-M titanium cooper grinded	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt
MAGNETIC BOTTOM ROUND ROSETTES	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	144901	095654	158229	166705	095678	091601	165494	095685	165456
Cylindrical rosettes	144918	095715	158236	166712	095739	091618	165500	095746	165463

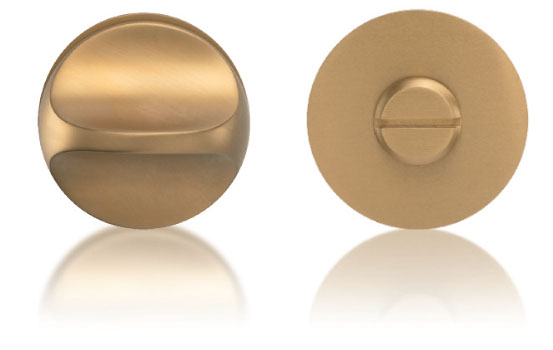

Toilet / bathroom	144840	144857	158243	158281	144864	144871	165517	144888	165470
Blind	144925	101157	158250	166736	104905	104875	165524	104882	165487

MAGNETIC BOTTOM ROUND ROSETTES	TiN-A titanium brass matt	K-industrial	Wh white matt
MAGNETIC BOTTOM ROUND ROSETTES	pair EAN	pair EAN	pair EAN
Key hole rosettes	095661	165531	166743
Cylindrical rosettes	095722	165548	166750
Toilet / bathroom	144895	165555	165593
Blind	104899	165562	166774

Manufactory mechanics M 2018

About the mechanics

Mechanics M 2018 – designed, manufactured and assembled in M&T – with its own patend of the rosette using neodymium magnets and a system of returned spring.

more here

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.
