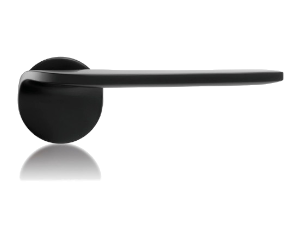

Door handle Up

Door handle UP

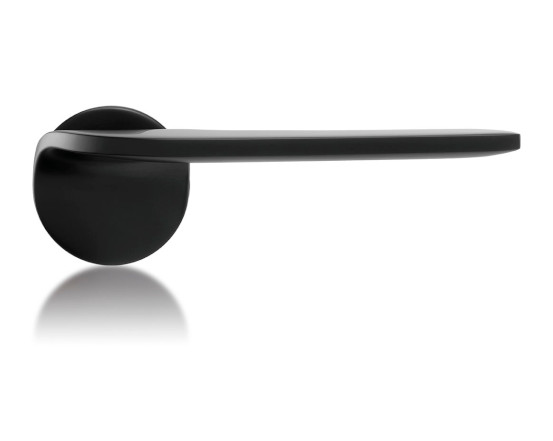

TiN-K titanium black matt Design: Herrmann & Coufal

An exceptional design concept, where the change of position on the door can completely change the distinctive expression of the handle, its feeling and handling.
Massive brass handle with a choice of 11 finishes & colours, with a 3-15 year warranty depending on the type of design and the chosen surface finish, with magnetic rosette system, with quality M 2018 mechanics, for use on interior and exterior doors.
1 handle – 2 shapes

TECHNICAL INFORMATION

MATERIAL

The massive brass, brushed and polished

AVAILABLE SURFACE FINISHES

Matt nickel - brushed, titanium and sprayed baked surfaces

MOUNTING

Drilling with PROFI M&T template, screwing through with screw-together cases system, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.

MECHANICS

M 2018 Magnetic system with return spring, bolt-on bushing system and magnetic rosette

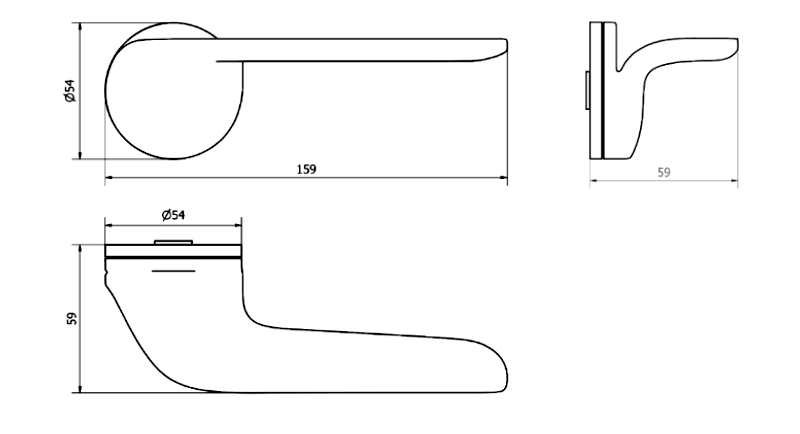

DIMENSIONAL APPLICATIONS

Standard for door thickness 39 - 41 mm, mounting options for door thickness from 39 to 70 mm. Door preparation: drilling a hole diameter of 24 - 25 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years
Surfaces satin nickel and chrome 3 years, titanium surfaces 15 years

APPLICATIONS

According to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

Design set without bottom rosettes, bottom rosettes to be ordered separately, exact mounting material in 4 mm increments according to door thickness included

3D model for visualization

Door handle Up R (DWG)
Door handle Up L (DWG)

Rosette Up & Down WC EX (DWG)
Rosette Up & Down WC IN (DWG)

Požární odolnost

Order numbers

UP	SNi nickel matt brushed	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt
UP	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	147070	158106	274721	158137	147131	147162	165241	147193	165210
Knob / handle R	147087	158113	274738	158144	147148	147179	165258	147209	165227
Knob / handle L	147094	158120	274745	158151	147155	147186	165265	147216	165234

UP	TiN-A titanium brass matt	K-industrial	Wh white matt
UP	pair EAN	pair EAN	pair EAN
Handle / handle	147223	165272	165302
Knob / handle R	147230	165289	165319
Knob / handle L	147247	165296	165326

MAGNETIC BOTTOM ROUND ROSETTES	SNi nickel matt brushed	Cr glossy chrome	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt
MAGNETIC BOTTOM ROUND ROSETTES	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	144901	095654	158229	274752	166705	095678	091601	165494	095685
Cylindrical rosettes	144918	095715	158236	274769	166712	095739	091618	165500	095746
Toilet / bathroom	144840	144857	158243	274776	158281	144864	144871	165517	144888
Blind	144925	101157	158250	274783	166736	104905	104875	165524	104882

MAGNETIC BOTTOM ROUND ROSETTES	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
MAGNETIC BOTTOM ROUND ROSETTES	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	165456	095661	165531	166743
Cylindrical rosettes	165463	095722	165548	166750
Toilet / bathroom	165470	144895	165555	165593
Blind	165487	104899	165562	166774

Manufactory mechanics M 2018

About the mechanics

Mechanics M 2018 – designed, manufactured and assembled in M&T – with its own patend of the rosette using neodymium magnets and a system of returned spring.

more here

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.
