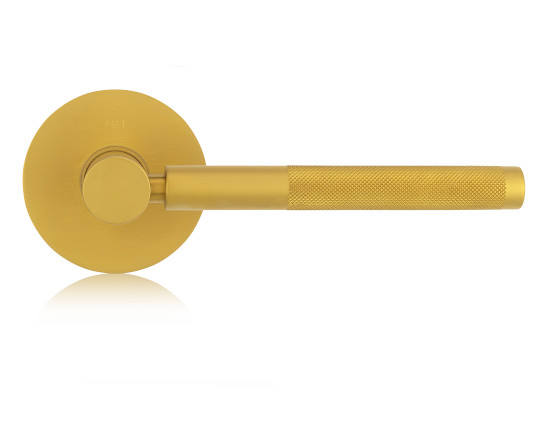

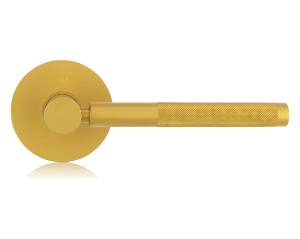

Door handle NOMAD TOUCH

TiN-A titanium mosaz matt Design: Eva Le Peutrec

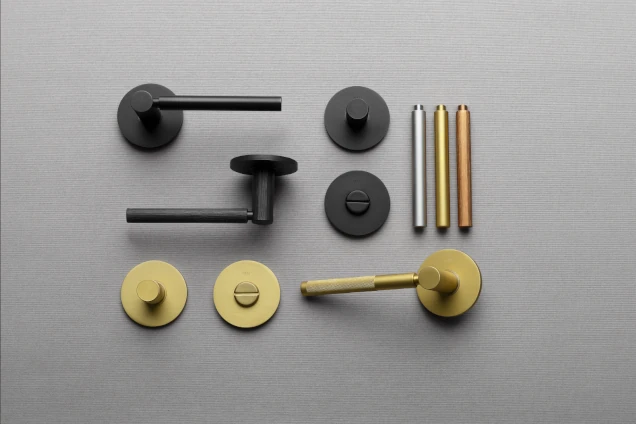

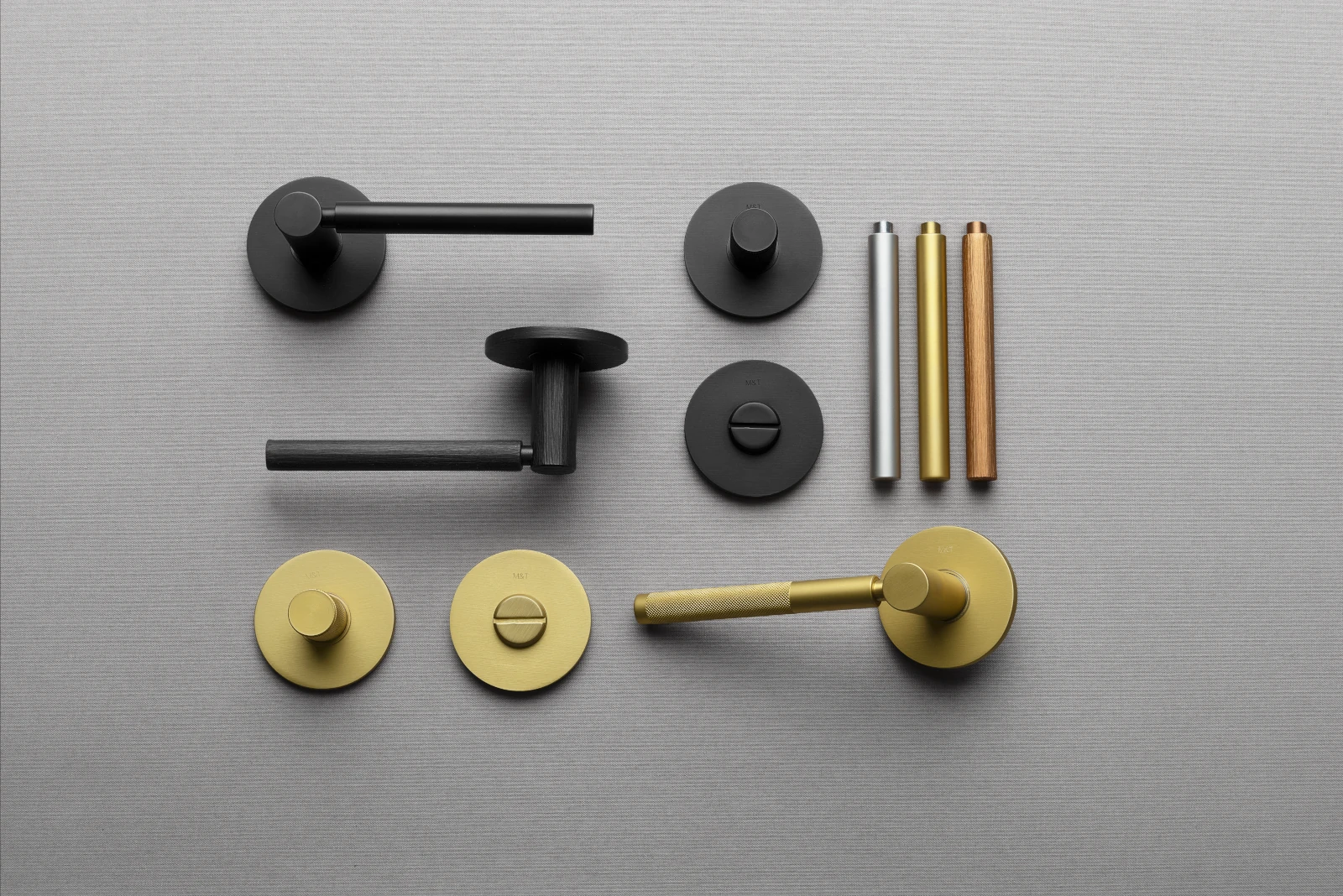

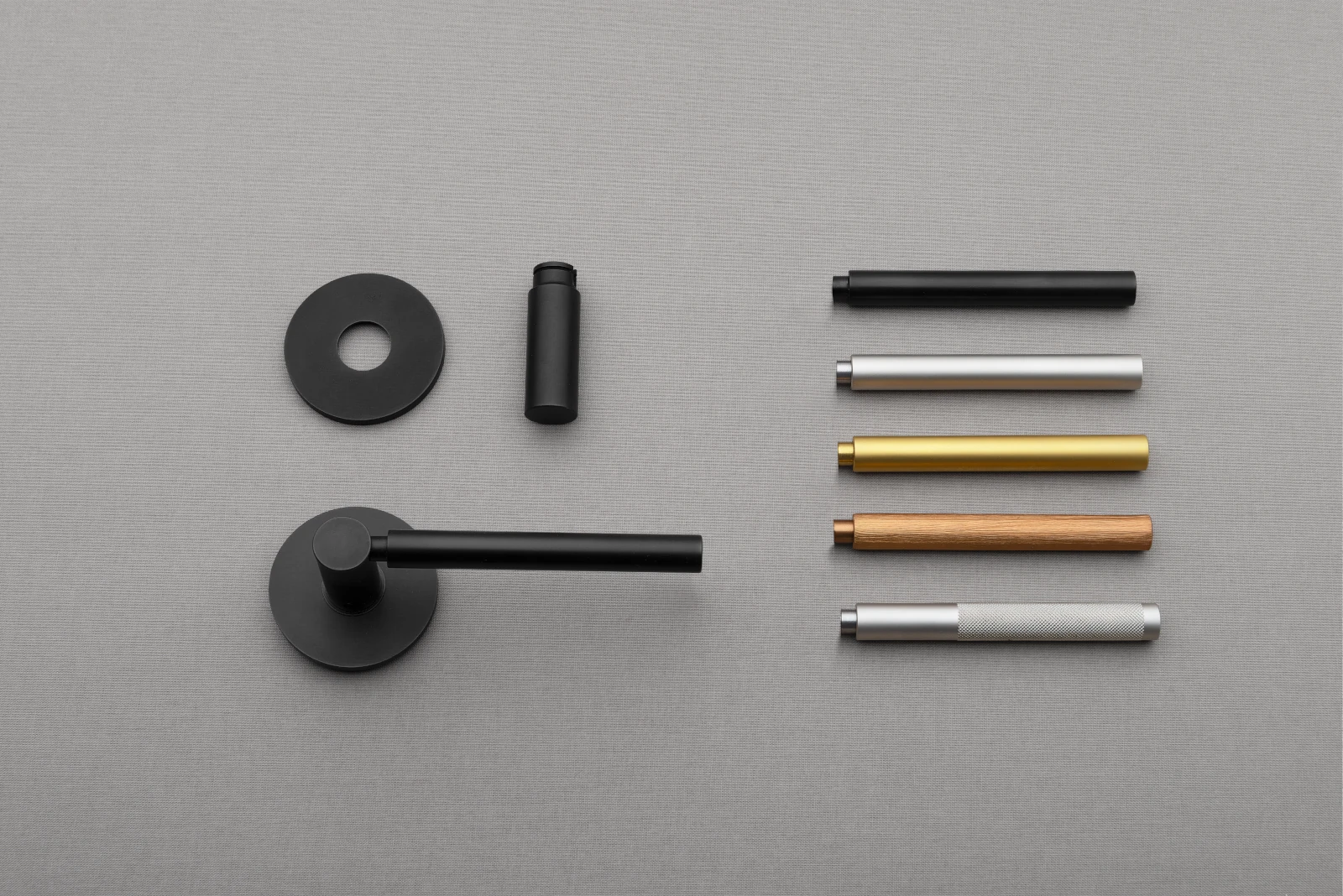

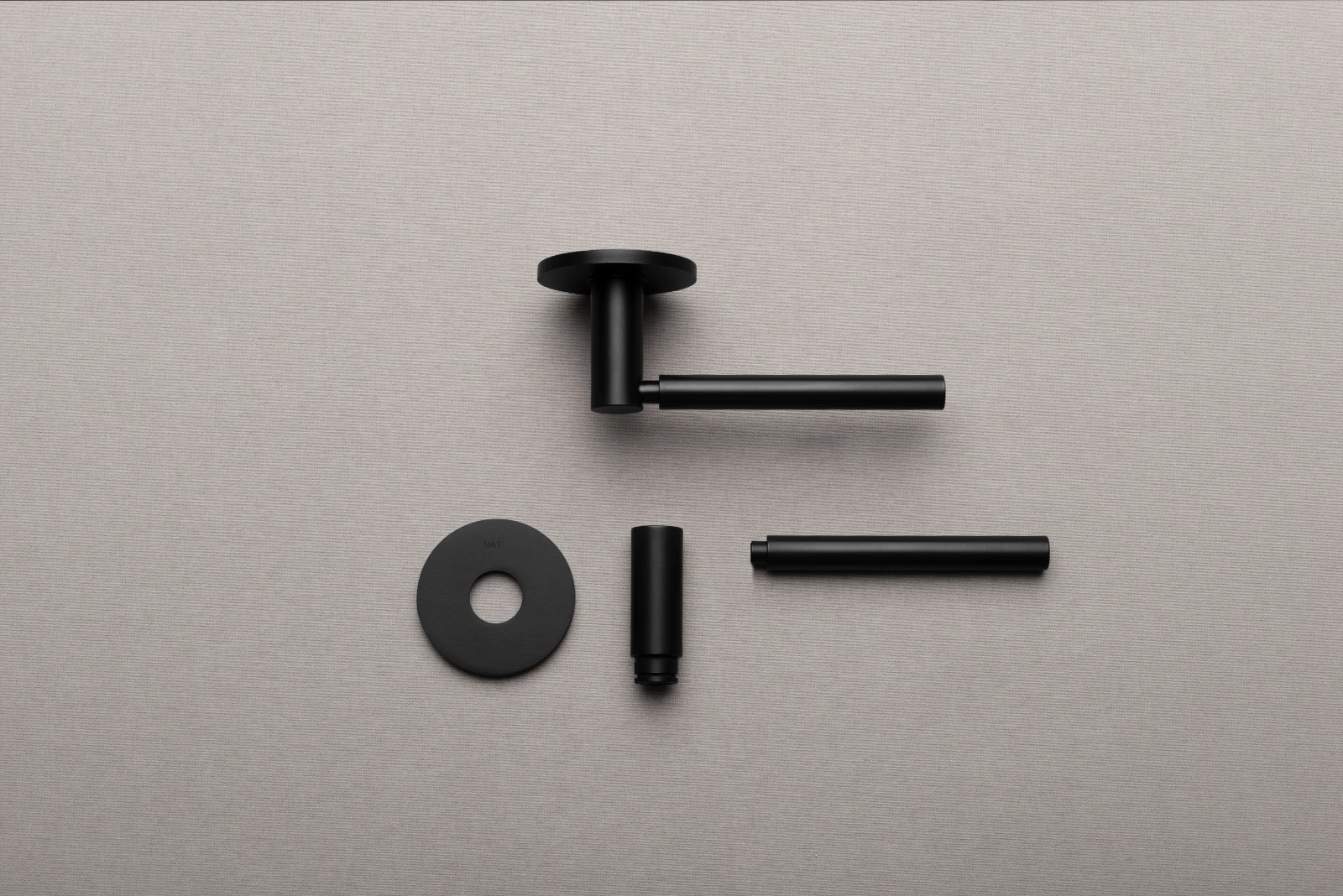

Eva Le Peutrec's unique design was reflected in the minimalist shapes of the Nomad door handle, which boasts really subtle lines. In addition, individual parts can be creatively combined with each other in the case of the handle.

TECHNICAL INFORMATION

MATERIAL

The massive brass, brushed and polished

AVAILABLE SURFACE FINISHES

Matt nickel - brushed, titanium and sprayed baked surfaces

MOUNTING

Drilling with PROFI M&T template, screwing through with screw-together cases system, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.

MECHANICS

M 2018 Magnetic system with return spring, bolt-on bushing system and magnetic rosette

DIMENSIONAL APPLICATIONS

Standard for door thickness 38 - 42 mm, mounting options for door thickness from 38 to 70 mm. Door preparation: drilling a hole diameter of 24 - 25 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years
Surfaces satin nickel and chrome 3 years, titanium surfaces 15 years

APPLICATIONS

According to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

Design set without bottom rosettes, bottom rosettes to be ordered separately, exact mounting material in 4 mm increments according to door thickness included

3D model for visualization

Door handle Nomad (DWG)

Rosette Nomad WC EX (DWG)
Rosette Nomad WC IN (DWG)

Požární odolnost

Order numbers

NOMAD TOUCH	SNi nickel matt	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt
NOMAD TOUCH	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	166460	168044	166583	168075	166552	166521	166491

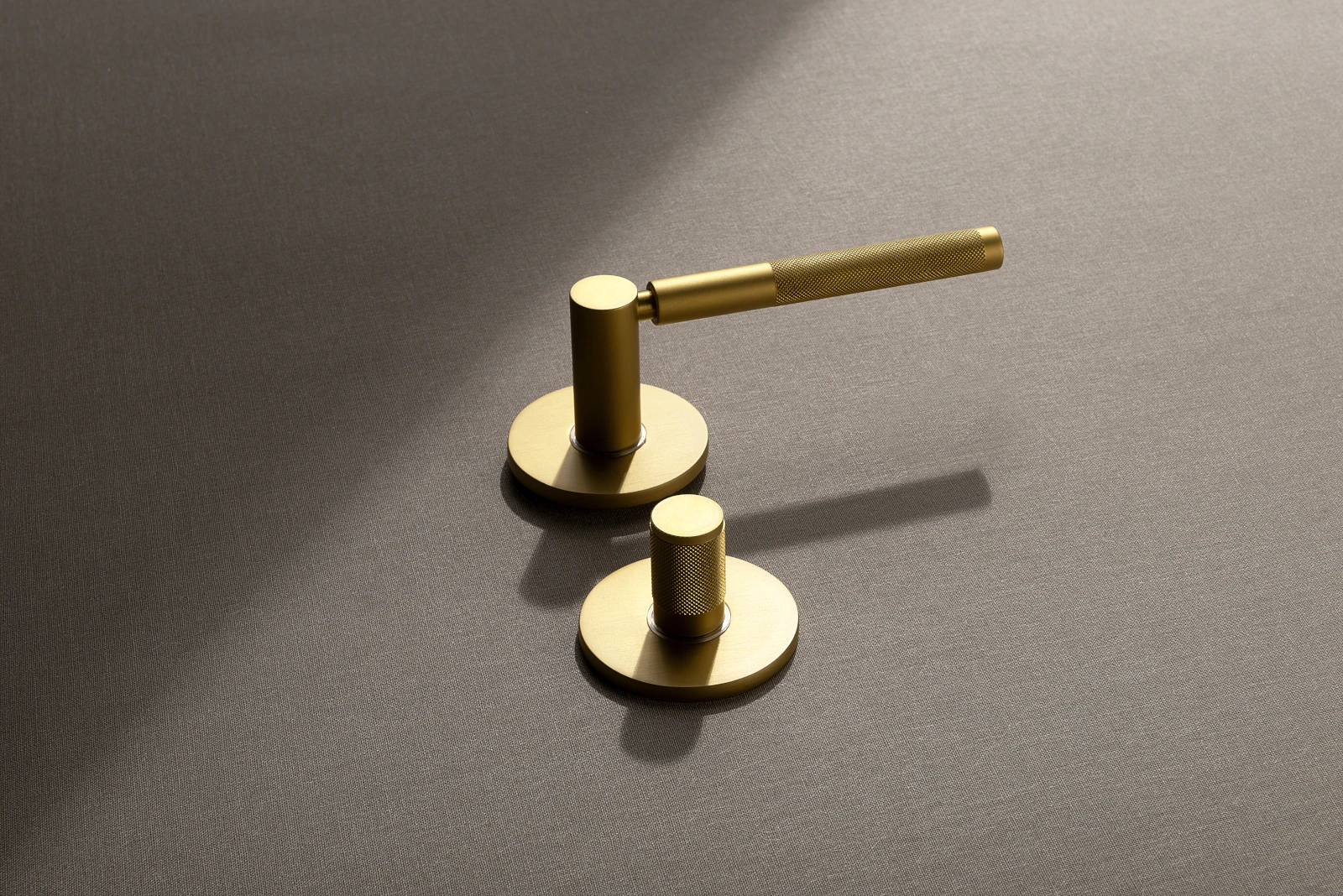

Knob / handle R	166477	168051	166590	168082	166569	166538	166507
Knob / handle L	166484	168068	166606	168099	166576	166545	166514

MAGNETIC BOTTOM ROUND ROSETTES	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Cr-K chrome black brushed 3D	TiN-M titanium cooper grinded	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt
MAGNETIC BOTTOM ROUND ROSETTES	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	095647	144901	095654	101263	166705	095678	091601	165494	095685
Cylindrical rosettes	095708	144918	095715	101270	166712	095739	091618	165500	095746
Toilet / bathroom	166613	243888	166620	166637	166729	166644	166651	166668	166675
Blind	101140	144925	101157	101164	166736	104905	104875	165524	104882

MAGNETIC BOTTOM ROUND ROSETTES	TiN-S titanum bronze matt	TiN-A titanium brass matt	Wh white matt
MAGNETIC BOTTOM ROUND ROSETTES	pair EAN	pair EAN	pair EAN
Key hole rosettes	165456	095661	166743
Cylindrical rosettes	165463	095722	166750
Toilet / bathroom	166682	166699	166767
Blind	165487	104899	166774

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2018

About the mechanics

Mechanics M 2018 – designed, manufactured and assembled in M&T – with its own patend of the rosette using neodymium magnets and a system of returned spring.
