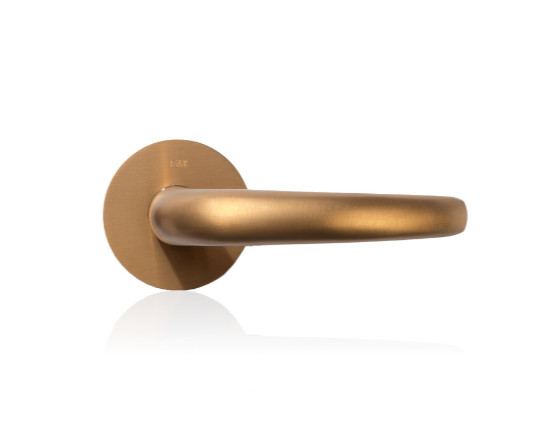

Door handle Iconic small

TiN-A titanium brass matt Design: Bára Škorpilová

A timeless, simple design that is unmistakable on the door. The long or short Iconic small version can be chosen for use on all door variants.

Solid stainless steel handle with a choice of 9 finishes & colours with a 5-15 year warranty Depending on the type of design, with magnetic rosette system, M 2018 quality mechanics, for use on interior and exterior doors.

Technical information

MATERIAL

Solid stainless steel

AVAILABLE SURFACES

Stainless steel ground, titanium surfaces, sputtered surfaces

MOUNTING

Drilling with M&T PROFI template, screwed with screw sleeves through the lock, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.

MECHANICS

M 2018 Magnetic system with return spring, screw sleeve system and magnetic rosette

DIMENSIONAL APPLICATIONS

Standard for door thickness 38,5 - 44; mm, mounting options for door thicknesses 38.5 - 124 mm, door preparation: drilling hole diameter 24 - 25 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

Mechanics lifetime free service
Stainless steel surfaces 5 years, titanium surfaces for 15 years. black mat structured 5 years.

APPLICATIONS

According to the type of surface for the interior and exterior doors, for door weight up to 60 kg
the panic variant comes with mechanics M 2000

SET

Design set without bottom rosettes, bottom rosettes to be ordered separately

3D model for visualisation

Handle Iconic (DWG)
Knob Iconic (DWG)

Požární odolnost

Order numbers

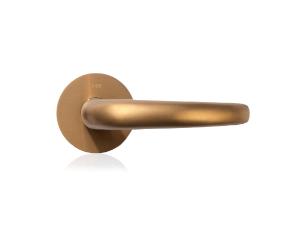

ICONIC SMALL	NRz stainless steel - brushed	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt
ICONIC SMALL	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	183726	183757	183788	183818	183849	183870	183900

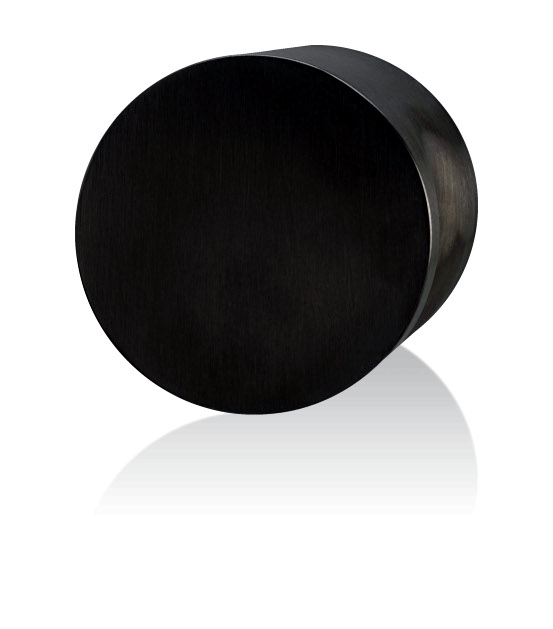

Knob / handle R	183733	183764	183795	183825	183856	183887	183917
Knob / handle L	183740	183771	183801	183832	183863	183894	183924
handle/handle, panic design	183931	183948	183955	183962	183979	183986	183993

MAGNETIC BOTTOM ROUND ROSETTES	NRz stainless steel - brushed	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
MAGNETIC BOTTOM ROUND ROSETTES	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	176520	095678	091601	165494	095685	165456	095661	165531	166743
Cylindrical rosettes	176537	095739	091618	165500	095746	165463	095722	165548	166750

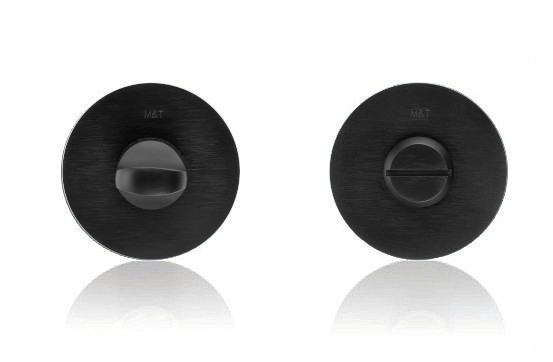

Toilet / bathroom	176544	095791	091625	166125	095807	176650	095784	166118	187076
Blind	176551	104905	104875	165524	104882	165487	104899	165562	166774

Spodní rozety kulaté pro panikové provedení

BOTTOM ROUND ROSETTES	Object stainless steel NRz		Object titanium black TiN-K
BOTTOM ROUND ROSETTES	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Cylindrical rosettes	176605	158427	037333	158427	158427

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2018

About the mechanics

Mechanics M 2018 – designed, manufactured and assembled in M&T – with its own patend of the rosette using neodymium magnets and a system of returned spring.
