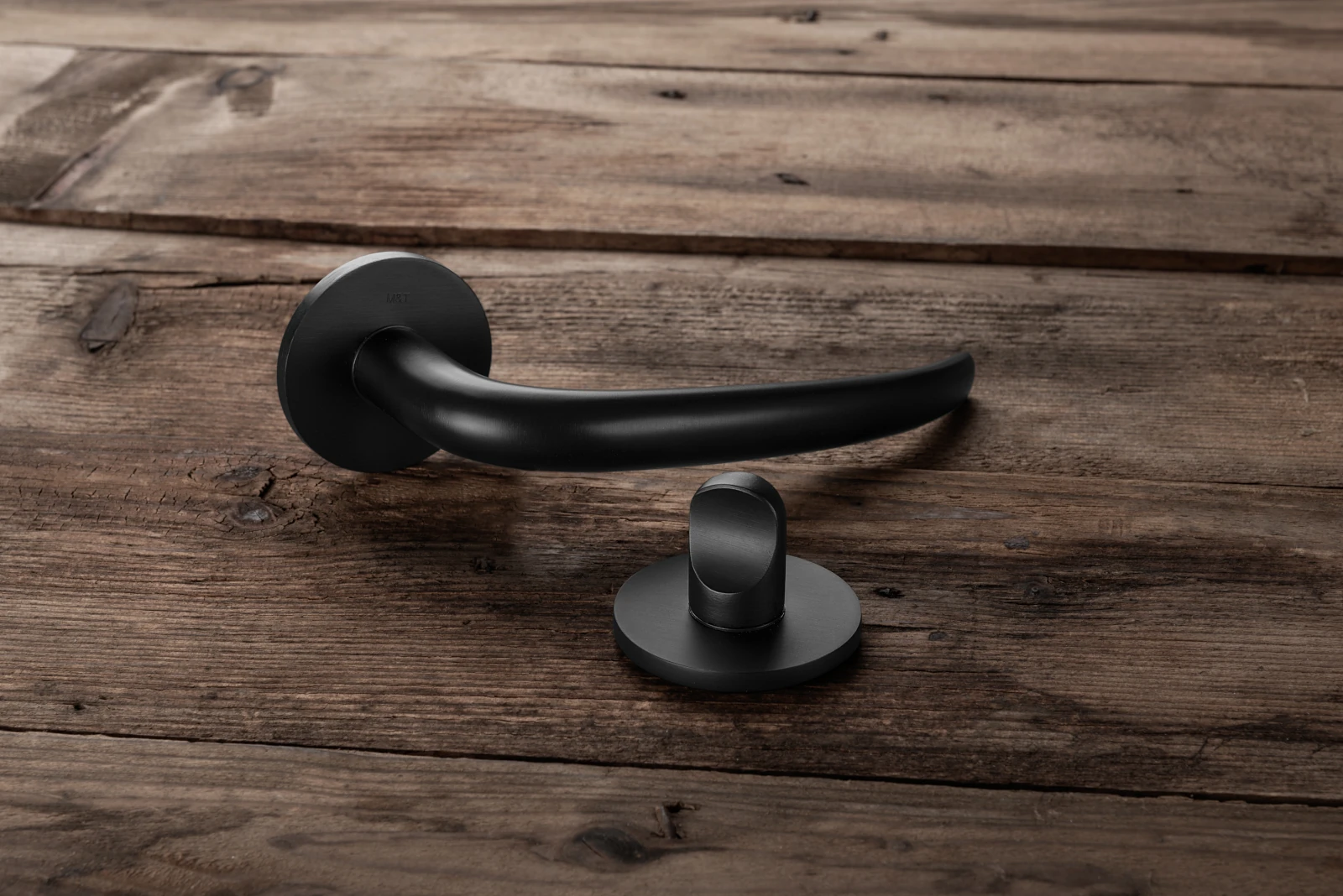

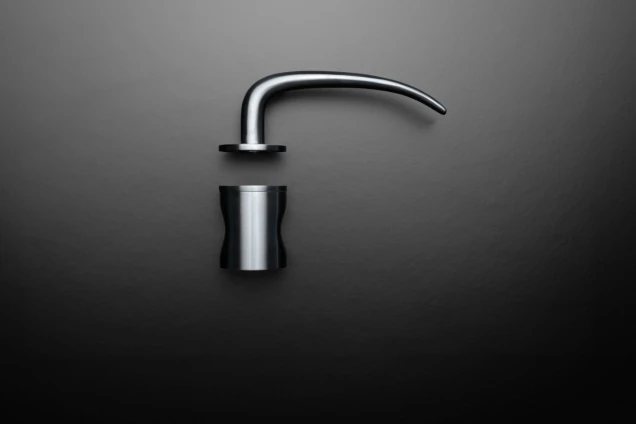

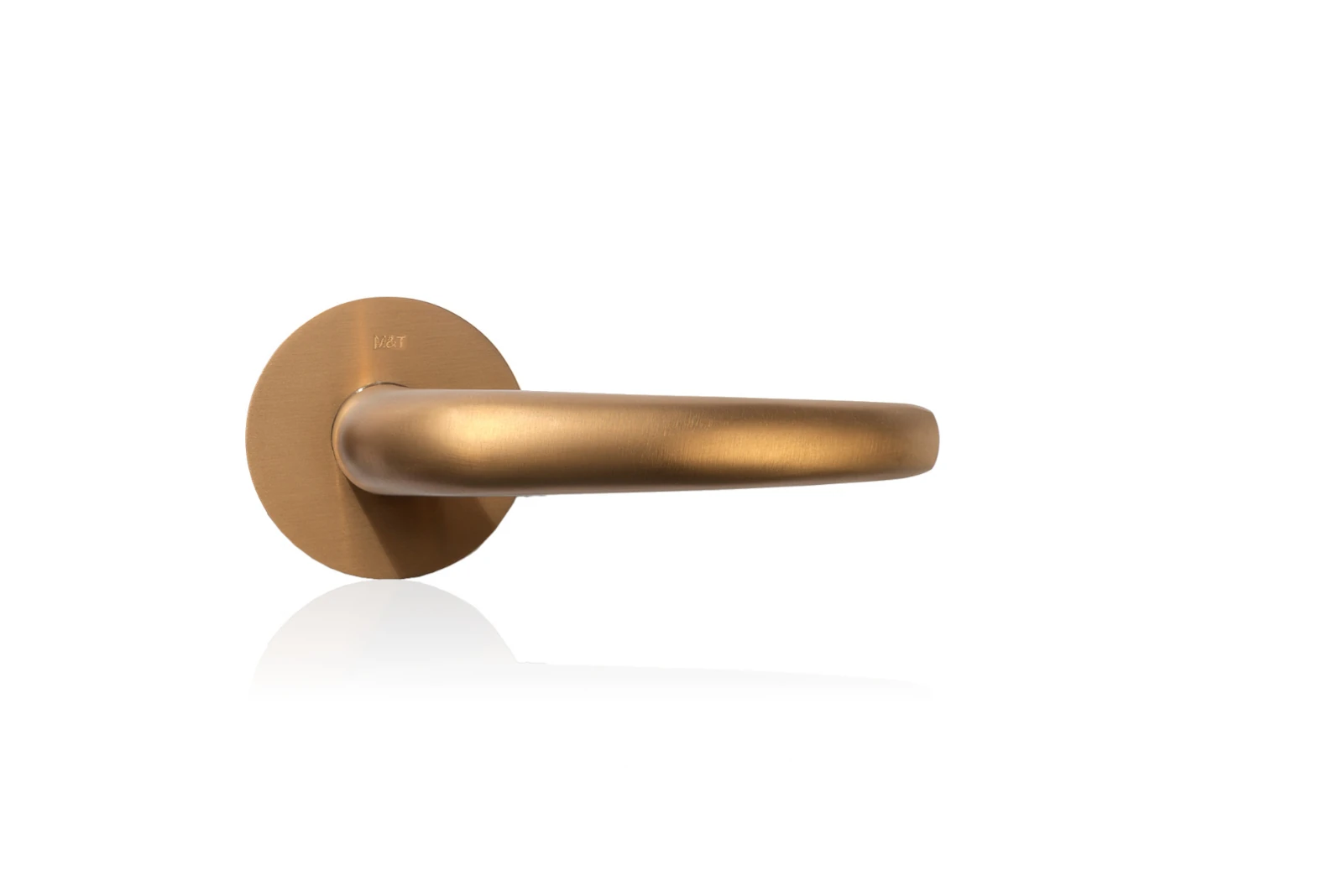

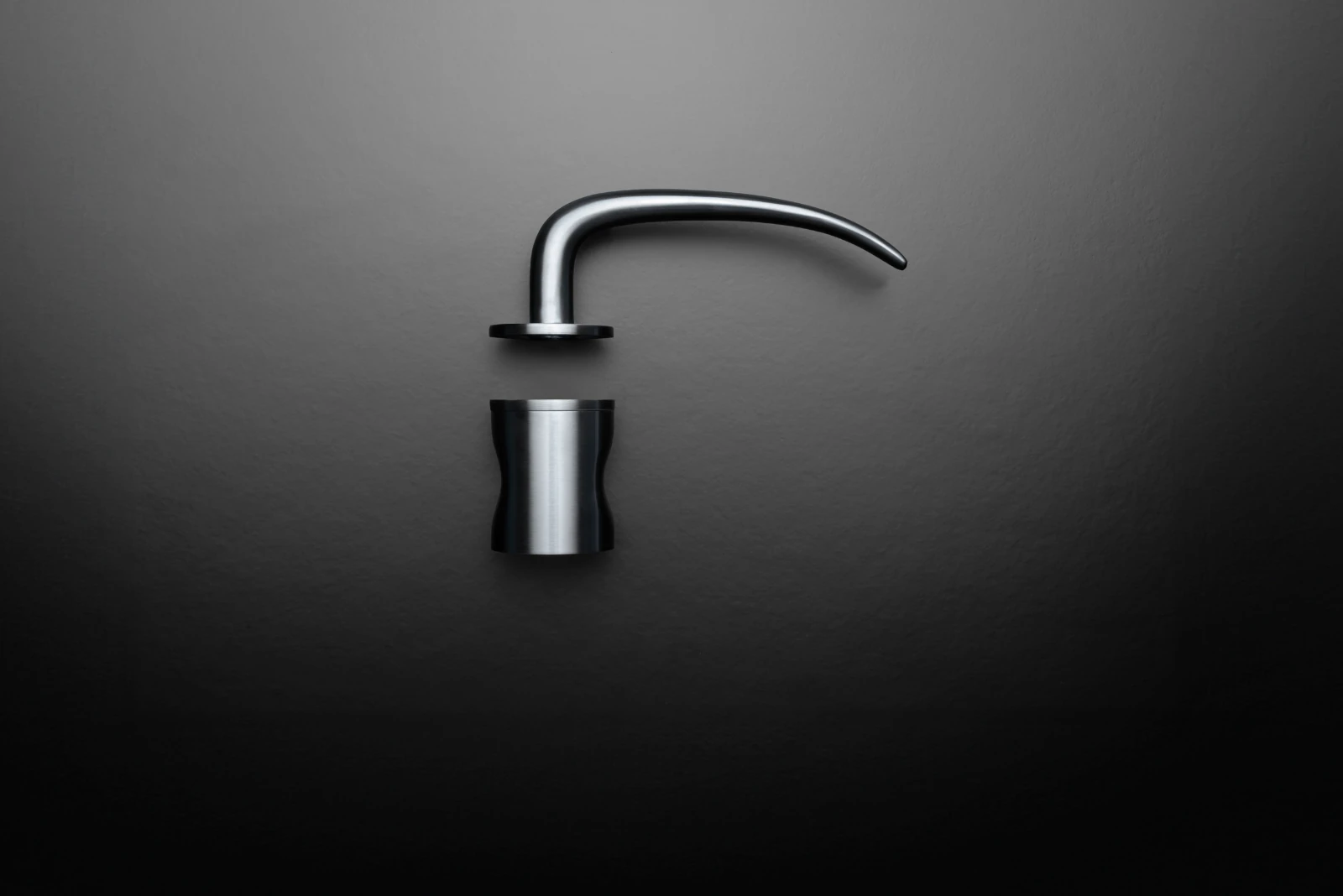

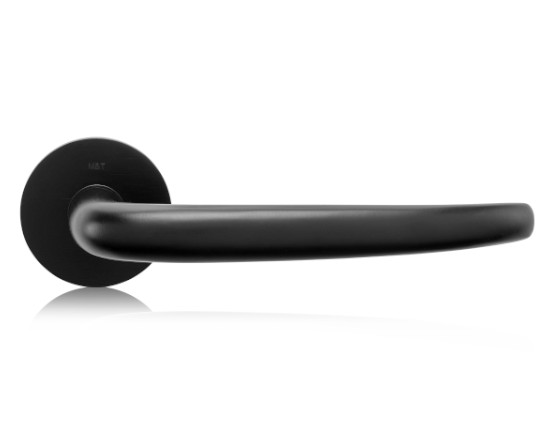

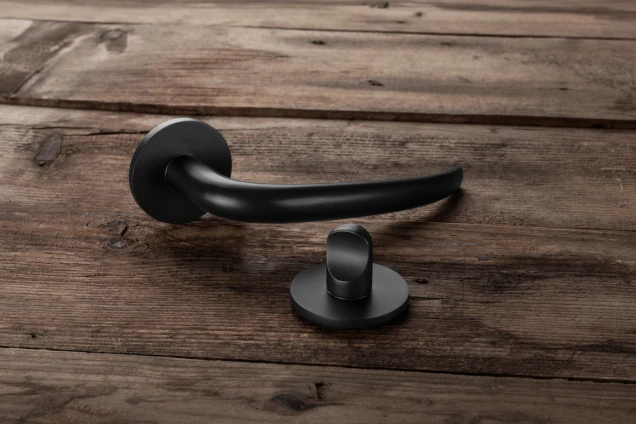

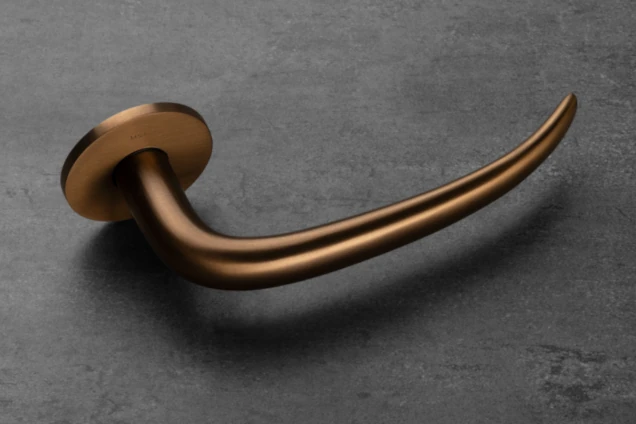

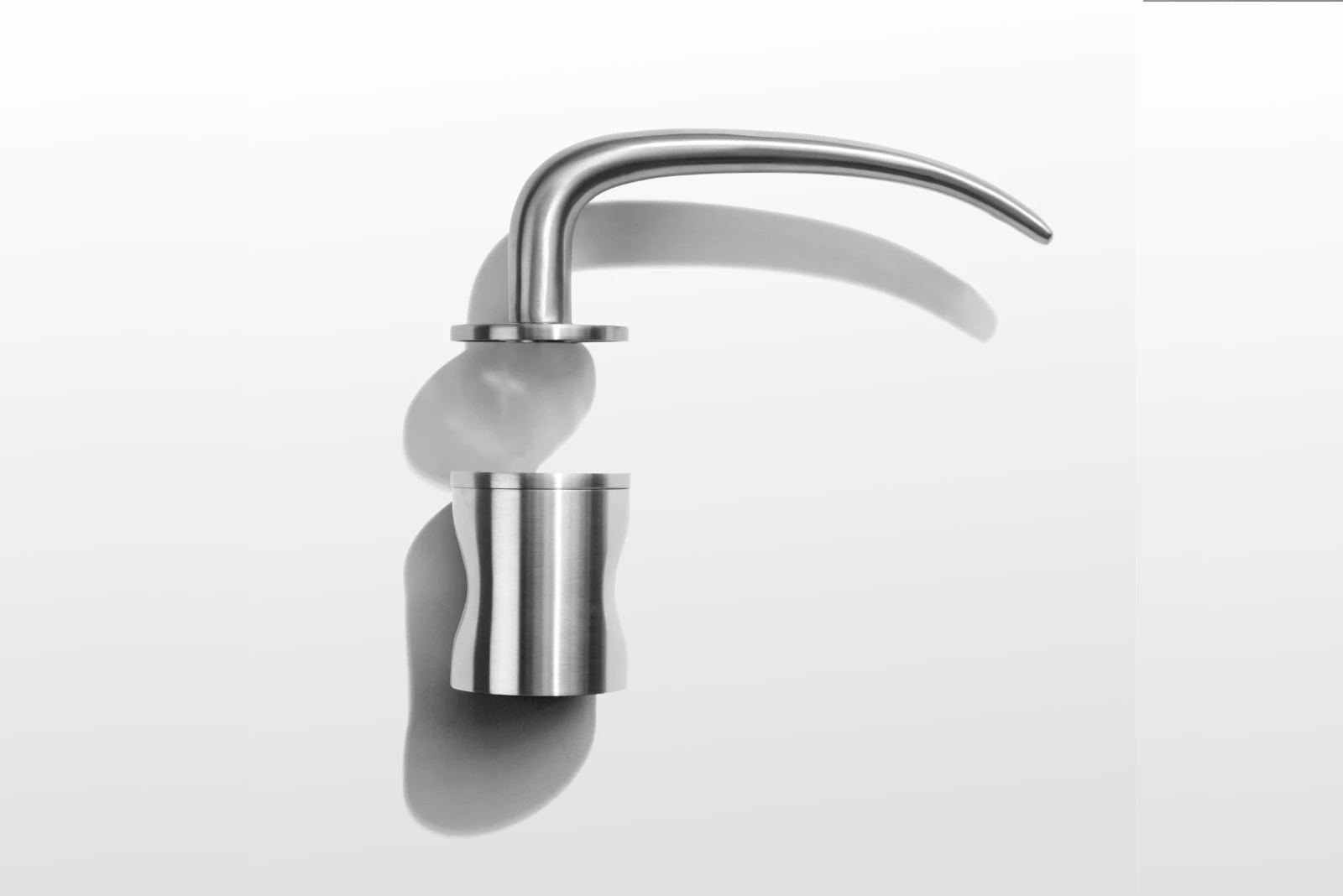

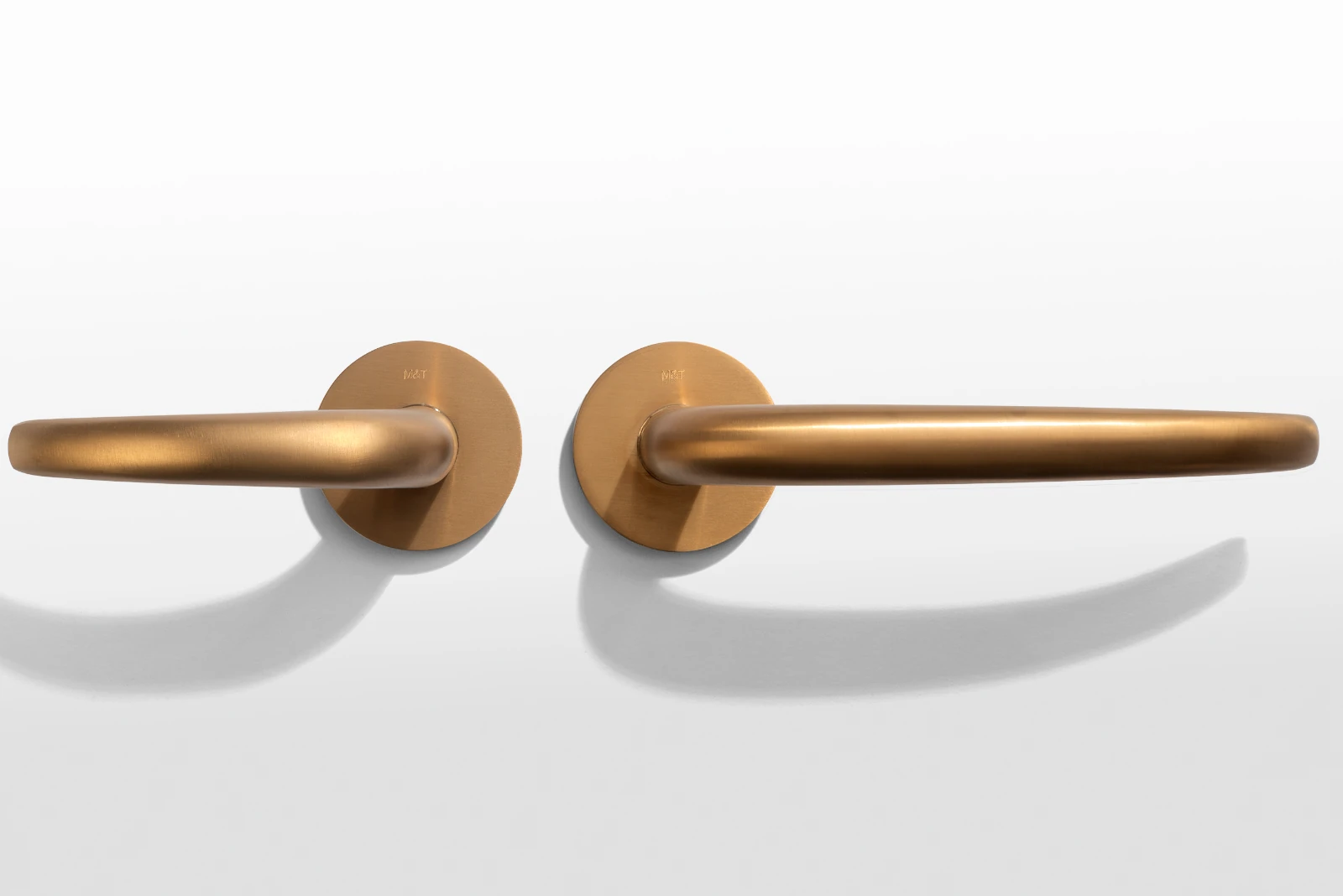

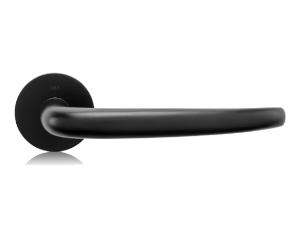

Door handle Iconic

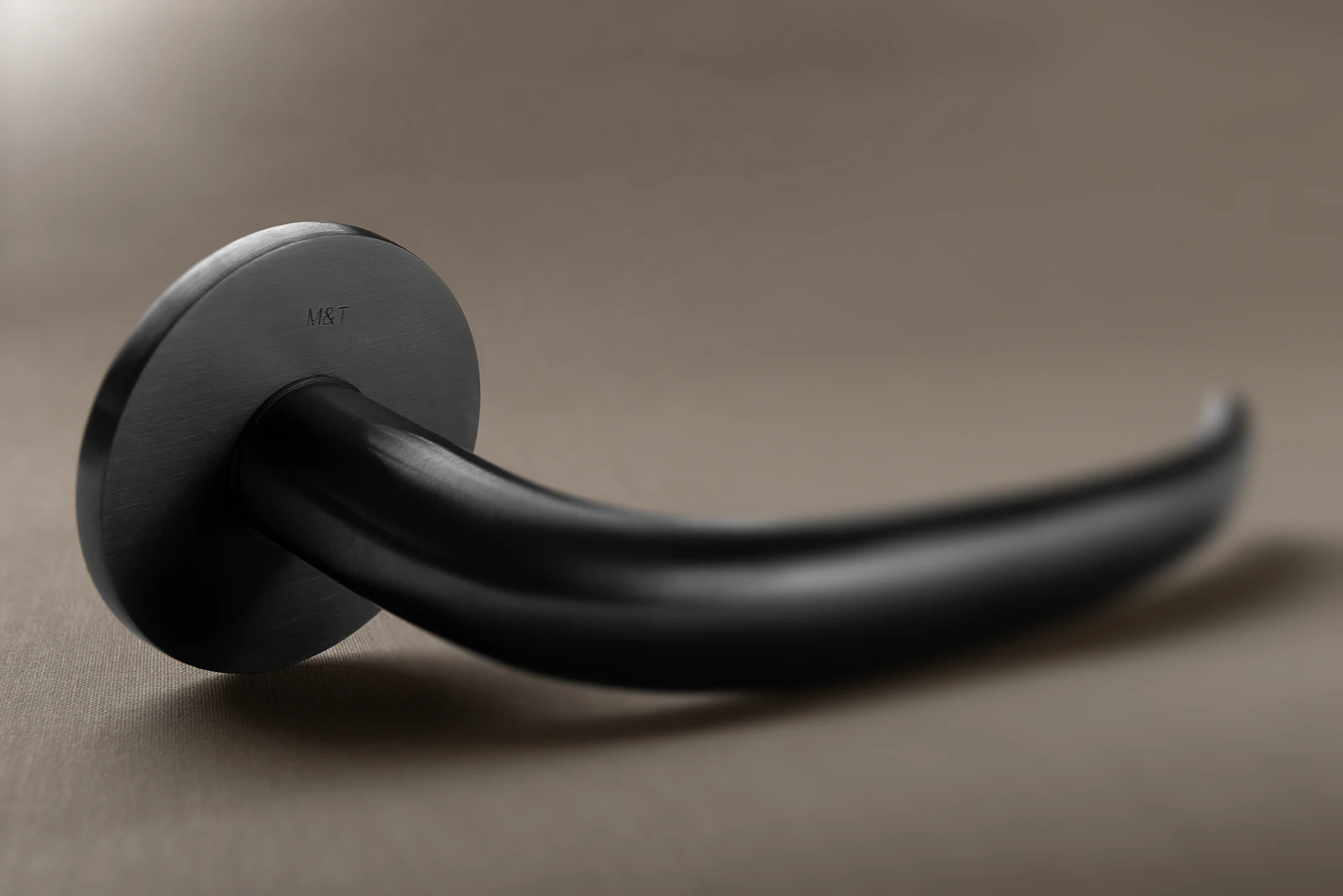

TiN-K titanium black matt Design: Bára Škorpilová



A timeless, simple design that is unmistakable on the door. The long or short Iconic small version can be chosen for use on all door variants.

Solid stainless steel handle with a choice of 9 finishes & colours with a 5-15 year warranty Depending on the type of design, with magnetic rosette system, M 2018 quality mechanics, for use on interior and exterior doors.

Door handle Iconic
other models

HANDLE
SURFACES

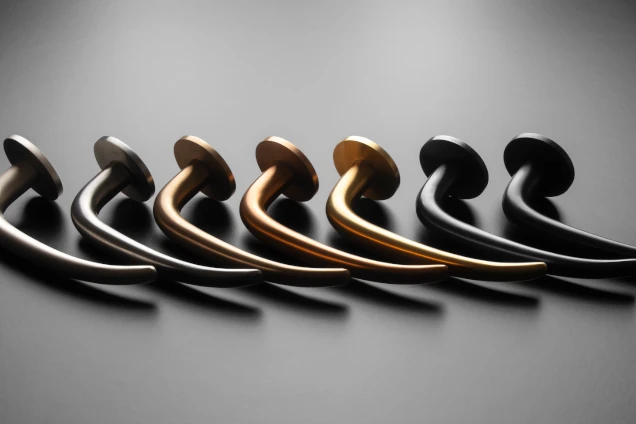

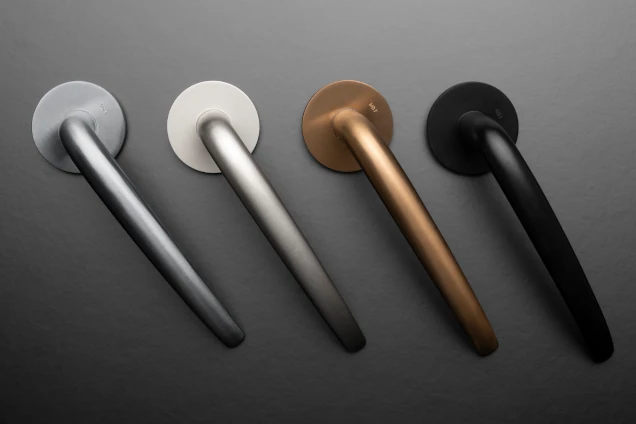

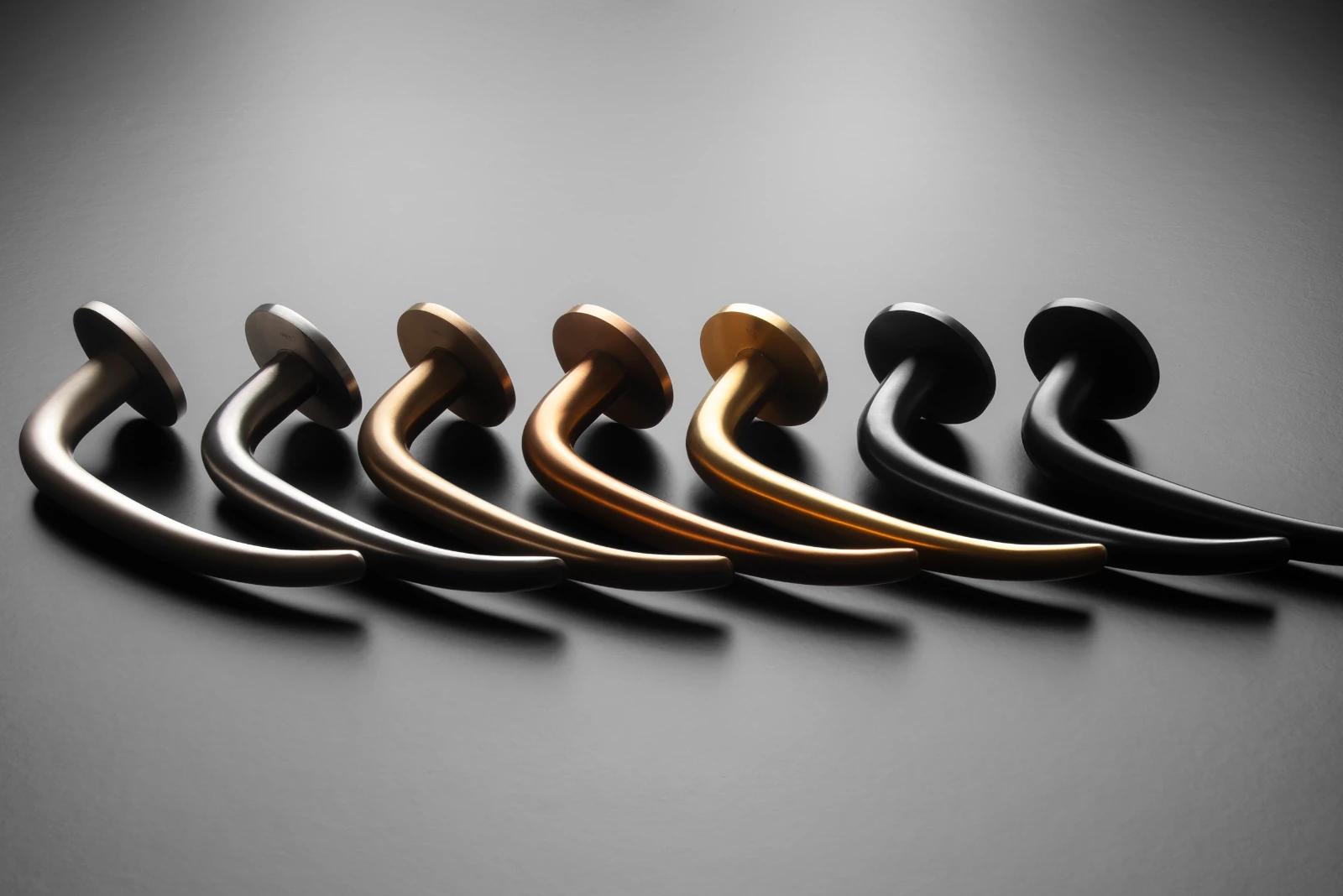

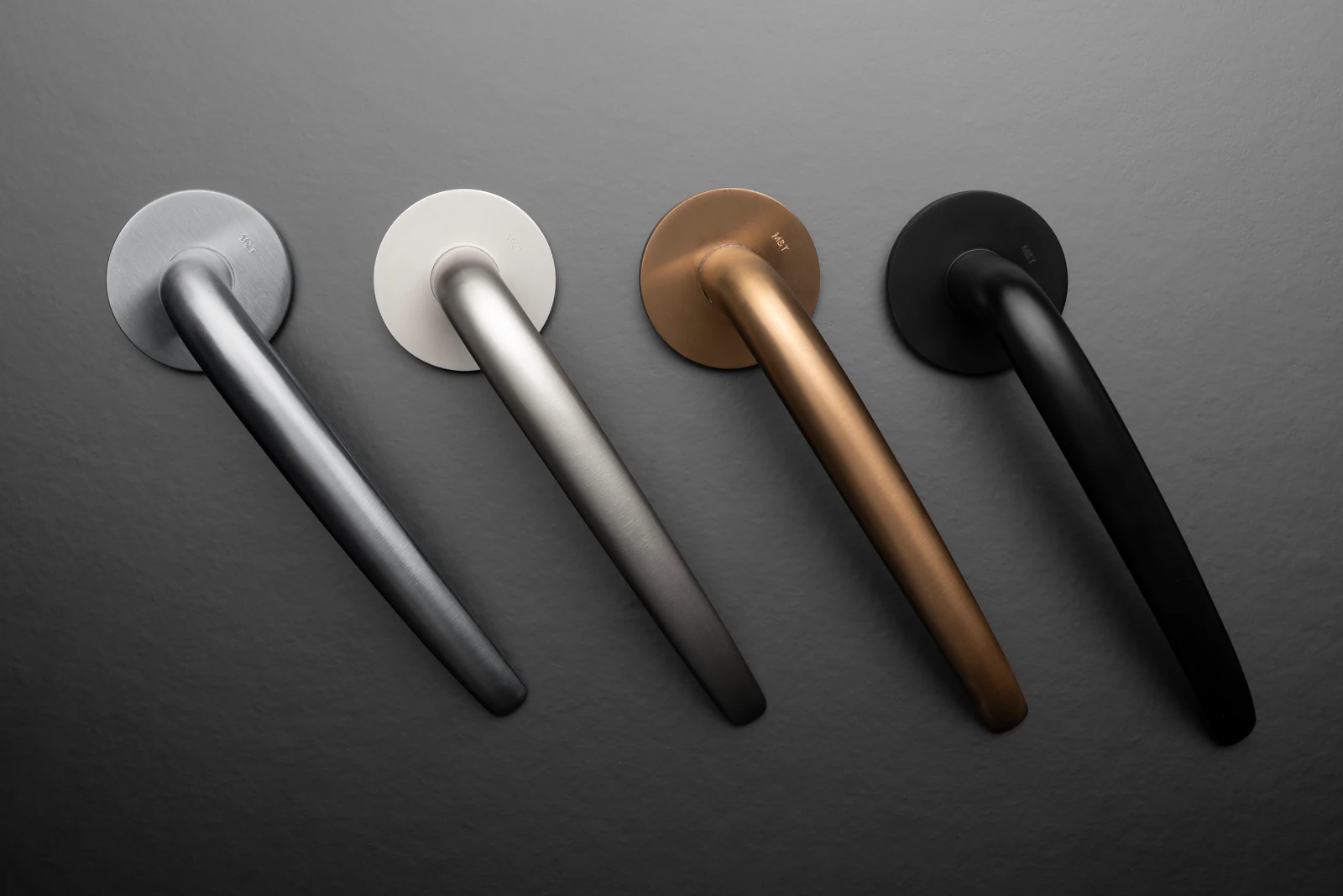

9 surfaces

NRz
NRz
Tin-C
TiN-C
Tin-K
TiN-K
Tin-G
TiN-G
Tin-B
TiN-B
Tin-S
TiN-S
Tin-A
TiN-A
K-industrial
K-industrial
Wh
Wh
more about the surface
zoom
zoom
zoom
zoom
zoom
zoom
zoom
zoom
zoom

One design - the whole project

Technical information

MATERIAL
  • Solid stainless steel
AVAILABLE SURFACES
  • Stainless steel ground, titanium surfaces, sputtered surfaces
MOUNTING
  • Drilling with M&T PROFI template, screwed with screw sleeves through the lock, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.
MECHANICS
  • M 2018 Magnetic system with return spring, screw sleeve system and magnetic rosette
DIMENSIONAL APPLICATIONS
  • Standard for door thickness 38,5 - 44; mm, mounting options for door thicknesses 38.5 - 124 mm, door preparation: drilling hole diameter 24 - 25 mm
ACCESSORIES
  • The package includes:
    • spindle
    • set screw
    • glue gel
    • fasteners
    • assembly instructions
    • warranty card
WARRANTY
  • Mechanics lifetime free service
  • Stainless steel surfaces 5 years, titanium surfaces for 15 years. black mat structured 5 years.
APPLICATIONS
  • According to the type of surface for the interior and exterior doors, for door weight up to 60 kg
  • the panic variant comes with mechanics M 2000
SET
  • Design set without bottom rosettes, bottom rosettes to be ordered separately
Dimensions

Dimensions
Dimensions

3D model for visualisation

Handle Iconic (DWG)

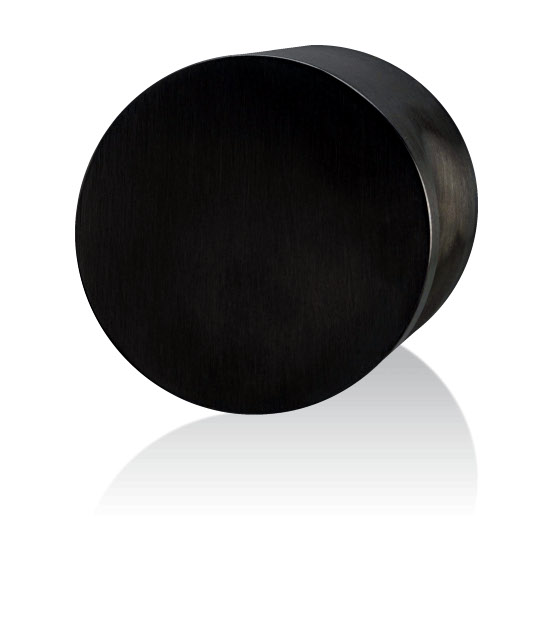

Knob Iconic (DWG)

Order numbers

ICONIC

ICONIC

Povrch kliky
NRz
stainless steel - brushed		Povrch kliky
TiN-C
titanium chrome matt		Povrch kliky
TiN-K
titanium black matt		Povrch kliky
TiN-G
titanium graphite matt		Povrch kliky
TiN-B
titanium brown matt		Povrch kliky
TiN-S
titanum bronze matt		Povrch kliky
TiN-A
titanium brass matt		Povrch kliky
K-industrial		Povrch kliky
Wh
white matt
pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN
Handle / handle158304176407158335176438176469176490158366186994187038
Knob / handle R158311176414158342176445176476176506158373187007187045
Knob / handle L158328176421158359176452176483176513158380187014187052
handle/handle, panic design158397176568158403176575176582176599158410187021187069

MAGNETIC BOTTOM ROUND ROSETTES

MAGNETIC BOTTOM ROUND ROSETTES

Povrch kliky
NRz
stainless steel - brushed		Povrch kliky
TiN-C
titanium chrome matt		Povrch kliky
TiN-K
titanium black matt		Povrch kliky
TiN-G
titanium graphite matt		Povrch kliky
TiN-B
titanium brown matt		Povrch kliky
TiN-S
titanum bronze matt		Povrch kliky
TiN-A
titanium brass matt		Povrch kliky
K-industrial		Povrch kliky
Wh
white matt
pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN
Key hole rosettes176520095678091601165494095685165456095661165531166743
Cylindrical rosettes176537095739091618165500095746165463095722165548166750

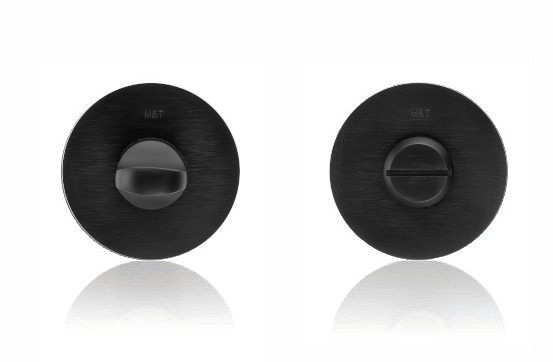

Toilet / bathroom176544095791091625166125095807176650095784166118187076
Blind176551104905104875165524104882165487104899165562166774

Bottom rosettes round for panic design

BOTTOM ROUND ROSETTES

BOTTOM ROUND ROSETTES

Povrch kliky
Object
stainless steel NRz		Povrch kliky
Povrch kliky
Object
titanium black TiN-K		Povrch kliky
Povrch kliky
pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN
Cylindrical rosettes176605158427037333158427158427

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2018

Manufakturní mechanika M 2018

About the mechanics

Mechanics M 2018 – designed, manufactured and assembled in M&T – with its own patend of the rosette using neodymium magnets and a system of returned spring.
