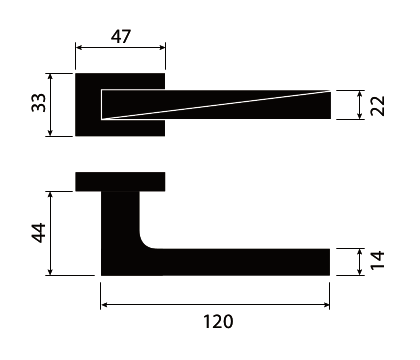

Mini-V

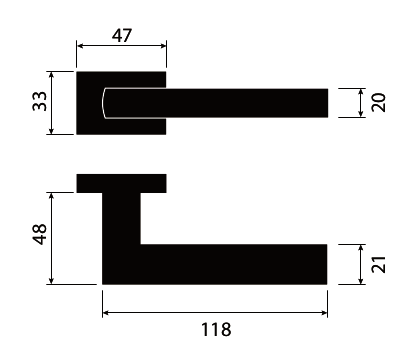

Mini-C

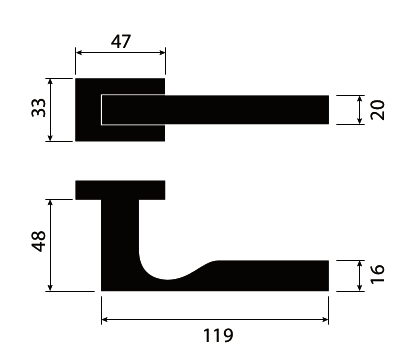

Mini-S

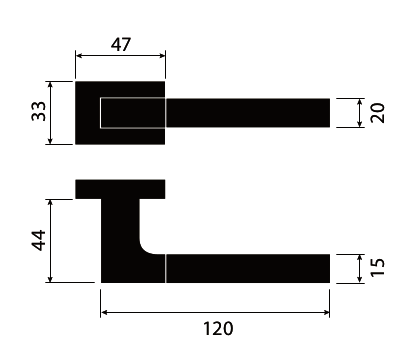

Mini-T

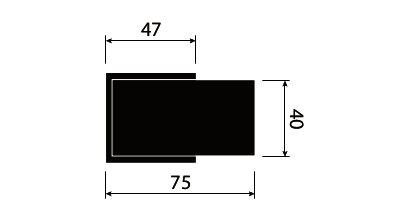

Hand grip with square rosette 47×47 mm
Rosette Mini
Square rosette 47×47 mm
close
Holes for mounting of rosette fitting
without key rosettes
Holes for mounting of rosette fitting
with key hole or cylindrical rosette
Holes for mounting of rosette fitting
with WC / bathroom rosette
close
close
close

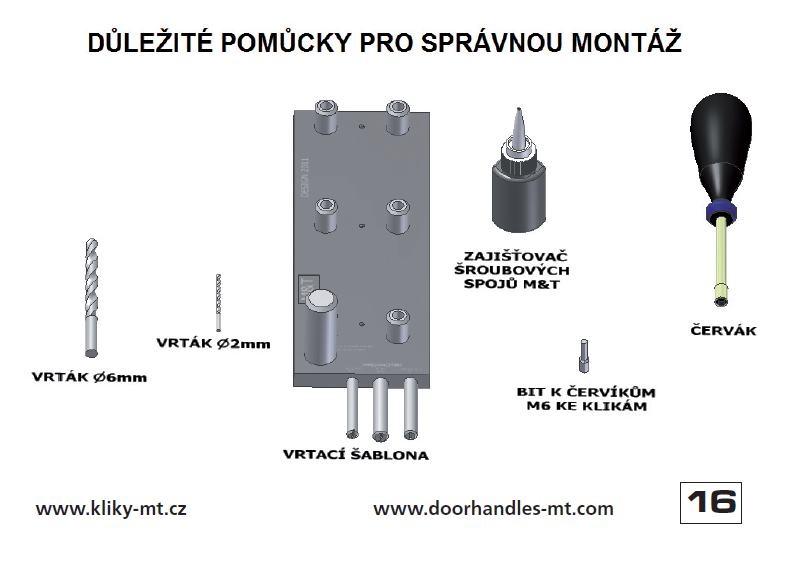

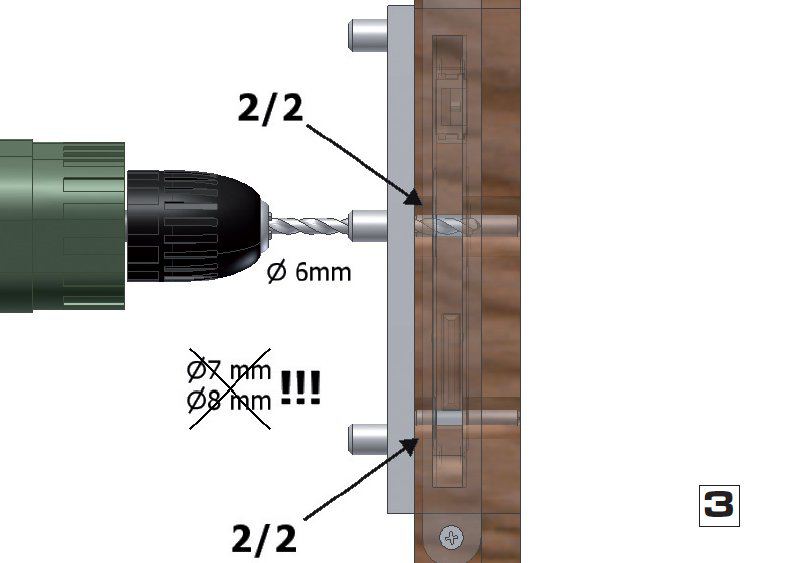

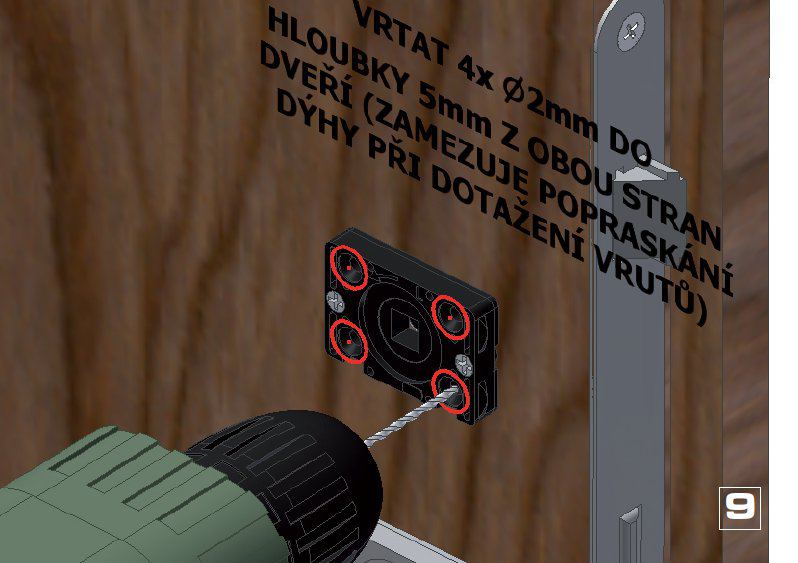

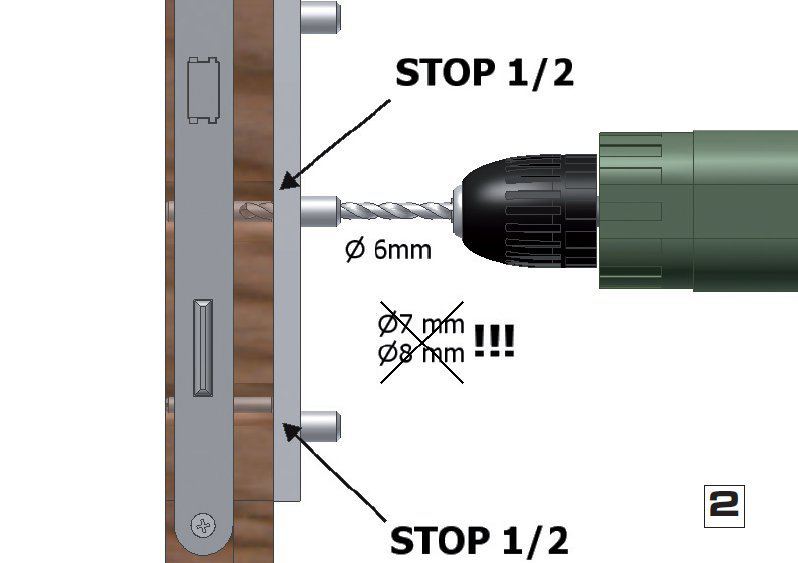

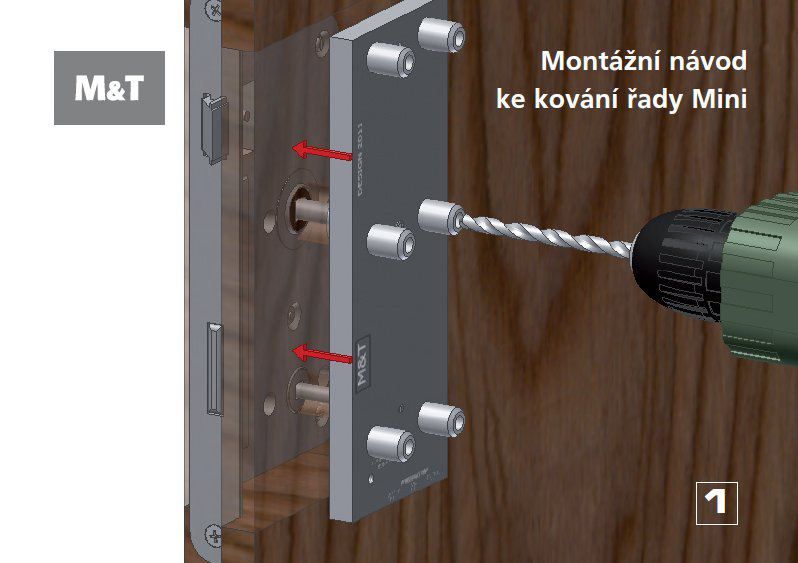

The basis is a professional assembly with our profi drilling template. Thanks this drilling template, you drill precise holes ø 7 mm into doors, where the two halves of the fittings are firmly fixed through the lock and prevent later release.
Do not underestimate this recommendation and mount our M&T fittings only with the drilling template. After that you will be satisfied with our fittings for a long time.

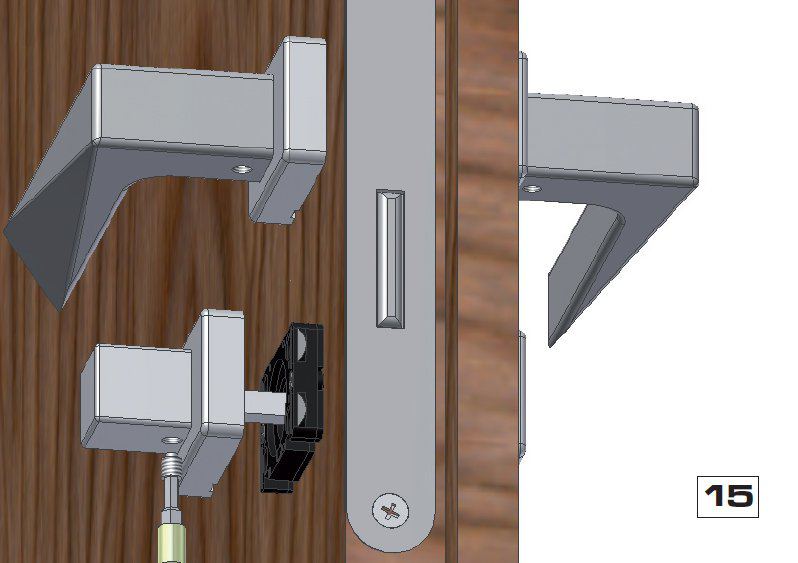

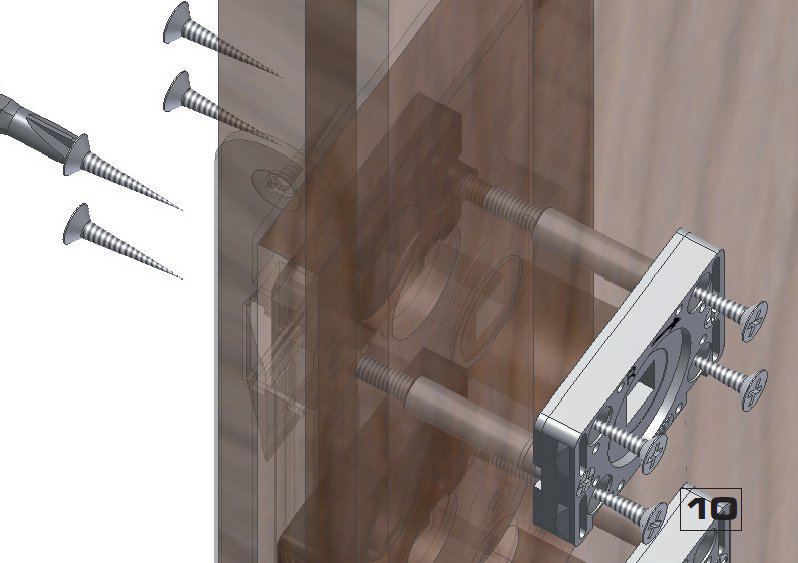

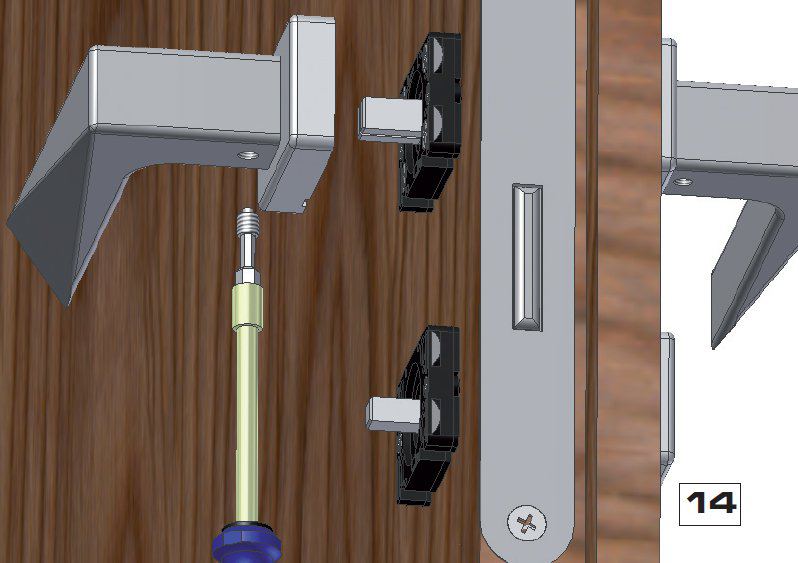

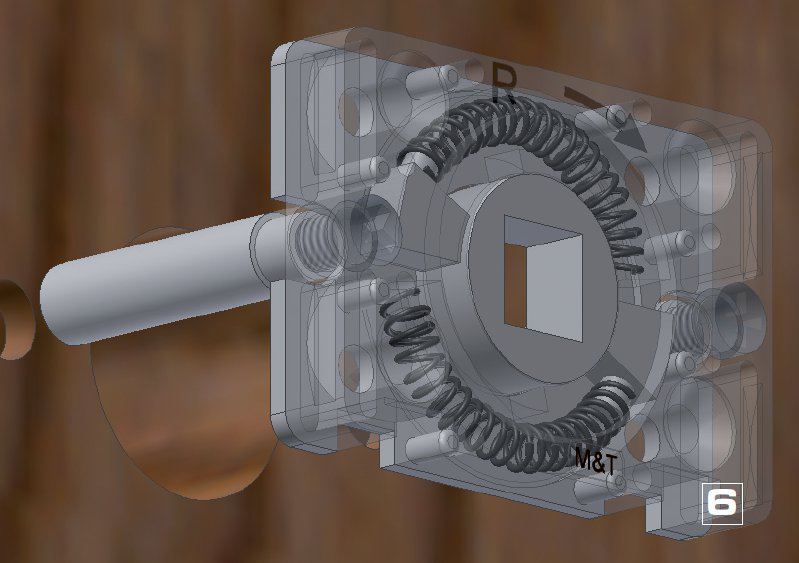

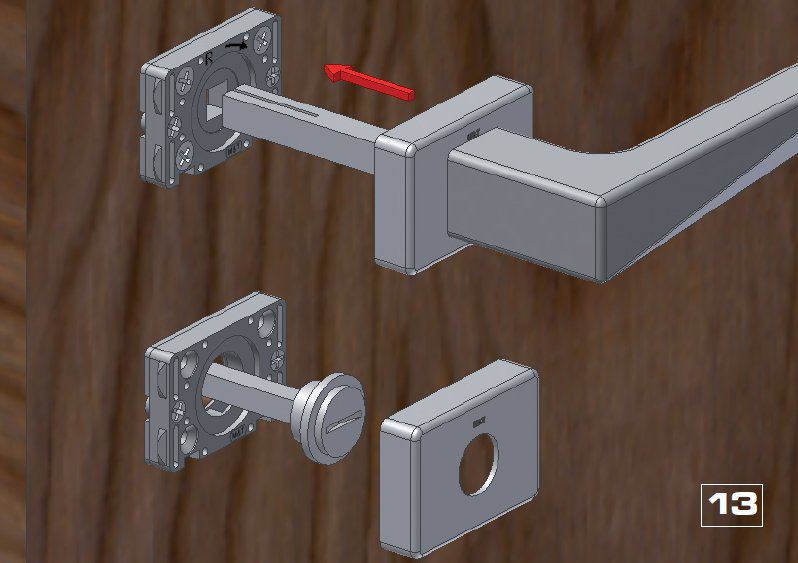

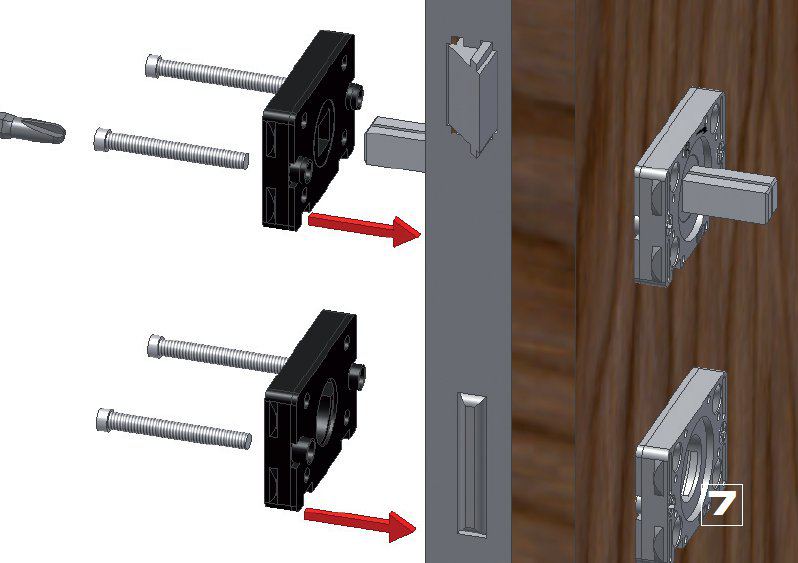

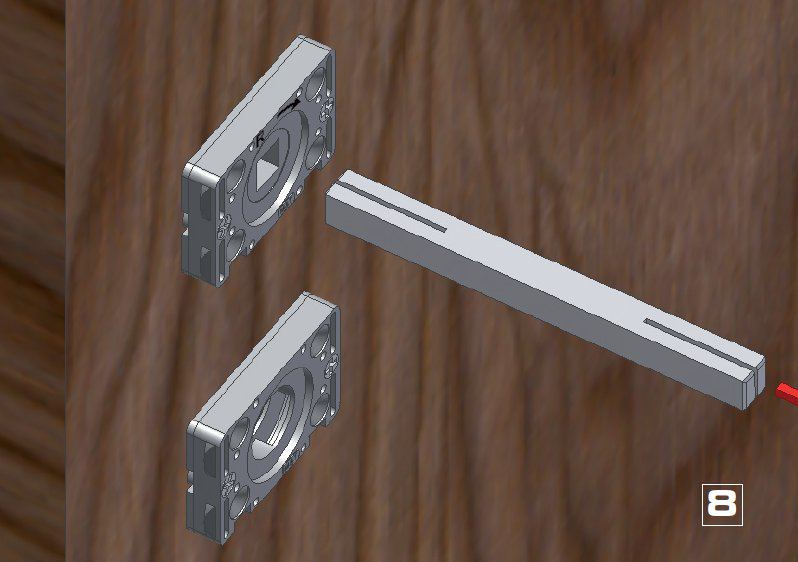

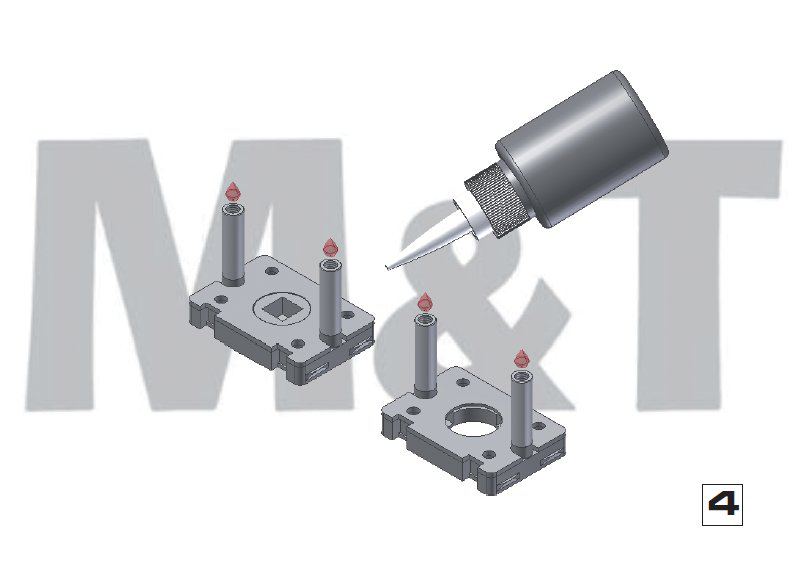

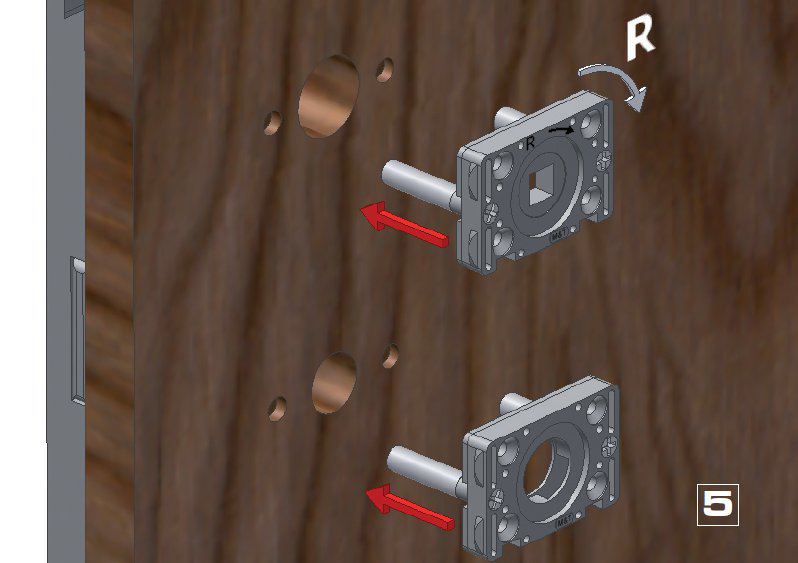

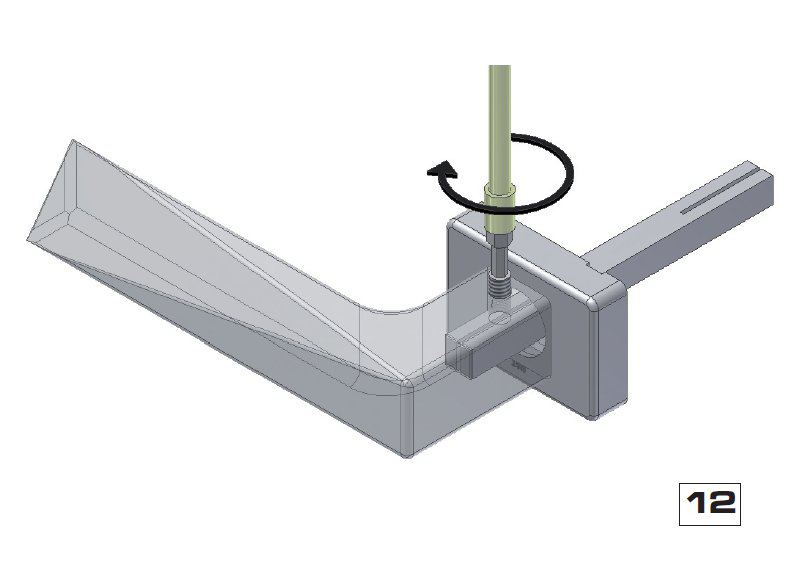

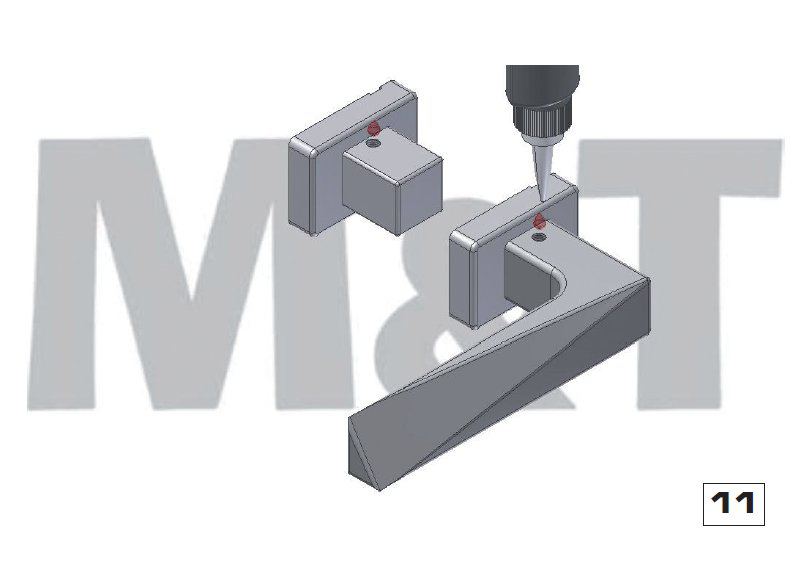

Assembly instructions of rosettes fitting with a key rosette.
The first kind of M&T template. Now we use the PROFI mounting template of the second generation. It is universal and should not be missing by any company selling M&T products.
