DESIGN 2000
HANDLES / ROUND ROSETTES
14 models

Dveřní klika Sogut

Product dimensions

For more information about a specific product dimensions contat us at info@kliky-mt.cz.

close

Preparation for doors

Holes for mounting of rosette fittings
without bottom rosettes
Otvory pro montáž rozetového kování bez spodních rozet

Download in PDF

Holes for mounting of rosette fittings
with bottom key hole or cylindrical rosette
Otvory pro montáž rozetového kování se spodní dózickou nebo cylindrickou rozetou

Download in PDF

Holes for mounting of rosette fittings
with bottom WC rosette
Otvory pro montáž rozetového kování se spodní dózickou nebo cylindrickou rozetou

Download in PDF

close

Using the PROFI teplate M&T

close

Assembbly instructions

The basic premise is professional installation using our PROFI drilling template. Thanks that you can prepare precise door holes, where the sleeves (rollers) are firmly fixed of two fitting halves through the lock and prevent the later loosing and wobbling of handles.

Do not underestimate this recommendation and install the M&T fittings using our PROFI drilling template. After that you will be happy with the fitting M&T for long time.

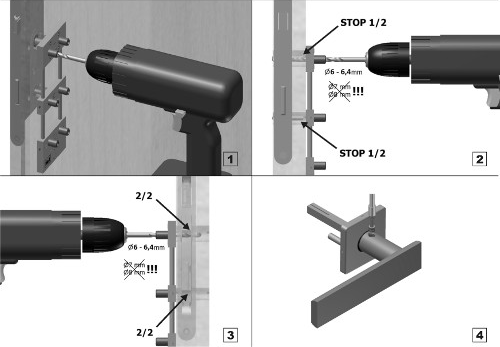

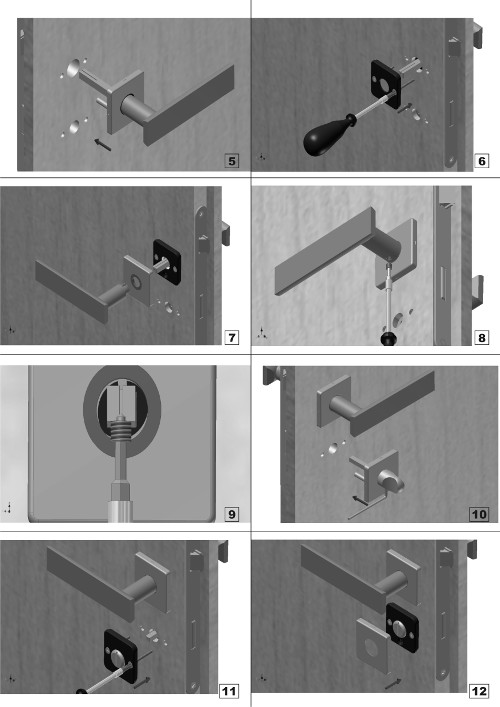

Assembly instructions of rosette fitting with bottom WC rosette.

Montážní návod Montážní návod

Download in PDF
