Stainless steel security fitting in lengths from 75 mm to 3000 mm, with a choice of 3 colours & surfaces, with a guarantee of 3-15 years, depending on the design, with the choice of an interior model of using one-sided handle for exterior and security doors.
Security fitting in lenghts up to 3 000 mm
For more informations please contact us at info@kliky-mt.cz.

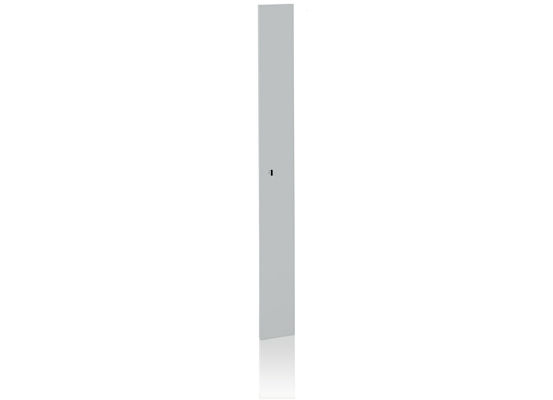

 | SECURITY HAND GRIP ENTERO 1000 MM |  NRz stainless steel |  TiN-C titanium chrome matt |  K-industrial |
|---|---|---|---|---|
| EAN | EAN | EAN | ||
| Hand grip double sided / hand grip L | 036695 | 036732 | 036718 | |
| Hand grip double sided / hand grip R | 036701 | 036749 | 036725 | |
| For door thickness 38 - 45 mm / grip L | 036398 | 036435 | 036411 | |
| For doorthickness 38 - 45 mm / grip R | 036404 | 036442 | 036428 | |
| For door thickness 46 - 52 mm / grip L | 036459 | 036497 | 036473 | |
| For door thickness 46 - 52 mm / grip R | 036466 | 036503 | 036480 | |
| For door thickness 52 - 60 mm / grip L | 036510 | 036558 | 036534 | |
| For doorthickness 52 - 60 mm / grip R | 036527 | 036565 | 036541 | |
| For door thickness 61 - 68 mm / grip L | 036572 | 036619 | 036596 | |
| For door thickness 61 - 68 mm / grip R | 036589 | 036626 | 036602 | |
| For door thickness 69 - 126 mm / grip L | 036633 | 036671 | 036657 | |
| For door thickness 69 - 126 mm / grip R | 036640 | 036688 | 036664 |
Can be used for various types of doors with fitted lock with holes for screwing the rosette.
For double-sided handrails, the orientation of the R or L handrail must be determined according to the external Safety Handrail.
For handles for thickness doors 69 mm and more, the exact thickness of the door must be specified.
The integrated safety rosette has a diameter of 54 mm.
The maximum output of the cylindrical insert from the outside of the door is 37.5 mm.
The recommended output of the cylindrical insert from the inside of the door is 11 mm for a single-sided handle, max. 42.5 mm for a double-sided handle.
Other dimensions of handrails up to 3000 mm in length can be supplied individually.
The mounting material must be specified according to the material of the door - see assembly material table.
We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.
We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.
You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.
Hand grips are delivered in option one-sided or double-faced. For the security hand grip Entero from the inner side is delivered the rosette fitting M&T one-sided handle. By mounting can be used doorknobs DESIGN 2006, 2009, 2011, 2013 and fittings for aluminum doors. It is ordered 1/2 pair and it is need to be specify the handle orientation either L or R. The necessary installation component is the expanding spindle, see Accessories and components. The spindle and the one-sided handle are not a part of the security hand grip Entero and need to be ordered separately. The price of the one-sided handle is a 1/2 pair.
Delivery of the security hand grip Entero includes the inner cylindrical rosette. The inner cylindrical rosette is optional in different shapes according design handle (rectangular rosette 33 mm is intended only for protective hand grips Entero for al. profiles).
