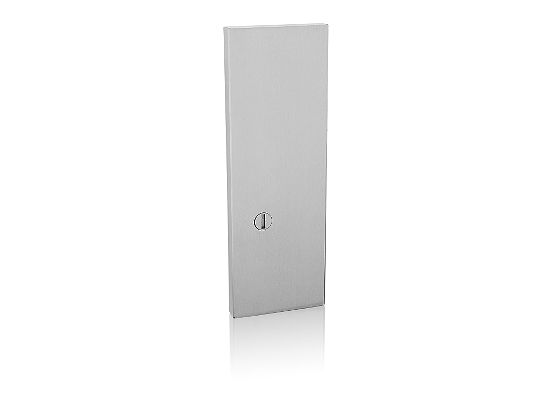

Security hand grip ENTERO 350 mm

NRz stainless steel grinded

Stainless steel security fitting in lengths from 75 mm to 3000 mm, with a choice of 3 colours & surfaces, with a guarantee of 3-15 years, depending on the design, with the choice of an interior model of using one-sided handle for exterior and security doors.

Bezpečnostní madlo Entero 350 mm

Handle surfaces
3 surfaces

NRz
NRz
TiN-C
TiN-C
K-industrial
K-industrial

Security fitting in lenghts up to 3 000 mm

Technical informations

MATERIAL
  • Stainless steel
AVAILABLE SURFACE FINISHES
  • Stainless steel - grinded, titanium chrome, black matt structured
MOUNTING
  • There are two mounting variants: Either in a blind hole, when it is necessary to specify the material of the door (plastic, wood, aluminium) or mounting with screws through the door.
Mechanics
  • An optional design of one sided handle from the inner side with a spindle and mechanics with reversible spring.
DIMENSIONAL APPLICATION
  • Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 85 mm
ACCESSORIES
  • The package includes:
    • fasteners
    • assembly instructions
    • warranty card
WARRANTY
  • Mechanics 3 years
  • Surface stainless steel 5 years, black matt structured 5 years, titanium 15 years
APPLICATIONS
  • For the exterior and security doors, for door weight up to 60 kg
SET
  • Set of hand grips or hand grip with one sided handle. It is needed to order the right mounting material according the type of door, eventually the spindle to one sided handle.
    Cylindrical lock is to order extra - be careful to choose the right size.

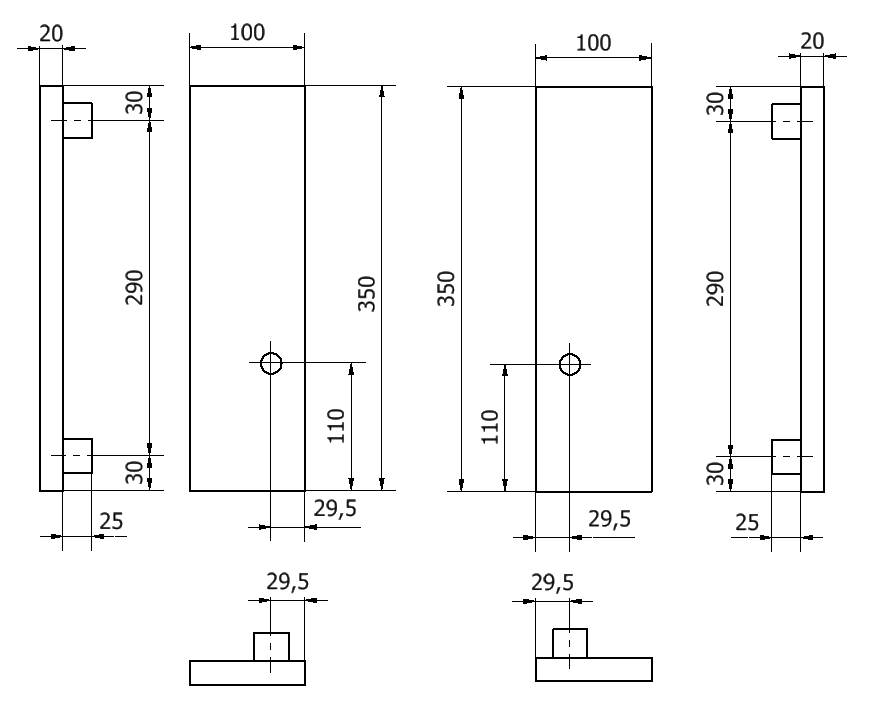

Rozměry

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Variants of interior handle rosette and cylindrical rosette

Hand grips are delivered in option one-sided or double-faced. For the security hand grip Entero from the inner side is delivered the rosette fitting M&T one-sided handle. By mounting can be used doorknobs DESIGN 2006, 2009, 2011, 2013 and fittings for aluminum doors. It is ordered 1/2 pair and it is need to be specify the handle orientation either L or R. The necessary installation component is the expanding spindle, see Accessories and components. The spindle and the one-sided handle are not a part of the security hand grip Entero and need to be ordered separately. The price of the one-sided handle is a 1/2 pair.

Delivery of the security hand grip Entero includes the inner cylindrical rosette. The inner cylindrical rosette is optional in different shapes according design handle (rectangular rosette 33 mm is intended only for protective hand grips Entero for al. profiles).

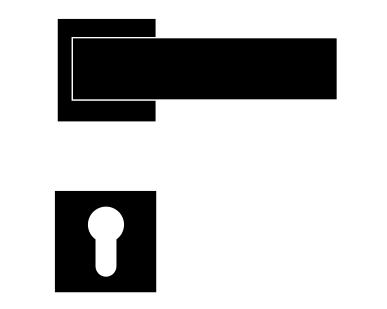

Rosette DESIGN 2006, 2009


square 54×54 mm

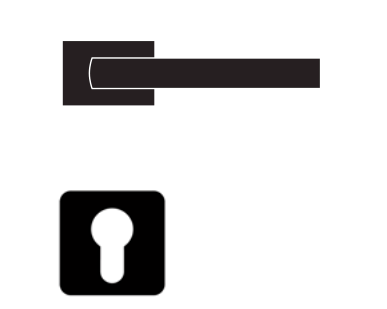

Rosette DESIGN 2011


square Minimal 54×54 mm

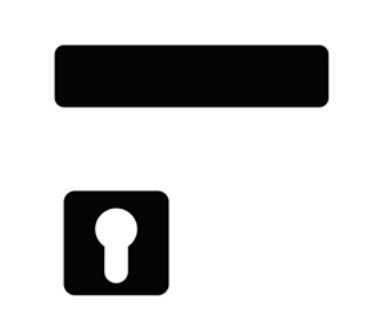

Rosette DESIGN 2013


square Minimal 54×54 mm

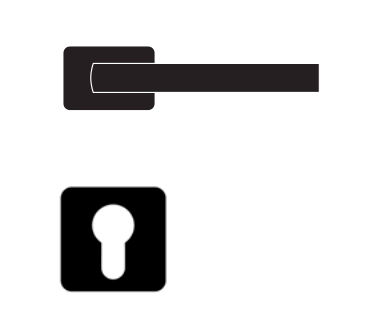

Rectangular horizontally
(al. profils)

square Minimal 54×54 mm

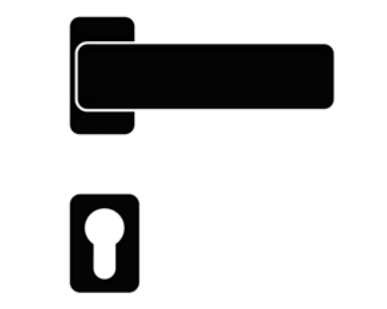

Rectangular 33 mm
(al. profils)

rectangular width 33 mm
