Security rosette Minimal

Rosette surfaces
8 surfaces

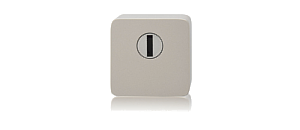

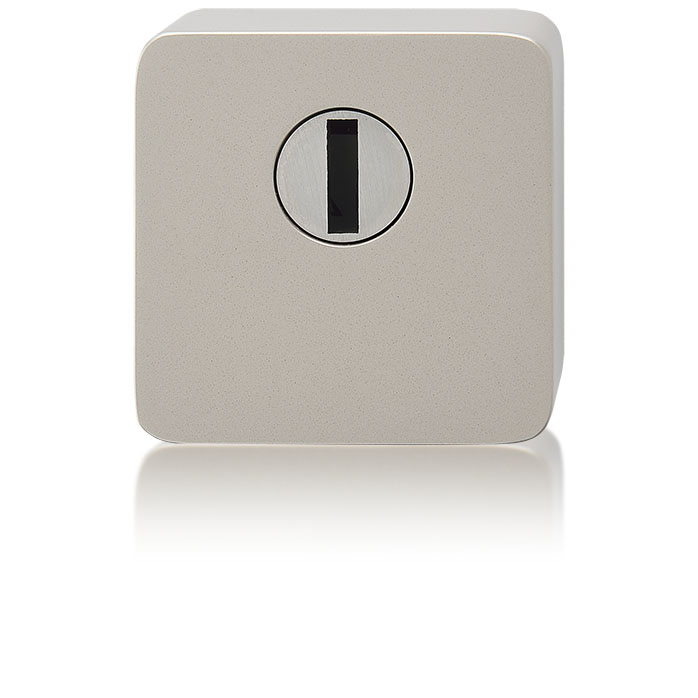

SNi

SNi - grinded

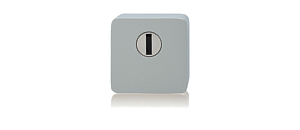

TiN-C

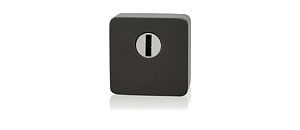

TiN-K

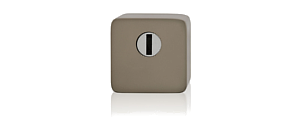

TiN-B

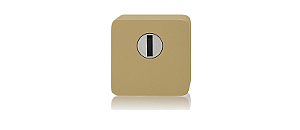

TiN-A

K-industrial

more about the surface

zoom

Maximal safety in design version

Technical informations

MATERIAL

Stainless steel

AVAILABLE SURFACE FINISHES

Nickel matt, glossy chrome, titanium surfaces, stainless steel - grinded, black matt structured

MOUNTING

Mounting with security screws through the lock and the door.

Mechanics

Combinated with any models of our rosette fitting in option hand grip/handle or handle/handle.

DIMENSIONAL APPLICATION

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 - 126 mm

ACCESSORIES

The package includes:
- fasteners
- assembly instructions
- warranty card

WARRANTY

Surfaces nickel and chrome 3 years, stainless steel 5 years, black matt structured 5 years, titanium 15 years

APPLICATION

According the type of doors for the interior, exterior and security doors.

SET

Complete door set without the cylindrical lock, the rosette fitting is to order extra.

Rozměry Recommended cylindrical lock from inside of the door is 11 mm.
Maximal size of the cylindrical lock from outside the door is 17,5 mm.

For more informations please contact us at info@kliky-mt.cz.

Certificate Trezor test
Security rosettes

Certificate NBÚ
Security rosettes

order numbers

SECURITY ROSETTE MINIMAL	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded	TiN-C titanium chrome matt
SECURITY ROSETTE MINIMAL	pc EAN	pc EAN	pc EAN	pc EAN	EAN	pc EAN	pc EAN	pc EAN	pc EAN
For door thickness 38 - 45 mm	020977	021097	021219	253146	253450	088052	200683	274851	021332
For door thickness 46- 52 mm	020984	021103	021226	253153	253467	088069	200690	274868	021349
For door thickness 53 - 60 mm	020991	021110	021233	253160	253474	088076	200706	274875	021356
For door thickness 61 - 68 mm	021004	021127	021240	253177	253481	088083	200713	274882	021363
For doorthickness 69 - 76 mm	021011	021134	021257	253184	253498	088090	200720	274899	021370
For door thickness 77 - 83 mm	021028	021141	021264	253191	253504	088106	200737	274905	021387
For door thickness 84 - 90 mm	021035	021158	021271	253207	253511	088113	200744	274912	021394
For door thickness 91 - 97 mm	021042	021165	021288	253214	253528	088120	200751	274929	021400
For door thickness 98 - 104 mm	021059	021172	021295	253221	253535	088137	200768	274936	021417
For door thickness 105 - 112 mm	021066	021189	021301	253238	253542	088144	200775	274943	021424
For door thickness 113 - 118 mm	021073	021196	021318	253245	253559	088151	200782	274950	021431
For door thickness 119 - 126 mm	021080	021202	021325	253252	253566	088168	200799	274967	021448

SECURITY ROSETTE MINIMAL	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
SECURITY ROSETTE MINIMAL	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN
For door thickness 38 - 45 mm	021578	021455	241365	021691	142655	198706
For door thickness 46- 52 mm	021585	021462	241372	021707	142662	198713
For door thickness 53 - 60 mm	021592	021479	241389	021714	142679	198720
For door thickness 61 - 68 mm	021608	021486	241396	021721	142686	198737
For doorthickness 69 - 76 mm	021615	021493	241402	021738	142693	198744
For door thickness 77 - 83 mm	021622	021509	241419	021745	142709	198751
For door thickness 84 - 90 mm	021639	021516	241426	021752	142716	198768
For door thickness 91 - 97 mm	021646	021523	241433	021769	142723	198775
For door thickness 98 - 104 mm	021653	021530	241440	021776	142730	198782
For door thickness 105 - 112 mm	021660	021547	241457	021783	142747	198799
For door thickness 113 - 118 mm	021677	021554	241464	021790	142754	198805
For door thickness 119 - 126 mm	021684	021561	241471	021806	142761	198812

Uváděné ceny - doporučené konečné ceny v € bez DPH.

Manufacture mechanics M 2011

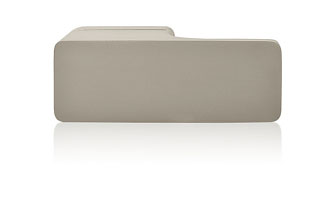

Hand grip Minimal

more about the mechanics

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Security rosette MINIMAL
