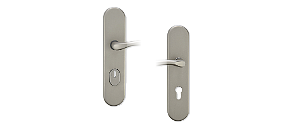

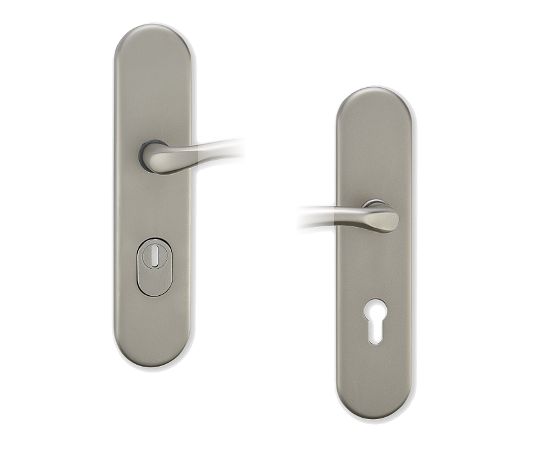

Security fitting on the plate Sicura hand grip/optional handle

Handle surfaces
8 surfaces

SNi

TiN-C

TiN-K

TiN-S

TiN-A

NRz

more about the surface

Security fitting on the plate made of massive brass

Technical informations

MATERIAL

Massive brass, stailess steel

AVAILABLE SURFACE FINISHES

Nickel matt, glossy chrome, titanium surfaces, stainless steel grinded

MOUNTING

Mounting with screws and security risers through the door

MECHANICS

Handle with slide plate without reversible spring

DIMENSIONAL APPLICATION

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years
Surface nickel and chrome stainless steel 3 years, titanium 15 years, brass natural life time guarantee.

APPLICATIONS

According the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

Complete set for doors, with optional handle

Dimension

Certificate NBÚ
Sicura

Certificate Trezor test
Sicura

Order numbers

SICURA	SNi nickel matt	NRz stainless steel	Cr glossy chrome	Ms brass natural	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-S titanum bronze matt	TiN-A titanium brass matt
SICURA	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Handle / handle R 72 mm	82052	080568	82113	058338	82236	82298	82175	82359
Handle / handle L 72 mm	82069	080575	82120	058345	82243	82304	82182	82366
Handle / handle R 90 mm	82076	080582	82137	058352	82250	82311	82199	82373
Handle / handle L 90 mm	82083	080599	82144	058369	82267	82328	82205	82380
Handle / handle R 92 mm	82090	080605	82151	058376	82274	82335	82212	82397
Handle / handle L 92 mm	82106	080612	82168	058383	82281	82342	82229	82403
Grip / handle R 72 mm	82410	080629	82472	058451	82595	82656	82533	82717
Grip / handle L 72 mm	82427	080636	82489	058468	82601	82663	82540	82724
Grip / handle R 90 mm	82434	080643	82496	058475	82618	82670	82557	82731
Grip / handle L 90 mm	82441	080650	82502	058482	82625	82687	82564	82748
Grip / handle R 92 mm	82458	080667	82519	058499	82632	82694	82571	82755
Grip / handle L 92 mm	82465	080674	82526	058505	82649	82700	82588	82762

Determining the orientation of the handle

The orientation of the handle right - R, left - L is determined according to the handle on the inside of the door.
The left handle always points to the left towards the door hinges and is naturally grasped with the left hand
The right handle always points to the right towards the door hinges and is naturally grasped with the right hand.

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Accessories and similar assortment

Take advantage of the complete product offer and choose all necessary products at the same design and colour.

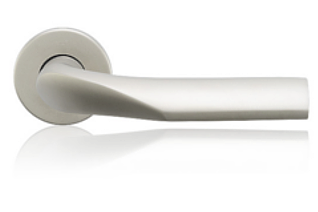

Door handles DESIGN 2000

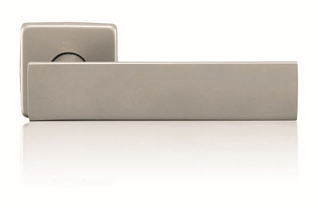

Door handles DESIGN 2004
