Door hand grip MINIMAL with handle function

TiN-K titanium black matt Design: Roman Ulich

The fitting Minimal is designed and constructed with an invisible flowing rosette, made of massive brass, with a choice of 8 colours & surfaces, with a wide range of complementary products at the same design and colours used for all types of doors and windows, guaranteed by 3-15 years depending on the type design, with a quality mechanics M 2011, used for the interior and exterior doors.
News - natural brass with a lifetime guarantee.

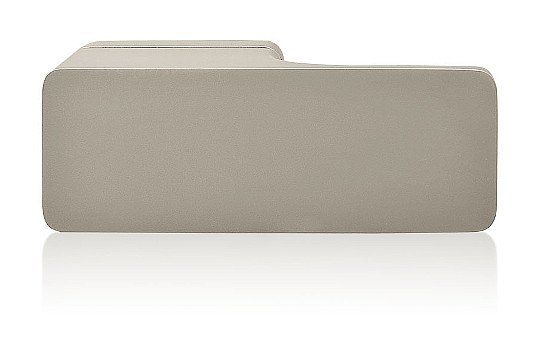

Dveřní madlo Minimal

HANDLE
SURFACES
8 surfaces

SNi

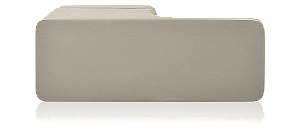

SNi
SNi - broušeno
SNi-grinded
Cr
Cr
Ms
Ms
Ms-L
Ms-L
Tin-C

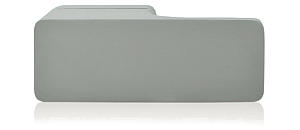

TiN-C
Tin-B

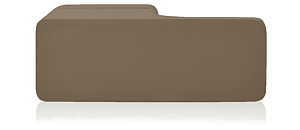

TiN-B
Tin-K

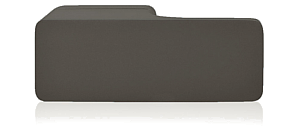

TiN-K

One design - the whole project

Technical information

MATERIAL
  • The massive brass, grinded and polished
AVAILABLE SURFACE FINISHES
  • Nickel matt, nickel matt - grinded, glossy chrome and titanium surfaces, brass natural
MOUNTING
  • Drilling with profi template M&T, screwing through with screw-together cases system, recommended tightening torque 3-4 Nm.
MECHANICS
  • M 2011 with the pressed spring system and with the screw-together cases system
DIMENSIONAL APPLICATIONS
  • Standard for door thickness 38 - 45 mm, mounting options for door thickness 38 - 126 mm
ACCESSORIES
  • The package includes:
    • spindle
    • set screw
    • fasten gel against loosening
    • fasteners
    • assembly instructions
    • warranty card
WARRANTY
  • Mechanics 3 years
  • Surfaces 3 years nickel and chrome, titanium 15 years, brass natural lifetime guarantee
APPLICATIONS
  • According to the type of surface for the interior and exterior doors, for door weight up to 60 kg
SET
  • Design set without bottom rosettes, they are to order extra
Rozměry

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2011

Manufakturní mechanika M 2011

About the mechanics

Mechanics M 2011 - designed, manufactured and assembled at M&T - with its own patent with the system of pressed springs and active slip system preventing from bending and cracking the door in the lock area, with a minimal dimension of mechanics
