Pull handle Joo

TiN-K titanium black matt Design: Roman Ulich

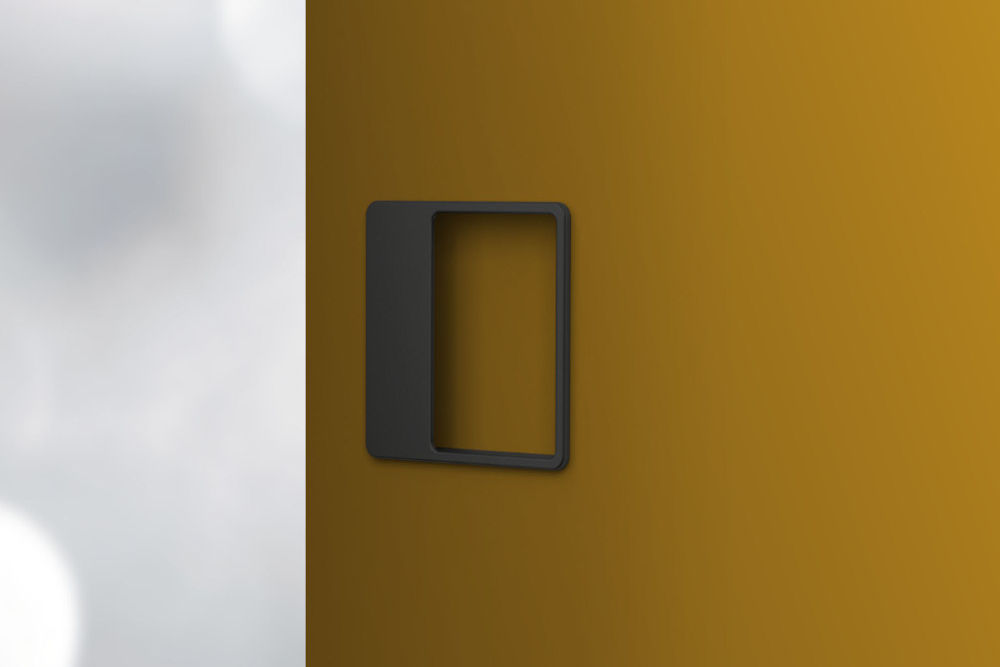

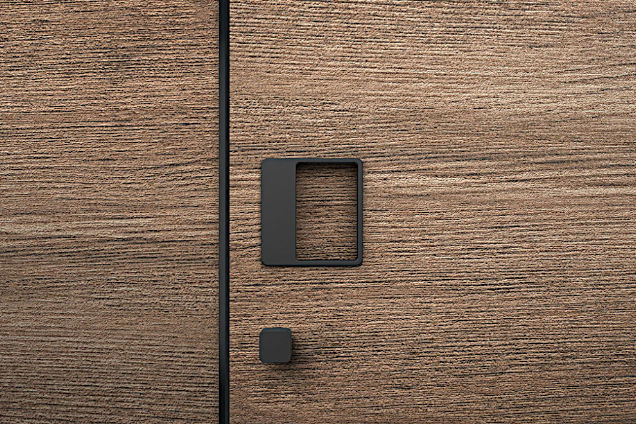

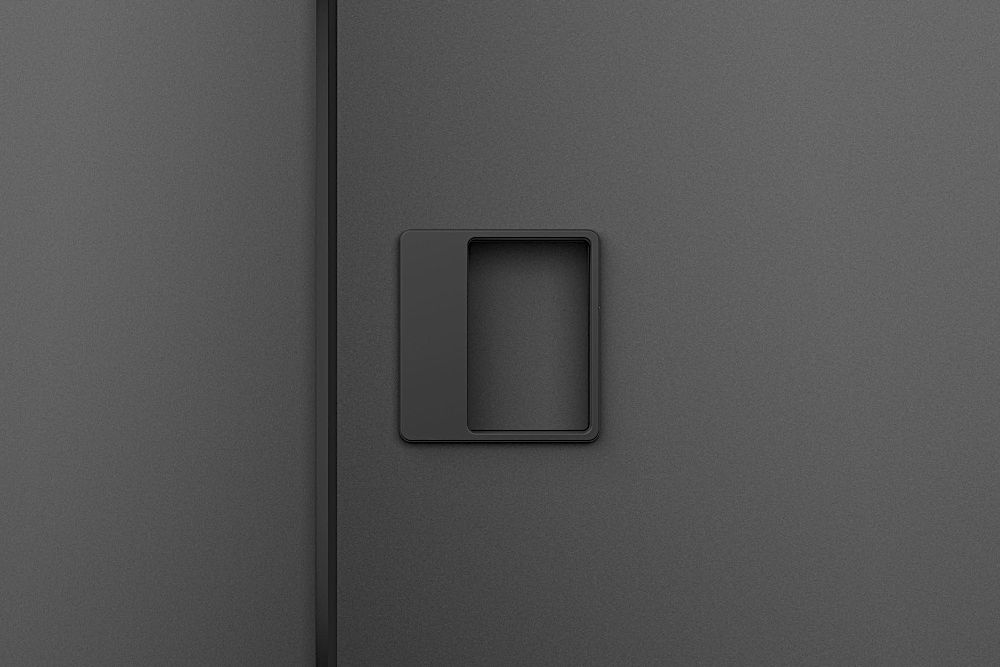

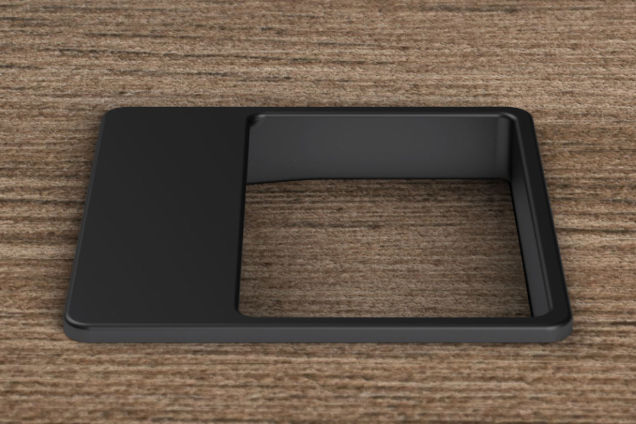

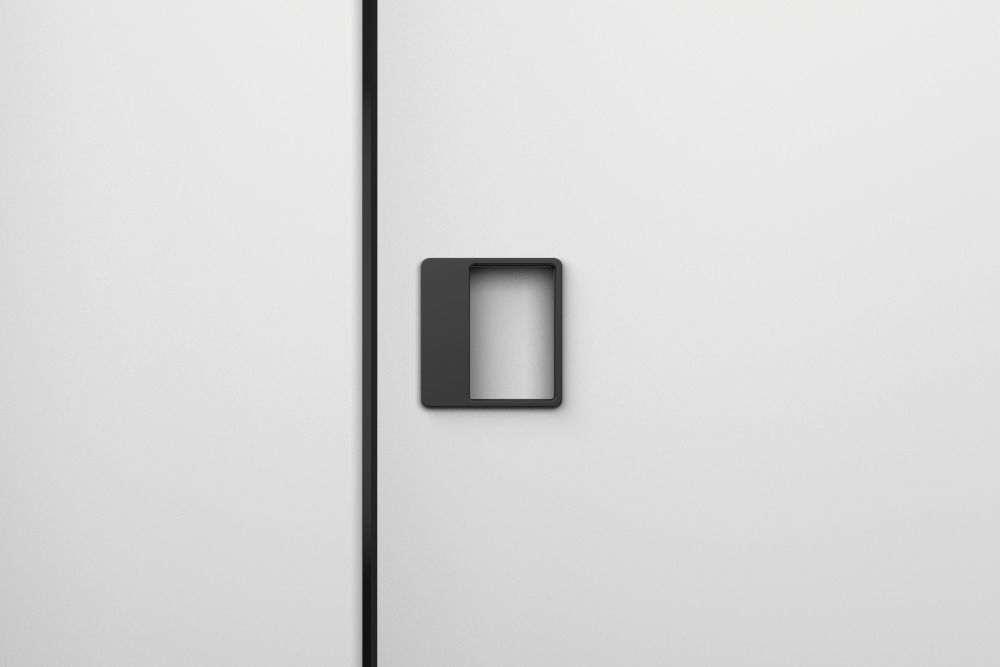

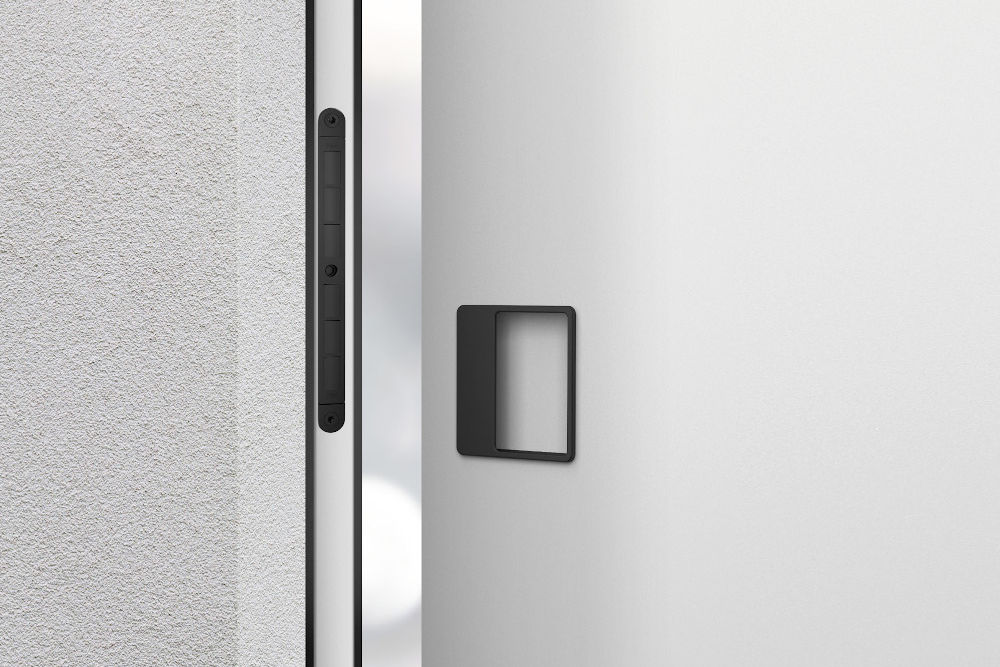

Square sunken pull handle easy to use with 2 - 4 fingers. Pull handle with a possibility of changing / replacing the internal magnetic plate to match the surface / color of the pull handle with the door or to make the door control area more visible.

Metal pull handle, available in black titanium surface finish, nickel matt and polished chrome.

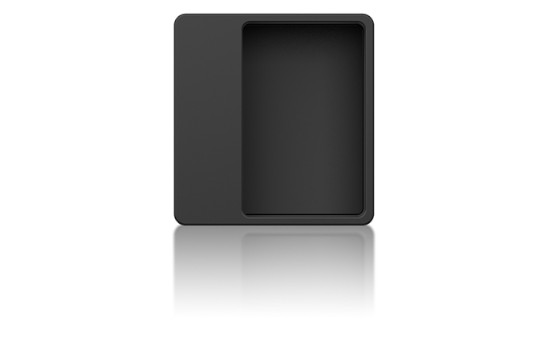

Madlo Joo

SURFACE FINISHES
3 surfaces

SNi
SNi
Cr
Cr
TiN-K
TiN-K

revolutionary system for perfect doors

Technical informations

MATERIAL
  • Metal body + magnetic insert
AVAILABLE SURFACE FINISHES
  • SNi nickel matt, TiN-K titanium black matt, Cr chrome glossy
ASSEMBLY TIME
  • 1 – 2 minutes, variant WC/bathroom 3-5 minutes
ASSEMBLY SYSTEM
  • screwing the base plates against each other with 4 screws, covering the mounting screws with a magnetic face plate
PREPARATION FOR DOORS
  • hole milling
DIMENSIONS
  • 84×89 mm (W×H), output over the door surface 3 mm
ACCESSORIES
  • The package includes:
    • pair of pull handles
    • magnetic inserts
    • fasteners
    • assembly instructions
    • warranty card
VARIANT WC/BATHROOM

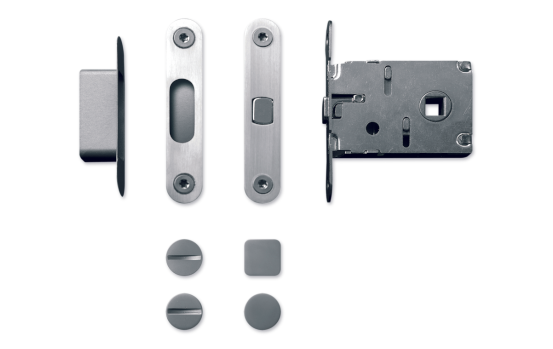

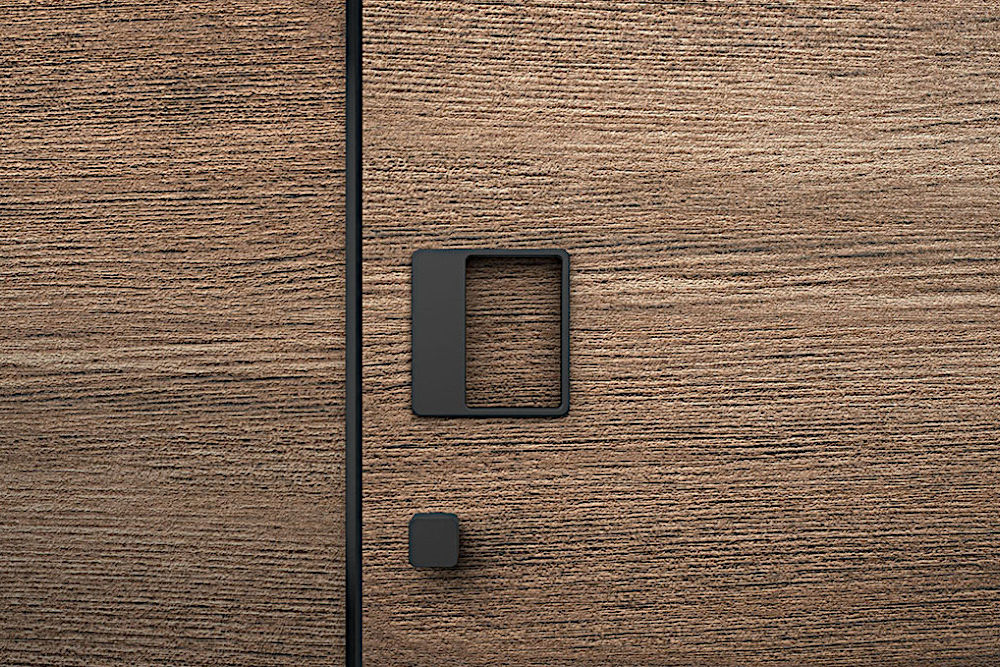

  • external mini toilet mechanism + mini lock

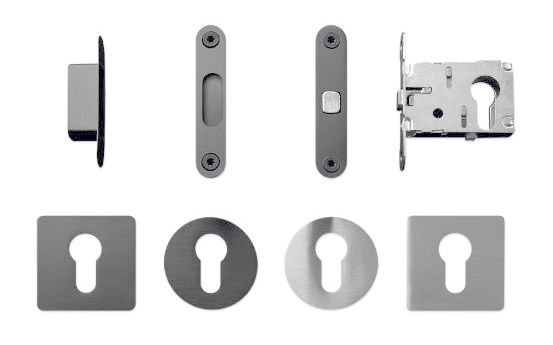

VARIANT CYLINDRICAL

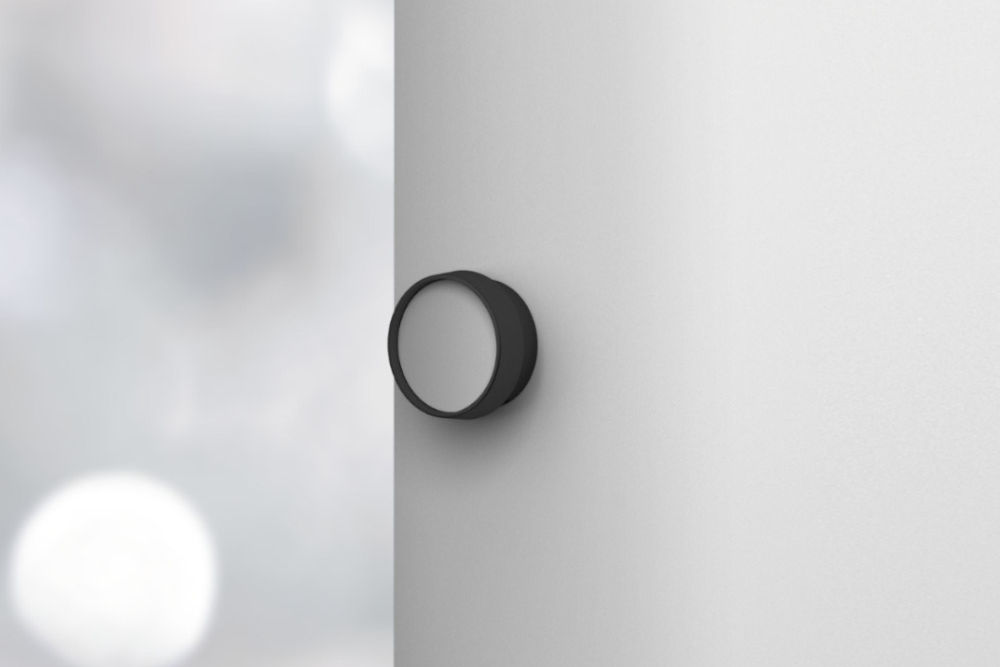

  • magnetic cover rosettes dia 54 mm, thickness 5 mm + mini lock
WARRANTY
  • Surface finishes SNi, Cr 3 years, TiN-K 15 years
APPLICATIONS
  • Designed for interior doors.
Magnetic fillings in the surface of the handle (ie SNi, Cr, TiN-K) and mounting material for a door thickness of 38 - 41 mm are part of the delivery of the handles. For other door thicknesses, it is necessary to order mounting material according to the table.
door thickness EAN code
42 - 45 mm 124699
46 - 49 mm 124705
50 - 53 mm 124712
54 - 57 mm 124729
58 - 61 mm 124736

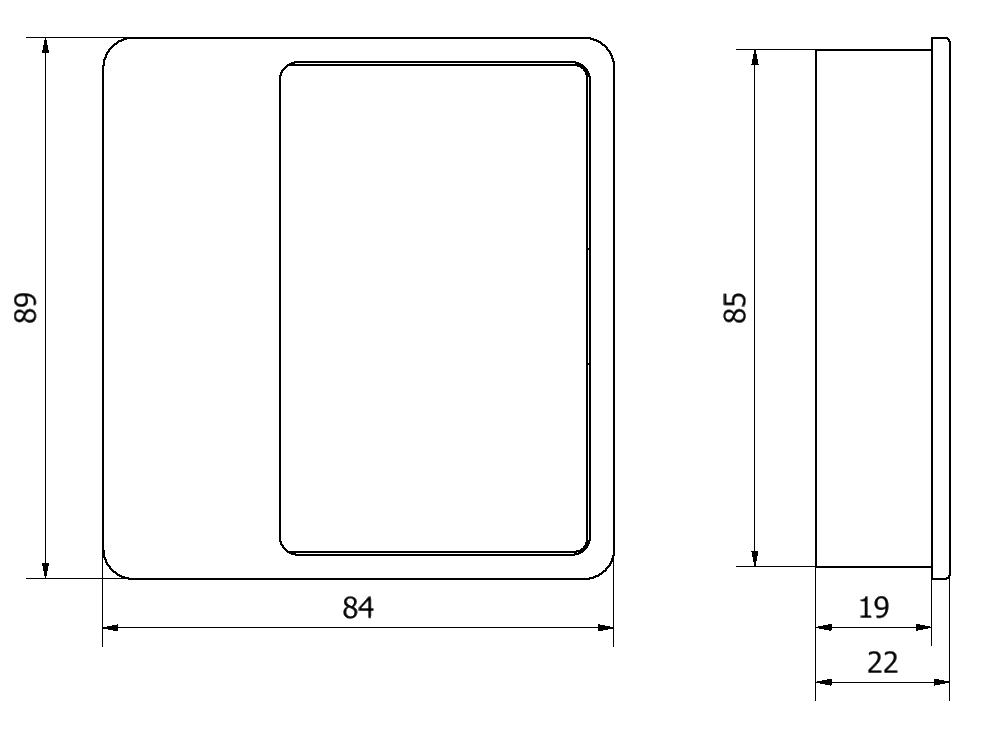

Rozměry

3D model for visualization

Pull handle Joo (DWG)
