WC, cylindrical locks

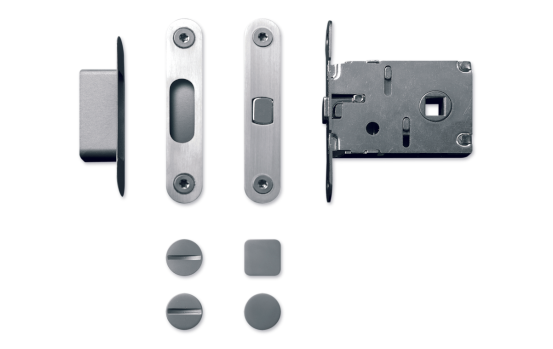

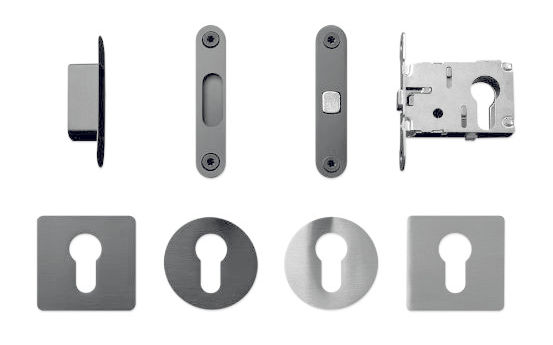

Magnetic is a system that reliably controls and closes the door but does not lock it. For complete safe locking we have also prepared bathroom/toilet lock and security lock with cylinder. The door is locked by mini locks and series of minimalist WC control mechanisms in round or square design. For cylindrical locking we prepared cylindrical rosettes in thickness only 5 mm with a very fast magnetic mounting system.

Pull handles YES! and OKO we equipped with an innovative integrated toilet locking and pull handles Minimal and Maximal with a design matching rectangular WC and cylinder locks.

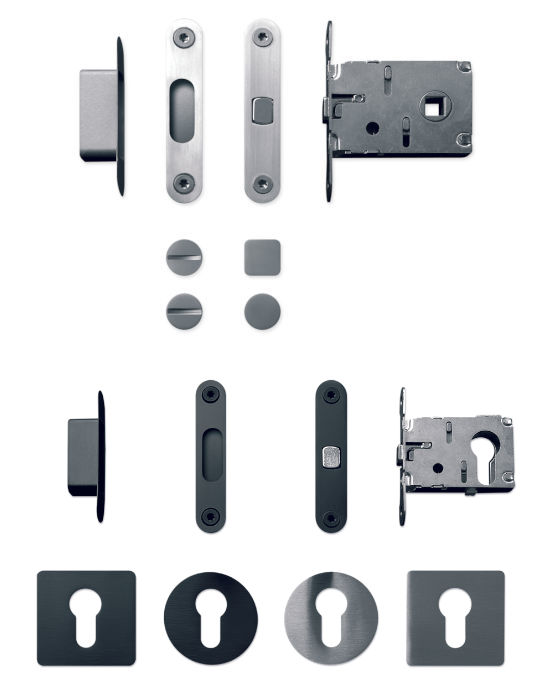

WC, cylindrické zámky

revolutionary system for perfect doors

Technical informations

MATERIAL
  • brass, stailness steel, magnetic stainless steel
SURFACE FINISHES
  • stainless steel brushed, black matt, white matt (visible parts of locks)
ASSEMBLY TIME
  • cylindrical variant 3 - 5 minutes
  • WC/bathroom variant 5 - 10 minutes
PREPARATION FOR DOORS AND DOOR FRAME
  • hole milling, preparation is provided by the door manufacturer
ACCESSORIES
  • The package includes:

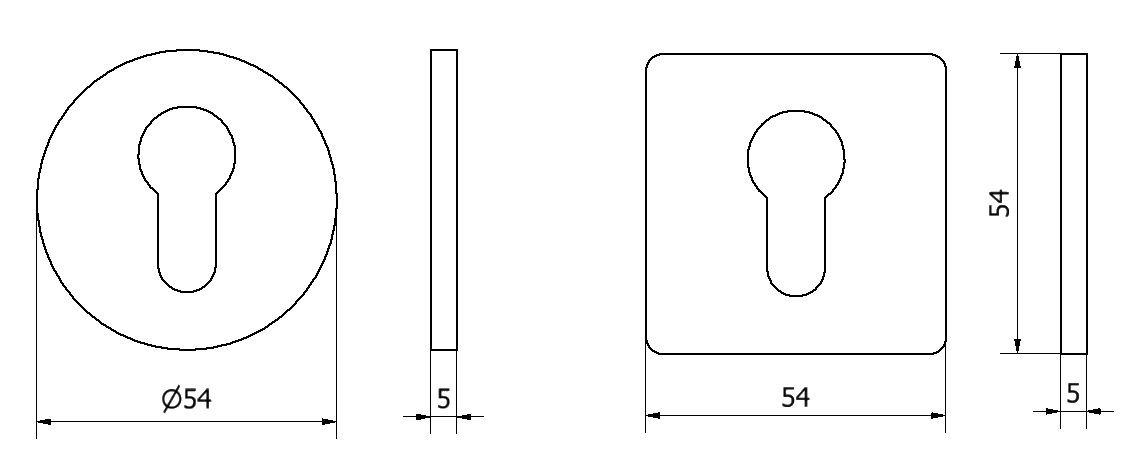

    • WC mechanism / cylindrical rosettes (round Ø 54 mm/square 54×54 mm)

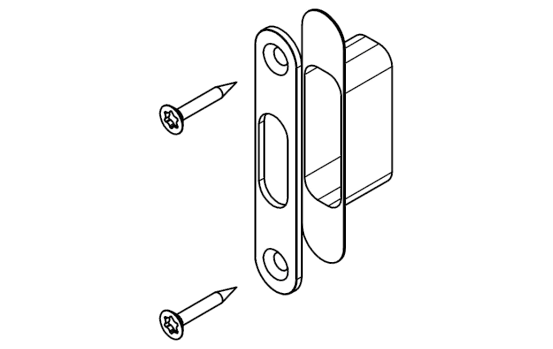

    • mini lock + striking plate
    • fasteners
    • assembly instructions
    • warranty card
WARRANTY
  • Surface finishes 3 years
APPLICATIONS
  • Standard for door thickness 38 - 45 mm, bigger door thicknesses must be specified for longer assembly components.

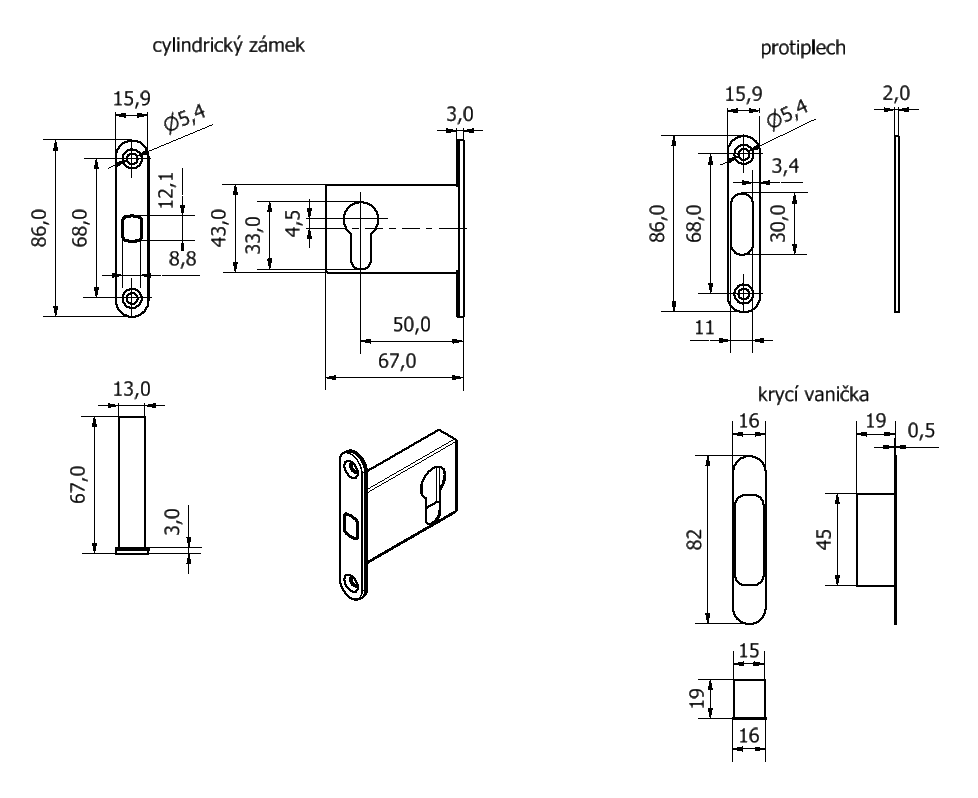

Rozměry Rozměry Rozměry Rozměry

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, that's why we start designing and manufacturing products with a lifetime warranty - innovative products that will survive us.
