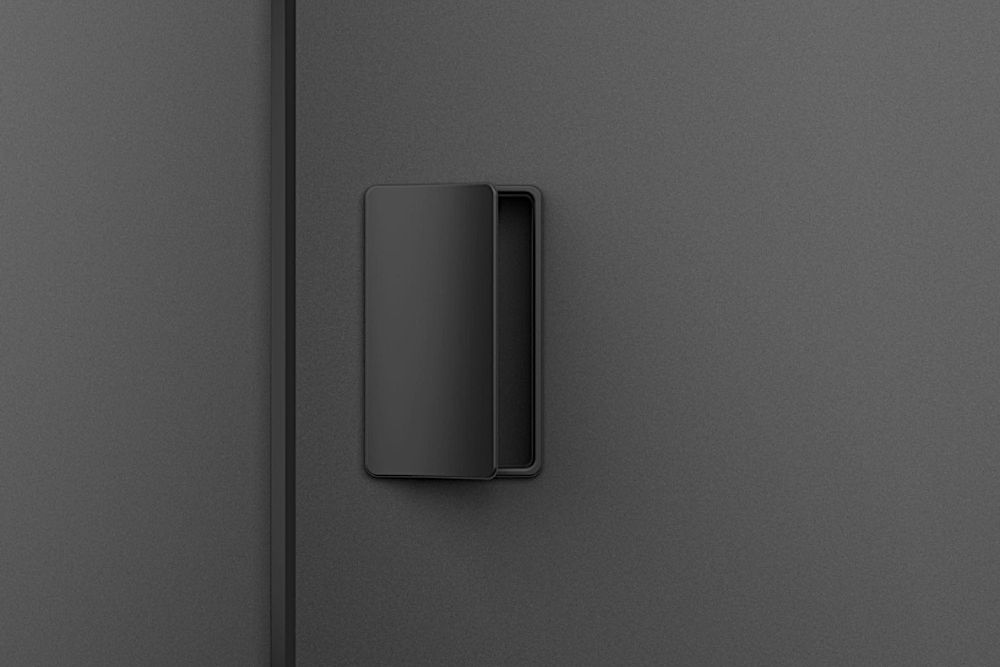

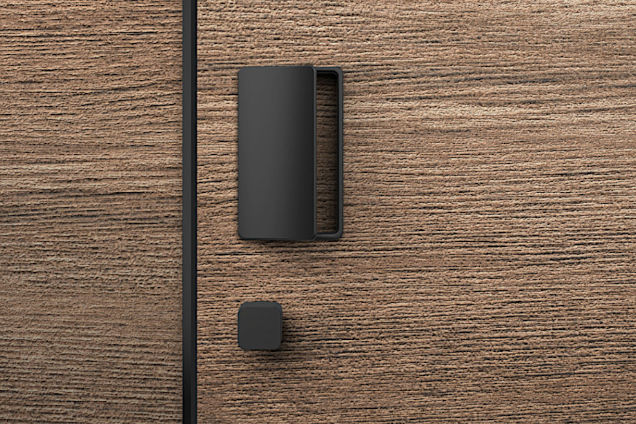

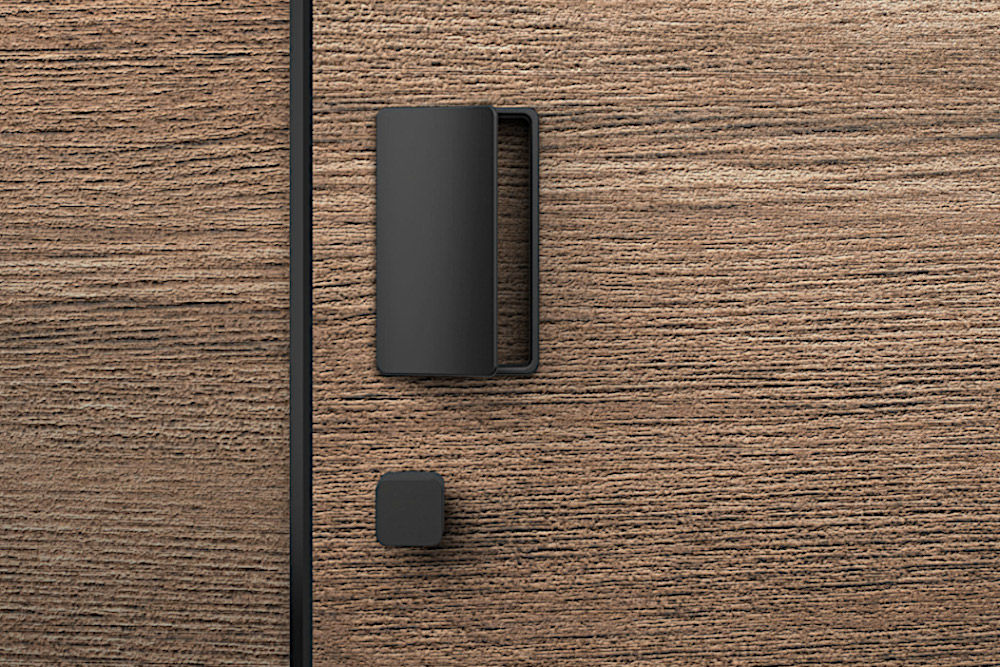

Pull handle Konzerva 110

TiN-K titanium black matt Design: Roman Ulich

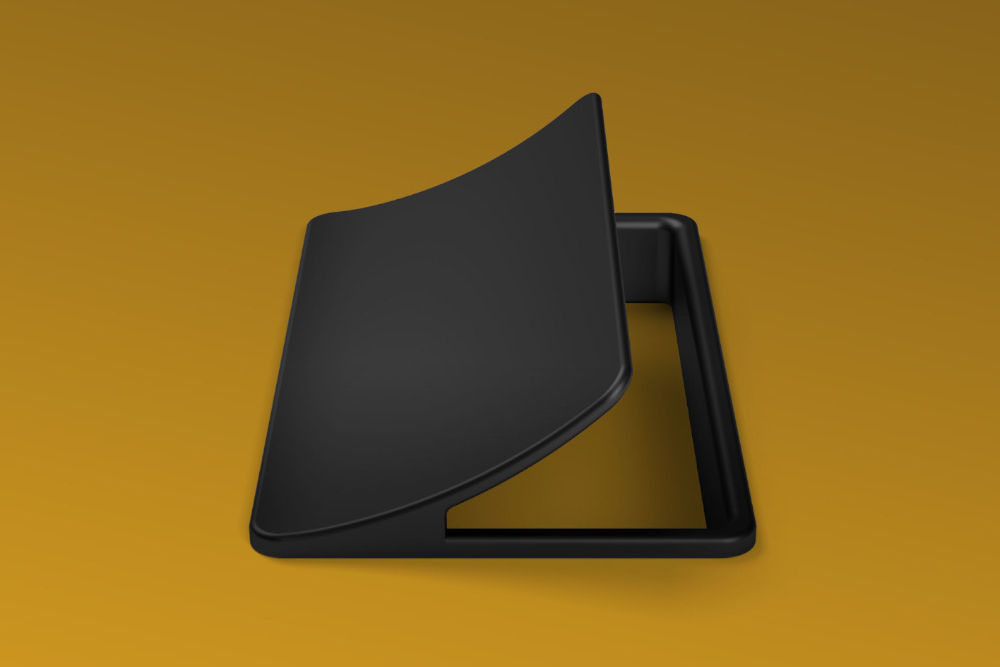

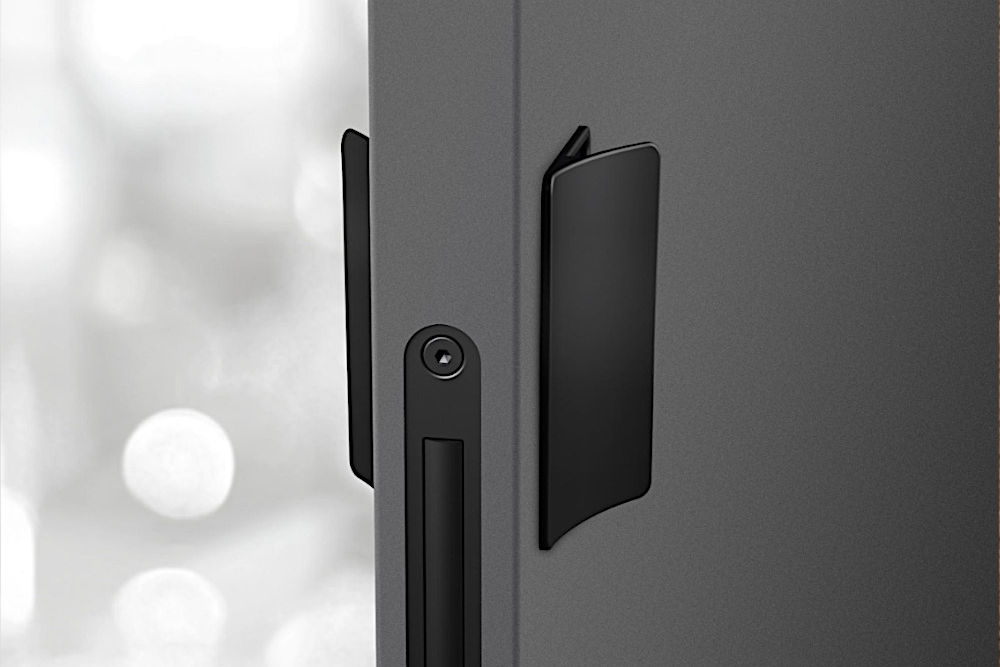

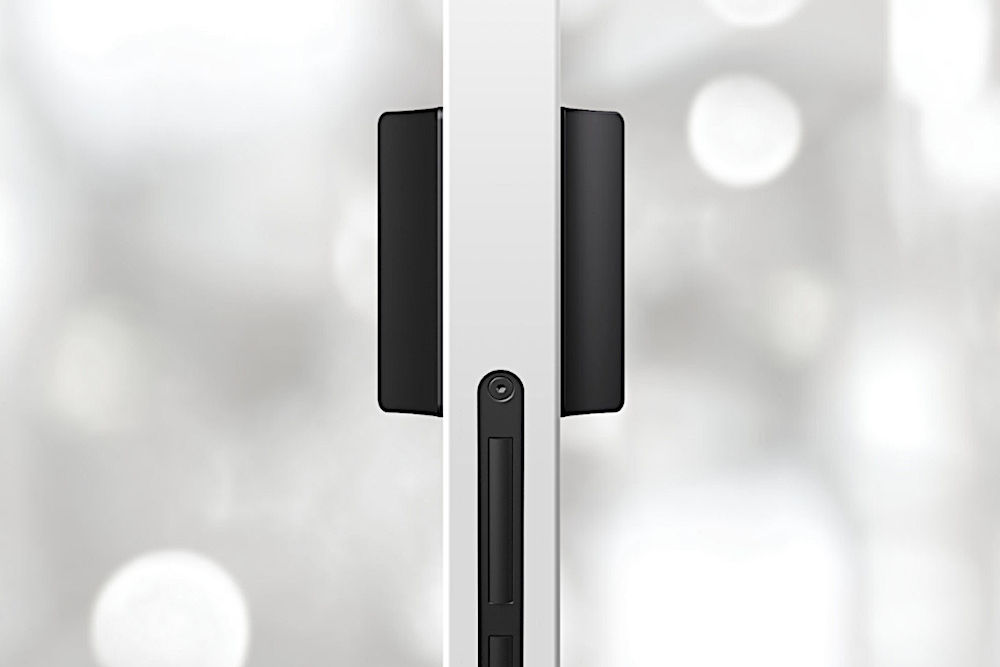

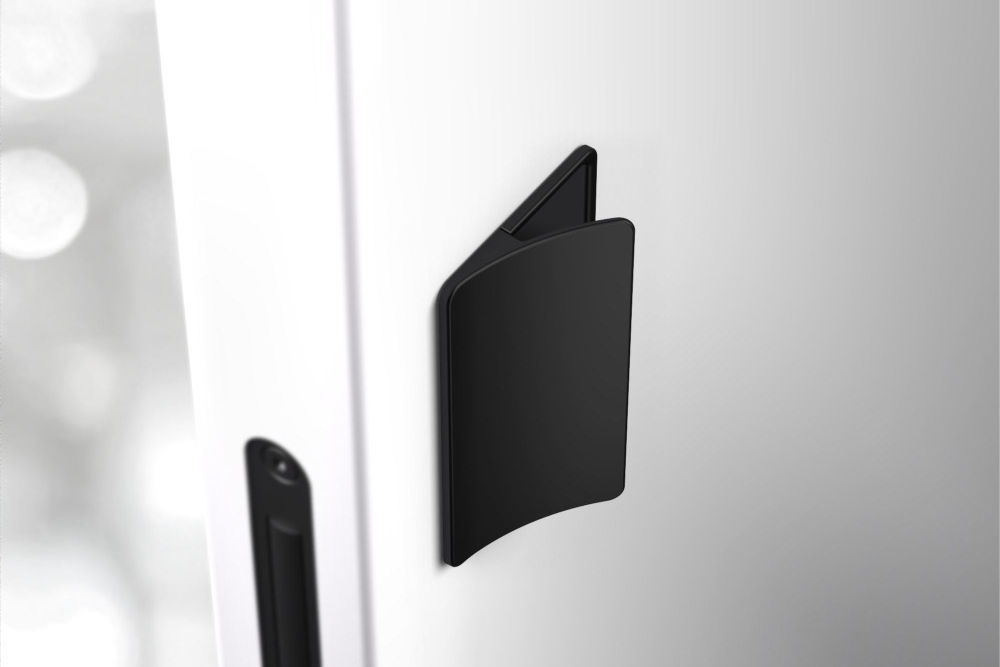

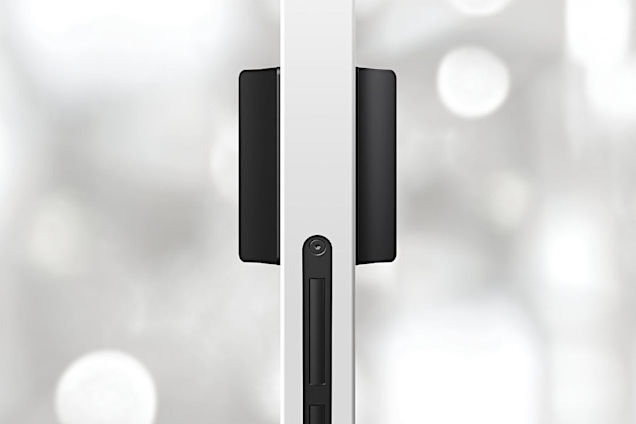

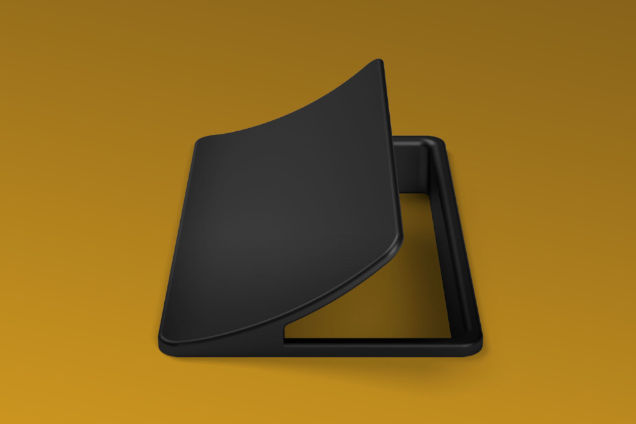

Smaller version of the pull handle with whole hand control. Handle ergonomics with slight rounding of the handles gripping part, with the possibility of changing / replacing the internal magnetic plate to align the surface / color of the pull handle with the door, or to make the door control area more visible.

Metal pull handle, available in black titanium surface finish, nickel matt and black matt structured.

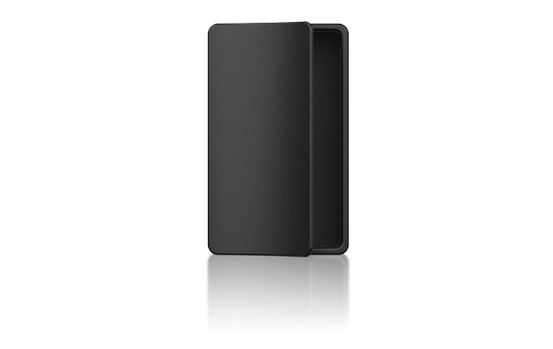

Madlo Konzerva 110

SURFACE FINISHES
3 surfaces

SNi
SNi
TiN-K
TiN-K
K-industrial
K-industrial

revolutionary system for perfect doors

Technical informations

MATERIAL
  • Metal body + magnetic insert
AVAILABLE SURFACE FINISHES
  • SNi nickel matt, TiN-K titanium black matt, K-industrial black matt structured
ASSEMBLY TIME
  • 1 – 2 minutes, variant WC/bathroom 3-5 minutes
ASSEMBLY SYSTEM
  • screwing the base plates against each other with 4 screws, covering the mounting screws with a magnetic face plate
PREPARATION FOR DOORS
  • hole milling
DIMENSIONS
  • 67×110 mm (W×H), output over the door surface 25 mm
ACCESSORIES
  • The package includes:
    • pair of pull handles
    • magnetic inserts
    • fasteners
    • assembly instructions
    • warranty card
VARIANT WC/BATHROOM
  • external mini toilet mechanism + mini lock
VARIANT CYLINDRICAL
  • magnetic cover rosettes dia 54 mm, thickness 5 mm + mini lock
WARRANTY
  • Surface finishes SNi, TiN-K 15 years, K-industrial 5 years
APPLICATIONS
  • Designed for interior doors.
Magnetic fillings in the surface of the handle (ie SNi, Cr, TiN-K) and mounting material for a door thickness of 38 - 41 mm are part of the delivery of the handles. For other door thicknesses, it is necessary to order mounting material according to the table.
door thickness EAN code
42 - 45 mm 124699
46 - 49 mm 124705
50 - 53 mm 124712
54 - 57 mm 124729
58 - 61 mm 124736

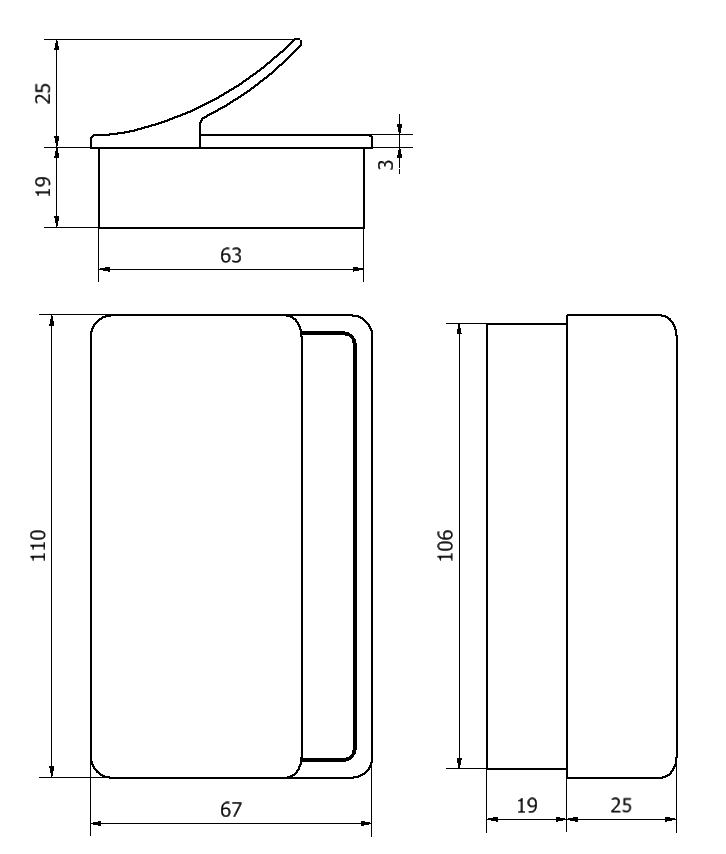

Rozměry

3D model for visualization

Pull handle Konzerva 110 (DWG)

Order numbers

PULL HANDLE KONZERVA 110

PULL HANDLE KONZERVA 110

Povrch kliky
SNi
nickel matt
Povrch kliky
TiN-K
titanium black matt
Povrch kliky
K-industrial
EANEANEAN
-108675108828170009

Magnetic fillings in the surface of the handle (i.e. SNi, Cr, TiN-K) and mounting material for door thickness 38 - 41 mm are included in the price of the handle and part of the delivery of the handles.

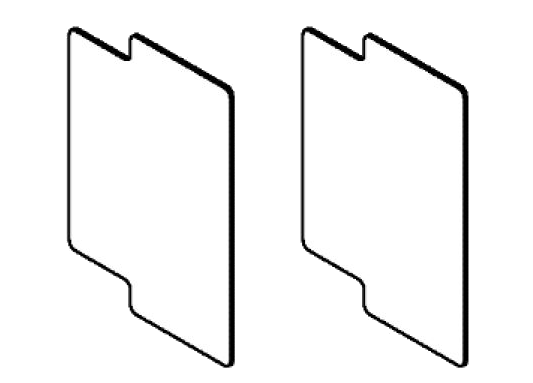

MAGNETIC INSERT OF PULL HANDLE KONZERVA 110

MAGNETIC INSERT OF PULL HANDLE KONZERVA 110

Povrch kliky
White
matt
Povrch kliky
White
glossy
Povrch kliky
Custom
production
EANEANEAN
-110661110678110685

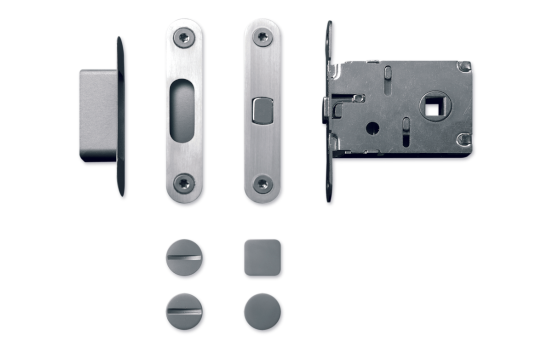

WC WITHOUT ROSETTES + LOCK

WC WITHOUT ROSETTES + LOCK

Povrch kliky
SNi
nickel / stainless steel
Povrch kliky
SNi
brushed / stainless steel
Povrch kliky
Cr
chrome / stainless steel
Povrch kliky
Ms
brass natural / TiN-K titanium black
Povrch kliky
TiN-C
titanium chrome matt / stainless steel
Povrch kliky
TiN-K
titanium black / titanium black
Povrch kliky
TiN-B
titanium brown matt / TiN-K titanium black
Povrch kliky
Ki
black mat structured / TiN-K titanium black mat
Povrch kliky
Ms-L
brass polished / TiN-K titanium black
Povrch kliky
TiN-A
titanium brass matt / TiN-K titanium black
EANEANEANEANEANEANEANEANEANEAN
Square109382111293110654112313112320108637112337170023--
Round110753129656110760-129694110777129700170030129670129717

The first mentioned surface is the surface of the WC mechanism, the second after the slash is the surface of the lock face and counter plate.

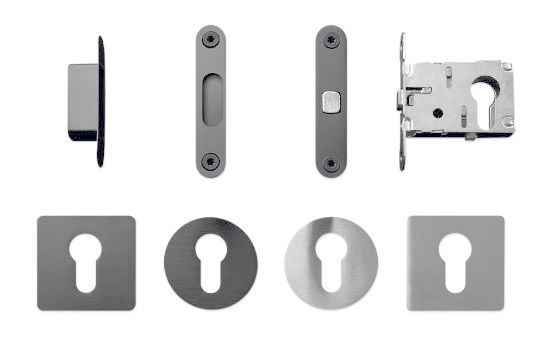

MAGNETIC CYLINDRICAL ROSETTES + LOCK

MAGNETIC CYLINDRICAL ROSETTES + LOCK

Povrch kliky
SNi
nickel / stainless steel
Povrch kliky
SNi
brushed / stainless steel
Povrch kliky
Cr
chrome / stainless steel
Povrch kliky
Ms
brass natural / TiN-K titanium black
Povrch kliky
TiN-C
titanium chrome matt / stainless steel
Povrch kliky
TiN-K
titanium black / titanium black
Povrch kliky
TiN-B
titanium brown matt / TiN-K titanium black
EANEANEANEANEANEANEAN
Square112504112344112351112368112375112382112399
Round112535-112542--112559-
Rectangular 33 × 47 mm112566-112573--112580-

The first mentioned surface is the surface of the cylindrical rosettes, the second behind the slash is the surface of the lock face and counterplate.

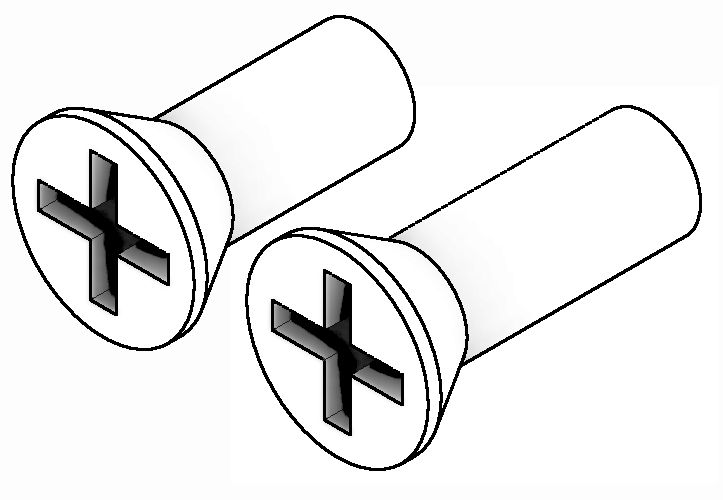

MOUNTING MATERIAL FOR PULL HANDLES JOO, UFF, KONZERVA

MOUNTING MATERIAL FOR PULL HANDLES JOO, UFF, KONZERVA

Povrch kliky
EAN
Doorthickness 42 - 45 mm124699
Doorthickness 46 - 49 mm124705
Doorthickness 50 - 53 mm124712
Doorthickness 54 - 57 mm124729
Doorthickness 58 - 61 mm124736

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.
