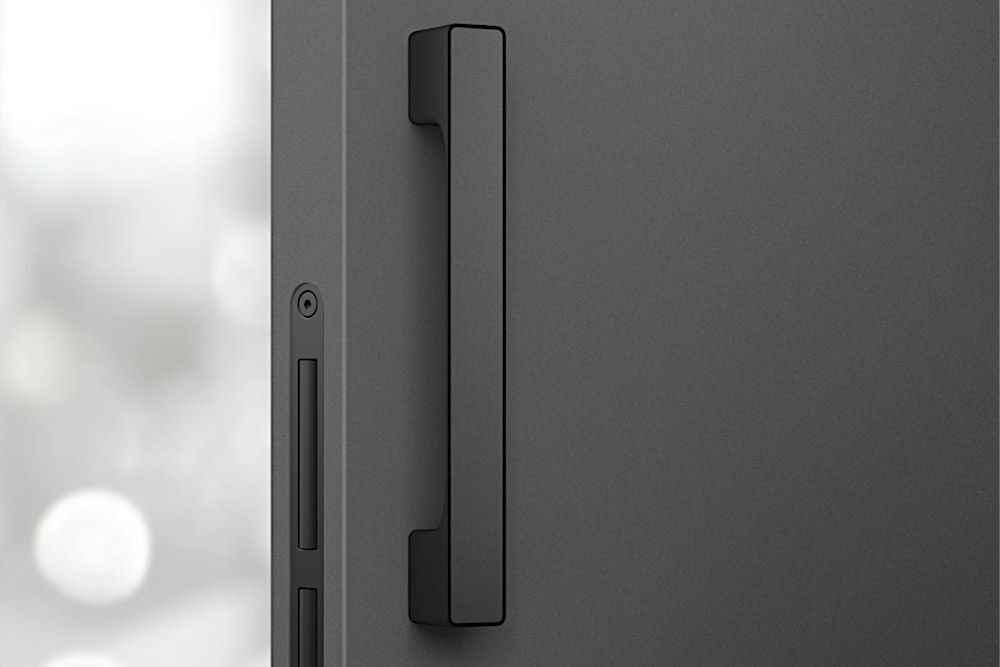

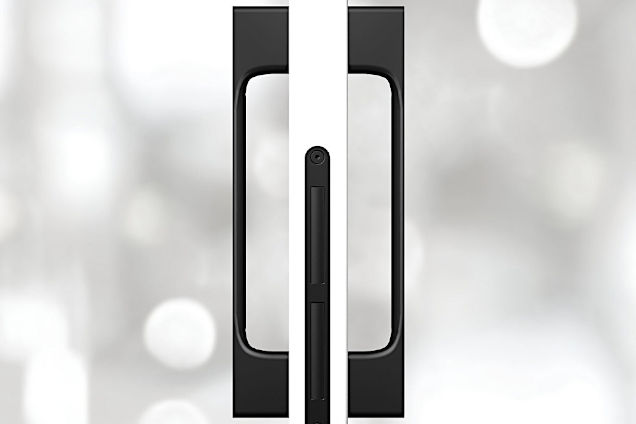

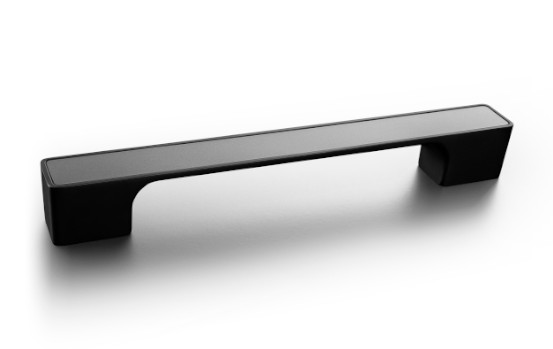

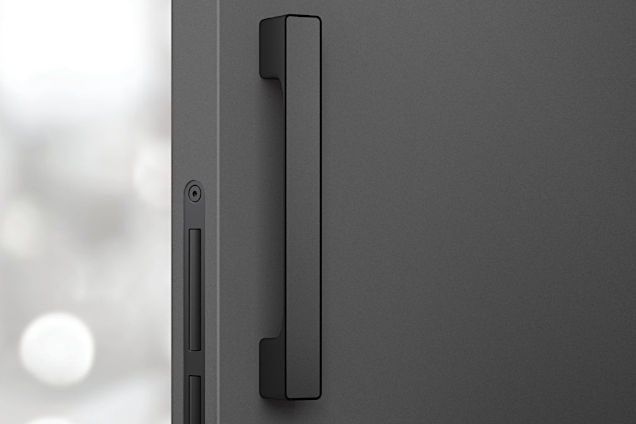

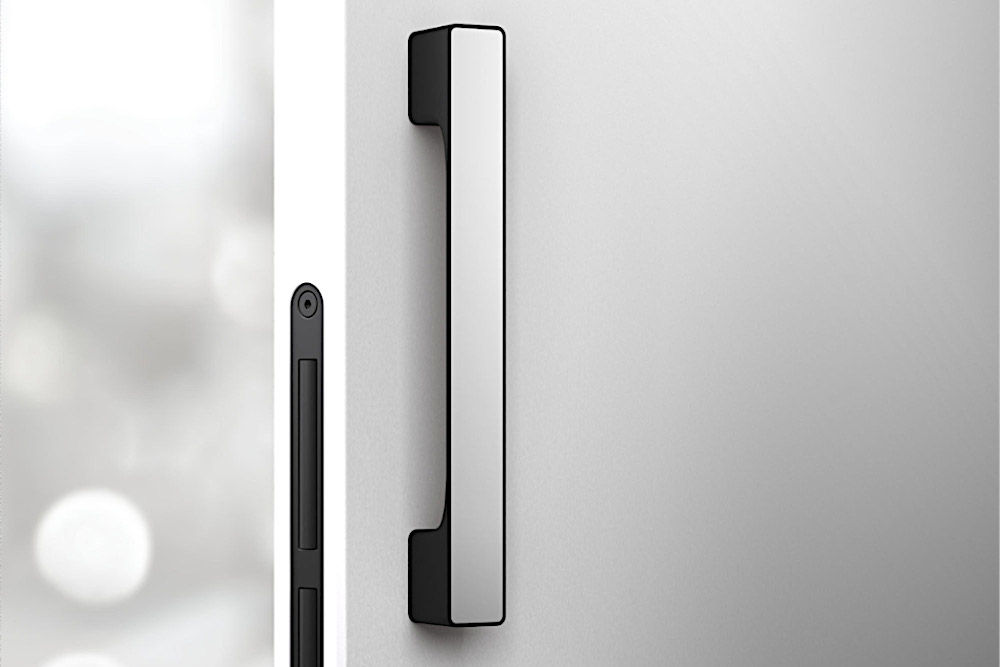

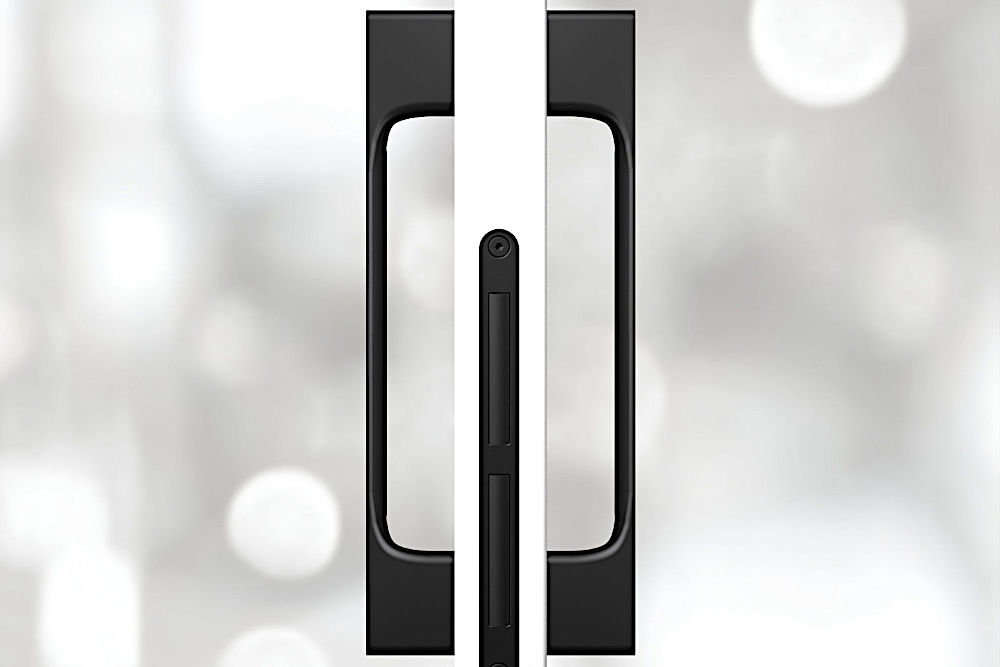

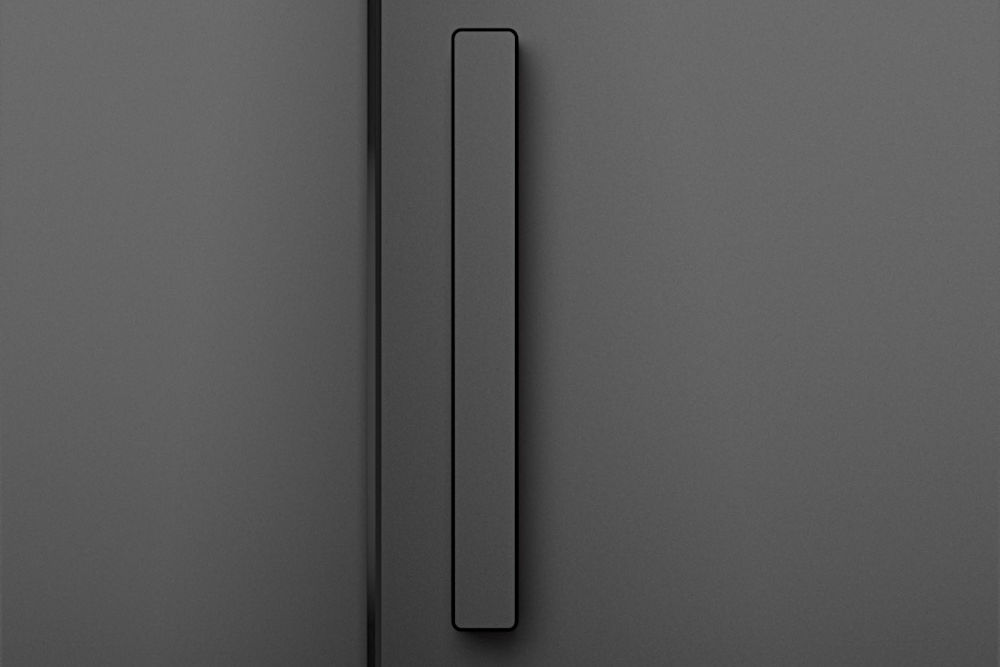

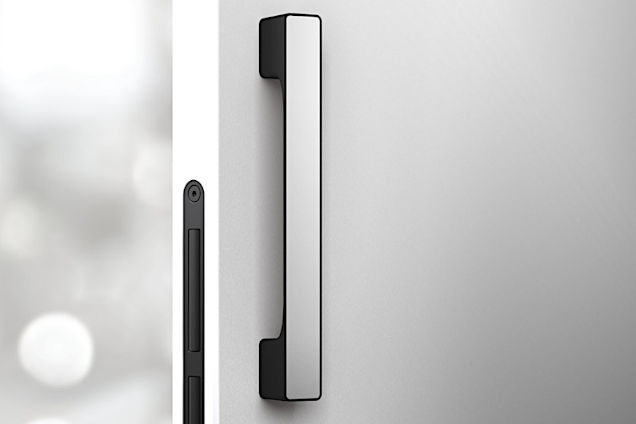

Pull handle Maximal

TiN-K titanium black matt Design: Roman Ulich

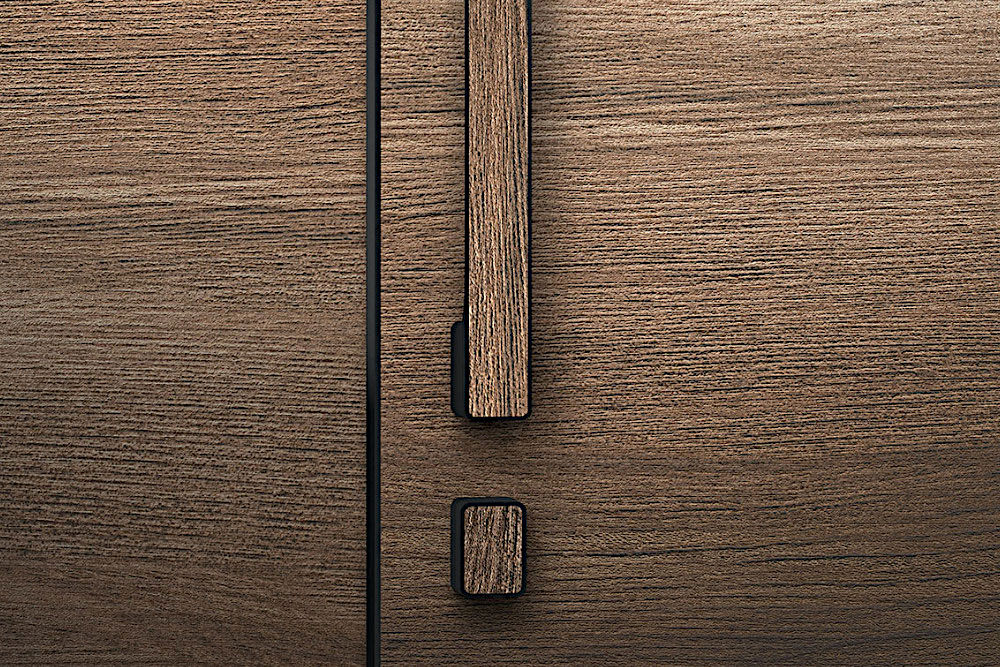

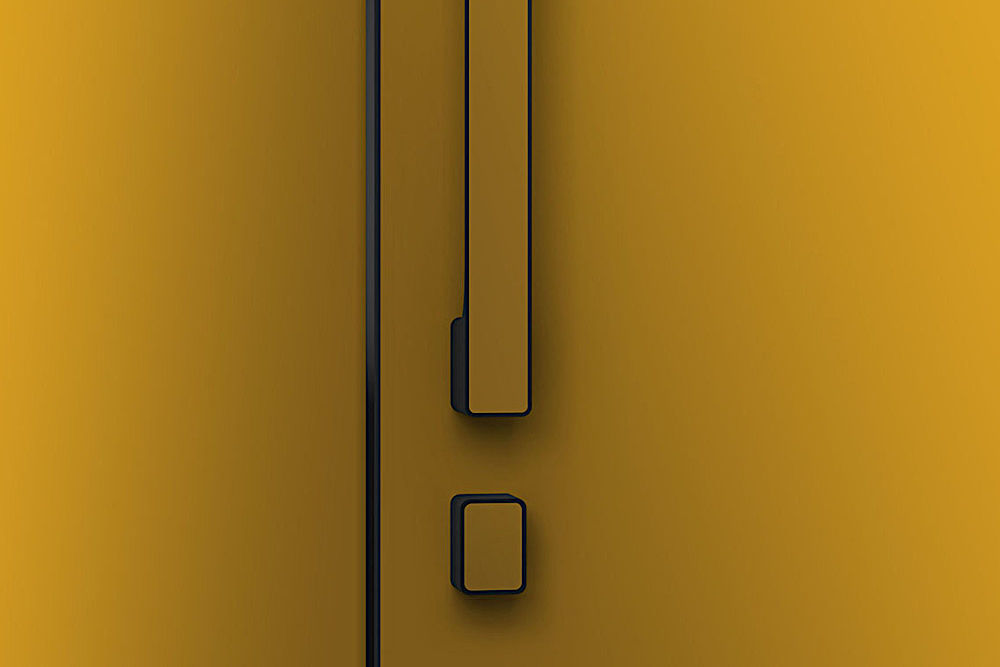

Elegant long hand grip with optional possibility of insert filling to align with door decor/door surface finish. The long hand grip is prepared with impressive WC/bathroom locking. The shape follows the complete collection of door and window fitting Maximal with emphasis to align the entire interior the only one design range of fitting.

This long hand grip is produced from massive brass, manually polished and grinded. For maximal selection is available in 9 surface finishes.

Technical informations

MATERIAL

Brass

SURFACE FINISHES

SNi nickel matt, SNi nickel matt grinded, Cr glossy chrome, Ms brass natural, Ms-A brass antique, Cr-K chrome black grinded, TiN-C titanium chrome matt, TiN-B titanium brown matt, TiN-K titanium black matt

ASSEMBLY TIME

2 – 4 minutes, variant WC/bathroom 5-10 minutes

ASSEMBLY SYSTEM

lowering the handles against each other by locking the set screws

PREPARATION FOR DOORS

hole milling

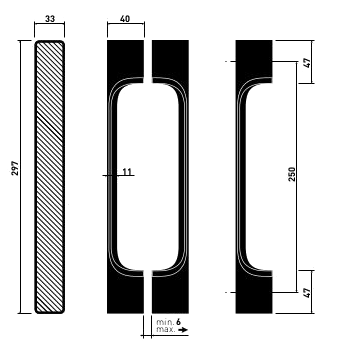

DIMENSIONS

33×297 mm (W×H), output over the door surface 40 mm

ACCESSORIES

The package includes:
- pair of pull handles
- fasteners
- assembly instructions
- warranty card

VARIANT WC/BATHROOM

external toilet mechanism including rosettes 33×47 mm + mini lock

VARIANT CYLINDRICAL

cover rosettes 33×47 mm, thickness 10 mm + mini lock

WARRANTY

Surfaces SNi, Cr 3 years, TiN-K 15 years, Ms life time

APPLICATIONS

Designed for interior doors.

3D model for visualization

Pull handle long Maximal (DWG)

Order numbers

HAND GRIP LONG MAXIMAL	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-A titanium brass matt
HAND GRIP LONG MAXIMAL	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Double sided	002843	002850	002867	058857	058871	002874	002898	002881	002904

HAND GRIP LONG MAXIMAL WC + LOCK	SNi nickel / stainless steel	SNi brushed / stainless steel	Cr chrome / stainless steel	Ms-L brass polished / TiN-K titanium black	Ms brass natural / TiN-K titanium black	TiN-C titanium chrome matt / stainless steel	TiN-K titanium black / titanium black	TiN-B titanium brown matt / TiN-K titanium black
HAND GRIP LONG MAXIMAL WC + LOCK	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Toilet / bathroom	112146	112153	112160	112184	112177	112191	112207	112214

HAND GRIP LONG MAXIMAL CYLINDRICAL + LOCK	SNi nickel / stainless steel	SNi brushed / stainless steel	Cr chrome / stainless steel	Ms-L brass polished / TiN-K titanium black	Ms brass natural / TiN-K titanium black	TiN-C titanium chrome matt / stainless steel	TiN-K titanium black / titanium black	TiN-B titanium brown matt / TiN-K titanium black
HAND GRIP LONG MAXIMAL CYLINDRICAL + LOCK	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Cylindrical rosettes	112221	112238	112245	112269	112252	112276	112283	112290

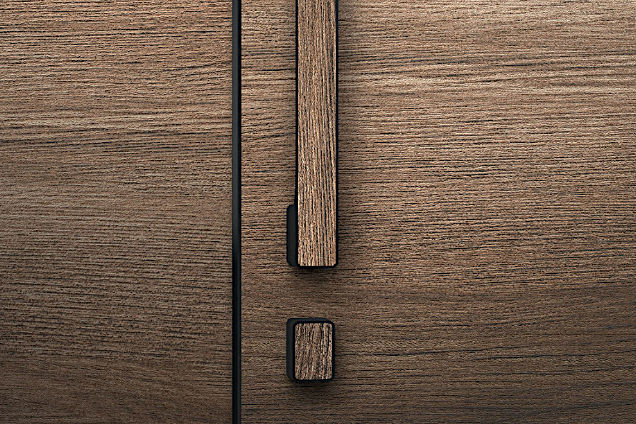

INSERT MAXIMAL	RAL colours	Wood	White matt	White glossy
INSERT MAXIMAL	EAN	EAN	EAN	EAN
Long hand grip	022520	002980	111804	111811
Rosette	022490	000740	111828	111835

	MOUNTING MATERIAL FOR HAND GRIPS
	MOUNTING MATERIAL FOR HAND GRIPS	EAN
	Double sided	003048

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.
