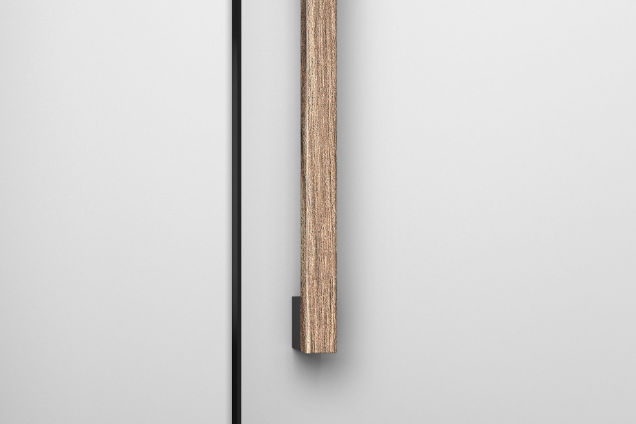

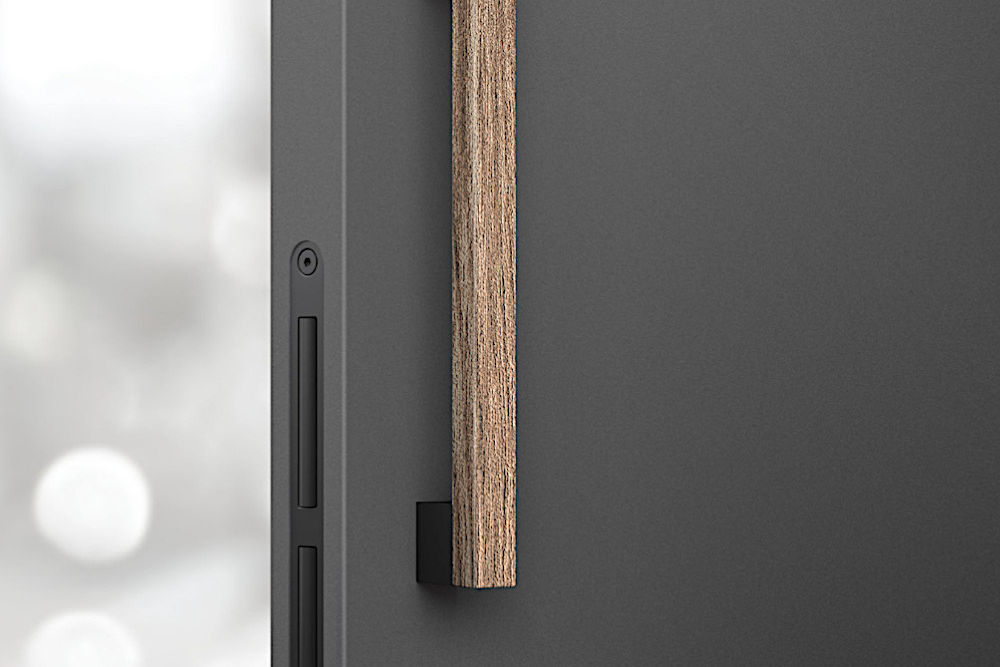

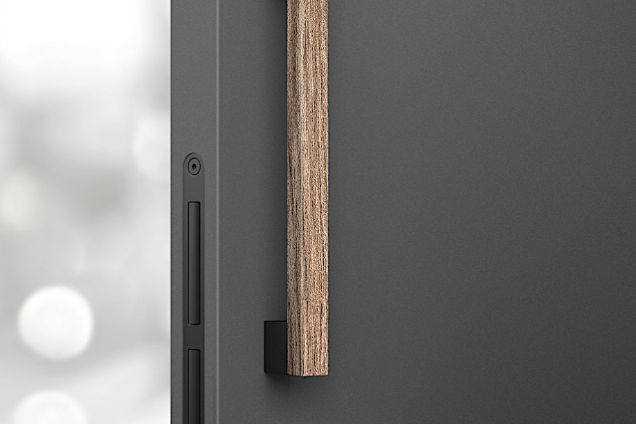

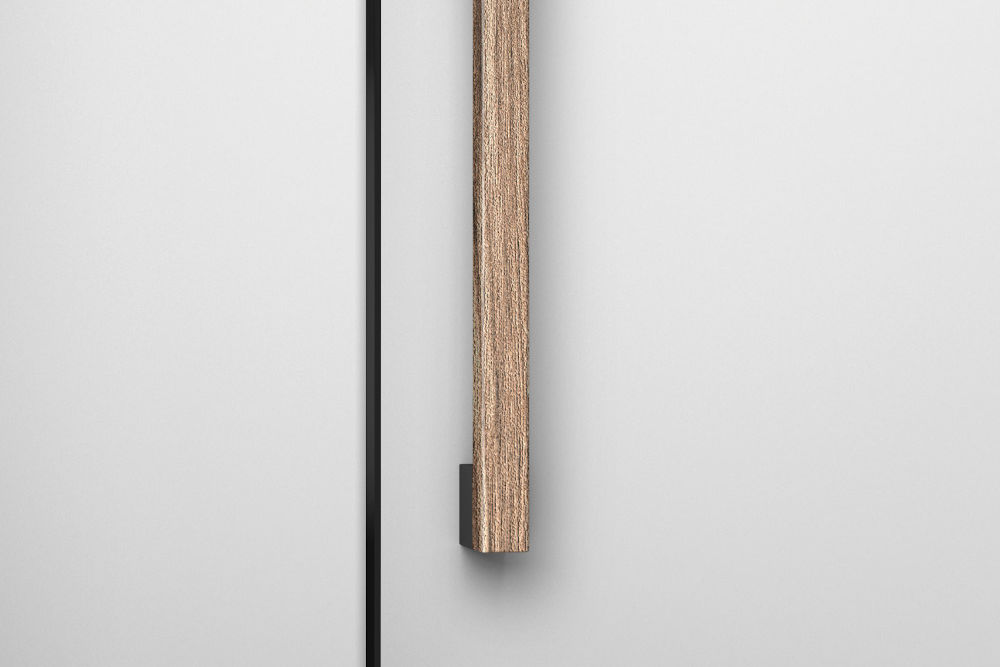

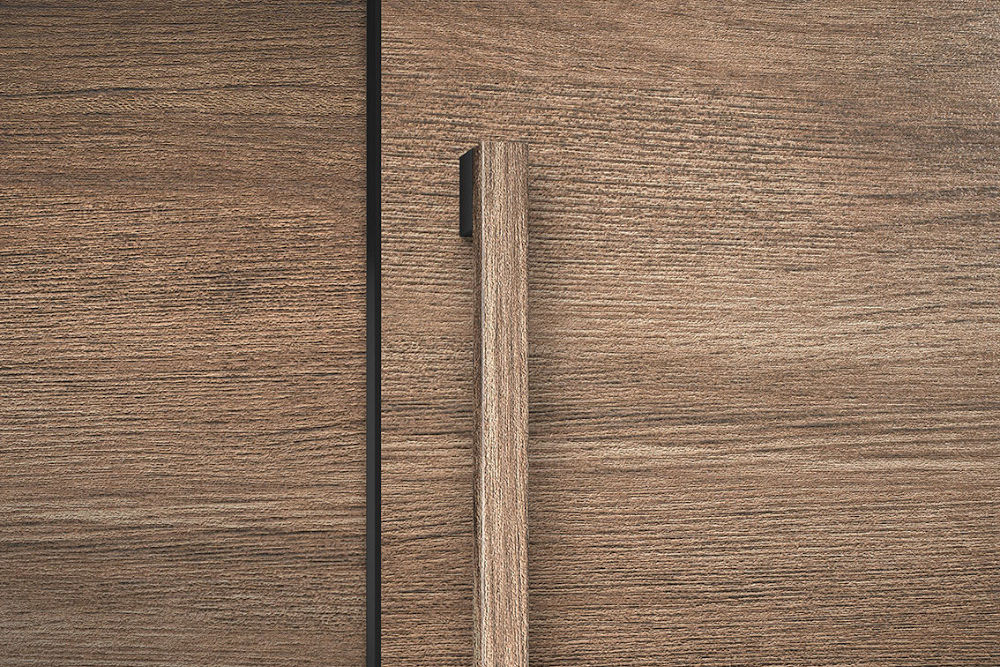

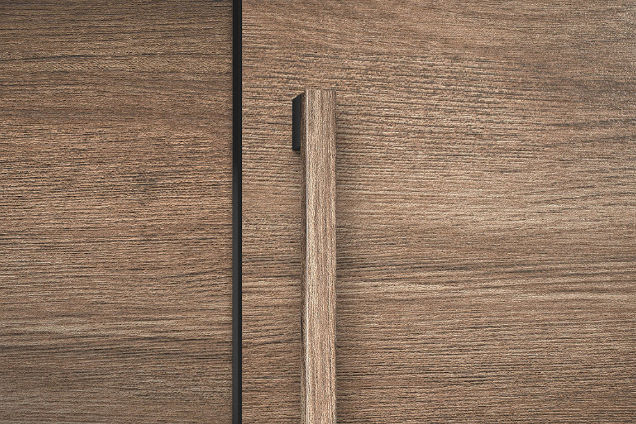

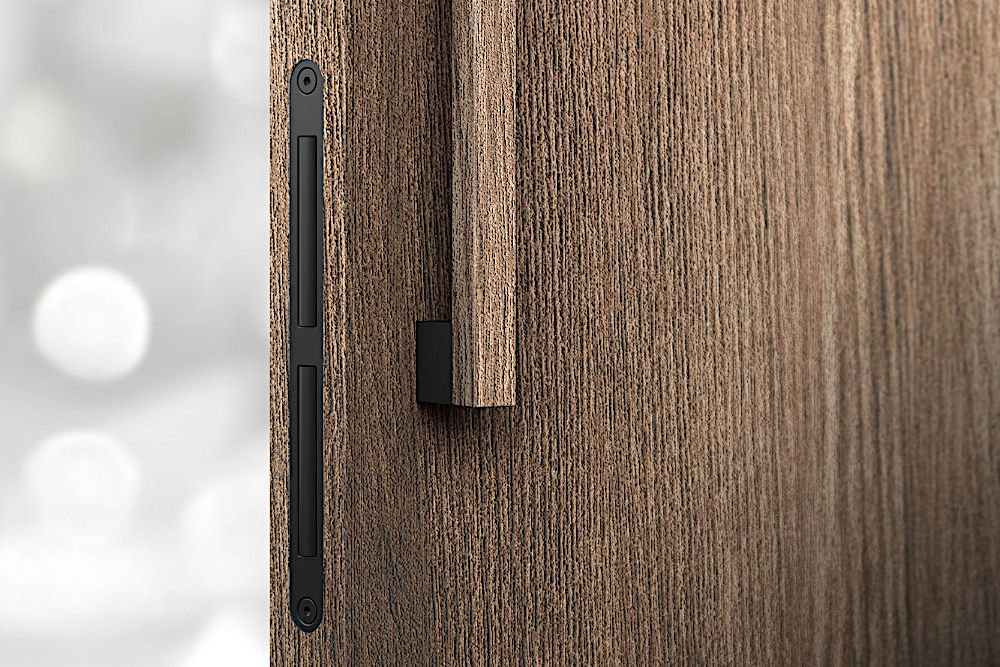

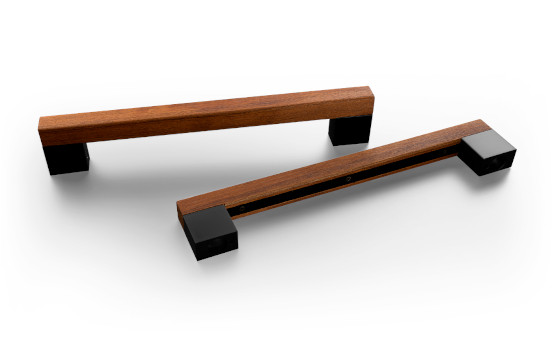

Pull handle Mimolimit

TiN-K titanium black matt + teak wood Design: Barbora Škorpilová

Wooden long pull handle with pleasant grip ergonomics with metal inner construction of the modular system for delivery in various lengths up to 2400 mm.

The metal part is produced from massive brass, for maximal selection is available in 7 surface finishes. The wooden part is available in 5 different woods.

Technical informations

MATERIAL

Massive brass, wood

SURFACE FINISHES

SNi nickel matt, SNi nickel matt grinded, Cr glossy chrome, Ms brass natural, Ms-A brass antique, Cr-K chrome black grinded, TiN-C titanium chrome matt, TiN-B titanium brown matt, TiN-K titanium black matt

WOODS

teak, elm, nut, oak, bleached oak

ASSEMBLY TIME

2 – 4 minutes, variant WC/bathroom 5-10 minutes

ASSEMBLY SYSTEM

lowering the handles against each other by locking the set screws M6

PREPARATION FOR DOORS

hole milling

DIMENSIONS

thickness 24 mm, output over the door surface 61 mm

ACCESSORIES

The package includes:
- pair of pull handles
- fasteners
- assembly instructions
- warranty card

VARIANT WC/BATHROOM

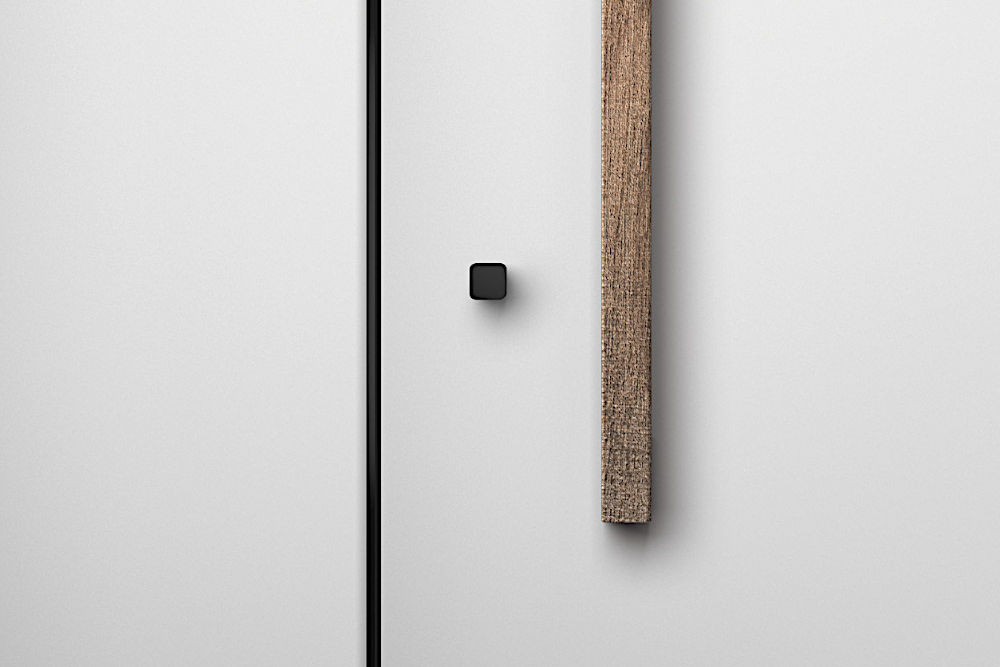

external toilet mechanism + mini lock

VARIANT CYLINDRICAL

magnetic cover rosettes dia 54 mm, thickness 5 mm + mini lock

WARRANTY

Surfaces SNi, Cr 3 years, TiN-K 15 years, Ms life time

APPLICATIONS

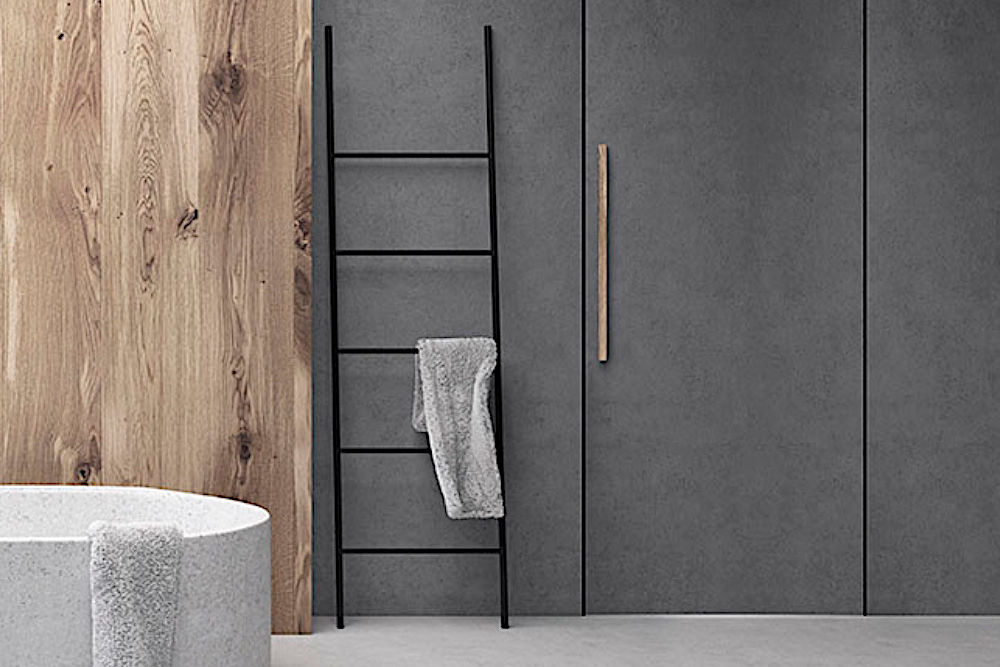

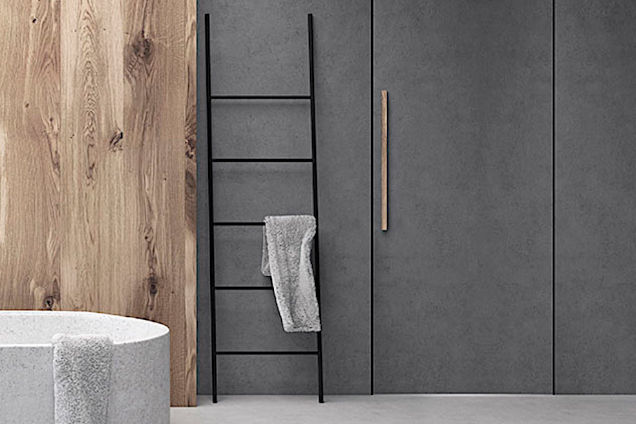

Designed for interior doors.

3D model for visualization

Pull handle long Mimolimit (DWG)

Order numbers

HAND GRIP LONG MIMOLIMIT	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt
HAND GRIP LONG MIMOLIMIT	EAN	EAN	EAN	EAN	EAN	EAN	EAN
distance / length 300 / 340 mm	83301	022209	058895	058956	83349	83363	83387
distance / length 600 / 640 mm	83318	022216	058901	058963	83356	83370	83394
distance / length 900 / 940 mm	83974	022223	058918	058970	84018	84056	84094
distance / length 1200 / 1240 mm	83981	022230	058925	058987	84025	84063	84100
distance / length 1800 / 1840 mm	83998	022247	058932	058994	84032	84070	84117
distance / length 2400 / 2440 mm	84001	022254	058949	059007	84049	84087	84124

WOODEN PART OF HAND GRIP MIMOLIMIT	Teak	Elm	Nut	Oak	Bleached oak
WOODEN PART OF HAND GRIP MIMOLIMIT	EAN	EAN	EAN	EAN	EAN
distance / length 300 / 340 mm	83400	83424	83448	83936	83950
distance / length 600 / 640 mm	83417	83431	83929	83943	83967
distance / length 900 / 940 mm	84131	84179	84216	84254	84292
distance / length 1200 / 1240 mm	84148	84186	84223	84261	84308
distance / length 1800 / 1840 mm	84155	84193	84230	84278	84315
distance / length 2400 / 2440 mm	84162	84209	84247	84285	84322

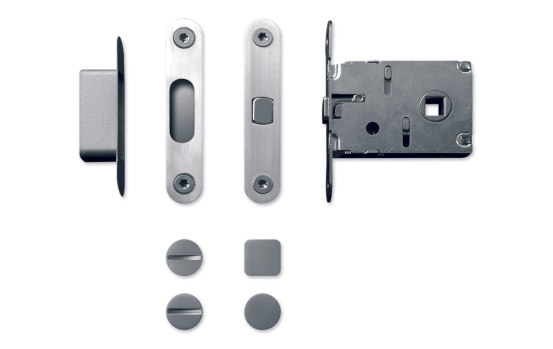

WC WITHOUT ROSETTES + LOCK	SNi nickel / stainless steel	SNi brushed / stainless steel	Cr chrome / stainless steel	Ms brass natural / TiN-K titanium black	TiN-C titanium chrome matt / stainless steel	TiN-K titanium black / titanium black	TiN-B titanium brown matt / TiN-K titanium black	Ki black mat structured / TiN-K titanium black mat	Ms-L brass polished / TiN-K titanium black	TiN-A titanium brass matt / TiN-K titanium black
WC WITHOUT ROSETTES + LOCK	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Square	109382	111293	110654	112313	112320	108637	112337	170023	-	-
Round	110753	129656	110760	-	129694	110777	129700	170030	129670	129717

	MOUNTING MATERIAL FOR HAND GRIPS
	MOUNTING MATERIAL FOR HAND GRIPS	EAN
	Double sided	003048

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Pull handle Mimolimit

SURFACE FINISHES
7 surfaces
