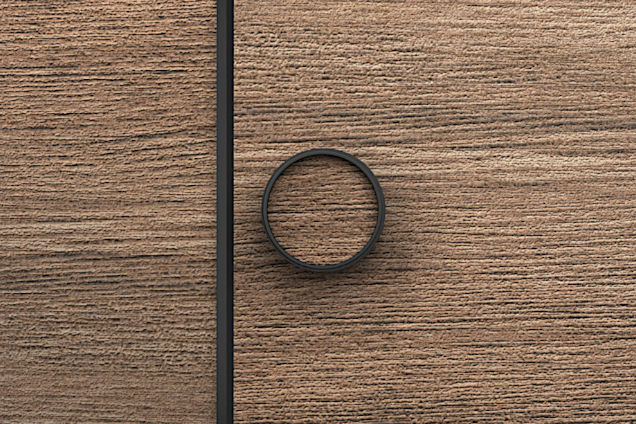

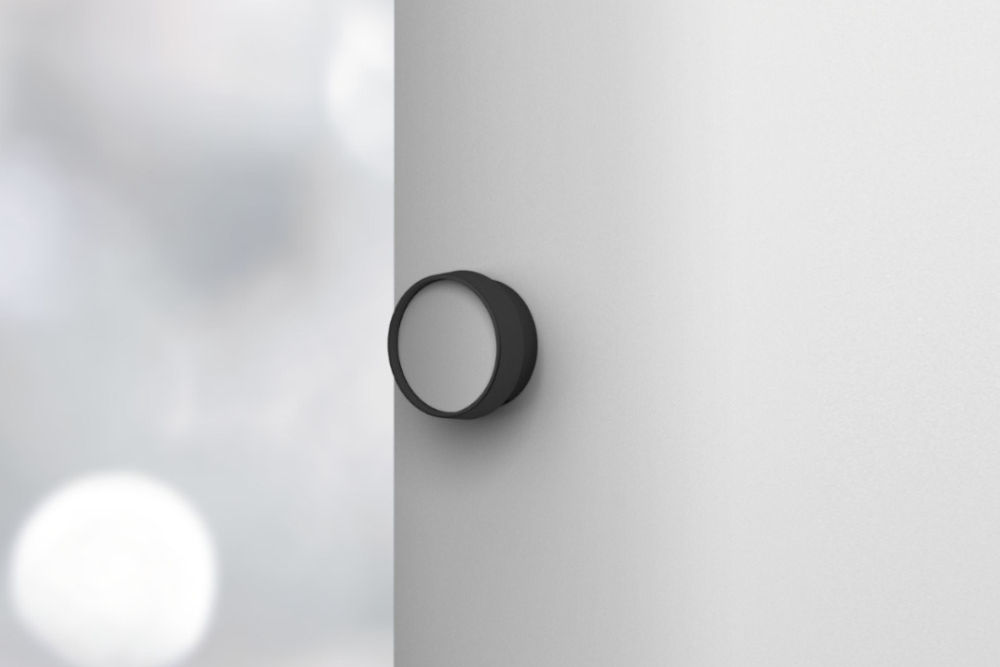

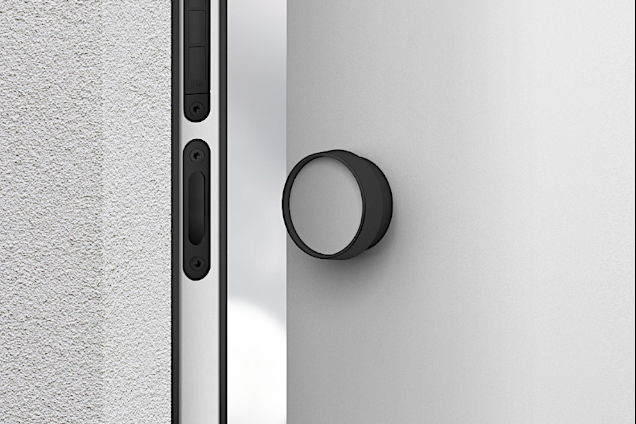

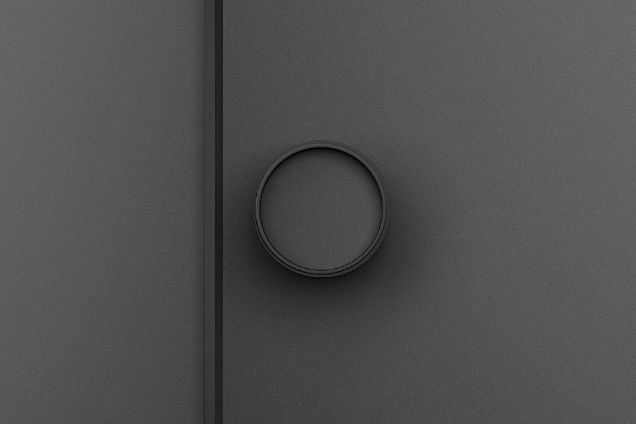

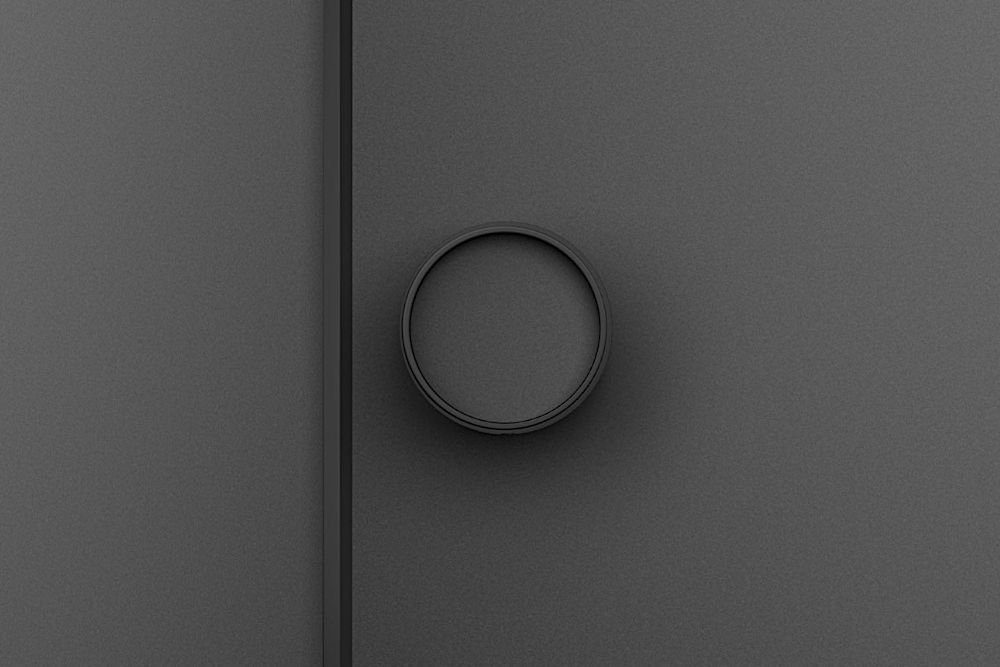

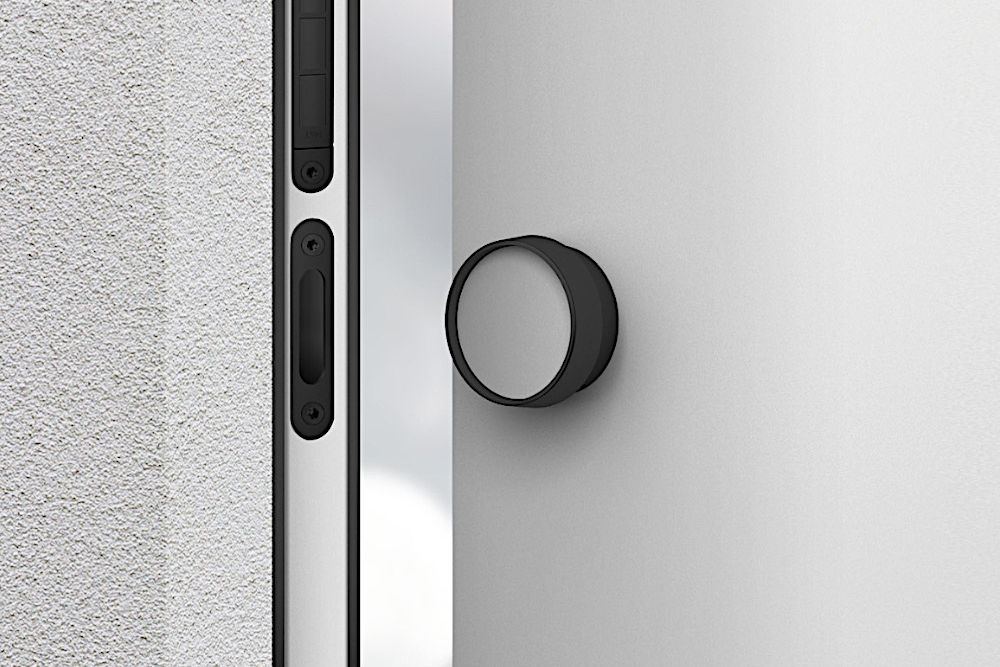

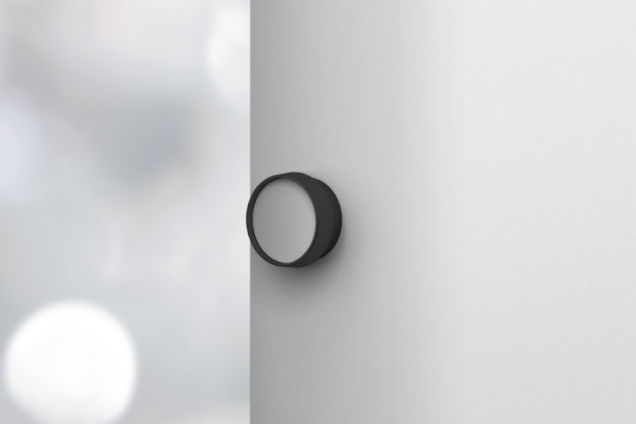

Pull handle Oko

TiN-K titanium black matt Design: Roman Ulich

Round pull handle with pleasant control. This pull handle is produced from massive brass, with the possibility of changing/replacing magnetic plate on pull handle surface to align the surface / color of the pull handle with the door, or to make the door control area more visible. For maximal selection is pull handle Oko available in 10 surface finishes.

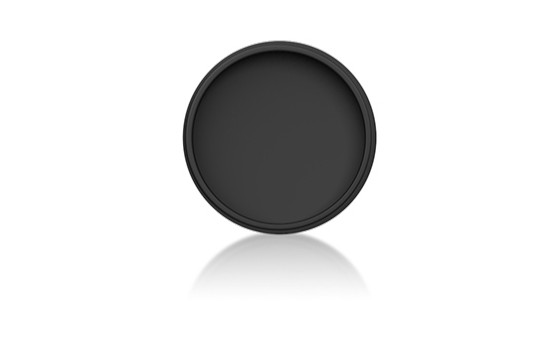

Madlo Oko

SURFACE FINISHES
10 surfaces

SNi
SNi
SNi
SNi grinded
Cr
Cr
Ms-L
Ms-L
Ms-A
Ms-A
Cr-K
Cr-K
TiN-C
TiN-C
TiN-K
TiN-K
TiN-B
TiN-B
TiN-A
TiN-A

revolutionary system for perfect doors

Technical informations

MATERIAL
  • Massive brass + magnetic insert
SURFACE FINISHES
  • SNi nickel matt, SNi nickel matt grinded, Cr glossy chrome, Ms brass natural, Ms-A brass antique, Cr-K chrome black grinded, TiN-C titanium chrome matt, TiN-B titanium brown matt, TiN-K titanium black matt
ASSEMBLY TIME
  • 1 – 2 minutes, WC/bathroom variant 3-5 minutes
ASSEMBLY SYSTEM
  • screwing the base plates against each other with 4 screws, covering the mounting screws with a magnetic face plate
PREPARATION FOR DOORS
  • hole milling
DIMENSIONS
  • 84×89 mm (W×H), output over the door surface 3 mm
ACCESSORIES
  • The package includes:
    • pair of pull handles
    • fasteners
    • assembly instructions
    • warranty card
VARIANT WC/BATHROOM
  • external toilet mechanism + mini lock
VARIANT CYLINDRICAL
  • magnetic cover rosettes dia 54 mm, thickness 5 mm + mini lock
WARRANTY
  • Surfaces SNi, Cr 3 years, titaniums 15 years, Ms life time
APPLICATIONS
  • Designed for interior doors.
Mounting material for a door thickness of 38 - 45 mm are part of the delivery of the handles. For other door thicknesses, it is necessary to order mounting material according to the table.
door thickness EAN code
46 - 50 mm 124811
51 - 55 mm 124828
56 - 60 mm 124835

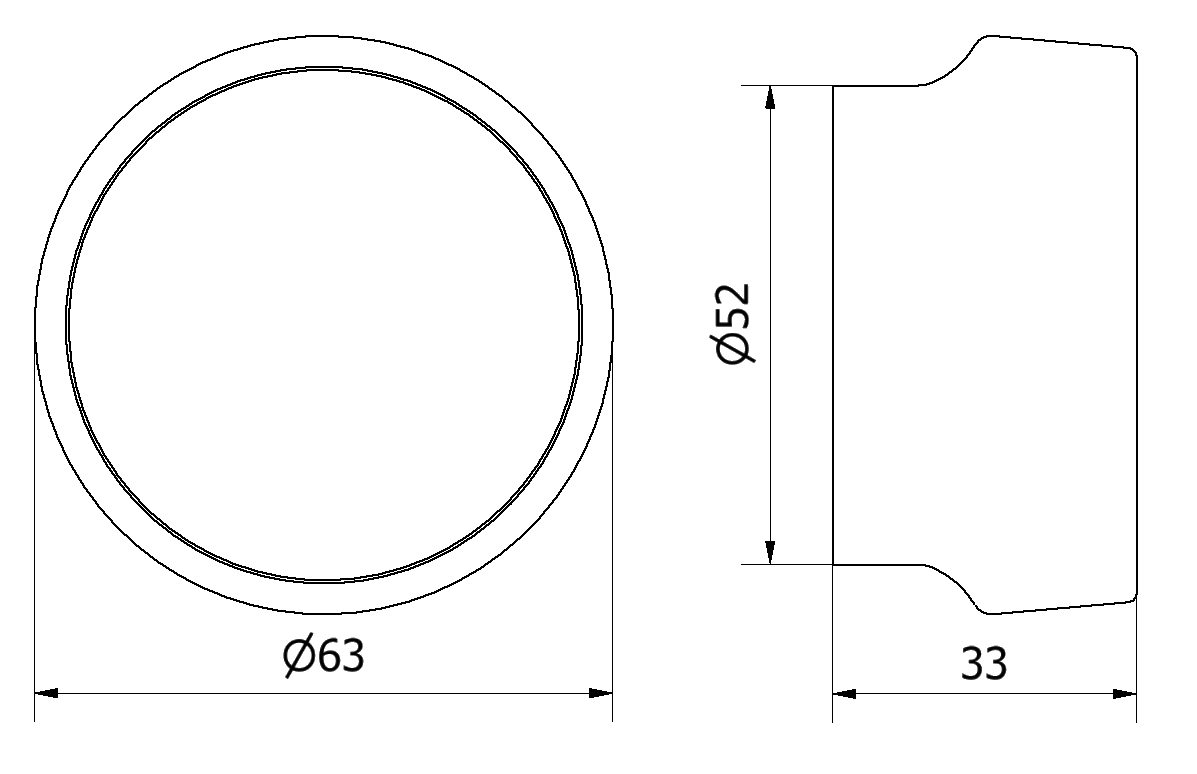

Rozměry

3D model for visualization

Pull handle Oko (DWG)

Order numbers

PULL HANDLE OKO

PULL HANDLE OKO

Povrch kliky
SNi
nickel matt
Povrch kliky
SNi
nickel matt brushed
Povrch kliky
Cr
glossy chrome
Povrch kliky
Ms-A
brass antique
Povrch kliky
Ms-L
brass polished
Povrch kliky
Cr-K
chrome black brushed 3D
Povrch kliky
TiN-C
titanium chrome matt
Povrch kliky
TiN-K
titanium black matt
Povrch kliky
TiN-B
titanium brown matt
Povrch kliky
TiN-A
titanium brass matt
EANEANEANEANEANEANEANEANEANEAN
-111682111699111705111774111712111729111736111743111750111767

Mounting material for door thickness 38 - 45 mm is included in the price of the handle and part of the handle delivery.

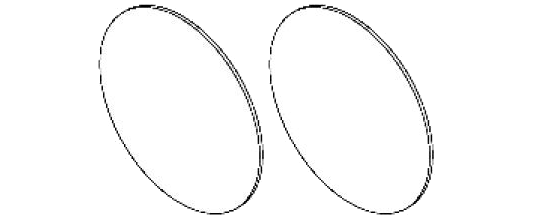

MAGNETIC INSERT OF PULL HANDLE OKO

MAGNETIC INSERT OF PULL HANDLE OKO

Povrch kliky
SNi
nickel matt
Povrch kliky
Cr
glossy chrome
Povrch kliky
TiN-C
titanium chrome matt
Povrch kliky
TiN-K
titanium black matt
Povrch kliky
TiN-B
titanium brown matt
Povrch kliky
TiN-A
titanium brass matt
Povrch kliky
White
matt
Povrch kliky
White
glossy
EANEANEANEANEANEANEANEAN
-111880111897111934111903111958111941111910111927

Výplně nejsou součástí dodávky madel, objednávaji se vždy zvlášť.

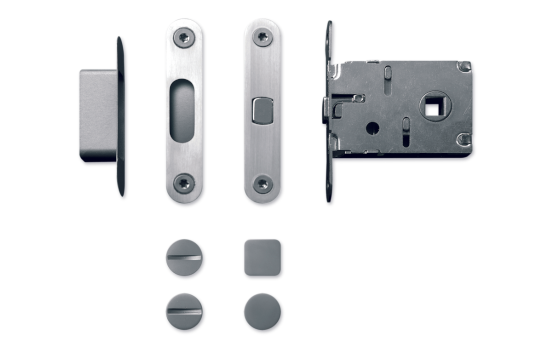

WC WITHOUT ROSETTES + LOCK

WC WITHOUT ROSETTES + LOCK

Povrch kliky
SNi
nickel / stainless steel
Povrch kliky
SNi
brushed / stainless steel
Povrch kliky
Cr
chrome / stainless steel
Povrch kliky
Ms
brass natural / TiN-K titanium black
Povrch kliky
TiN-C
titanium chrome matt / stainless steel
Povrch kliky
TiN-K
titanium black / titanium black
Povrch kliky
TiN-B
titanium brown matt / TiN-K titanium black
Povrch kliky
Ki
black mat structured / TiN-K titanium black mat
Povrch kliky
Ms-L
brass polished / TiN-K titanium black
Povrch kliky
TiN-A
titanium brass matt / TiN-K titanium black
EANEANEANEANEANEANEANEANEANEAN
Square109382111293110654112313112320108637112337170023--
Round110753129656110760-129694110777129700170030129670129717

The first mentioned surface is the surface of the WC mechanism, the second after the slash is the surface of the lock face and counter plate.

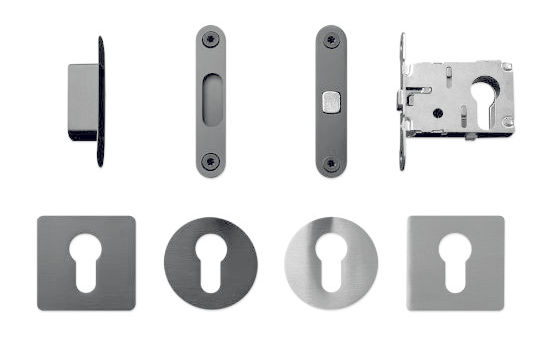

MAGNETIC CYLINDRICAL ROSETTES + LOCK

MAGNETIC CYLINDRICAL ROSETTES + LOCK

Povrch kliky
SNi
nickel / stainless steel
Povrch kliky
SNi
brushed / stainless steel
Povrch kliky
Cr
chrome / stainless steel
Povrch kliky
Ms
brass natural / TiN-K titanium black
Povrch kliky
TiN-C
titanium chrome matt / stainless steel
Povrch kliky
TiN-K
titanium black / titanium black
Povrch kliky
TiN-B
titanium brown matt / TiN-K titanium black
EANEANEANEANEANEANEAN
Square112504112344112351112368112375112382112399
Round112535-112542--112559-
Rectangular 33 × 47 mm112566-112573--112580-

The first mentioned surface is the surface of the cylindrical rosettes, the second behind the slash is the surface of the lock face and counterplate.

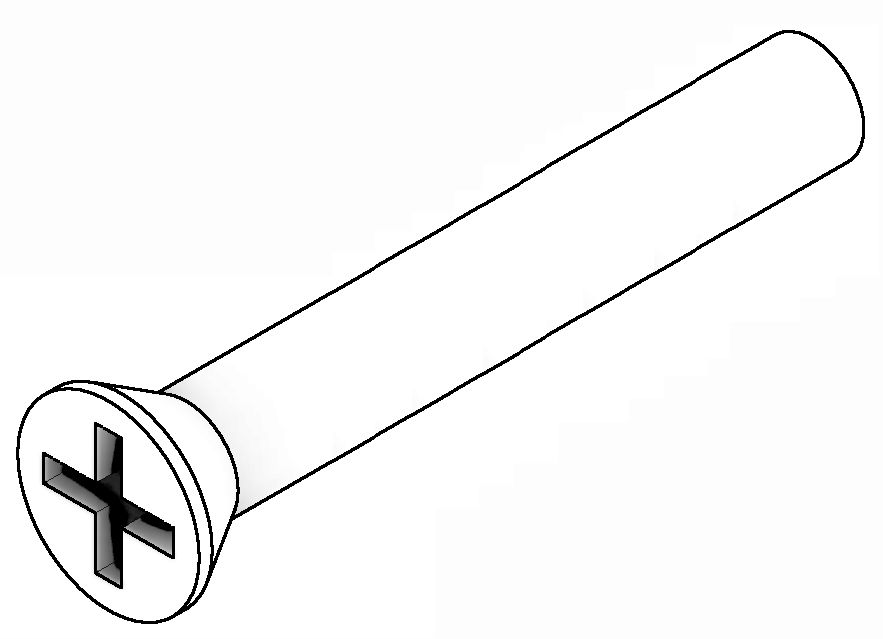

MOUNTING MATERIAL FOR PULL HANDLE OKO

MOUNTING MATERIAL FOR PULL HANDLE OKO

Povrch kliky
EAN
Doorthickness 46 - 50 mm124811
Doorthickness 51 - 55 mm124828
Doorthickness 56 - 60 mm124835

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.
