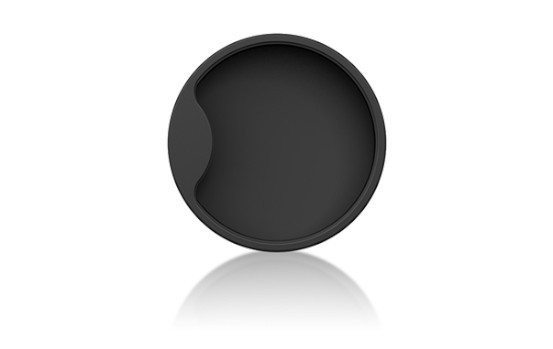

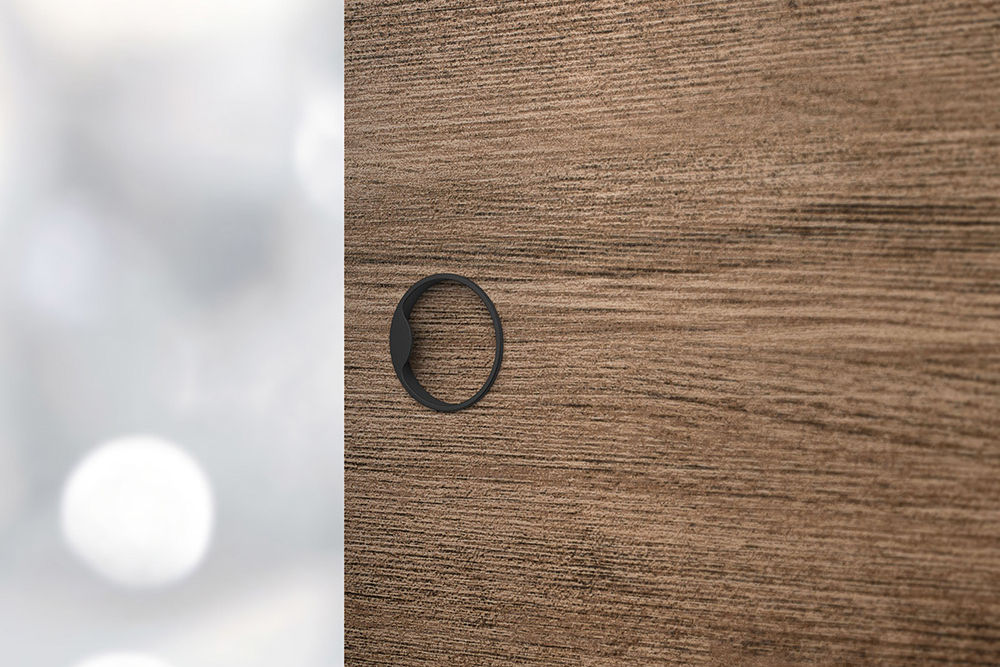

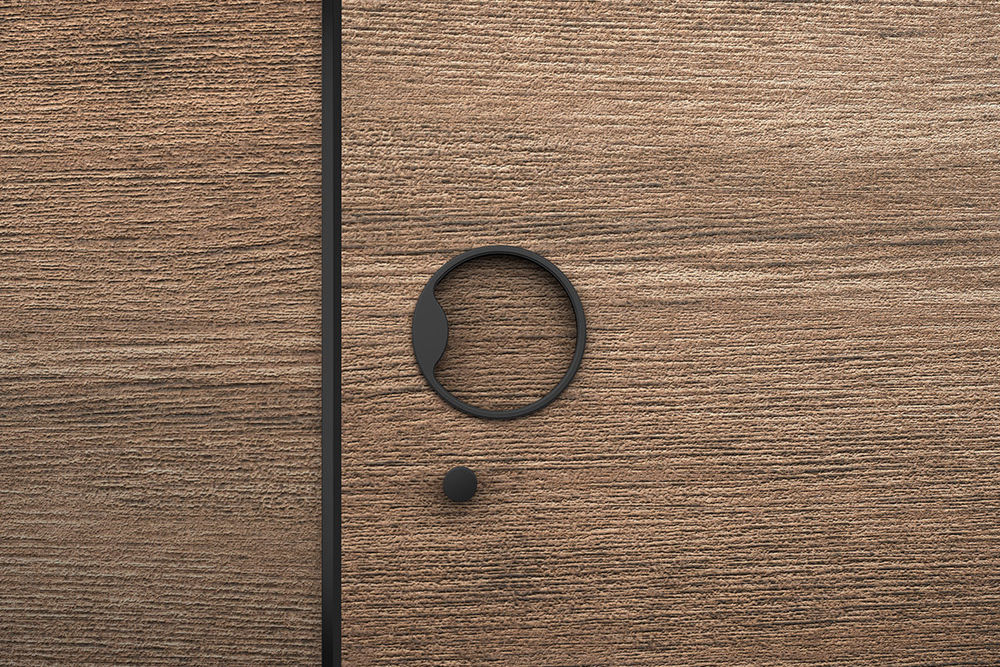

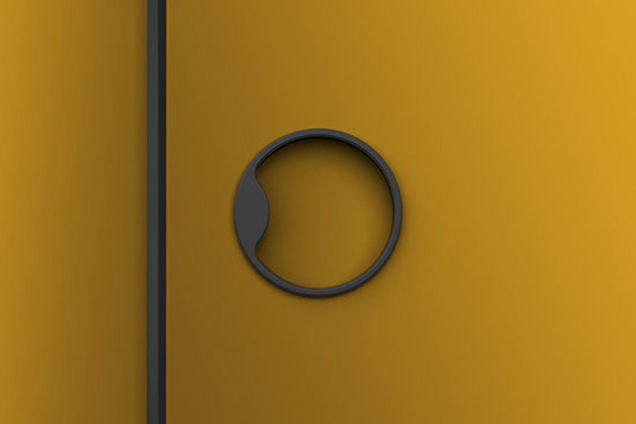

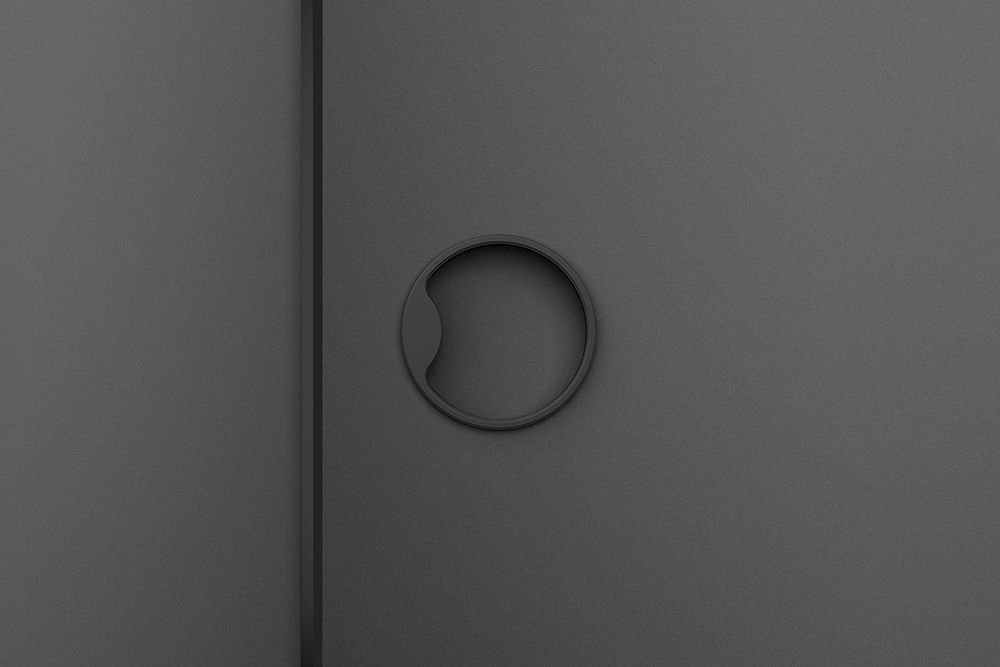

Pull handle Uff

TiN-K titanium black matt Design: Roman Ulich

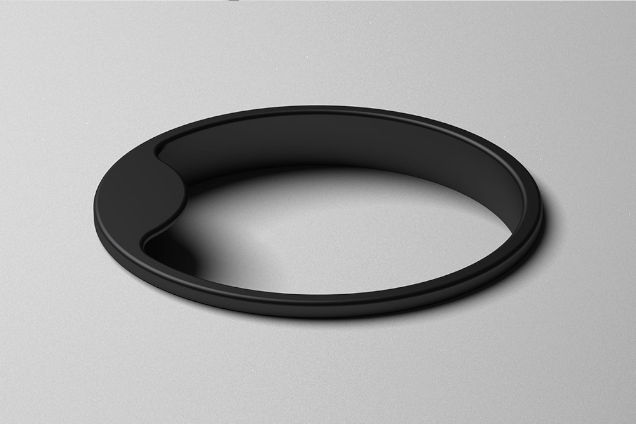

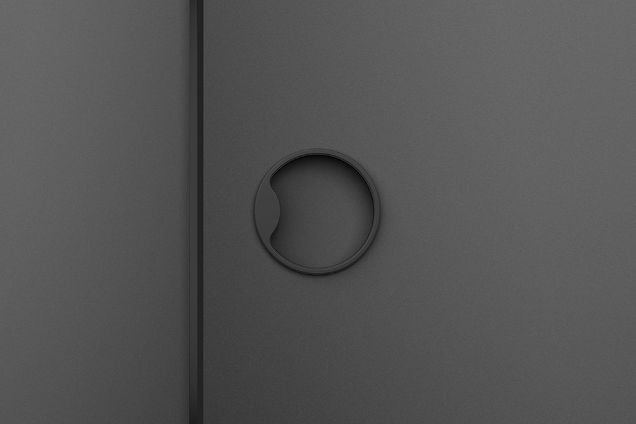

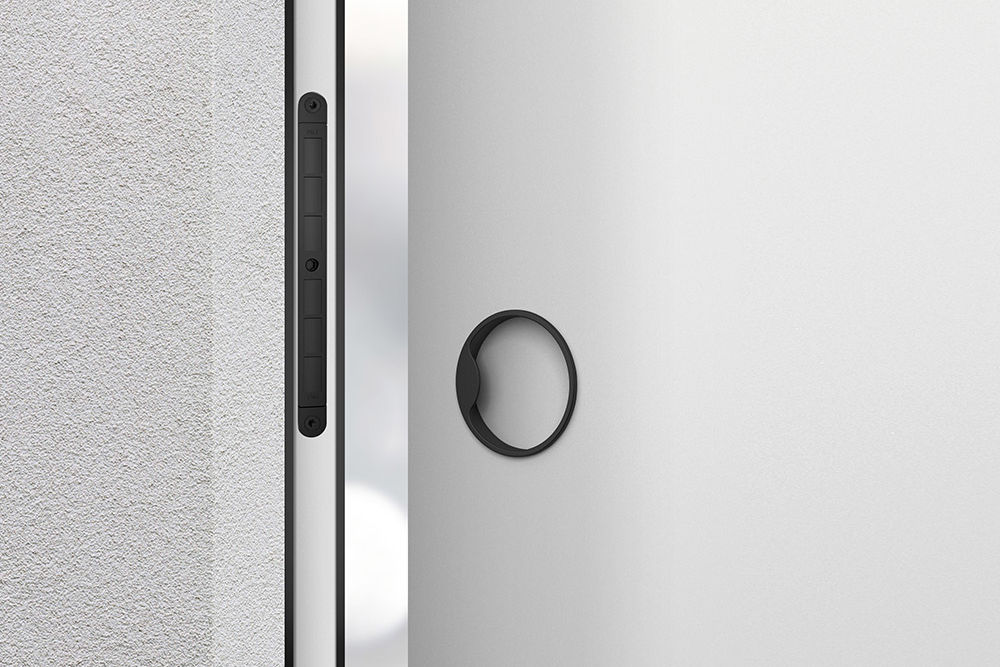

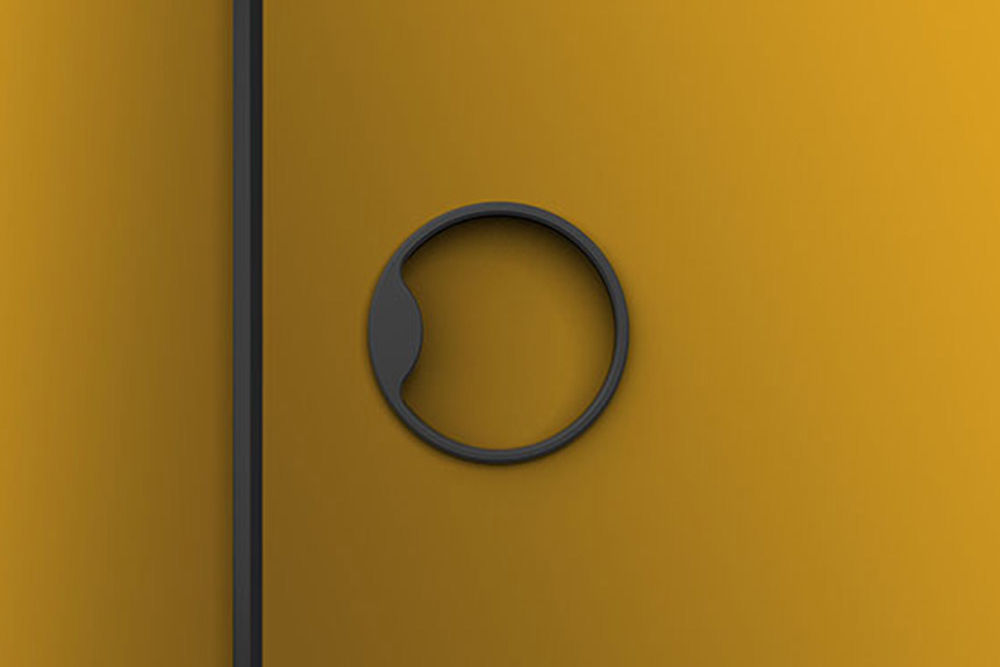

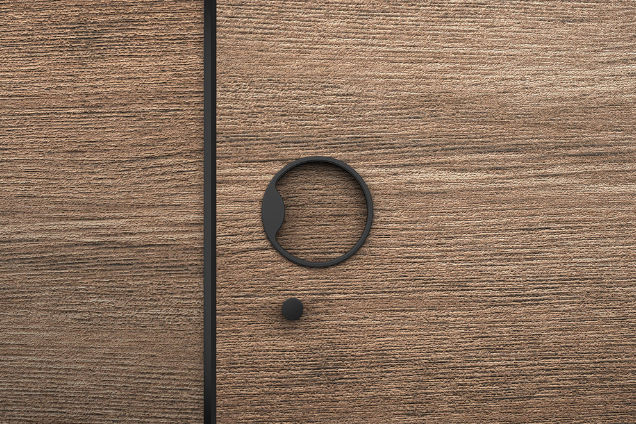

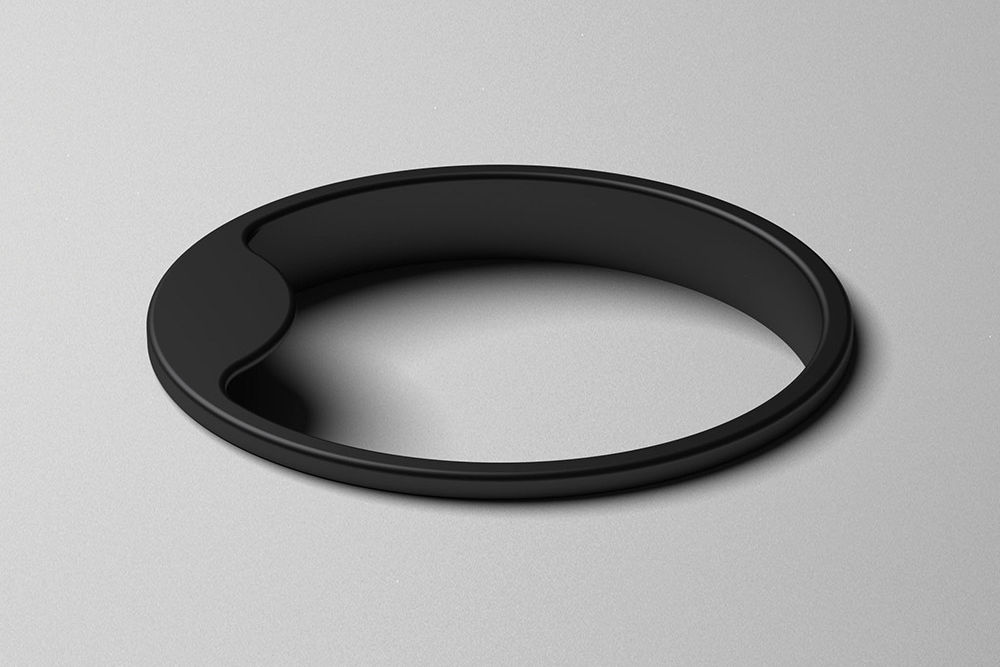

Minimalist handle with only two finger control. Handle ergonomics with pleasant rounding, with the possibility of changing the internal magnetic plate to align the surface/color of the pull handle with the door, or to make the door control area more visible. The visible part out of the door leaf surface is 3 mm.

Metal pull handle, available in black titanium surface finish, nickel matt, polished chrome.

Madlo Uff

SURFACE FINISHES
3 surfaces

SNi
SNi
Cr
Cr
TiN-K
TiN-K

revolutionary system for perfect doors

Technical informations

MATERIAL
  • Metal body + magnetic insert
SURFACE FINISHES
  • SNi nickel matt, TiN-K titanium black matt, Cr glossy chrome
ASSEMBLY TIME
  • 1 – 2 minutes, WC/bathroom variant 3-5 minutes
ASSEMBLY SYSTEM
  • screwing the base plates against each other with 4 screws, covering the mounting screws with a magnetic face plate
PREPARATION FOR DOORS
  • hole milling Ø 86 mm
DIMENSIONS
  • Ø 90 mm, output over the door surface 3 mm
ACCESSORIES
  • The package includes:
    • pair of pull handles
    • fasteners
    • assembly instructions
    • warranty card

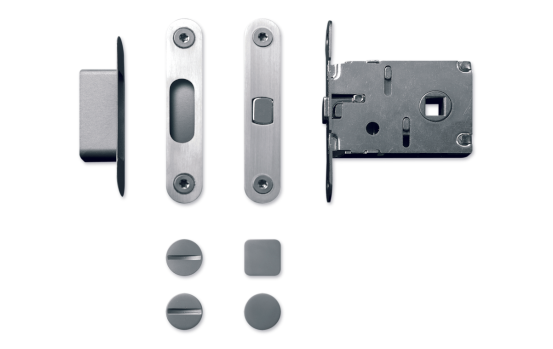

VARIANT WC/BATHROOM
  • external toilet mechanism + mini lock

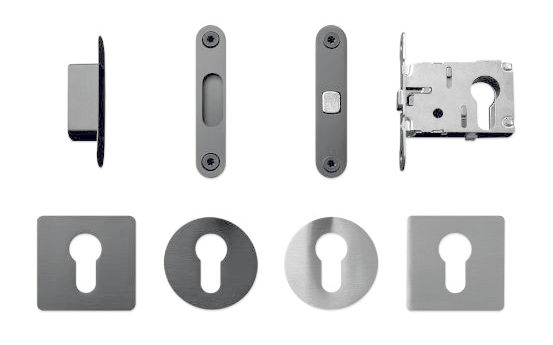

VARIANT CYLINDRICAL
  • magnetic cover rosettes dia 54 mm, thickness 5 mm + mini lock
WARRANTY
  • Surfaces SNi, Cr 3 years, TiN-K 15 years
APPLICATIONS
  • Designed for interior doors.

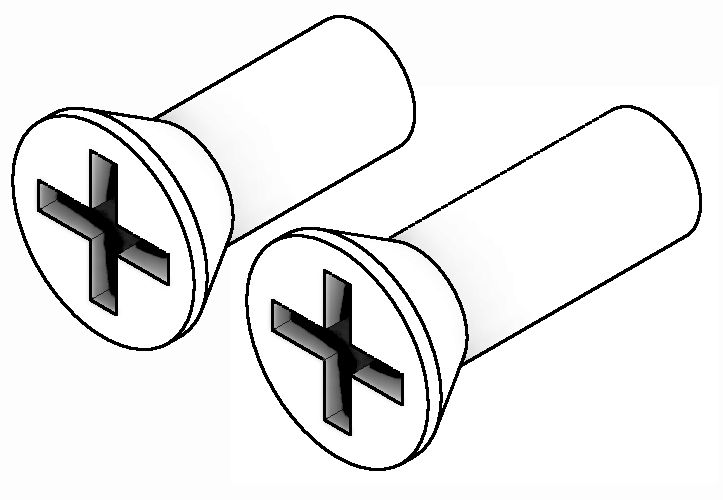

Magnetic fillings in the surface of the handle (ie SNi, Cr, TiN-K) and mounting material for a door thickness of 38 - 41 mm are part of the delivery of the handles. For other door thicknesses, it is necessary to order mounting material according to the table.
door thickness EAN code
42 - 45 mm 124699
46 - 49 mm 124705
50 - 53 mm 124712
54 - 57 mm 124729
58 - 61 mm 124736

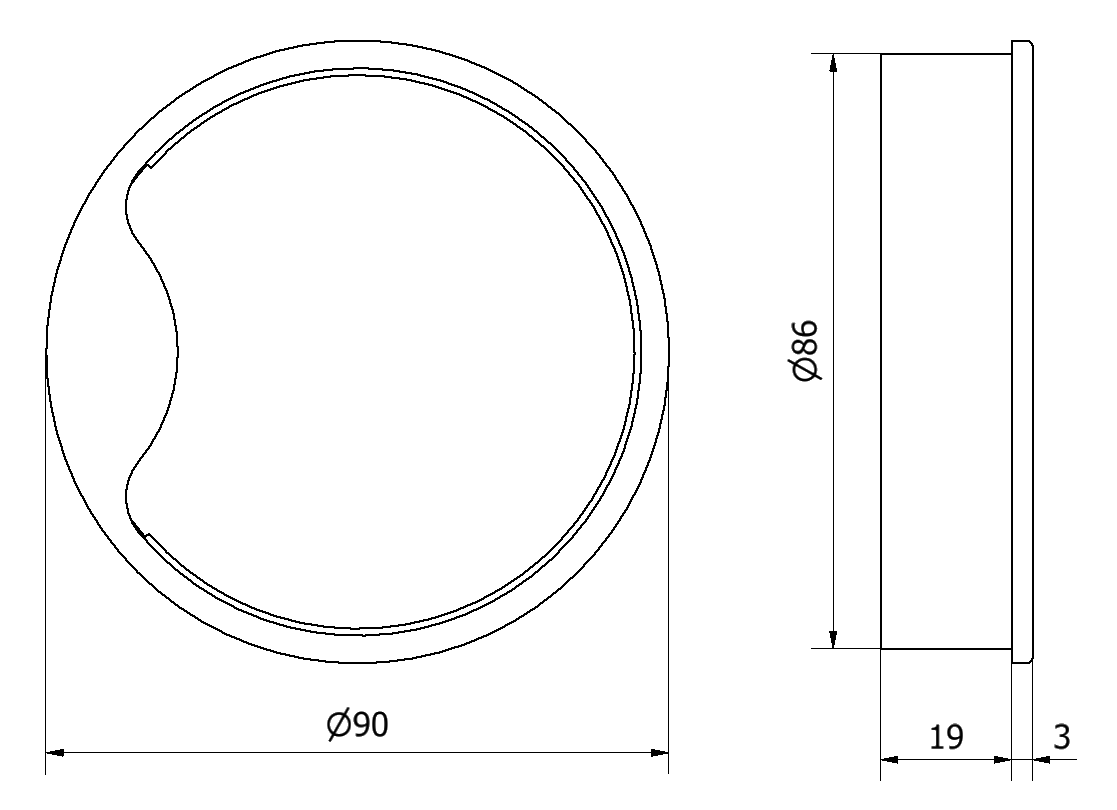

Rozměry
