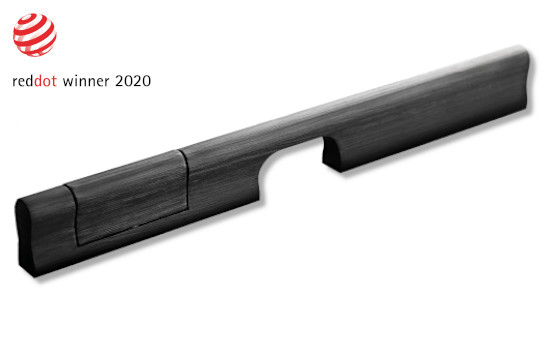

Pull handle Yes!

TiN-K titanium black matt Design: Roman Ulich

Elegant timeless pull handle available in different lengths from 110 to 910 mm. It is prepared also with integrated WC/bathroom lock system. This pull handle is produced either in a minimalist full version or with a 2-finger grip hole.

This pull handle is produced from massive brass, for maximal selection is available in 10 surface finishes and 5 different lengths.

Madlo Yes!

SURFACE FINISHES
10 surfaces

SNi
SNi
SNi br.
SNi grinded
Cr
Cr
Cr-K
Cr-K
Ms-L
Ms-L
Ms-A
Ms-A
TiN-C
TiN-C
TiN-K
TiN-K
TiN-B
TiN-B
TiN-A
TiN-A

revolutionary system for perfect doors

Technical informations

MATERIAL
  • Brass
SURFACE FINISHES
  • SNi nickel matt, SNi nickel matt grinded, Cr glossy chrome, Ms brass natural, Ms-A brass antique, Cr-K chrome black grinded, TiN-C titanium chrome matt, TiN-B titanium brown matt, TiN-K titanium black matt
ASSEMBLY TIME
  • 2 – 4 minutes, WC/bathroom variant 5-10 minutes
ASSEMBLY SYSTEM

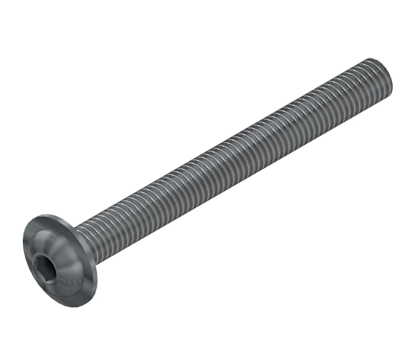

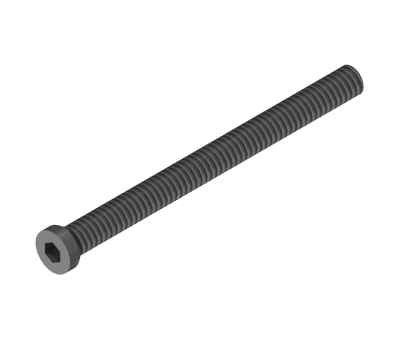

  • Screwing the pull handles against each other with 2 screws, WC variant with 2 additional screws, recognized mini screw heads
PREPARATION FOR DOORS
  • hole milling

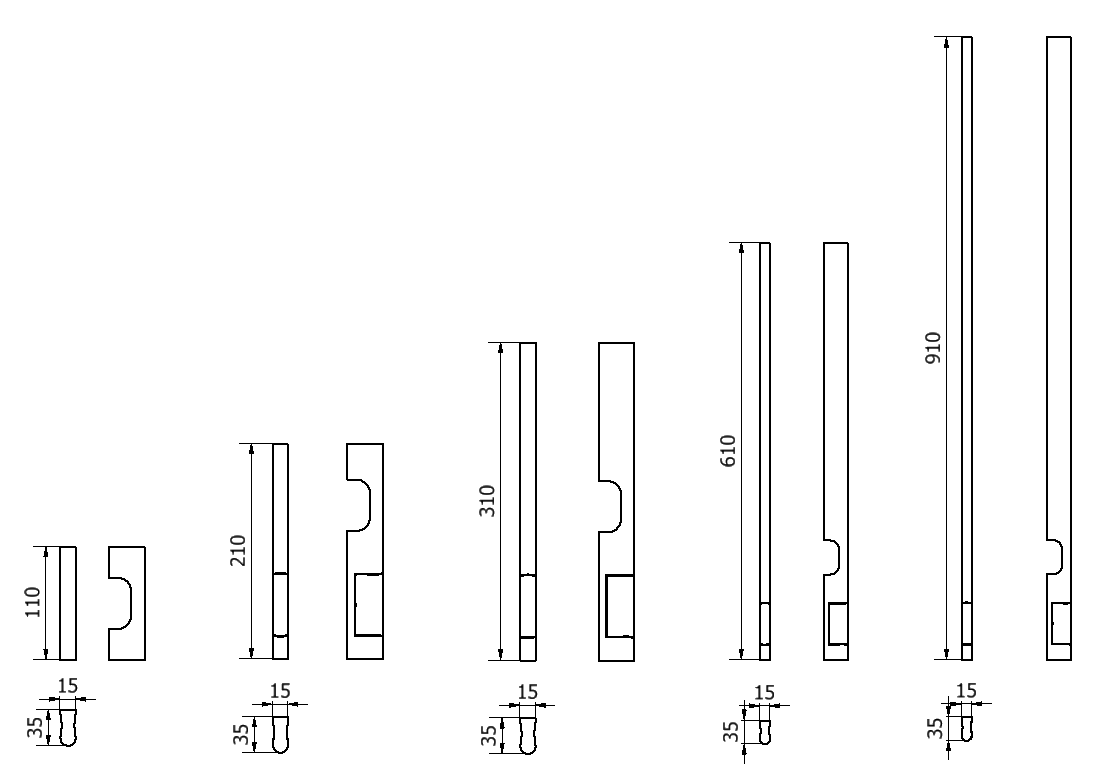

DIMENSIONS
  • lengths: 110, 210, 310, 610, 910 mm
  • width: 15 mm
  • output over the door surface 35 mm
ACCESSORIES
  • The package includes:
    • pair of pull handles
    • fasteners
    • assembly instructions
    • warranty card

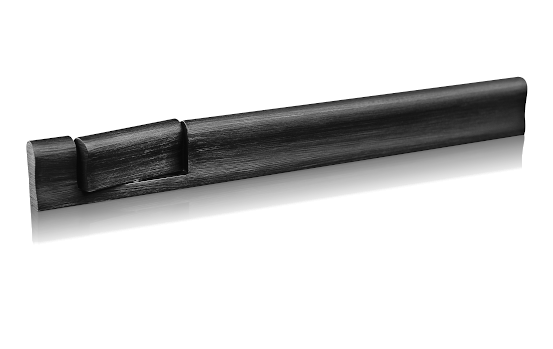

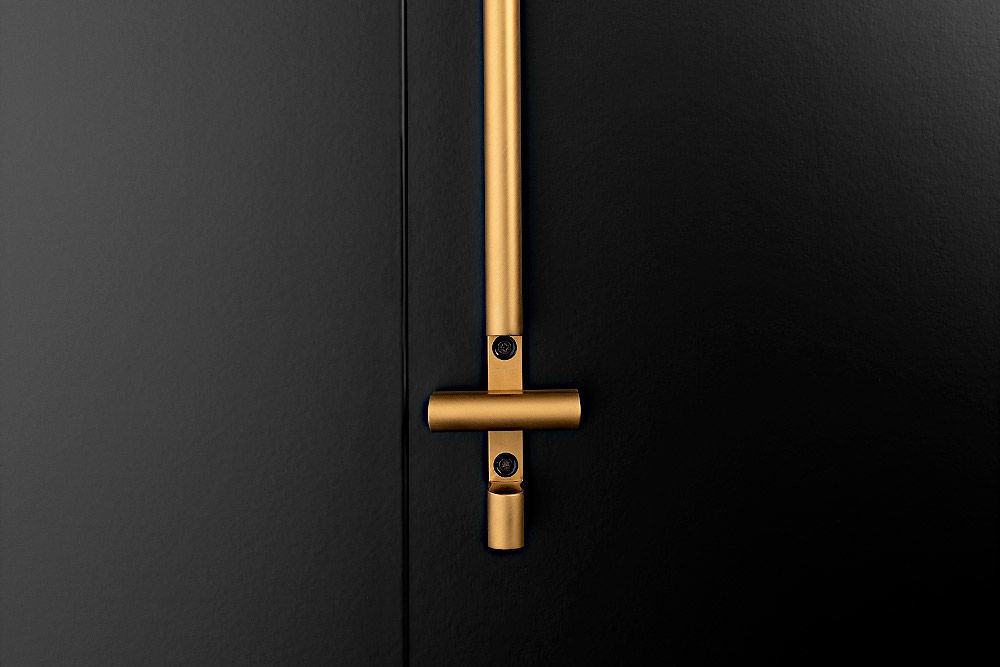

VARIANT WC/BATHROOM
  • integrované WC zamykání, externí část s pojistnou drážkou pro nouzové otevření + mini zámeček integrated WC locking, external part with safety groove for emergency opening + mini lock
VARIANT CYLINDRICAL
  • magnetic cover rosettes dia 54 mm, thickness 5 mm + mini lock
WARRANTY
  • Surfaces SNi, Cr 3 years, TiN-K 15 years, Ms-L, Ms-A life time
APPLICATIONS
  • Designed for interior doors.

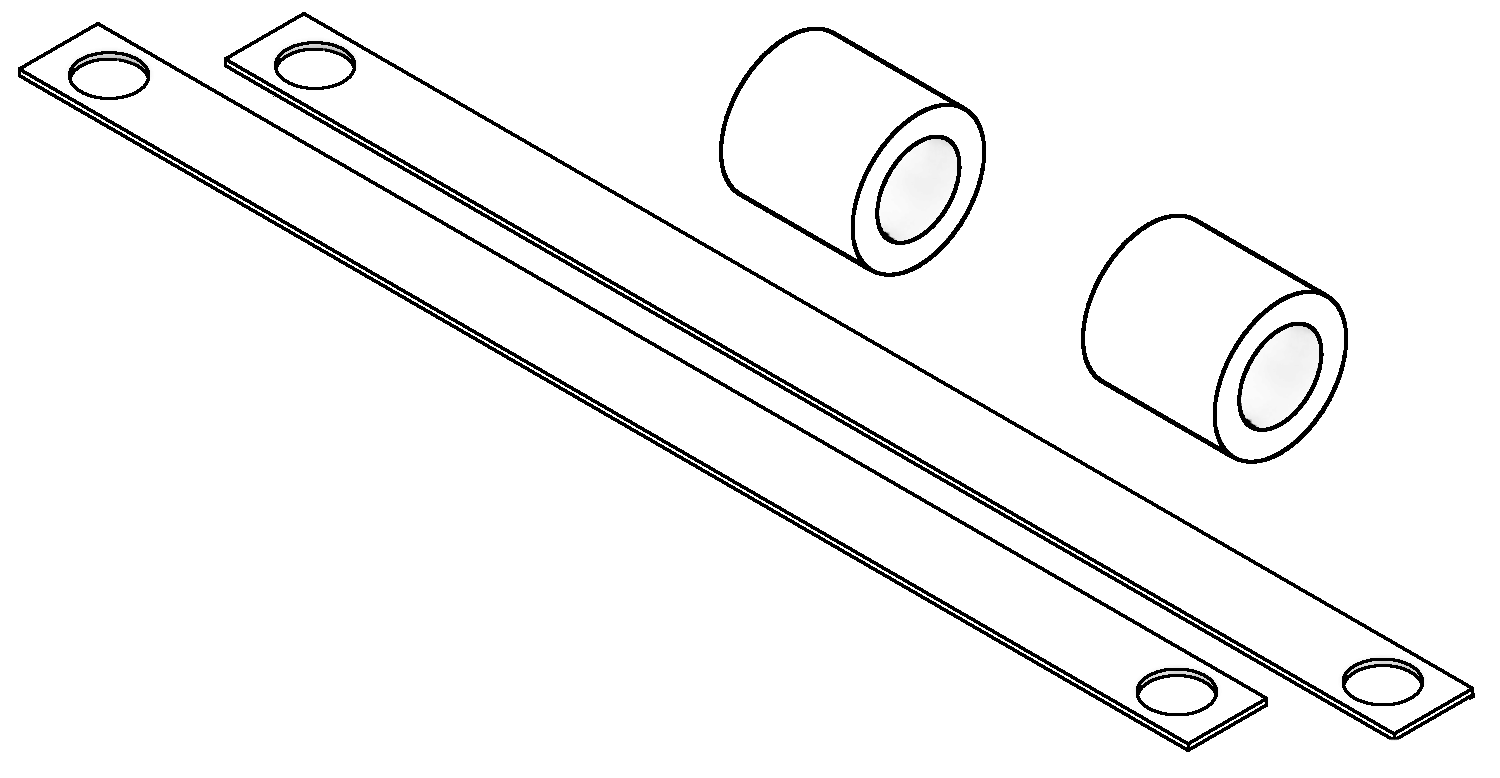

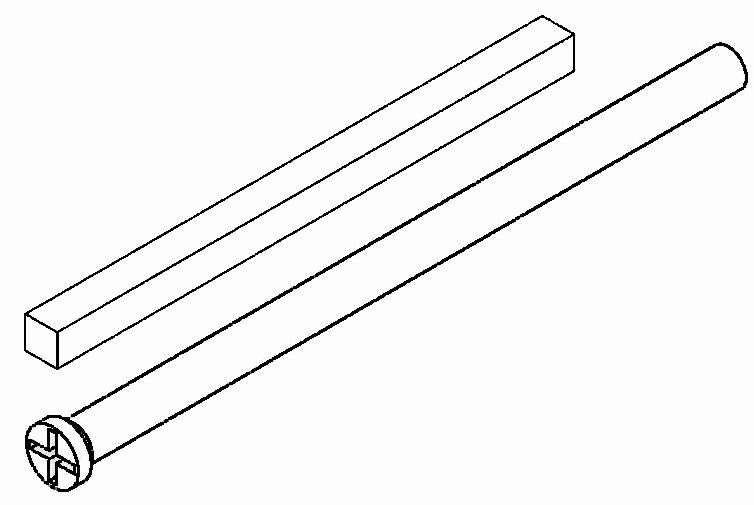

Mounting material for a door thickness of 38 - 45 mm are part of the delivery of the handles. For other door thicknesses, it is necessary to order mounting material according to the table.
door thickness EAN code
46 - 50 mm 124781
51 - 55 mm 124798
56 - 60 mm 124804
