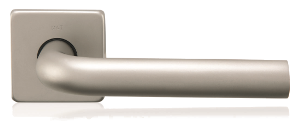

Door handle Deny, square rosette

Door handle DENY

SNi nickel matt

A massive brass handle with a choice of 8 colours & surfaces, with a guarantee of 3-15 years, depending on the design, with quality mechanics M 2004, used for interior and exterior doors. News - natural brass with a lifetime guarantee.

MATERIAL

The massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

nickel matt, glossy chrome, titanium surfaces, brass natural

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.

MECHANICS

M 2004 with the reversible spring system and with the screw-together cases system

DIMENSIONAL APPLICATIONS

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

mechanics 3 years
surfaces 3 years nickel and chrome, titanium 15 years, brass natural lifetime guarantee

APPLICATIONS

according to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

complete set including bottom lock rosettes

Rozměry

Order numbers

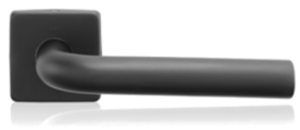

DENY	SNi nickel matt	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-S titanum bronze matt	TiN-A titanium brass matt
DENY	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	67523	67578	053388	096958	053432	67677	67721	67622	67776
Cylindrical rosettes	67530	67585	053395	096965	053449	67684	67738	67639	67783
Toilet / bathroom	67547	67592	053401	096972	053456	67691	67745	67646	67790
Grip / handle R	67554	67608	053418	096989	053463	67707	67752	67653	67806
Grip / handle L	67561	67615	053425	096996	053470	67714	67769	67660	67813

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2004

About the mechanics

Mechanics M 2004 - designed, manufactured and assembled at M&T - with own patented slip system which prevents bending and cracking the door in lock area, simple and fast assembly.
