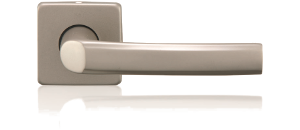

Door handle GARANTI

SNi nickel matt

A massive brass handle with a choice of 8 colours & surfaces, with a guarantee of 3-15 years, depending on the design, with quality mechanics M 2004, used for interior and exterior doors. News - natural brass with a lifetime guarantee.

Dveřní klika Garanti

Handle
surfaces
8 surfaces

SNi
SNi
Cr
Cr
Ms
Ms
Ms-L
Ms-L

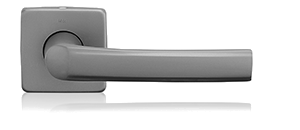

TiN-C
TiN-C
TiN-K
TiN-K
TiN-S
TiN-S
TiN-A
TiN-A

Perfect ergonomics Design 2004

Technical informations

MATERIAL
  • The massive brass, grinded and polished
AVAILABLE SURFACE FINISHES
  • nickel matt, glossy chrome, titanium surfaces, brass natural
MOUNTING
  • Drilling with profi template M&T, screwing through with screw-together cases system, recommended tightening torque 3-4 Nm.
MECHANICS
  • M 2004 with the reversible spring system and with the screw-together cases system
DIMENSIONAL APPLICATIONS
  • Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm
ACCESSORIES
  • The package includes:
    • spindle
    • set screw
    • glue gel
    • fasteners
    • assembly instructions
    • warranty card
WARRANTY
  • mechanics 3 years
  • surfaces 3 years nickel and chrome, titanium 15 years, brass natural lifetime guarantee
APPLICATIONS
  • according to the type of surface for the interior and exterior doors, for door weight up to 60 kg
SET
  • complete set including bottom lock rosettes


Rozměry


Rozměry

Order numbers

GARANTI

GARANTI

Povrch kliky
SNi
nickel matt
Povrch kliky
Cr
glossy chrome
Povrch kliky
Ms
brass natural
Povrch kliky
Ms-A
brass antique
Povrch kliky
Ms-L
brass polished
Povrch kliky
TiN-C
titanium chrome matt
Povrch kliky
TiN-K
titanium black matt
Povrch kliky
TiN-S
titanum bronze matt
Povrch kliky
TiN-A
titanium brass matt
EANEANEANEANEANEANEANEANEAN
Key hole rosettes669226697705308109680405313567073671276702867172
Cylindrical rosettes669396698405309809681105314267080671346703567189
Toilet / bathroom669466699105310409682805315967097671416704267196
Grip / handle L669606701105312809684205317367110671656706667219
Grip / handle R669536700405311109683505316667103671586705967202

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2004

Manufakturní mechanika M 2004

About the mechanics

Mechanics M 2004 - designed, manufactured and assembled at M&T - with own patented slip system which prevents bending and cracking the door in lock area, simple and fast assembly.
