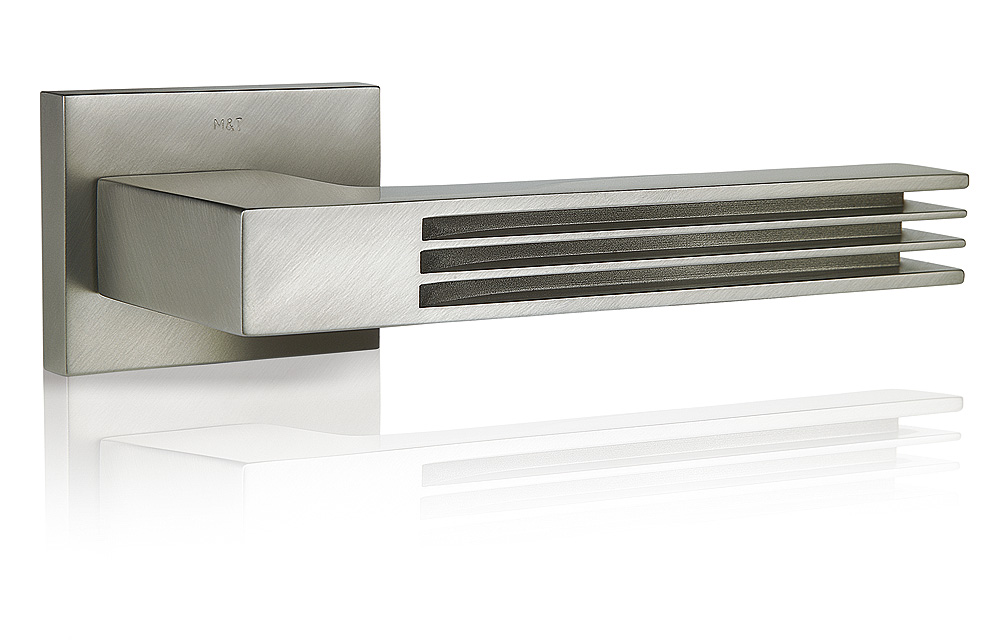

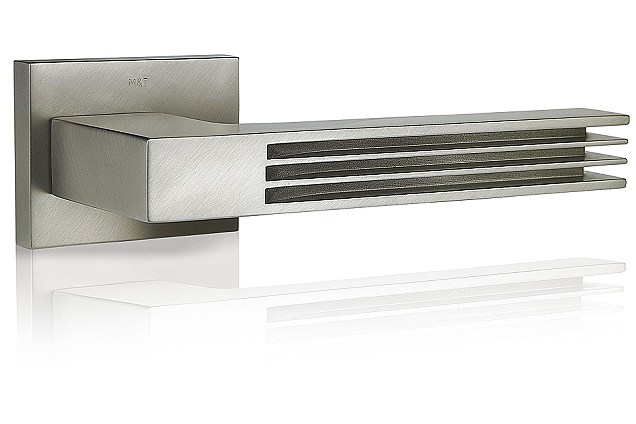

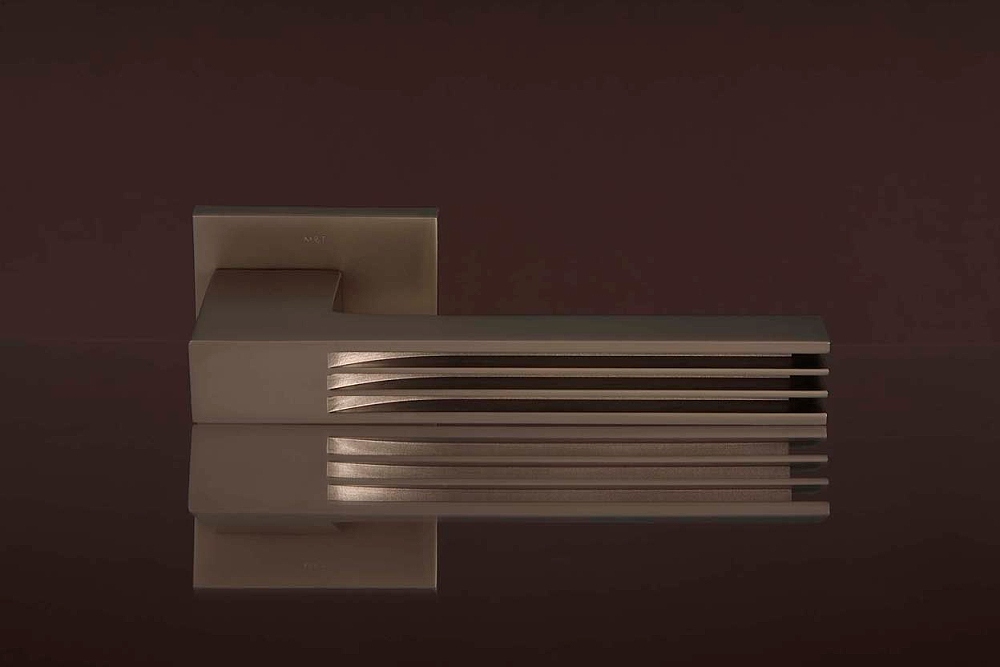

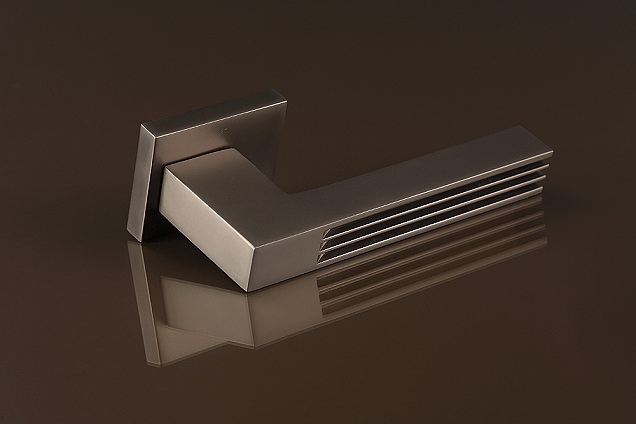

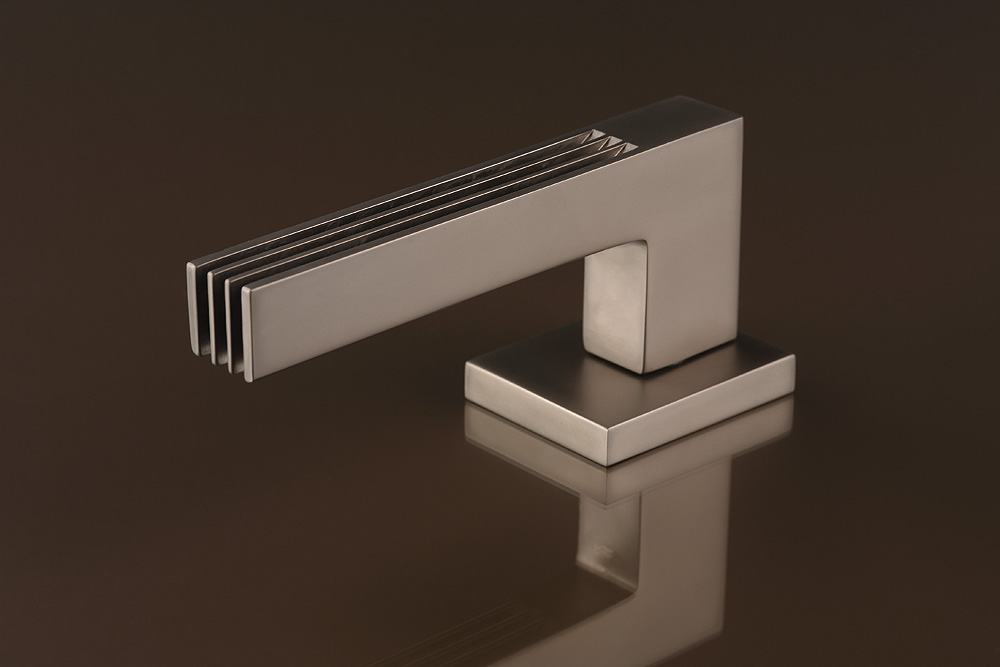

Door handle Maya, square rosette

Door handle MAYA

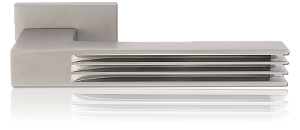

SNi-grinded nickel matt grinded Design: Roman Ulich

The fitting is made of massive brass, with a choice of 6 colours & surfaces, a wide range of wood and complementary products in the same design, with a guarantee of 3-15 years, depending on the design, with good mechanics M 2009 used for interior and exterior doors.
News - natural brass with a lifetime guarantee.

MATERIAL

The massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

nickel matt, nickel matt-grinded, glossy chrome, titanium surfaces, brass natural

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, recommended tightening torque 3-4 Nm.

MECHANICS

M 2009 with the system of pressed springs and with the screw-together cases system

DIMENSIONAL APPLICATIONS

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

mechanics 3 years
surfaces 3 years nickel and chrome, titanium 15 years, brass natural lifetime guarantee

APPLICATIONS

according to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

design set without bottom rosettes, the bottom rosettes are to order extra

Order numbers

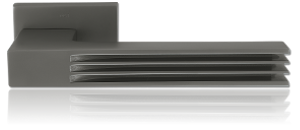

MAYA	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-B titanium brown matt
MAYA	EAN	EAN	EAN	EAN	EAN	EAN
Handle / handle	85367	022070	054279	054309	85411	85466

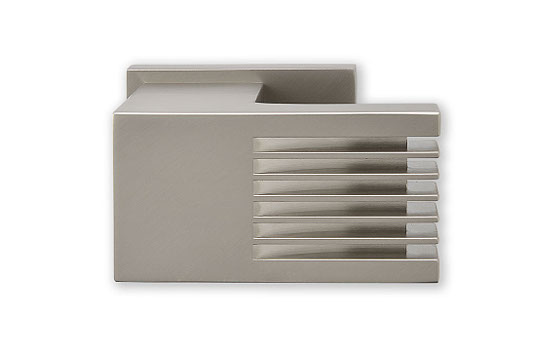

Grip / handle L	85404	022094	054293	054323	85459	85503
Grip / handle R	85398	022087	054286	054316	85442	85497

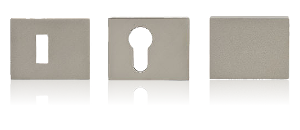

BOTTOM SQUARE ROSETTES 60×47 MM	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-B titanium brown matt
BOTTOM SQUARE ROSETTES 60×47 MM	EAN	EAN	EAN	EAN	EAN	EAN
Cylindrical rosettes Maya	85947	022285	054415	054514	86005	86067
Key hole rosettes Maya	85930	022261	054392	054491	85992	86050

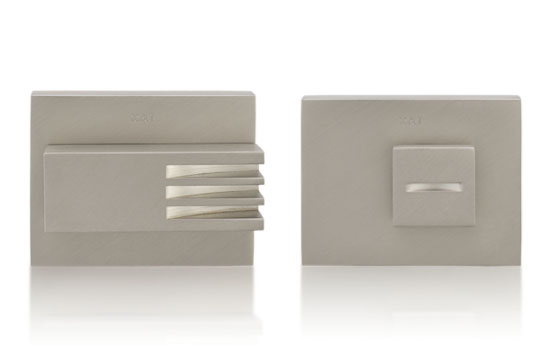

WC Maya L	85961	022315	054446	054545	86029	86081
WC Maya R	85954	022308	054439	054538	86012	86074
Blind Maya	020670	020687	054484	054583	020694	020700

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2009

About the mechanics

Mechanics M 2009 - designed, manufactured and assembled at M&T - with own patented system of pressed springs and the active slip system which prevents bending and cracking the door in lock area, simple and fast assembly.
