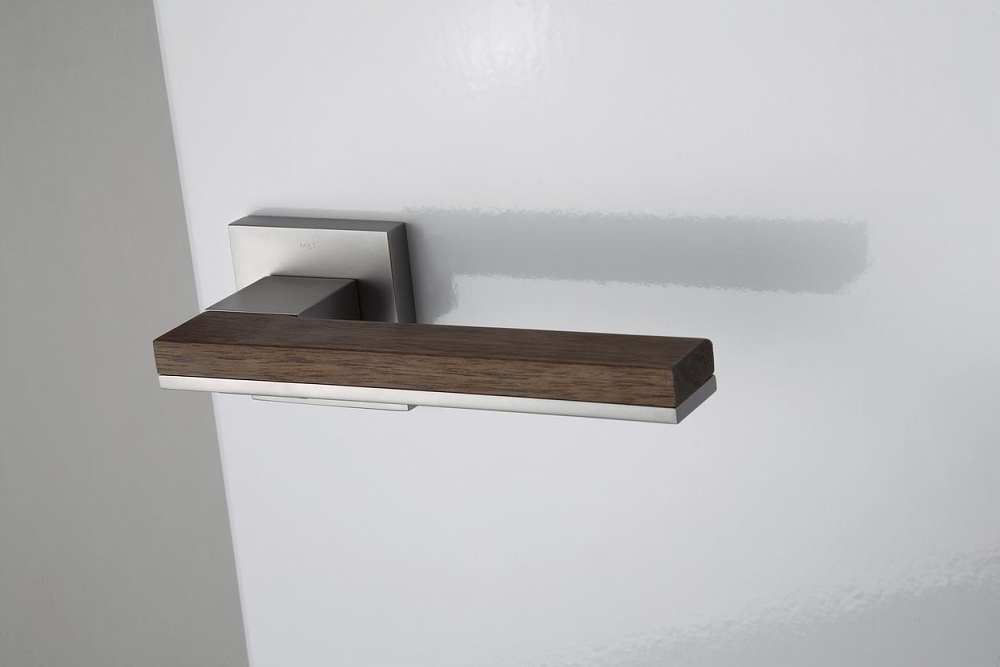

Door handle Mimolimit, square rosette

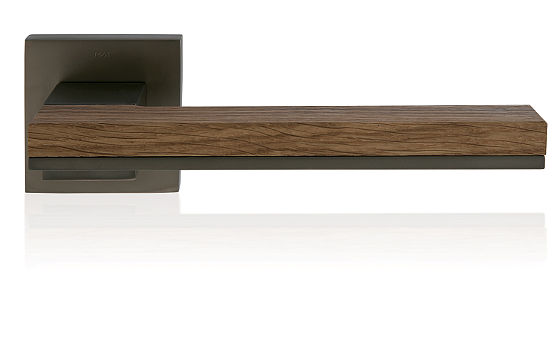

Door handle MIMOLIMIT

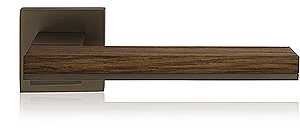

TiN-B titanium brown matt + oak Design: Bára Škorpilová

The handle designed by Bára Skorpilova is by her characterized as a "timeless elegant wooden handle, which is a pleasure to hold in hand. It has an elementary shape and a natural ability to age well with the interior." The fitting is made of brass, with a choice of 7 colours & surfaces, a wide range of wood and complementary products in the same design, with a guarantee of 3-15 years, depending on the design, with good mechanics M 2006 used for the interior doors.
News - natural brass with a lifetime guarantee.

Technical informations

MATERIAL

The massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

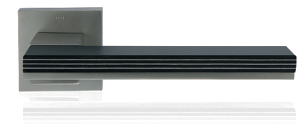

nickel matt, nickel matt - grinded, glossy chrome, titanium surfaces, brass natural

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.

MECHANICS

M 2006 with the system of pressed springs and with the screw-together cases system

DIMENSIONAL APPLICATIONS

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

mechanics 3 years
surfaces 3 years nickel and chrome, titanium 15 years, brass natural lifetime guarantees

APPLICATIONS

according to the type of surface for the interior doors, for door weight up to 60 kg

SET

design set without bottom rosettes, the bottom rosettes and the wooden parts are to order extra

3D model for visualization

Door handle Mimolimit R (DWG)
Door handle Mimolimit L (DWG)

Order numbers

MIMOLIMIT	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt
MIMOLIMIT	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	087284	85664	022155	054590	054620	85725	85787	251739	85848
Grip / handle R	087291	85695	022162	054606	054637	85756	85817	251746	85879
Grip / handle L	087307	85701	022179	054613	054644	85763	85824	251753	85886

BOTTOM SQUARE ROSETTES 54×54 MM	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt
BOTTOM SQUARE ROSETTES 54×54 MM	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	91559	79465	79502	054132	152715	054170	79526	79533	251760
Cylindrical rosettes	91566	79434	79441	054149	152722	054187	68414	79472	251777

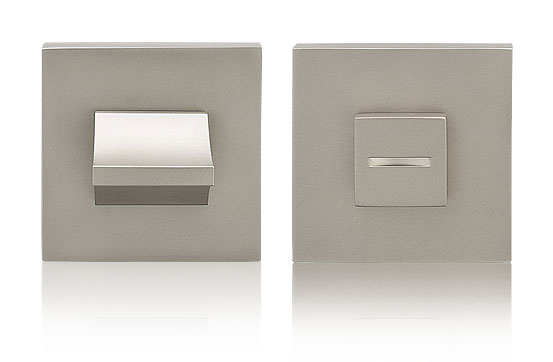

Toilet / bathroom	91580	79557	79564	054163	152739	054200	79588	79595	251784
Blind	91573	83516	83523	054156	152746	054194	83547	83554	251791

	BOTTOM SQUARE ROSETTES 54×54 MM	TiN-B titanium brown matt
	BOTTOM SQUARE ROSETTES 54×54 MM	pair EAN
	Key hole rosettes	043099
	Cylindrical rosettes	043105
	Toilet / bathroom	043129
	Blind	043112

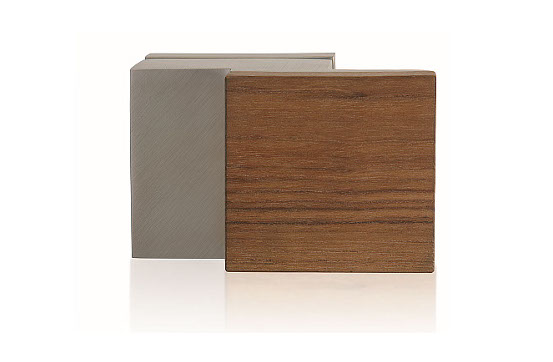

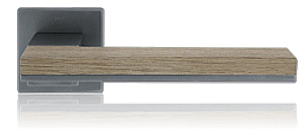

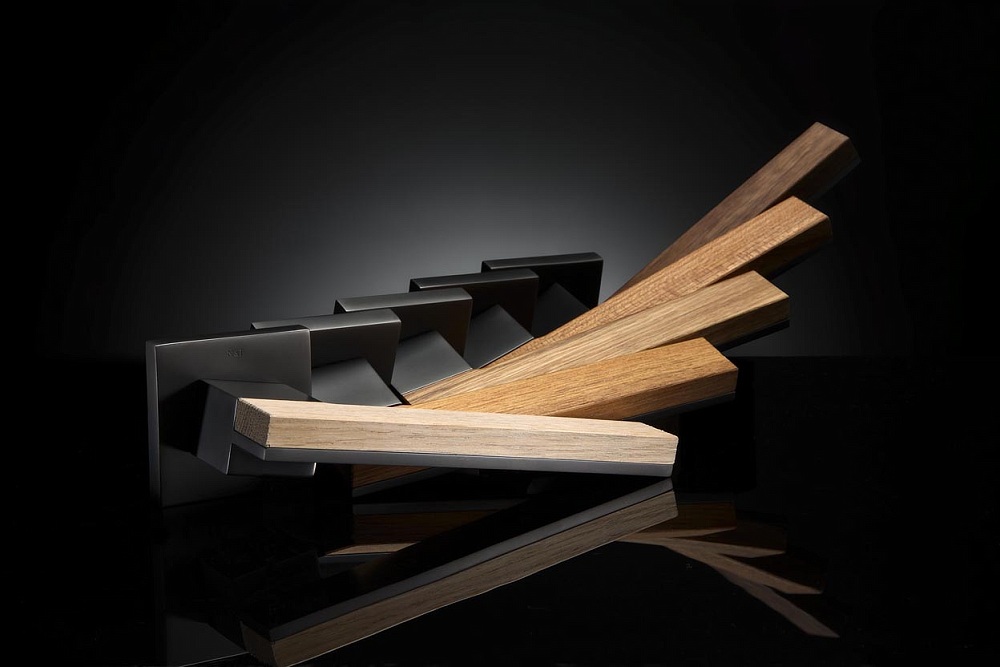

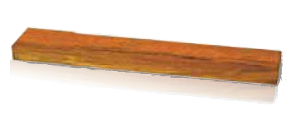

WOODEN PARTS FOR MIMOLIMIT	Teak	Elm	Nut	Oak	Bleached oak	Alu compact
WOODEN PARTS FOR MIMOLIMIT	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Plate	83844	83868	83851	83882	83875	83899

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2006

About the mechanics

Mechanics M 2006 - designed, manufactured and assembled at M&T - with own patented system of pressed springs and the active slip system which prevents bending and cracking the door in lock area, simple and fast assembly.
