Door handles Design 2018, Industry Squelette

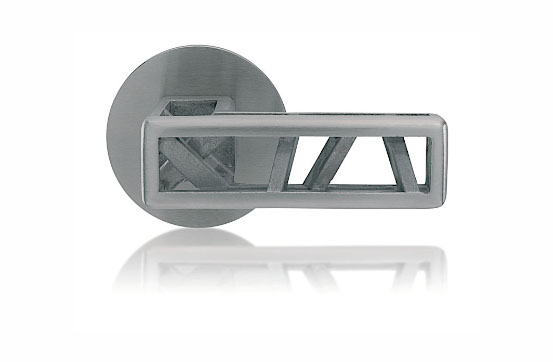

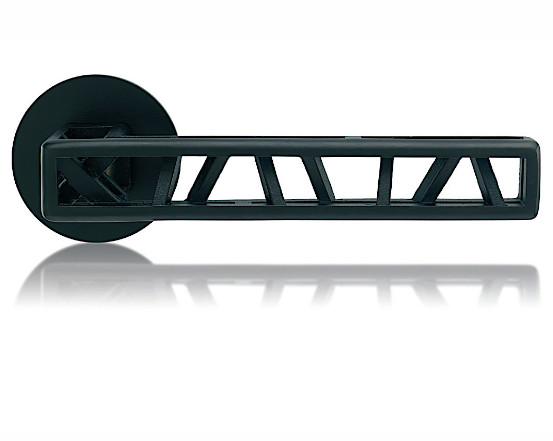

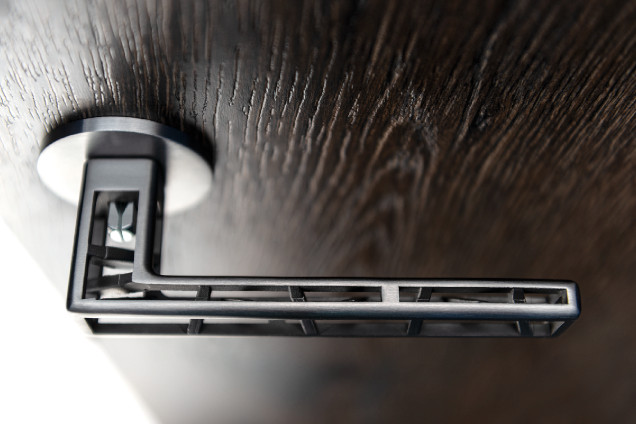

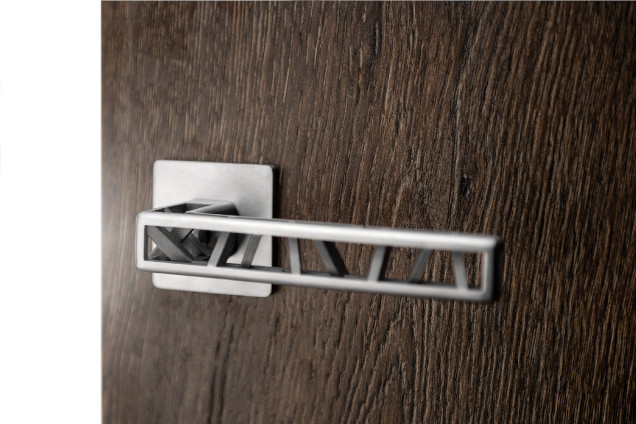

Door handle Industry Squelette

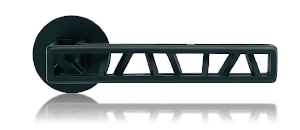

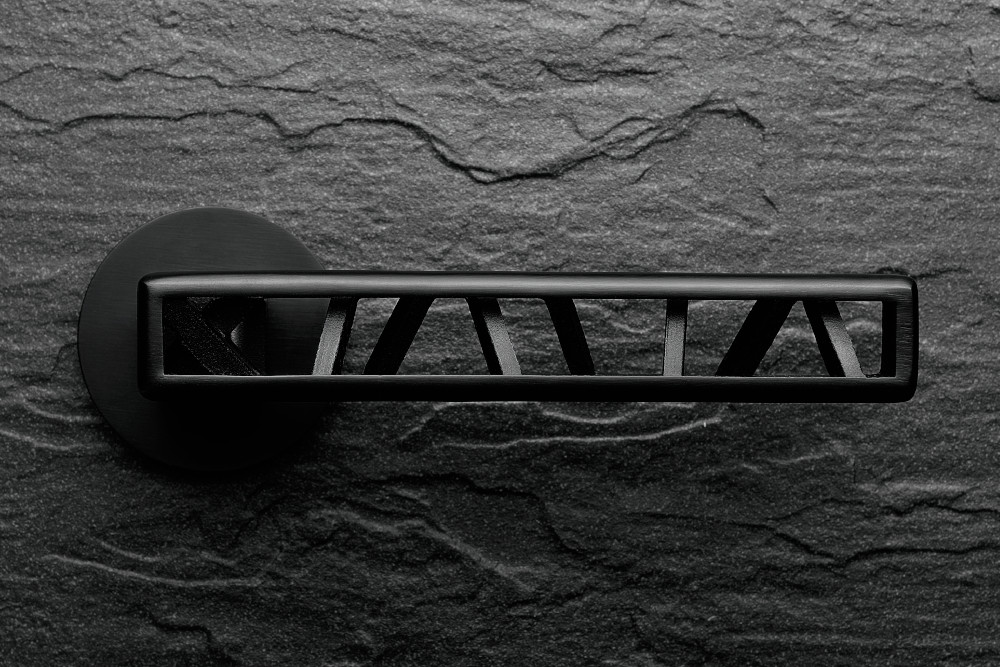

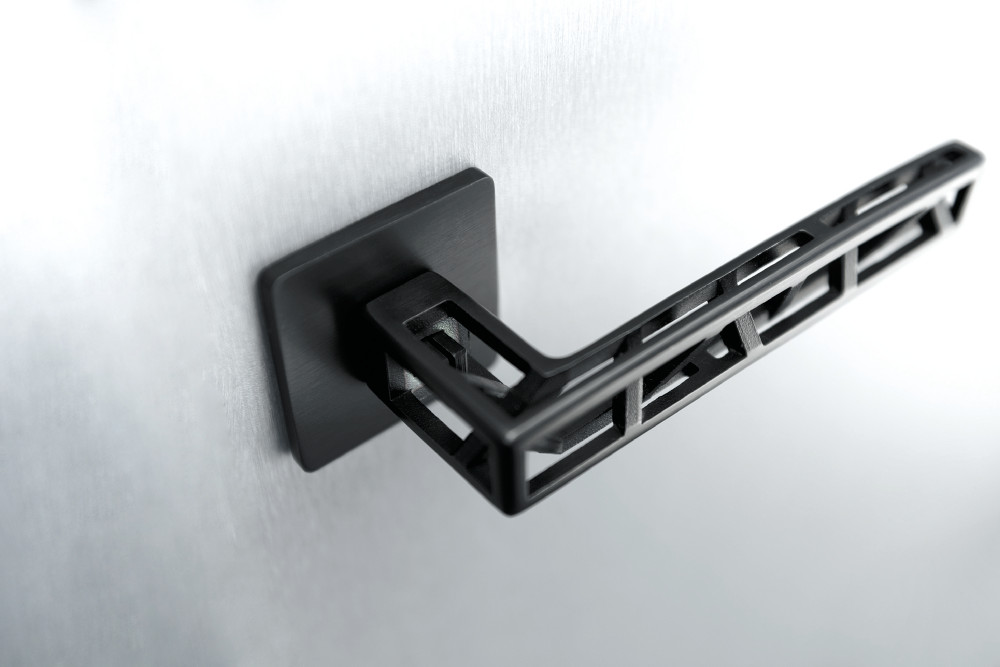

TiN-K titanium black matt Design: Roman Ulich

A stainless steel handle with a choise of 6 surface finishes & colours, with a guarantee from 8 till 15 years, by type of surface. With a magnetic rosettes system, the quality mechanics M 2018, using for interior and exterior doors.

Technical informations

MATERIAL

Stainless steel

AVAILABLE SURFACE FINISHES

Stainless steel grinded, titanium surface finishes, black matt structured

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, recommended tightening torque 3-4 Nm.

MECHANICS

M 2018 magnetic system with a returned spring, with screw-together cases system and magnetic rosettes

DIMENSIONAL APPLICATIONS

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm
Preparation for doors: drilling for holes diameter 24 – 25mm
Handles with magnetic rosettes can be fully inserted into the door, be careful of the weakened side at the rebated and reversed doors. Thickness of the rosette is 5 mm.
The space / depth of insertion for the magnetic rosette including the returned spring and handle neck is 8,5 mm

ACCESSORIES

The package includes:
- spindle in the same colour
- set screws
- glue gel
- fasteners
- assembly instructions
- waranty card

WARANTY

Mechanics 3 years
Stainless steel 5 years, black matt structured 5 years, titanium surface finishes 15 years

APPLICATIONS

According to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

Design set without key rosettes, key rosettes are to order extra

3D model for a visualization

Handle Industry Squelette (DWG)
Hand grips Industry Squelette (DWG)

Order numbers

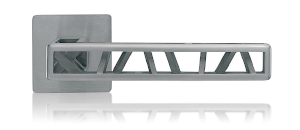

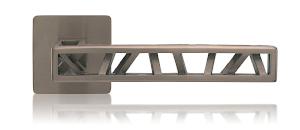

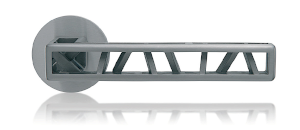

INDUSTRY SQUELETTE ON ROUND ROSETTES	NRz stainless steel	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-A titanium brass matt	K-industrial
INDUSTRY SQUELETTE ON ROUND ROSETTES	EAN	EAN	EAN	EAN	EAN	EAN
Handle / handle	103472	103625	103533	103564	103595	103502
Grip / handle L	103496	103649	103557	103588	103618	103526
Grip / handle R	103489	103632	103540	103571	103601	103519
Grip / grip	107470	107524	107494	107500	107517	107487

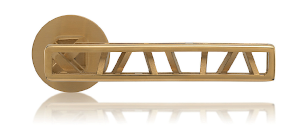

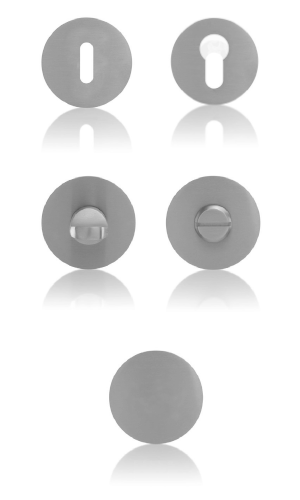

MAGNETIC BOTTOM ROUND ROSETTES	NRz stainless steel	Object K-industrial	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial
MAGNETIC BOTTOM ROUND ROSETTES	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Key hole rosettes	091571	140255	095678	091601	165494	095685	165456	095661	165531
Cylindrical rosettes	091588	140262	095739	091618	165500	095746	165463	095722	165548

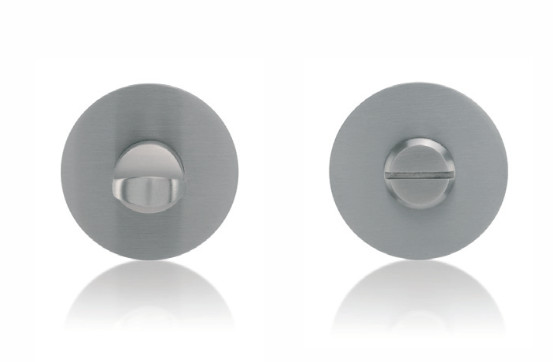

Toilet / bathroom	091595	140279	095791	091625	166125	095807	168334	095784	166118
Blind	104851	140286	104905	104875	165524	104882	165487	104899	165562

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2018

About the mechanics

Mechanics M 2018 – designed, manufactured and assembled in M&T – with its own patend of the rosette using neodymium magnets and a system of returned spring.
