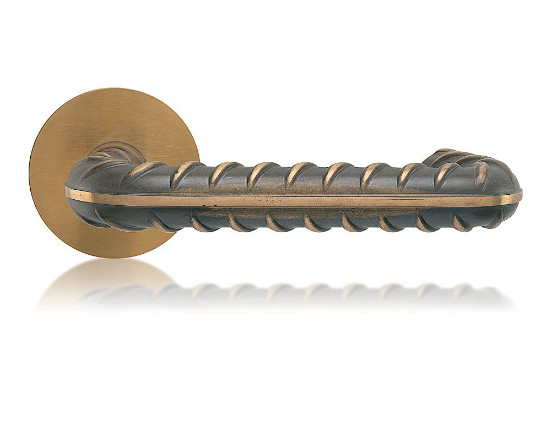

Door handle Rocksor U

Ms-K brass natur Design: Stanislav Fiala

A massive brass handle with a choise of 6 surface finishes, with 15 years guarantee for titanium surface finishes, with a life time guarantee for brass surface finishes, with magnetic rosettes system, quality mechanics M 2018, with using for interior and exterior doors.

Technical informations

MATERIAl

Massive brass

AVAILABLE SURFACE FINISHES

Brass natur, brass antique, brass polished, titanium surface finishes, black matt structured

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, recommended tightening torque 3-4 Nm.

MECHANICS

M 2018 magnetic system with a returned spring, with screw-together cases system and magnetic rosettes

DIMENSIONAL APPLICATIONS

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm
Preparation for doors: drilling for holes diameter 24 – 25mm
Handles with magnetic rosettes can be fully inserted into the door, be careful of the weakened side at the rebated and reversed doors. Thickness of the rosette is 5 mm.
The space / depth of insertion for the magnetic rosette including the returned spring and handle neck is 8,5 mm

ACCESSORIES

The package includes:
- spindle
- set srews
- glue gel
- fasteners
- assembly instructions
- waranty card

WARANTY

Mechanics 3 years
Titanium surfaces 15 years, black matt structured 5 years, brass natural life time guarantee

APPLICATIONS

According to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

Design set without key rosettes, key rosettes are to order extra

3D model for a visualization

Handle Rocksor (DWG)
Hand grips Rocksor R (DWG)
Hand grips Rocksor L (DWG)

Order numbers

ROCKSOR U	Ms-K brass natural	Ms-A brass antique	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	K-industrial
ROCKSOR U	EAN	EAN	EAN	EAN	EAN	EAN
Handle / handle	082265	082104	087406	094794	094848	137804
Grip / handle L	082296	082135	087437	094824	094879	137811
Grip / handle R	082302	082142	087444	094831	094886	137828

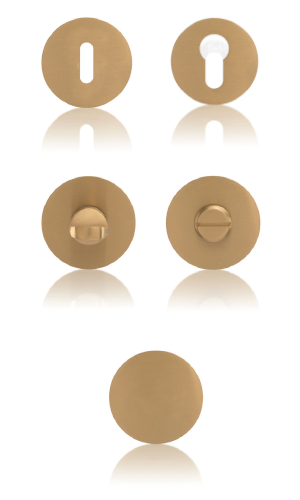

MAGNETIC BOTTOM ROUND ROSETTES	Object K-industrial	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-A titanium brass matt	K-industrial
MAGNETIC BOTTOM ROUND ROSETTES	EAN	EAN	EAN	EAN	EAN	EAN
Key hole rosettes	140255	095678	091601	165494	095661	165531
Cylindrical rosettes	140262	095739	091618	165500	095722	165548
Toilet / bathroom	140279	095791	091625	166125	095784	166118
Blind	140286	104905	104875	165524	104899	165562

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2018

About the mechanics

Mechanics M 2018 – designed, manufactured and assembled in M&T – with its own patend of the rosette using neodymium magnets and a system of returned spring.
