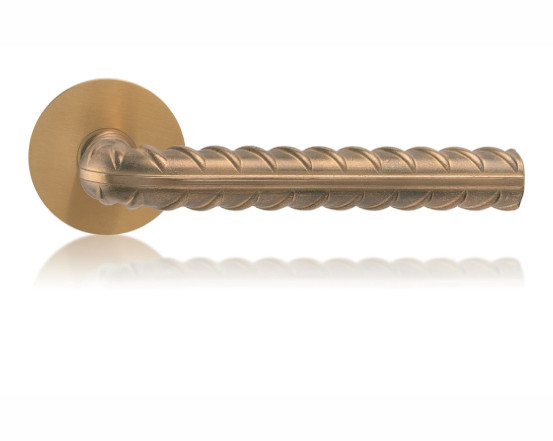

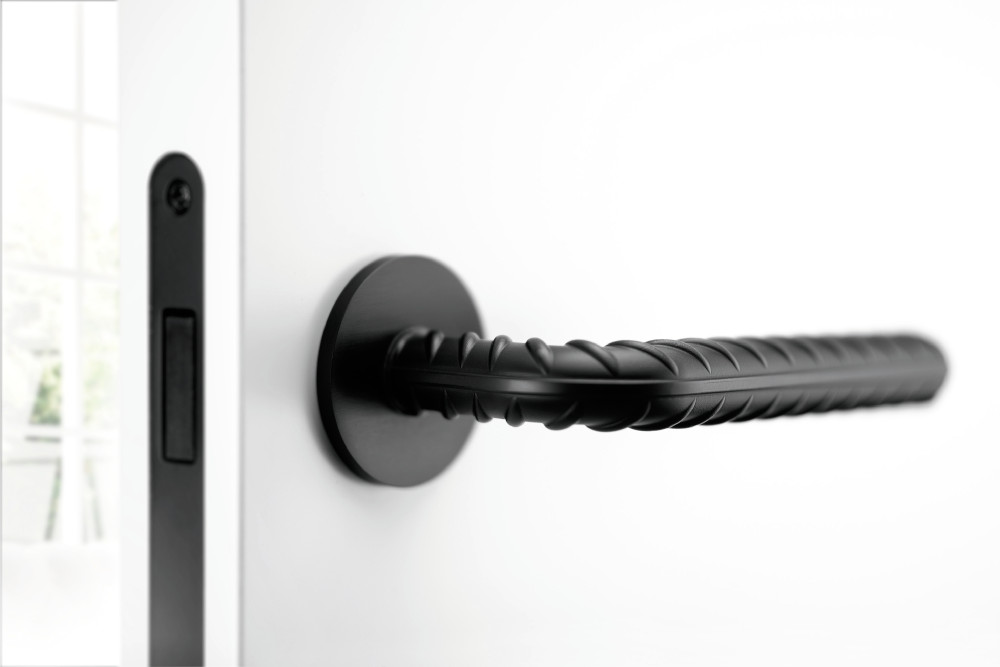

Door handle Rocksor

Ms-L brass polished Design: Stanislav Fiala

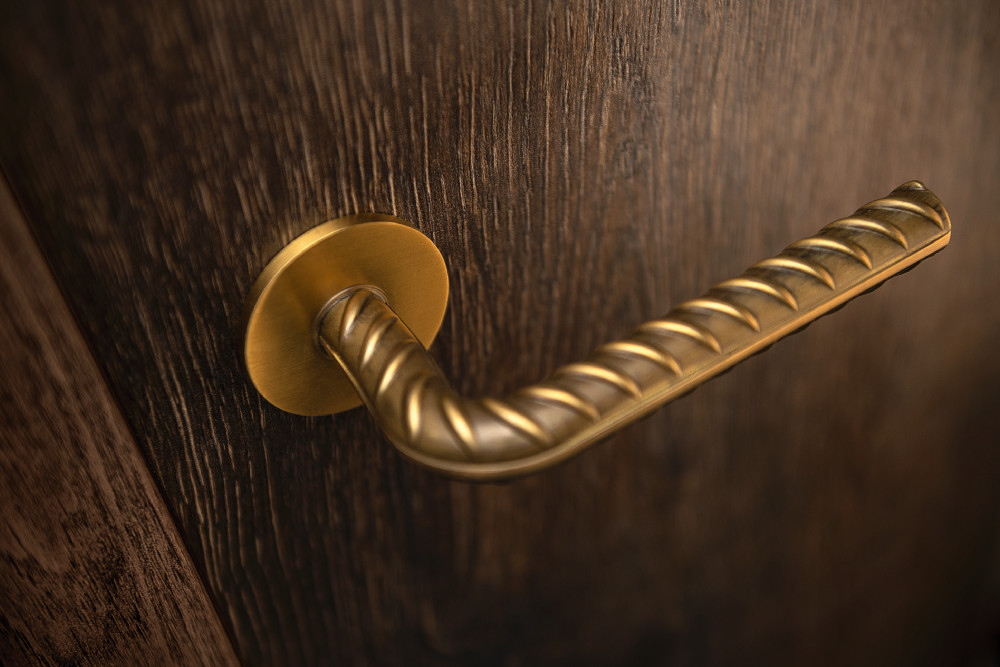

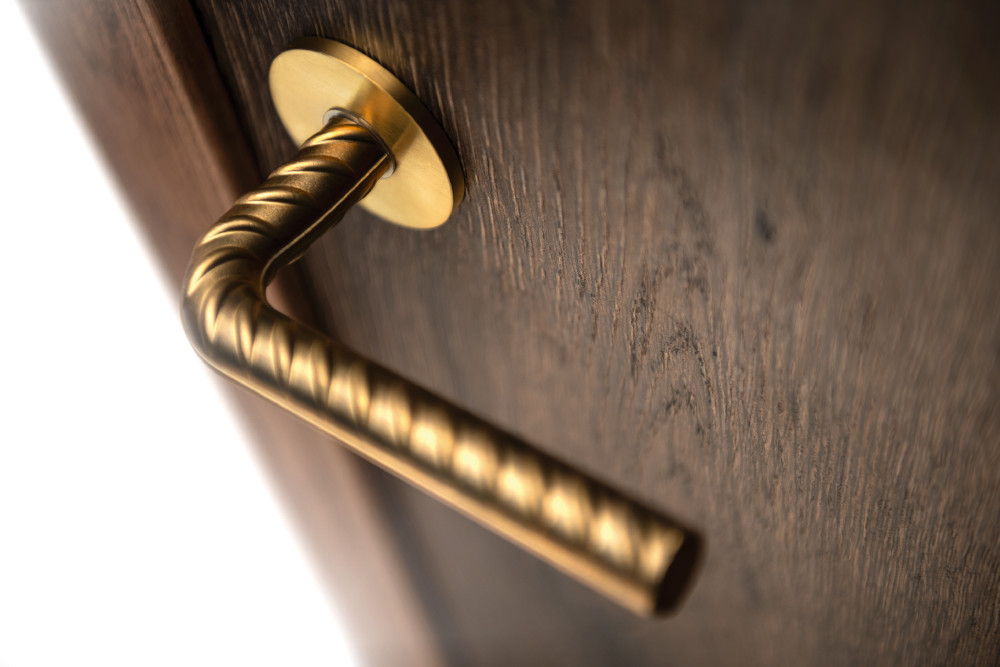

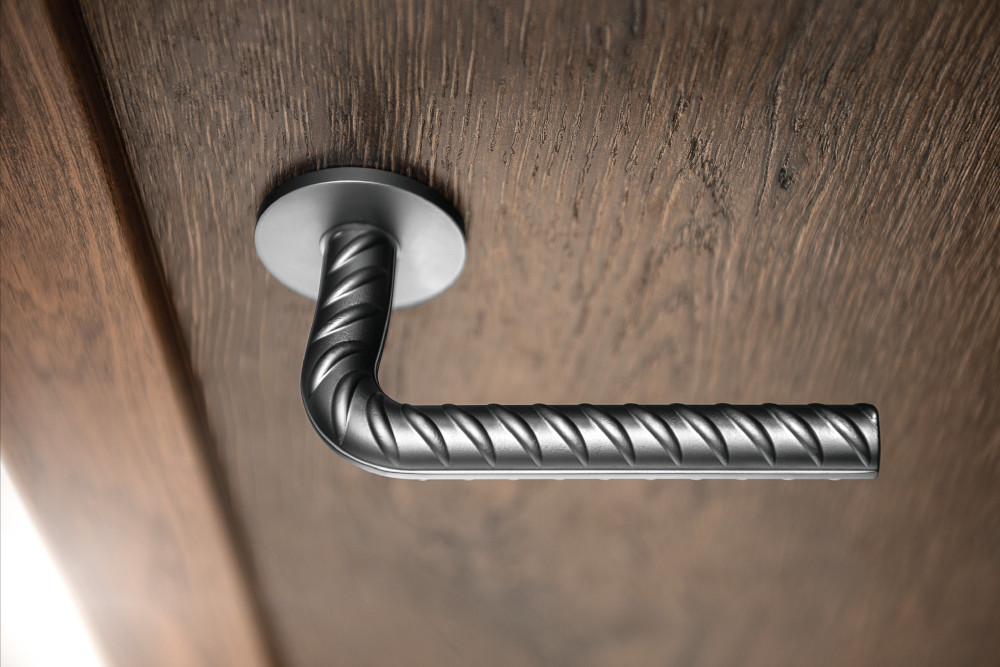

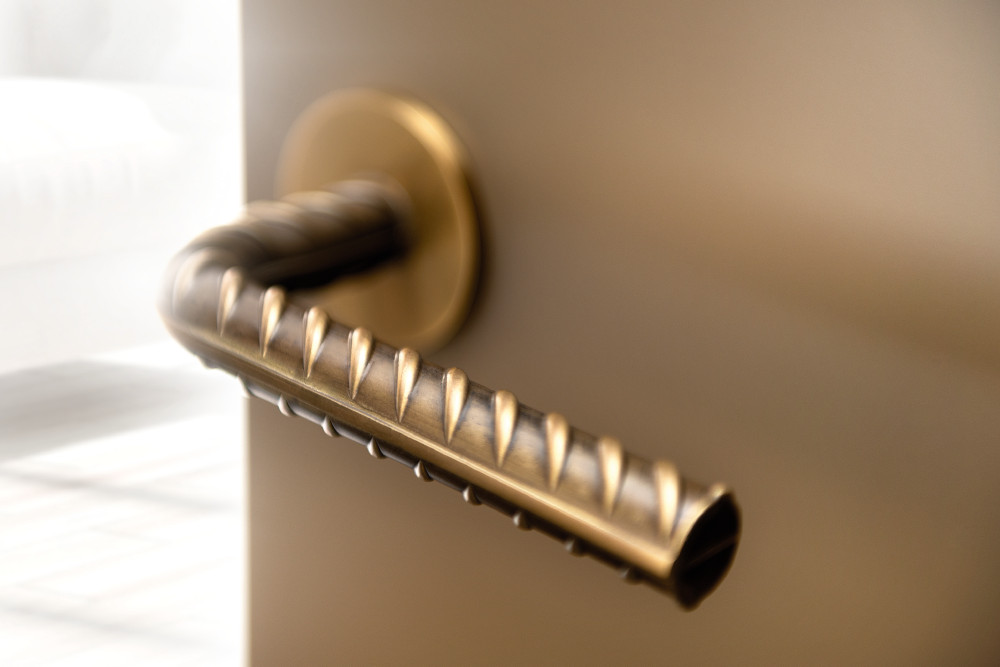

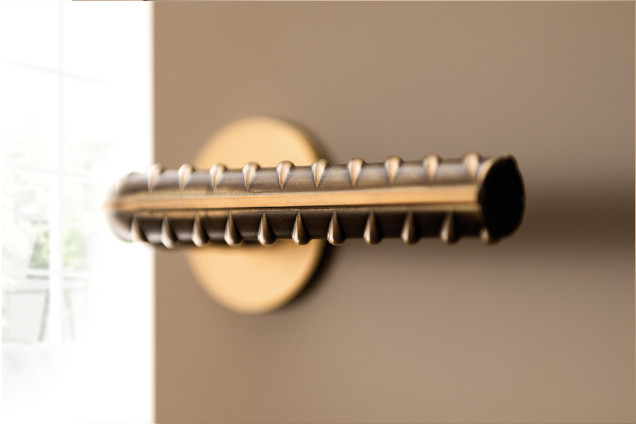

A massive brass handle with a choise of 5 surface finishes, with 15 years guarantee for titanium surface finishes, with a life time guarantee for brass surface finishes, with magnetic rosettes system, quality mechanics M 2018, with using for interior and exterior doors.

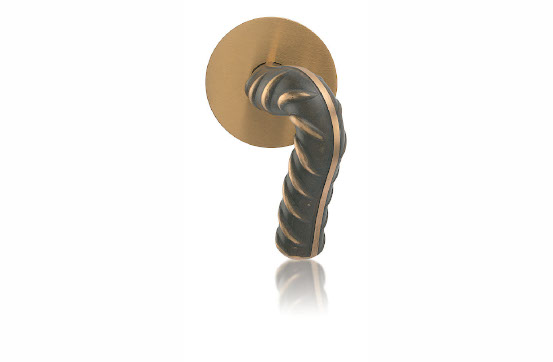

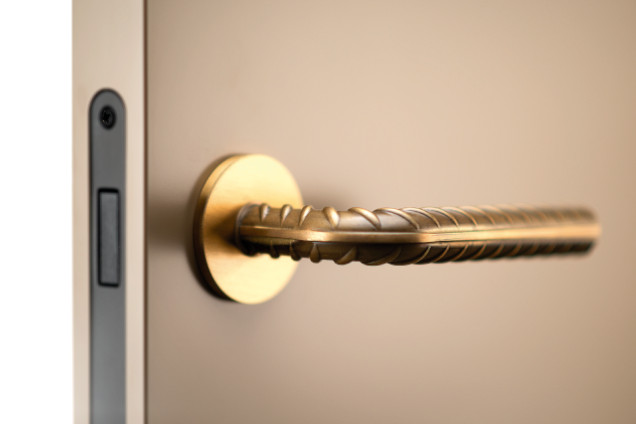

Door Handle Rocksor

HANDLE
SURFACES
5 surfaces

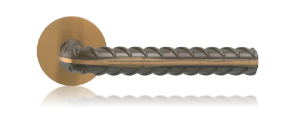

Ms-K
Ms-K

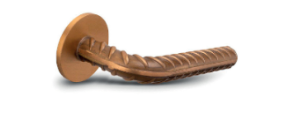

Ms-A
Ms-A

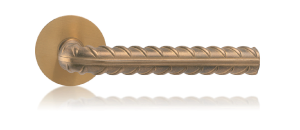

Ms-L
Ms-L
Tin-C
TiN-C
Tin-K
TiN-K

One design - the whole project

Technical informations

MATERIAL
  • Massive brass
AVAILABLE SURFACE FINISHES
  • Brass natur, brass antique, brass polished and titanium surface finishes
MOUNTING
  • Drilling with profi template M&T, screwing through with screw-together cases system
MECHANICS
  • M 2018 magnetic system with a returned spring, with screw-together cases system and magnetic rosettes
DIMENSIONAL APPLICATIONS
  • Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm
  • Preparation for doors: drilling for holes diameter 24 – 25mm

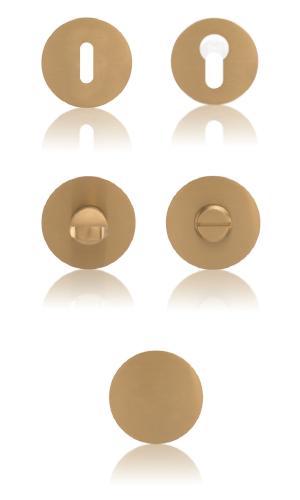

  • Handles with magnetic rosettes can be fully inserted into the door, be careful of the weakened side at the rebated and reversed doors. Thickness of the rosette is 5 mm.
  • The space / depth of insertion for the magnetic rosette including the returned spring and handle neck is 8,5 mm
ACCESSORIES
  • The package includes:
    • spindle
    • set screw
    • glue gel
    • fasteners
    • assembly instructions
    • waranty card
WARRANTY
  • Mechanics 3 years
  • Titanium surfaces 15 years, brass natural life time guarantee
APPLICATIONS
  • According to the type of surface for the interior and exterior doors, for door weight up to 60 kg
SET

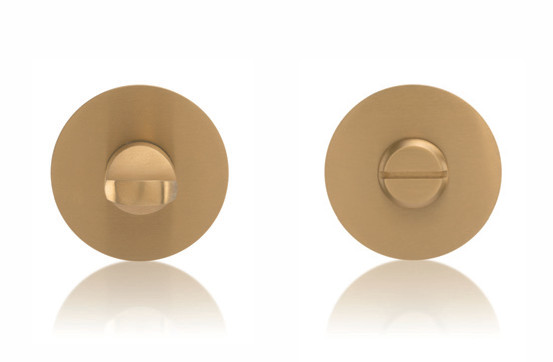

  • Design set without key rosettes, key rosettes are to order extra
Rozměry

Manufactory mechanics M 2018

Manufakturní mechanika M 2018

About the mechanics

Mechanics M 2018 – designed, manufactured and assembled in M&T – with its own patend of the rosette using neodymium magnets and a system of returned spring.

more here

Similar assortment

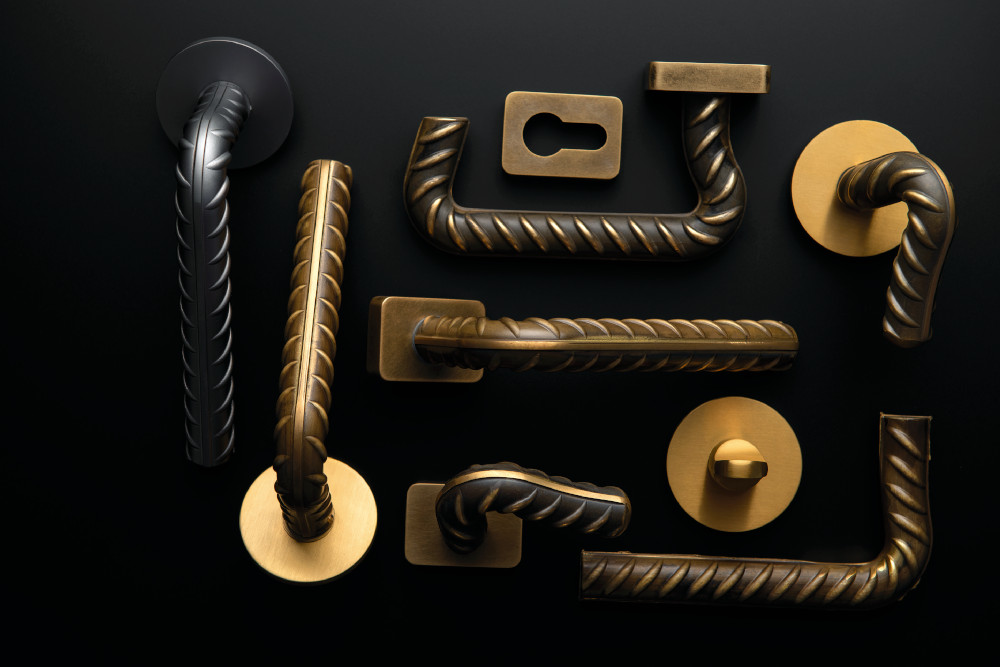

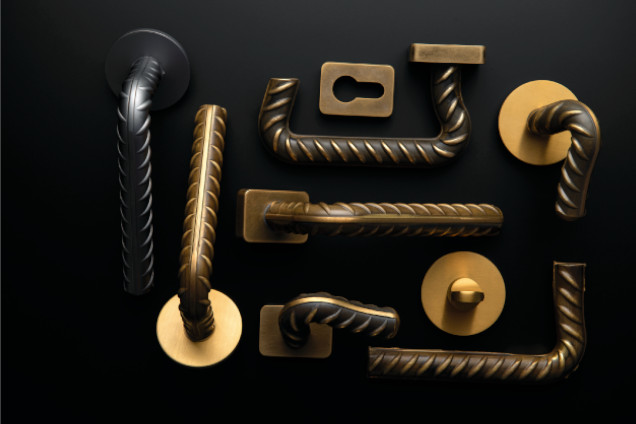

Take advantage of full benefits of the complete production offer and choose all products you need in an uniform design and the same colour.
