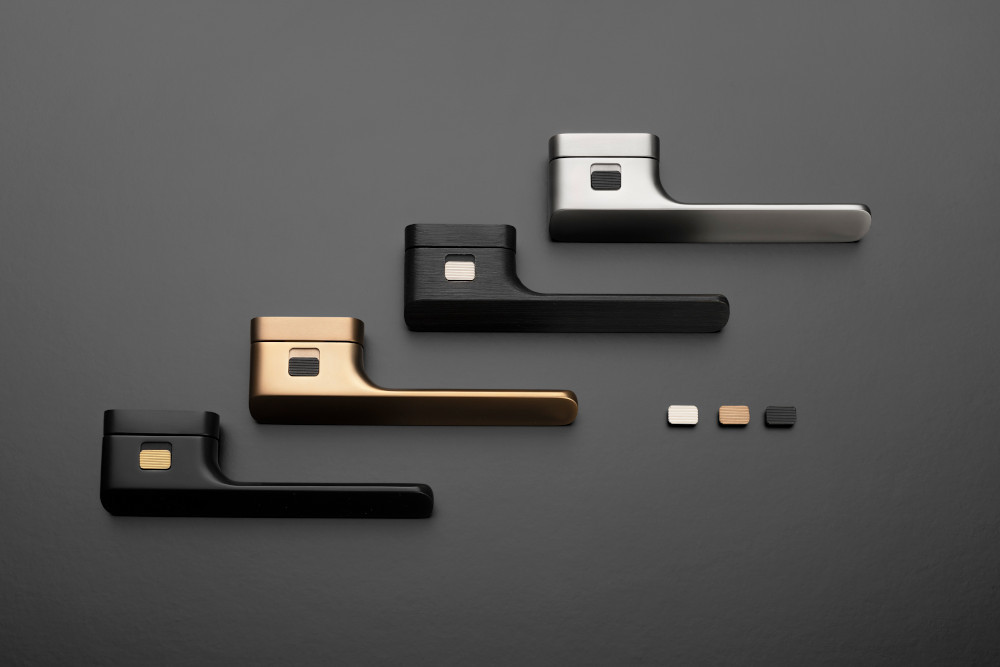

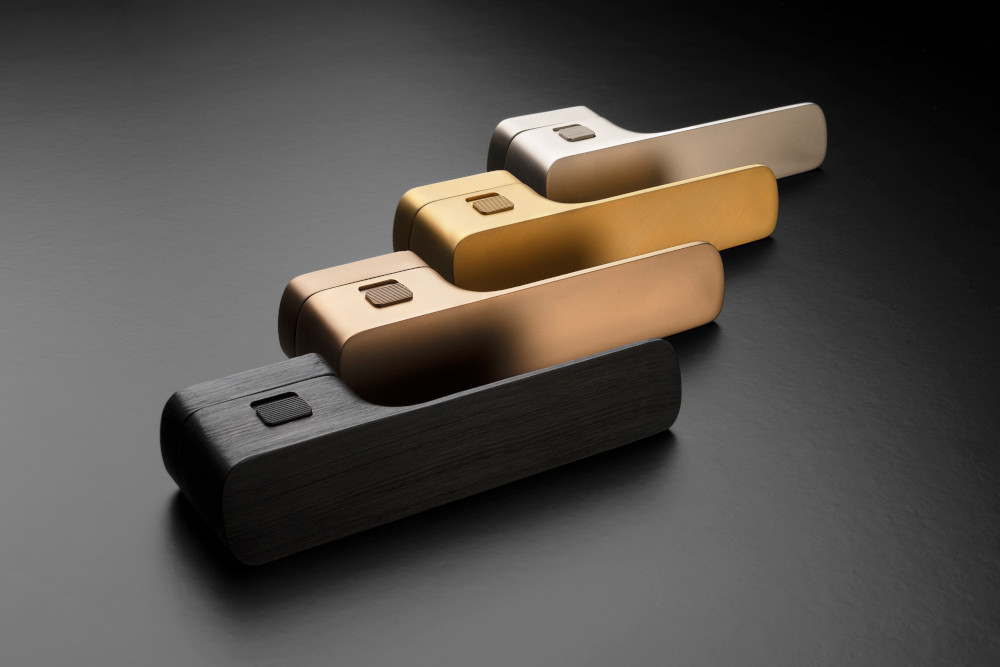

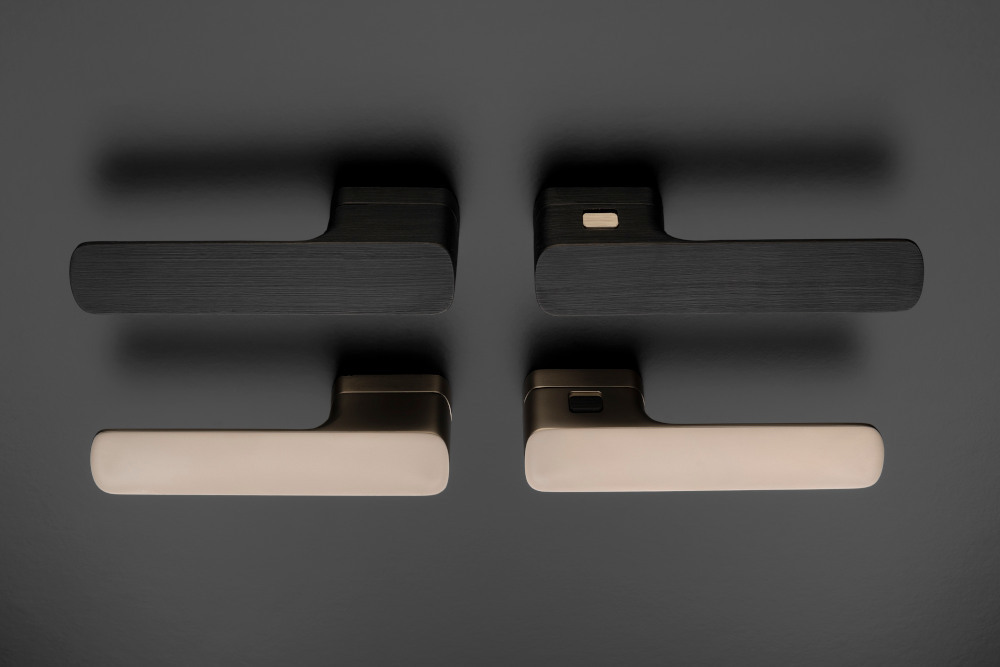

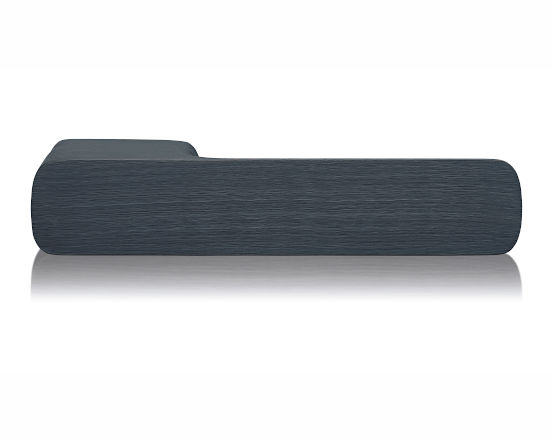

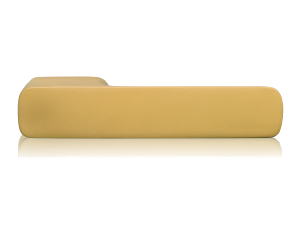

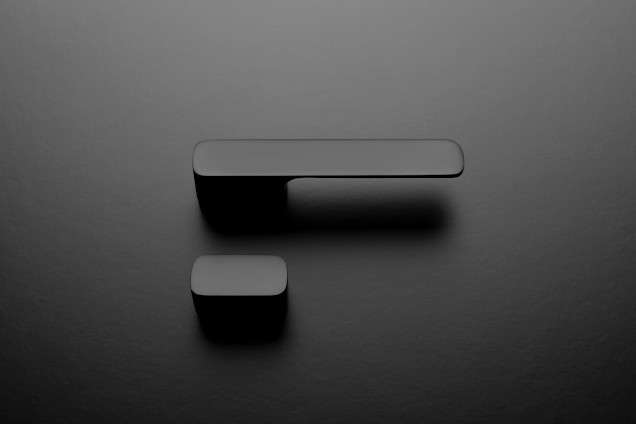

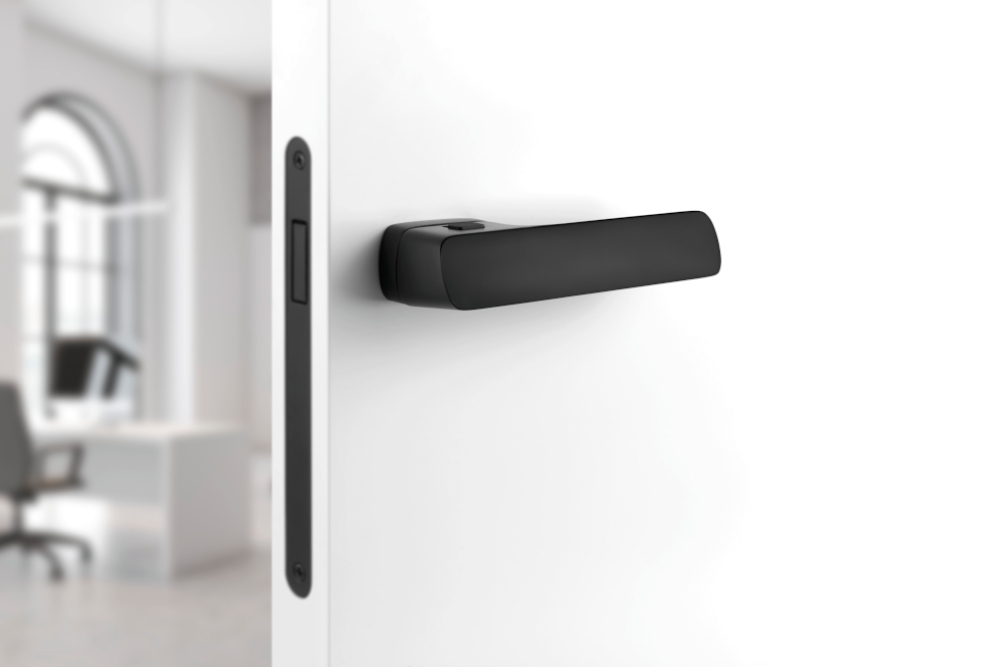

Door handle Minimal 2.0

Door handle MINIMAL 2.0

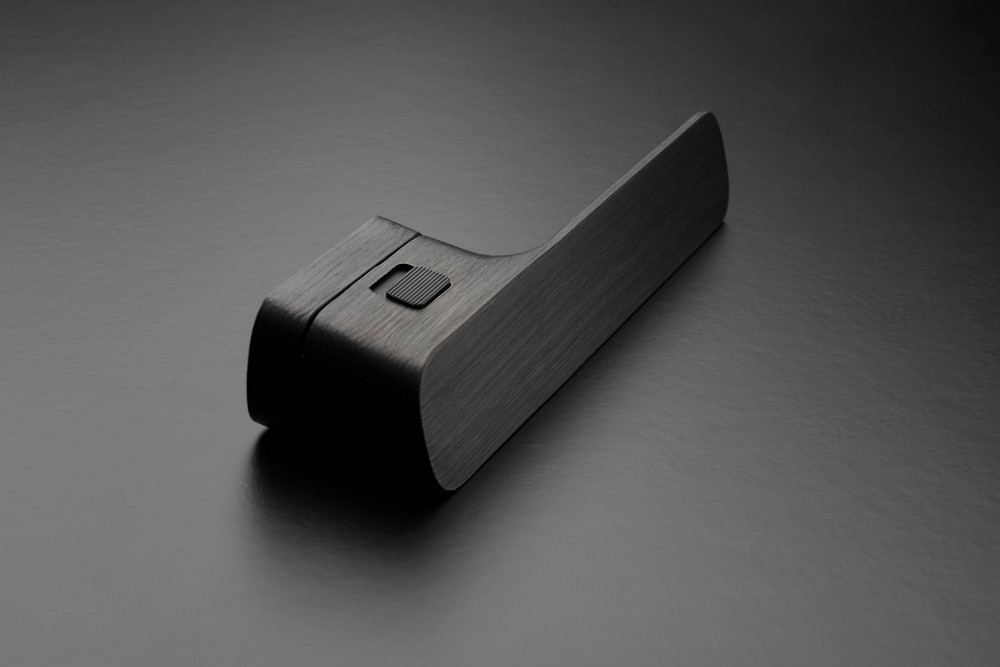

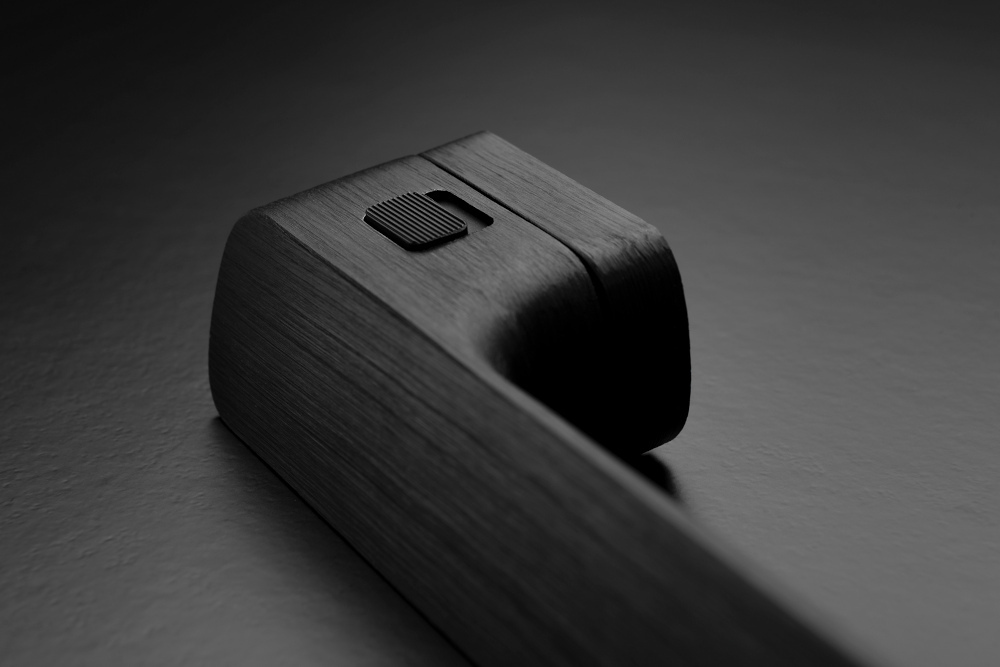

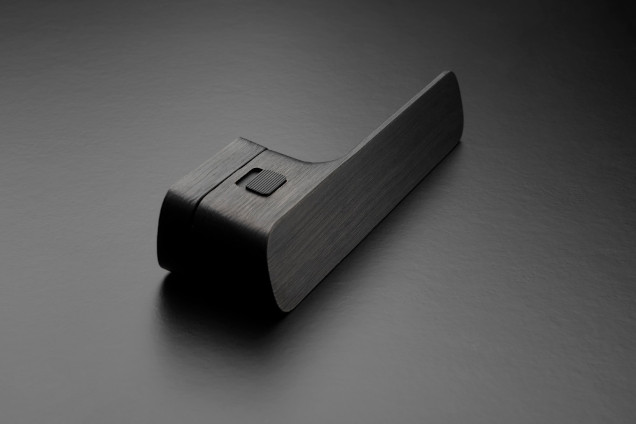

Cr-K black chrome brushed 3D Design: Roman Ulich

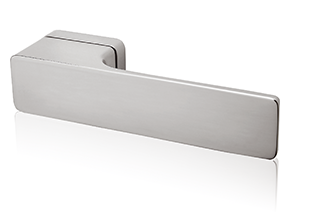

Minimal 2.0 softly follows M&T's most popular hardware collection - the Minimal/Maximal series. Minimal 2.0 stands out with its unmistakable organic shape and perfect ergonomics. The handle is designed and engineered with an invisible flush rosette, manufactured in massive brass, with a choice of 17&n finishes & colours, with a 3-15 year warranty depending on the type of design, with quality M 2011 mechanics, for use on interior and exterior doors.
Unforgettable organic shape.

Technical information

MATERIAL

The massive brass, brushed and polished

AVAILABLE SURFACE FINISHES

Matt nickel, matt nickel - brushed, polished chrome and titanium surfaces, brass antique, brass polished, black chrome brushed

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.

MECHANICS

M 2011 with the pressed spring system and with the screw-together cases system

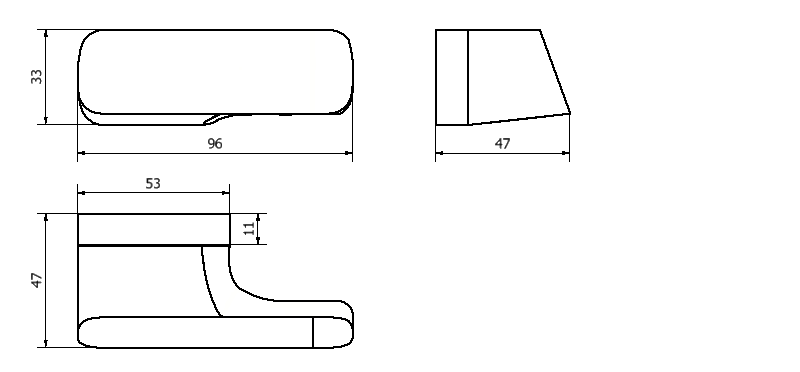

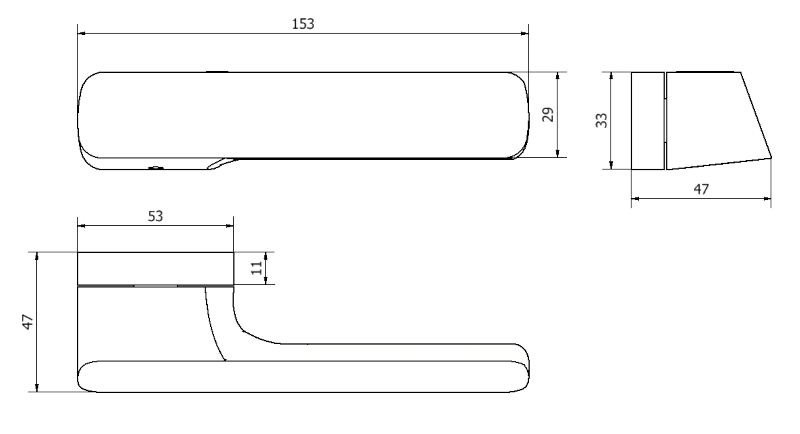

DIMENSIONAL APPLICATIONS

Standard for door thickness 38,5 - 44 mm, mounting options for door thickness from 38,5 to 124 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years
Surfaces 3 years nickel and chrome, 5 years black chrome, 15 years titanium, polished brass and antique brass lifetime warranty

APPLICATIONS

According to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

Design set without bottom lock rosettes. The bottom lock rosettes are to order extra.

3D model for visualization

Door handle Minimal 2.0 (DWG)

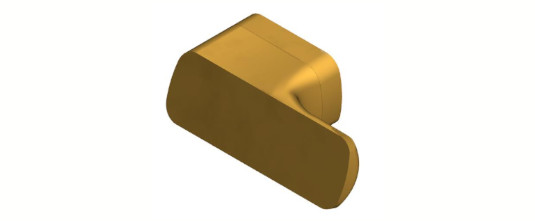

Door hand grip Minimal 2.0 (DWG)

Rosette Minimal 2.0 keyhole (DWG)
Rosette Minimal 47×47 mm cylindrical (DWG)

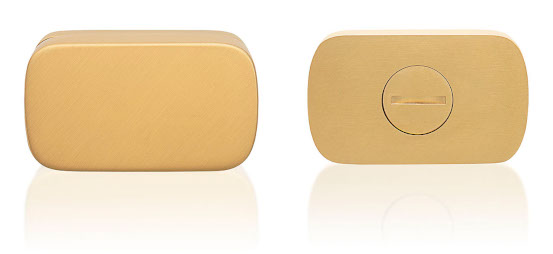

Rosette Minimal 2.0 WC IN (DWG)
Rosette Minimal 2.0 WC EX (DWG)

Order numbers

MINIMAL 2.0	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded
MINIMAL 2.0	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	147438	147483	147537	147582	147681	147636	147933	193701	193763
Grip / handle R	147469	147513	147568	147612	147711	147667	147964	193718	193770
Grip / handle L	147476	147520	147575	147629	147728	147674	147971	193725	193787

MINIMAL 2.0	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
MINIMAL 2.0	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	147735	147780	193794	147834	193732	147889	194142	194173
Grip / handle R	147766	147810	193800	147865	193749	147919	194159	194180
Grip / handle L	147773	147827	193817	147872	193756	147926	194166	194197

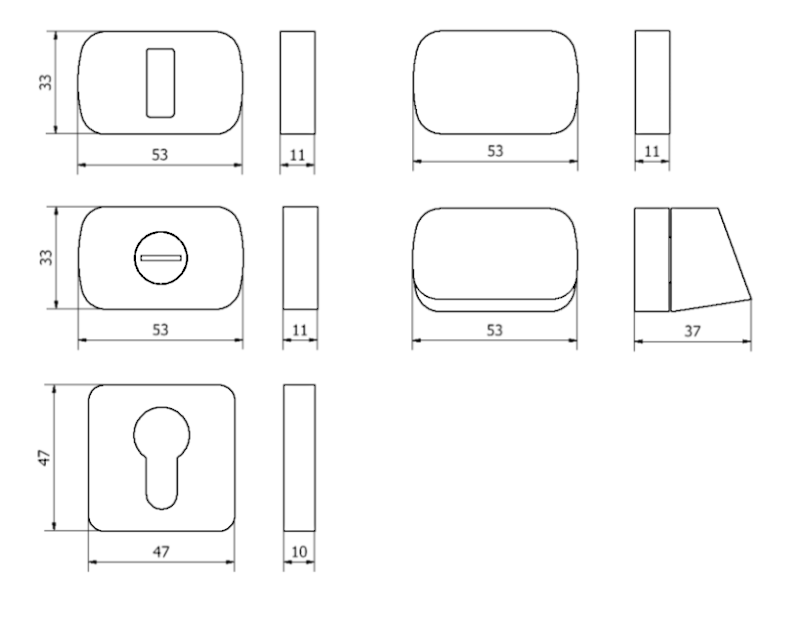

BOTTOM ROSETTES	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded
BOTTOM ROSETTES	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	147988	148039	148084	148138	148237	148183	148480	193909	193985
Toilet / bathroom	148015	148060	148114	148169	148268	148213	148510	193916	193992
Cylindrical rosettes 47×47 mm	000535	000542	000559	055191	148503	055276	087703	187625	187724

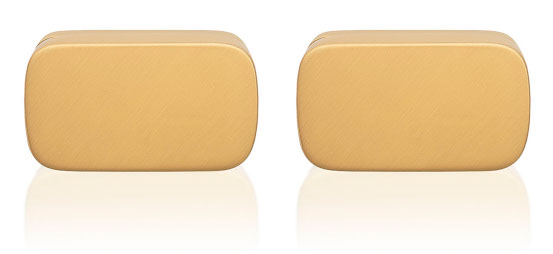

WC double	147025	148077	148121	148176	148275	148220	148527	193923	194005
Blind	147995	148046	148091	148145	148244	148190	148497	193930	194012

BOTTOM ROSETTES	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
BOTTOM ROSETTES	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	EAN
Key hole rosettes	148282	148336	194029	148381	193947	148435	194067	194104	-
Toilet / bathroom	148312	148367	194036	148411	193954	148466	194074	194111	-
Cylindrical rosettes 47×47 mm	000566	000580	187793	000573	187892	000597	186895	187991	-
WC double	148329	148374	194043	148428	193961	148473	194081	194128	-
Blind	148299	148343	194050	148398	193978	148442	194098	194135	-

Manufactory mechanics M 2011

About the mechanics

Mechanics M 2011 - designed, manufactured and assembled at M&T - with its own patent with the system of pressed springs and active slip system preventing from bending and cracking the door in the lock area, with a minimal dimension of mechanics

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.
