Handle Nomad for aluminium and steel doors

HANDLES SURFACES
11 surfaces

SNi

TiN-M

TiN-C

TiN-K

TiN-G

TiN-B

TiN-S

TiN-A

více o povrchu

New construction with the perfect mechanics

Technical informations

Specification
Dimensions

MATERIAL

Massive brass

AVAILABLE SURFACE FINISHES

matt nickel, glossy chrome, titanium surfaces, black chrome natural

MOUNTING

Using up to 12 self-tapping screws or a combination of screws with a rivet nut. Another fixation of handles and rosettes using set screws M6 and M4.

MECHANICS

M 2013 with the pressed springs system

DIMENSIONAL APPLICATION

Standard for door thickness 38-45 mm, possibility for door thickness 38-126 mm

ACCESSORIES

The package includes:
- spindle
- set screws
- glue gel
- fasteners
- assembly instructions
- warranty card

WARANTY

Mechanics 3 years.
Surface black matt structured 5 years, titanium 15 years, life-time guarantee for brass products.

APPLICATIONS

According the type of the surface, for interior and exterior doors, for door weight up to 60 kg.

SET

The set is without bottom rosettes, they are to order extra.

Rozměry

Požární odolnost

Orders number

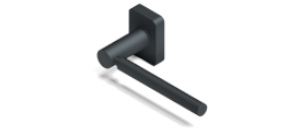

NOMAD FOR ALUMINIUM PROFILES	SNi nickel matt	Cr glossy chrome	Cr-K chrome black brushed 3D	TiN-M titanium cooper grinded	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt
NOMAD FOR ALUMINIUM PROFILES	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	174861	174892	174922	174953	174984	175011	175042	175073	175103
Grip / handle R	174878	174908	174939	174960	174991	175028	175059	175080	175110
Grip / handle L	174885	174915	174946	174977	175004	175035	175066	175097	175127

NOMAD FOR ALUMINIUM PROFILES	TiN-A titanium brass matt	Wh white matt
NOMAD FOR ALUMINIUM PROFILES	pair EAN	pair EAN
Handle / handle	175134	175165
Grip / handle R	175141	175172
Grip / handle L	175158	175189

ROSETTES 33×47 MM	SNi nickel matt	Cr glossy chrome	Cr-K chrome black brushed 3D	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-A titanium brass matt
ROSETTES 33×47 MM	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	EAN	EAN
Cylindrical rosettes	001952	001976	088021	001983	002676	002669	002683	-	-
Cylindrical rosettes with cover	030884	030907	-	030914	030938	030921	030945	-	-
Blind	022353	022377	087697	022384	022407	022391	022414	-	-

ROSETTES 33×47 MM
ROSETTES 33×47 MM	EAN	EAN	EAN	EAN
Cylindrical rosettes	-	-	-	-
Cylindrical rosettes with cover	-	-	-	-
Blind	-	-	-	-

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufacture mechanics M 2013

More about the mechanics

Mechanics M 2013 – designed, manufactured and assembled at M&T. With its own patent with system of pressed springs, a nut of stainless steel, a pair of riveting nuts with M4 screws and four self tapping screws with a dril for maximum fixation.

Suitability of individual designs - the shapes of handles for a specific order must be verified by the manufacturer of the doors according the Dornmas dimension of the selected lock. For a lock with the Dornmas dimension of 40 mm and more can be used all of the M&T handles for aluminum and steel doors.

We also use cookies to make our site work

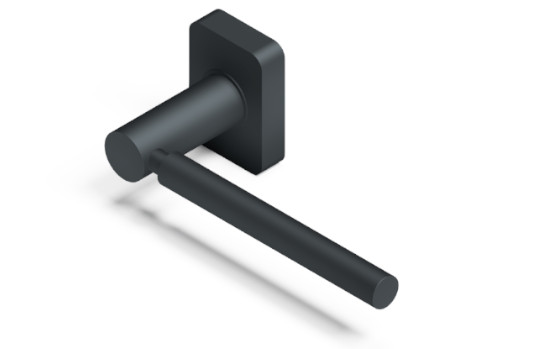

Door handle Nomad
