M&T kliky
  1. M&T
  2. Catalogue
  3. ANOTHER PRODUCTS
  4. STAINLESS FITTING ON THE PLATE
  5. ENTERO

Door handle ENTERO

NRz stainless steel – grinded

Stainless steel fitting with a choice of 3 colours & surfaces, with a guarantee of 5-15 years, depending on the design, with a reversible spring, used for interior and exterior doors.

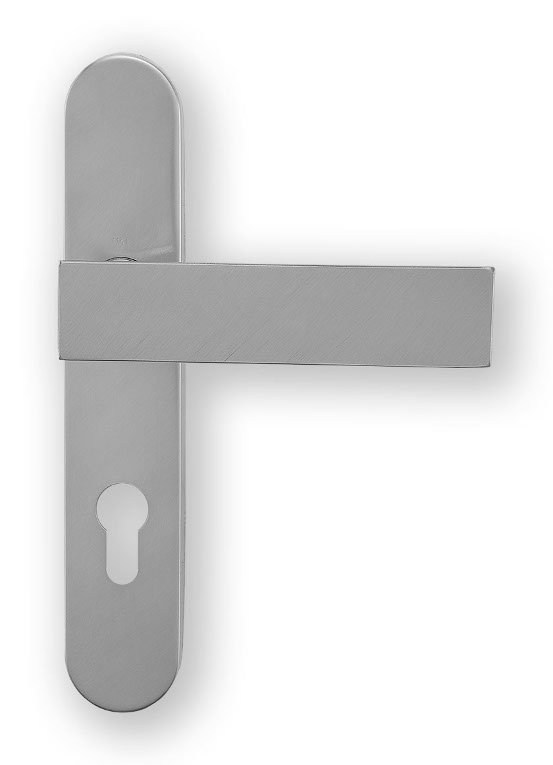

Nerezová dveřní klika Entero
another models

Handle surfaces
3 surfaces

NRz
NRz
TiN-K
TiN-K
more about the surfaces

Stainless steel fitting on the plate

Technical informations

MATERIAL
  • Stainless steel
AVAILABLE SURFACE FINISHES
  • Stainless steel - grinded, titanium black matt, black matt structured
MOUNTING
  • Mounting with screws, possibility of screwing with screw sleaves through the door, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.
MECHANICS
  • Reversible spring and a stop mechanics plate M 2000
DIMENSIONAL APPLICATION
  • Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm
ACCESSORIES
  • The package includes:
    • spindle
    • set screw
    • glue gel
    • fasteners
    • assembly instructions
    • warranty card
WARRANTY
  • Mechanics 3 years
  • Surfaces stainless steel 5 years, black matt structured 5 years, titanium 15 years
APPLICATIONS
  • For the interior and exterior doors, for door weight up to 60 kg
DESIGN VARIANTS
  • "Object" and "Project" with fire resistance


Rozměry

Object

  • fitting with reversible spring
  • metal internal plate
  • clip-on cover stainless steel plate
  • fasten gel against loosening the screws
  • mounting for the door thickness up to 126 mm
  • guarantee 5 years, titanium 15 years





Classifications of fittings according to the norms
EN 1906:2012, ČSN EN 1906 16 5776.

Object
3 6 - 0 0 3 1 B

3 Category of using..
High frequency of use by the public or others with little incentive for careful use and where there is a high probability of improper use, eg. the door for public office
6 Service life..
medium frequency of using: 100 000 cycles
- Door weight..
(without classification)
0 Fire resistance..
(resistance is not required)



0 Protection..
normal using
3 Corrosion resistance..
high resistance
1 Safety..
slight burglary resistance
B Type of control..
Type of control.. fitting with reversible spring

Project class 4, fire resistance

  • fitting with reversible spring
  • metal internal plate
  • clip-on cover stainless steel plate
  • stainless steel design inc. neck
  • stainless steel spindle
  • stainless steel set screw
  • fasten gel
  • mounting for the door thickness up to 126 mm
  • guarantee 7 years, titanium 15 years


Classifications of fittings according the norms
EN 1906:2012, ČSN EN 1906 16 5776.

Project class 4
4 7 - D1 1 4 1 B

4 Category of using..
high frequency of using doors in the public, eg. football stadiums, barracks, public toilets, etc.

7 Service life ..
high fequency of using: 200 000 cycles
- Door weight..
(without classification)
D1 Fire resistance..
for using in smoke control and fire-resistant doors with special requirements in the middle of the handle/knob, tested with 200,000 cycles on test doors.
1 Protection..
using in situations requiring protection
4 Corrosion resistance..
very high resistance
1 Safety..
slight burglary resistance
B Type of control..
Type of control.. fitting with reversible spring

Order numbers

ENTERO

ENTERO

Povrch kliky
Object
stainless steel NRz		Povrch kliky
Object
titanium black TiN-K		Povrch kliky
Object
K-industrial		Povrch kliky
Project
class 4 stainless steel NRz		Povrch kliky
Project
class 4 titanium black TiN-K
pair
EAN		pair
EAN		pair
EAN		pair
EAN		pair
EAN
Key hole 72 mm018691018745032666018790018844
Cylindrical 72 mm018707018752032673018806018851
Toilet / bathroom 72 mm018714018769032680018813018868
Knob / handle R 72 mm018721018776032697018820018875
Knob / handle L 72 mm018738018783032703018837018882
Key hole 90 mm019698019742032710019797019841
Cylindrical 90 mm019704019759032727019803019858
Toilet / bathroom 90 mm019711019766032734019810019865
Knob / handle R 90 mm019728019773032741019827019872
Knob / handle L 90 mm019735019780032758019834019889
Full plate023237023244032765023251023268

Orientation toilet locking is determined by WC in handle on the inner door handle,
ie. in your order it is necessary to specify the selected type: WC in + handle left or WC in + handle right .

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Components from mechanics M 2000

Manufakturní mechanika M 2000

About the mechanics

Mechanics M 2000 - designed, manufactured and assembled at M&T - for fitting on the plate is used the reversible spring and the stop plate for a perfect functionality and reliability.
