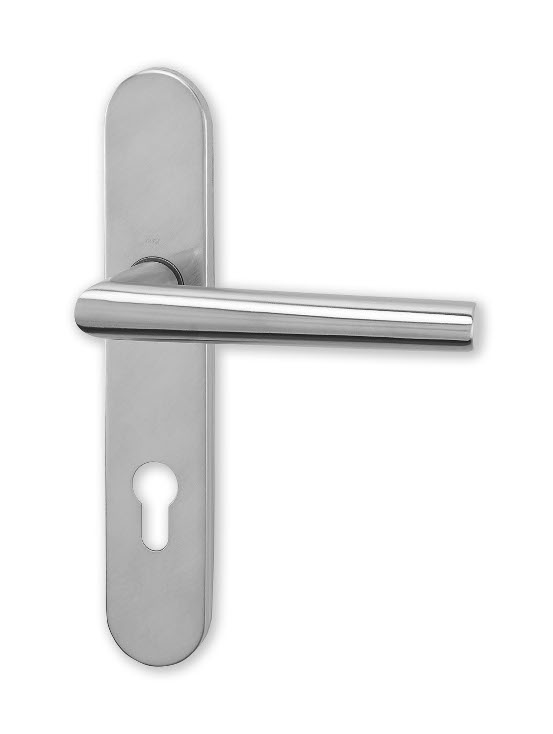

Stainless steel fitting with a choice of 3 colours & surfaces, with a guarantee of 5-15 years, depending on the design, with a reversible spring, used for interior and exterior doors.
Stainless steel fitting on the plate
Object | |||||||
---|---|---|---|---|---|---|---|
3 | 6 | - | 0 | 0 | 3 | 1 | B |
3 | Category of using.. |
High frequency of use by the public or others with little incentive for careful use and where there is a high probability of improper use, eg. the door for public office | |
6 | Service life.. |
medium frequency of using: 100 000 cycles | |
- | Door weight.. |
(without classification) | |
0 | Fire resistance.. |
(resistance is not required)
|
|
0 | Protection.. |
normal using | |
3 | Corrosion resistance.. |
high resistance | |
1 | Safety.. |
slight burglary resistance | |
B | Type of control.. |
Type of control.. fitting with reversible spring |
Project class 4 | |||||||
---|---|---|---|---|---|---|---|
4 | 7 | - | D1 | 1 | 4 | 1 | B |
4 | Category of using.. |
high frequency of using doors in the public, eg. football stadiums, barracks, public toilets, etc.
|
|
7 | Service life .. |
high fequency of using: 200 000 cycles | |
- | Door weight.. |
(without classification) | |
D1 | Fire resistance.. |
for using in smoke control and fire-resistant doors with special requirements in the middle of the handle/knob, tested with 200,000 cycles on test doors. | |
1 | Protection.. |
using in situations requiring protection | |
4 | Corrosion resistance.. |
very high resistance | |
1 | Safety.. |
slight burglary resistance | |
B | Type of control.. |
Type of control.. fitting with reversible spring |
MORGAN | Object stainnless steel NRz | Object titanium black TiN-K | Object K-industrial | Project class 4 stainless steel NRz | Project class 4 titanium black TiN-K | |
---|---|---|---|---|---|---|
EAN | EAN | EAN | EAN | EAN | ||
Key hole 72 mm | 018493 | 018547 | 032888 | 018592 | 018646 | |
Cylindrical 72 mm | 018509 | 018554 | 032895 | 018608 | 018653 | |
Toilet / bathroom 72 mm | 018516 | 018561 | 032901 | 018615 | 018660 | |
Knob / handle R 72 mm | 018523 | 018578 | 032918 | 018622 | 018677 | |
Knob / handle L 72 mm | 018530 | 018585 | 032925 | 018639 | 018684 | |
Key hole 90 mm | 019490 | 019544 | 032932 | 019599 | 019643 | |
Cylindrical 90 mm | 019506 | 019551 | 032949 | 019605 | 019650 | |
Toilet / bathroom 90 mm | 019513 | 019568 | 032956 | 019612 | 019667 | |
Knob / handle R 90 mm | 019520 | 019575 | 032963 | 019629 | 019674 | |
Knob / handle L 90 mm | 019537 | 019582 | 032970 | 019636 | 019681 | |
Full plate | 023312 | 023329 | 032987 | 023336 | 023343 |
Orientation toilet locking is determined by WC in handle on the inner door handle,
ie. in your order it is necessary to specify the selected type:
WC in + handle left
or
WC in + handle right .
We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.
We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.
You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.
Mechanics M 2000 - designed, manufactured and assembled at M&T - for fitting on the plate is used the reversible spring and the stop plate for a perfect functionality and reliability.
