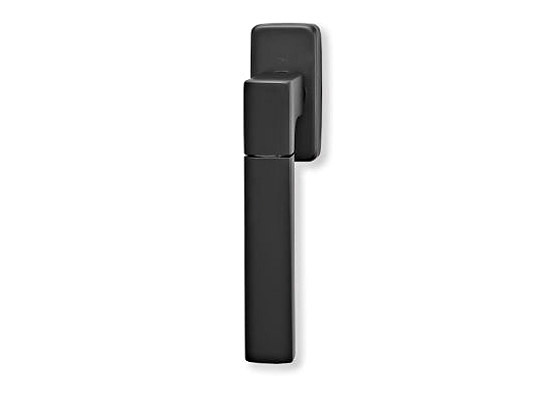

Window handle Mini-T with 3 and 4 positions

Handle surface
5 surfaces

SNi

Ms-L

TiN-K

more about the surface

Selection all of designs and surfaces of window handles

Technical informations

Specifications
Dimensions

MATERIAL

Massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

Nickel matt, glossy chrome, titanium black matt, brass natural

MOUNTING

Using the window positioning mechanism into the window frame, providing a set screw for the handle mechanism.

MECHANICS

The positioning mechanism with 3 and 4 positions with a spindle 7x7 mm in the window frame, the standard length is 38 mm.

DIMENSIONAL APPLICATION

For a wooden, plastic and aluminium windows with a spindle 38 mm. Another lenghts are: 32, 42, 50 and 54 mm in the window frame.

ACCESSORIES

The package includes:
- fasteners
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years.
Surfaces 3 years nickel and chrome, titanium 15 years, brass natural life time guarantee

APPLICATIONS

For all of window types with a standard positioning mechanics

SET

Window handle with a cover rosette. It is needed to order extra the type of positioning mechnism, either plastic or metall and choose the right spindle lenght for the window frame.

Rozměry Dimensions of the positioning mechanism

Rozměry polohovací mechanismus

Order numbers

MINI-T	SNi nickel matt	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-K titanium black matt
MINI-T	EAN	EAN	EAN	EAN	EAN
4 positions	86739	86784	059649	059687	86838

	WINDOW MECHANISM
	WINDOW MECHANISM	EAN
	Metal 37 mm	119770
	Metal 42 mm	119787
	Metal 50 mm	119794
	Metal 61 mm	119800
	Plastic	90309

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Positioning mechanism of window handles

Positioning mechanism plastic

Plastic mechanism with an inner plastic construction guaranteeing very quiet running even after long use, the disadvantage can be a looseness between the window handle and mechanism caused by plastic characters (elasticity).

Positioning mechanism metal

Metal mechanism with an inner metal construction guaranteeing an exact positionability and firm fixation of the window handle in the mechanism, disadvantage can be a noisier running by long use (regular maintenance needed).
