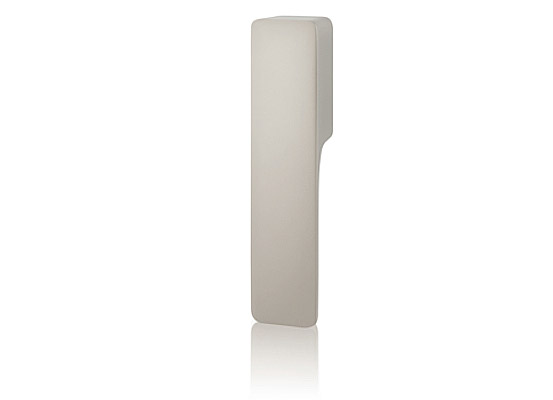

Window handle MINIMAL sink

SNi nickel matt Design: Roman Ulich

Window handle made of massive brass with a choice of 9 colours & surfaces, with a guarantee of 3-15 years, depending on the design, used for wood, aluminium and plastic windows. With a sink invisible positioning mechanism in the window frame. The positioning mechanism is with 3 positions and is part of the handle.
News: brass natural with a life-time guarantee.

HANDLES SURFACES
9 surfaces

SNi

SNi - grinded

Ms-L

TiN-C

TiN-K

TiN-B

TiN-A

more about the surface

Selection all of designs and surfaces of window handles

MATERIAL

Massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

Nickel matt, polished chrome, titanium, brass natural

MOUNTING

The handle including the positioning mechanism is fixed with screws into the window frame, where need to be drilled holes in advance. There is a milling work for sink / invisible mechanism of the sink window handle from the production.

MECHANICS

The positioning mechanism with 3 positions with a spindle 7x7 mm in the window frame, the standard length is 42 mm.

DIMENSIONAL APPLICATION

For a wooden, plastic and aluminium windows with a spindle 42 mm. Another lenghts: 32 a 38 mm in the window frame.

ACCESSORIES

The package includes:
- fasteners
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years.
Surfaces 3 years for nickel and chrome, titanium 15 years, brass natural life-time guarantee.

APPLICATIONS

For all of window types with a standard positioning mechanism.

SET

Window handle with a sink mechanism, that is part of the handle.

Rozměry

Order numbers

WINDOW HANDLE MINIMAL SINK	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	TiN-C titanium chrome matt	TiN-K titanium black matt
WINDOW HANDLE MINIMAL SINK	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN
3 positions	071085	071092	071108	071115	253580	071122	087932	071139	071146

WINDOW HANDLE MINIMAL SINK	TiN-B titanium brown matt	TiN-A titanium brass matt
WINDOW HANDLE MINIMAL SINK	pc EAN	pc EAN
3 positions	071153	071160

	WINDOW MECHANISM
	WINDOW MECHANISM	pc EAN
	Metal 37 mm	119770
	Metal 42 mm	119787
	Metal 50 mm	119794
	Metal 61 mm	119800
	Plastic	90309

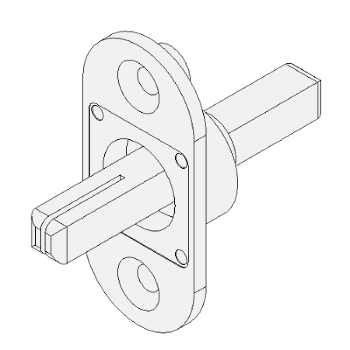

Sink positioning mechanism of window handle

Zapuštěný polohovací mechanismus okenní kliky

Positioning mechanism of the sink rosette

Metal mechanism with an inner metal construction to ensure a precise positioning, with a sink roller for a maximum fixation of the mechanism in the window frame.
