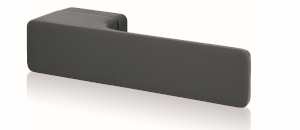

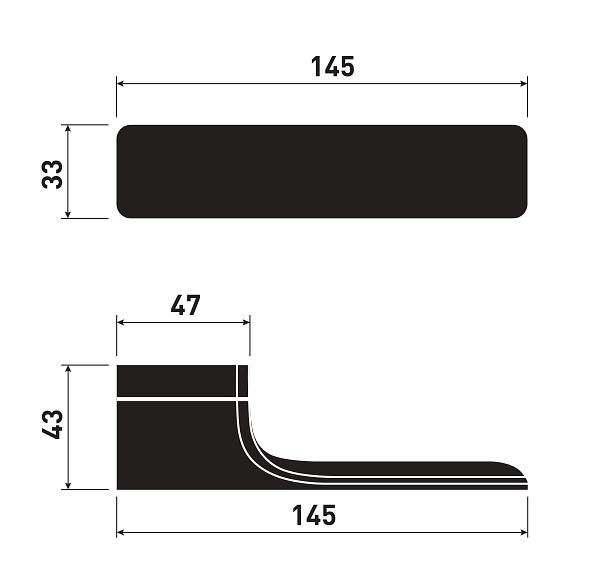

Minimal

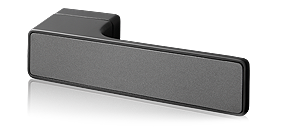

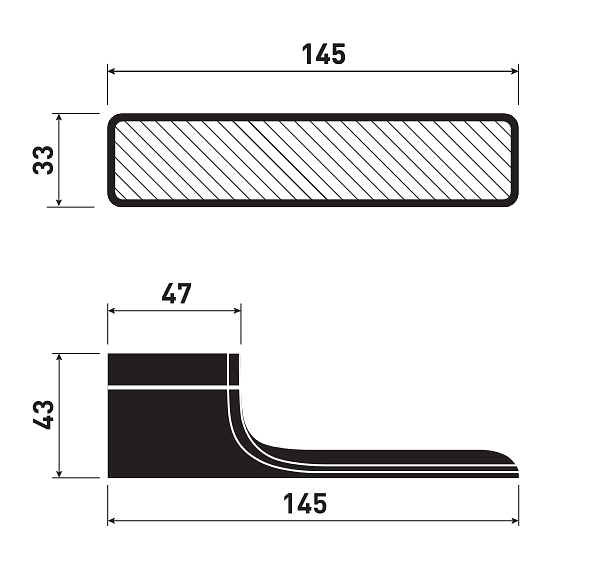

Maximal

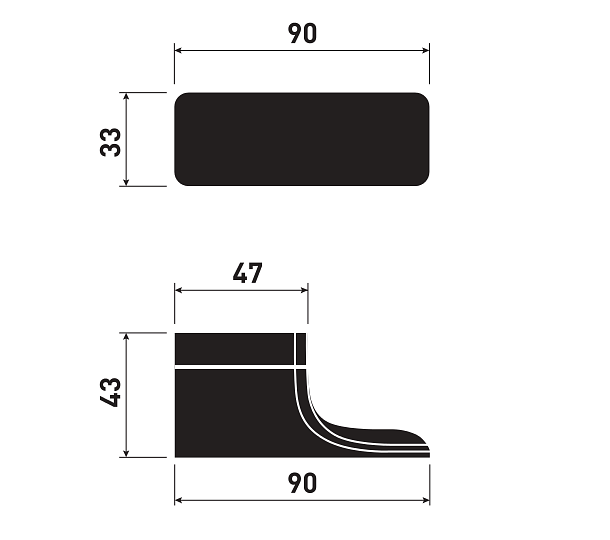

Hand grip Minimal
Bottom keyhole rosettes
Bottom rosettes WC Minimal
Bottom rosettes WC Maximal

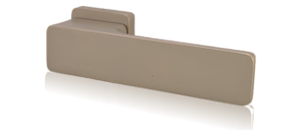

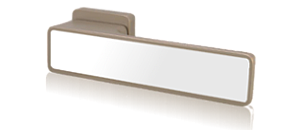

Bottom cylindrical rosettes 47×47mm
close
Holes for mounting of rosettes fittings
without bottom rosettes
Holes for mounting of rosettes fittings
with bottom key hole or cylindrical rosette
Holes for mounting of rosettes fittings
with bottom WC rosette
close
close
close

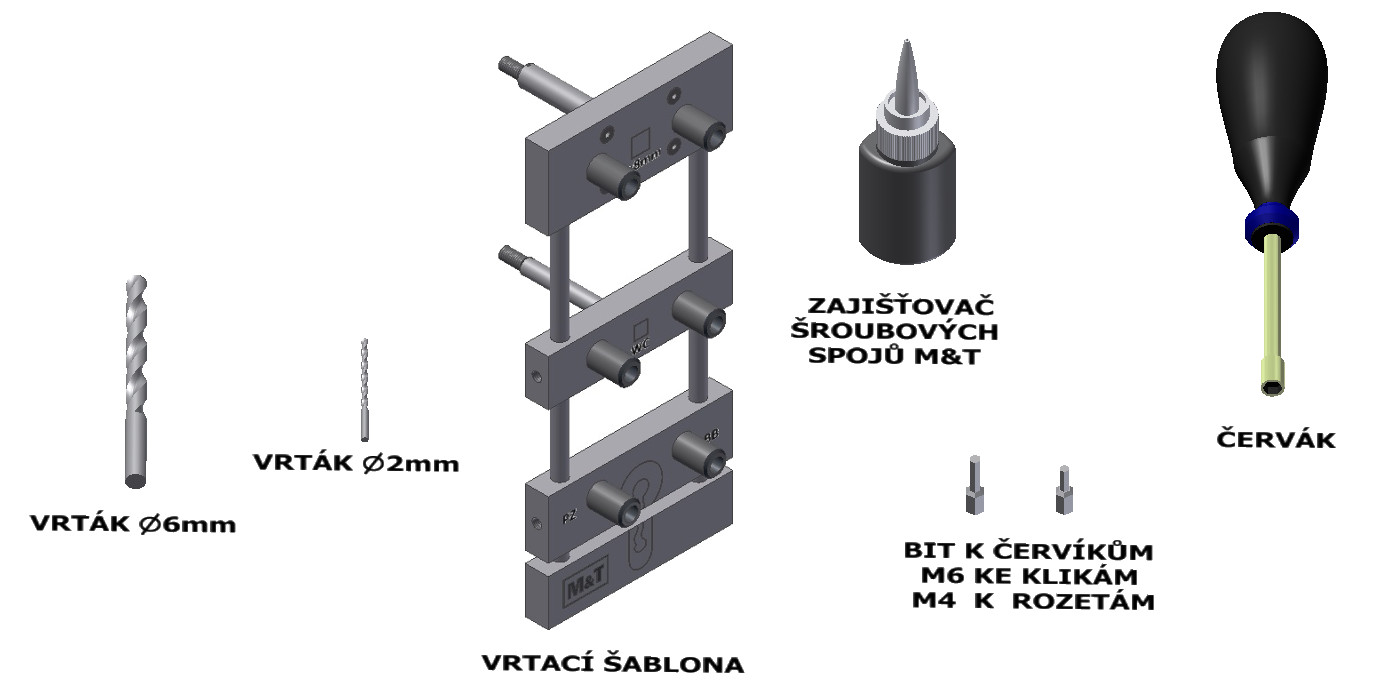

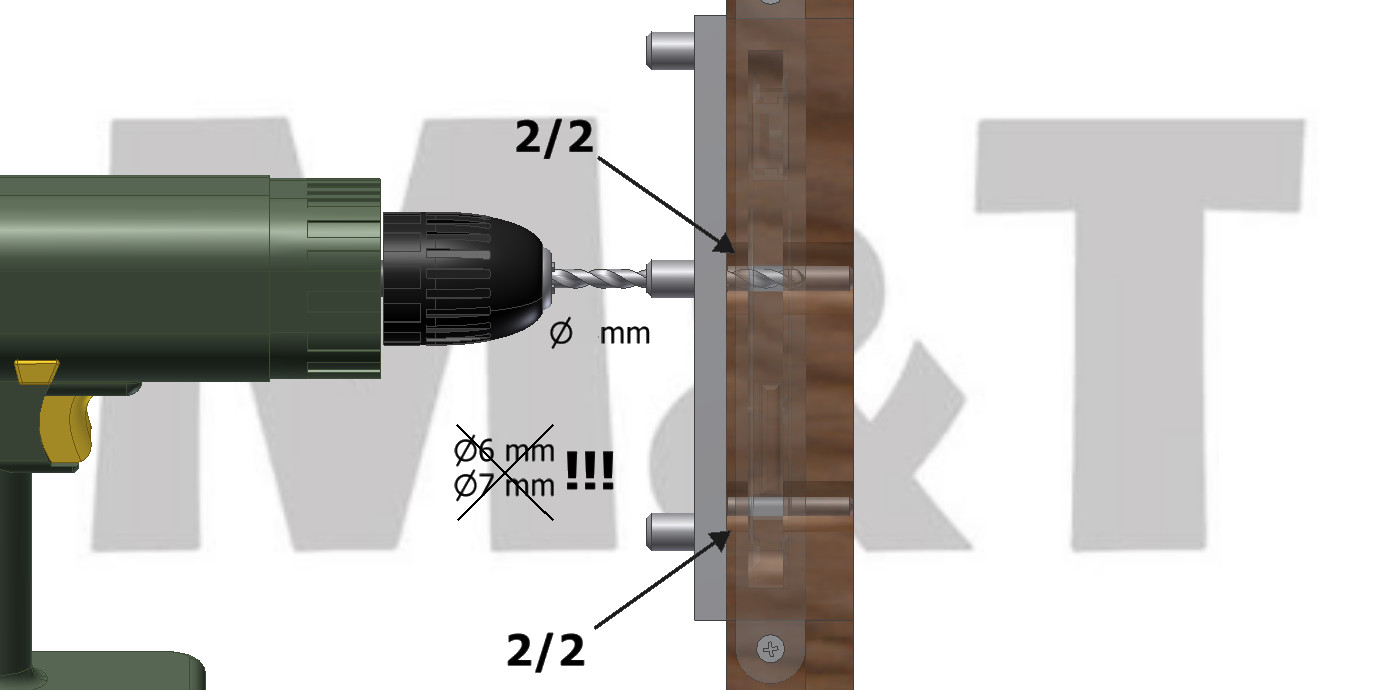

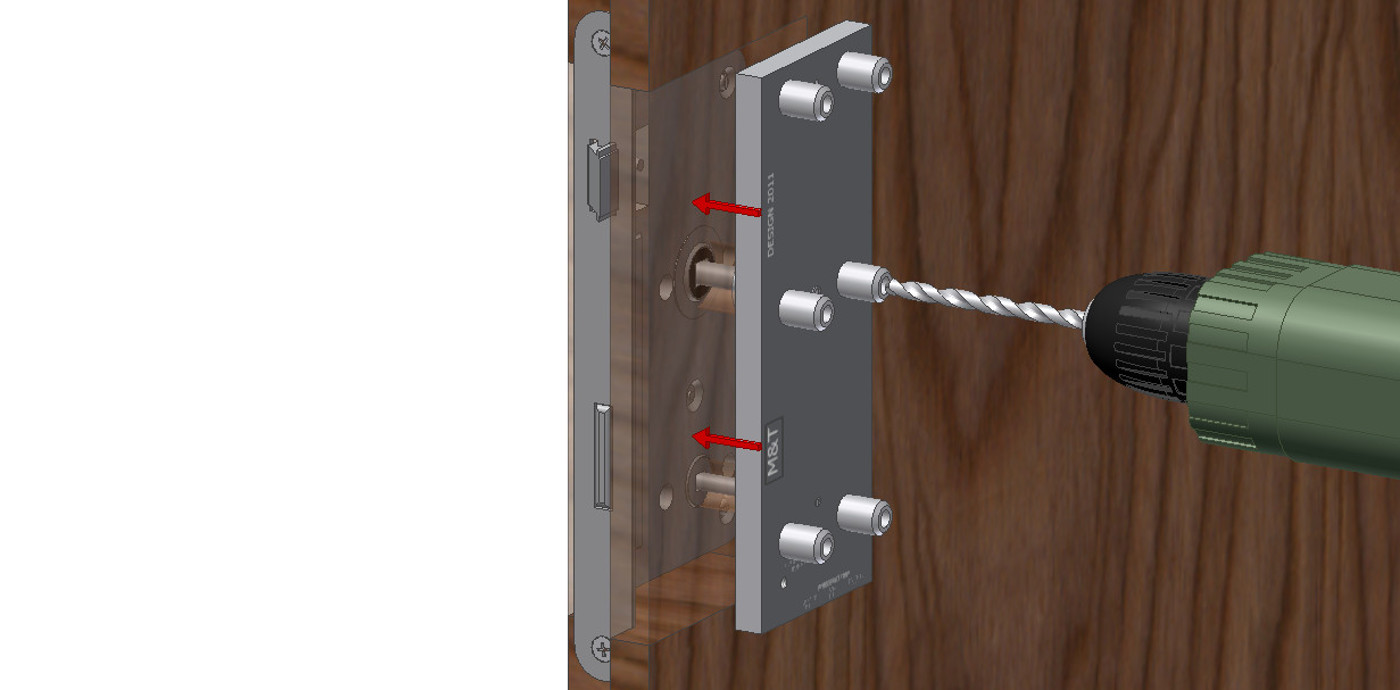

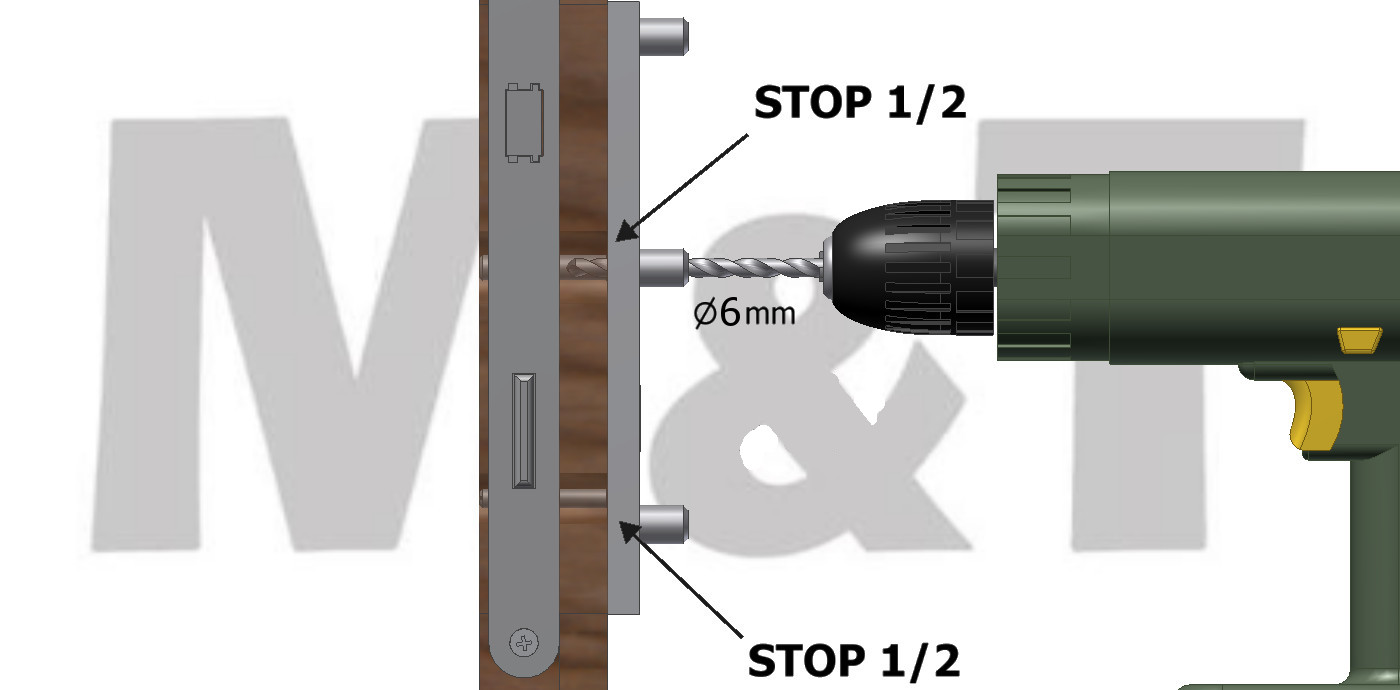

The basic premise is professional installation using our PROFI drilling template. Thanks that you can prepare precise door holes, where the sleeves (rollers) are firmly fixed of two fitting halves through the lock and prevent the later loosing and wobbling of handles.
Do not underestimate this recommendation and install our M&T fittings using our PROFI drilling template. After that you will be happy with the fitting M&T for long time.

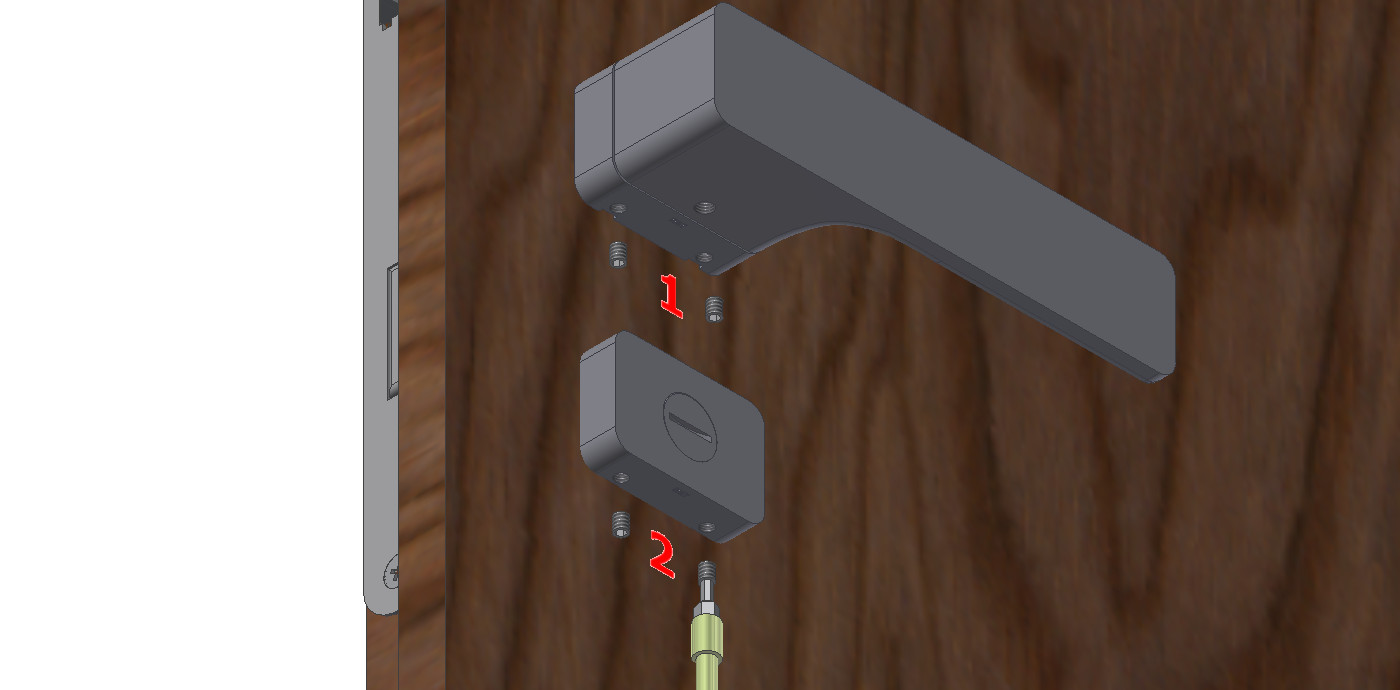

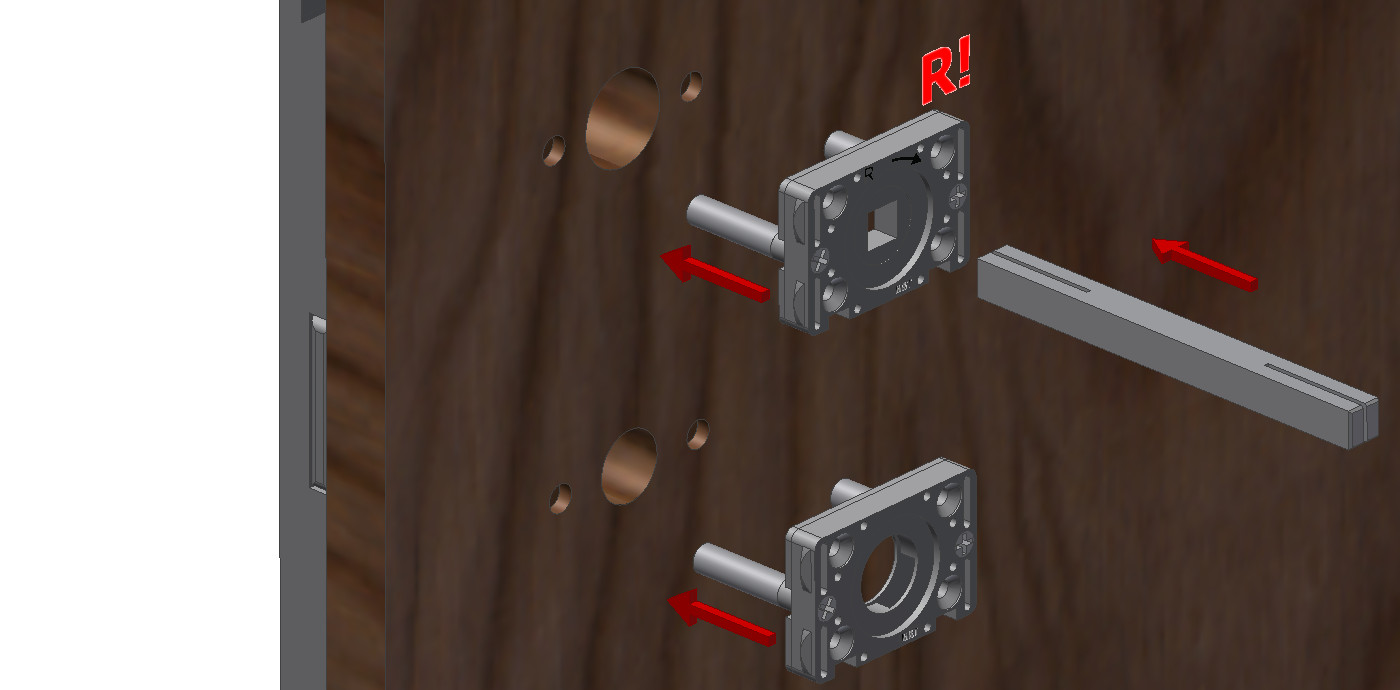

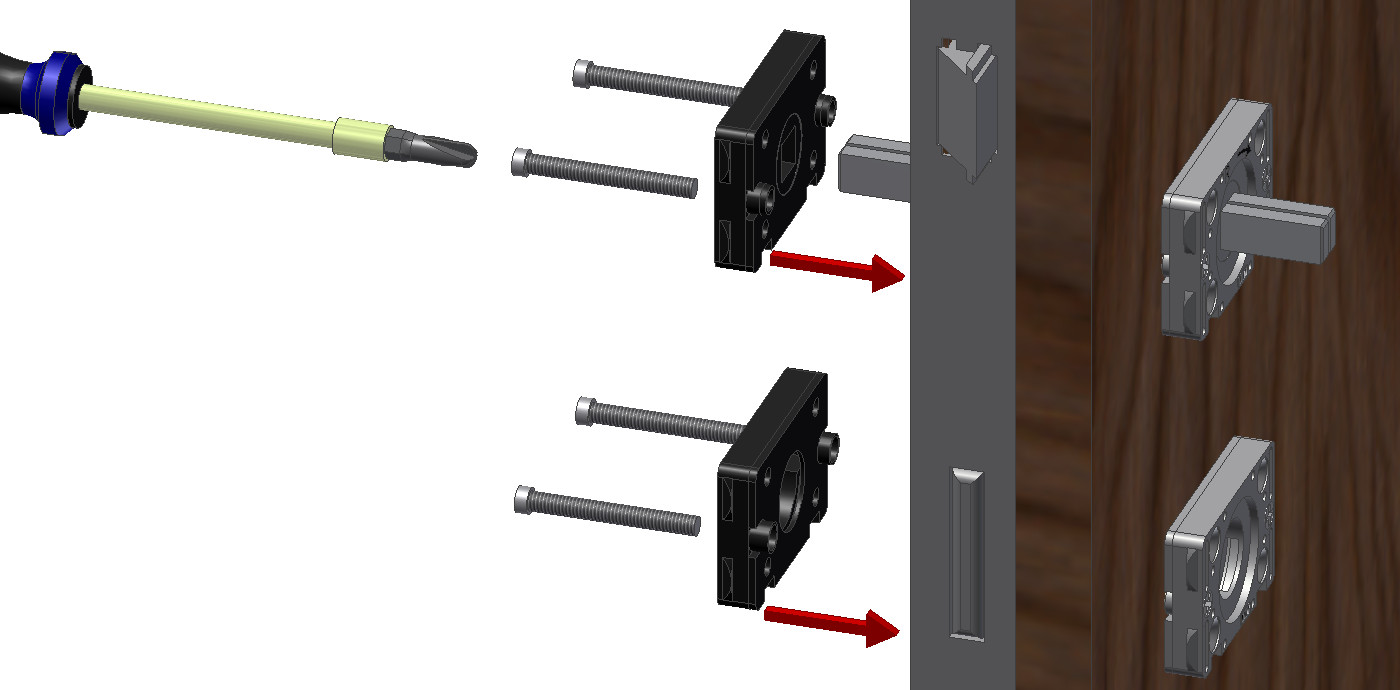

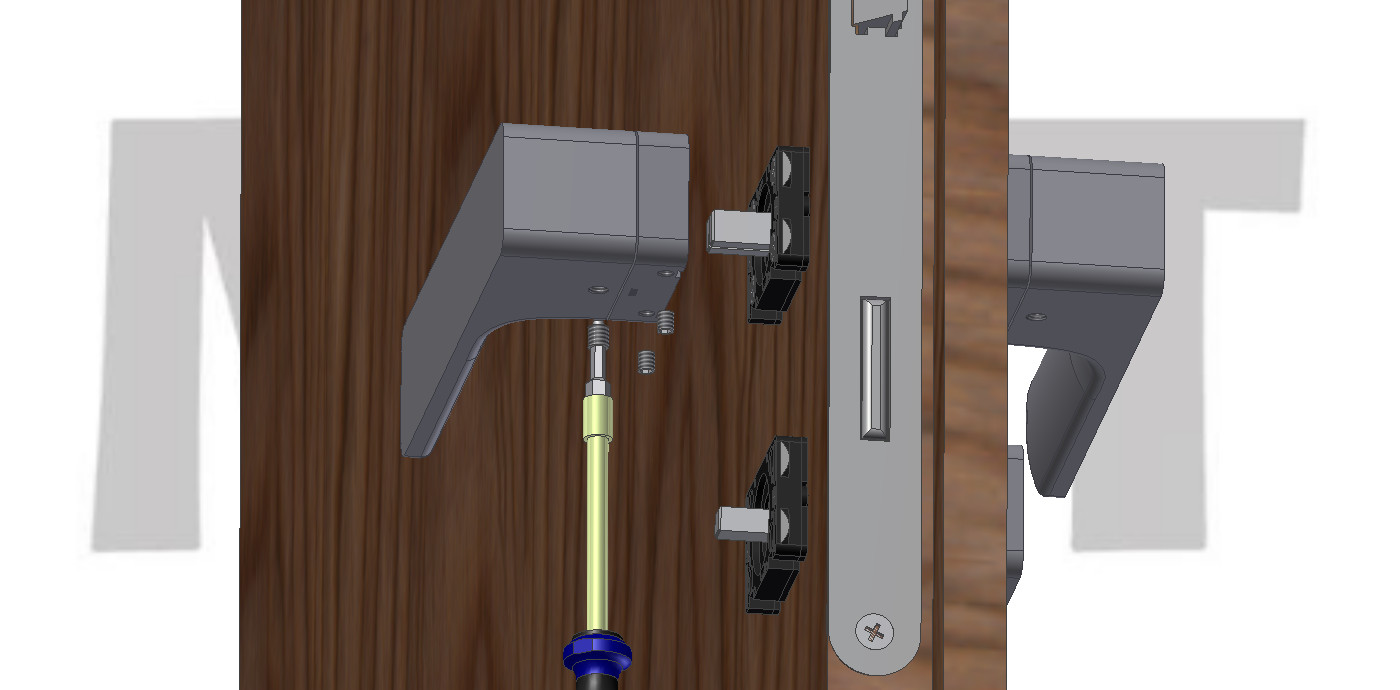

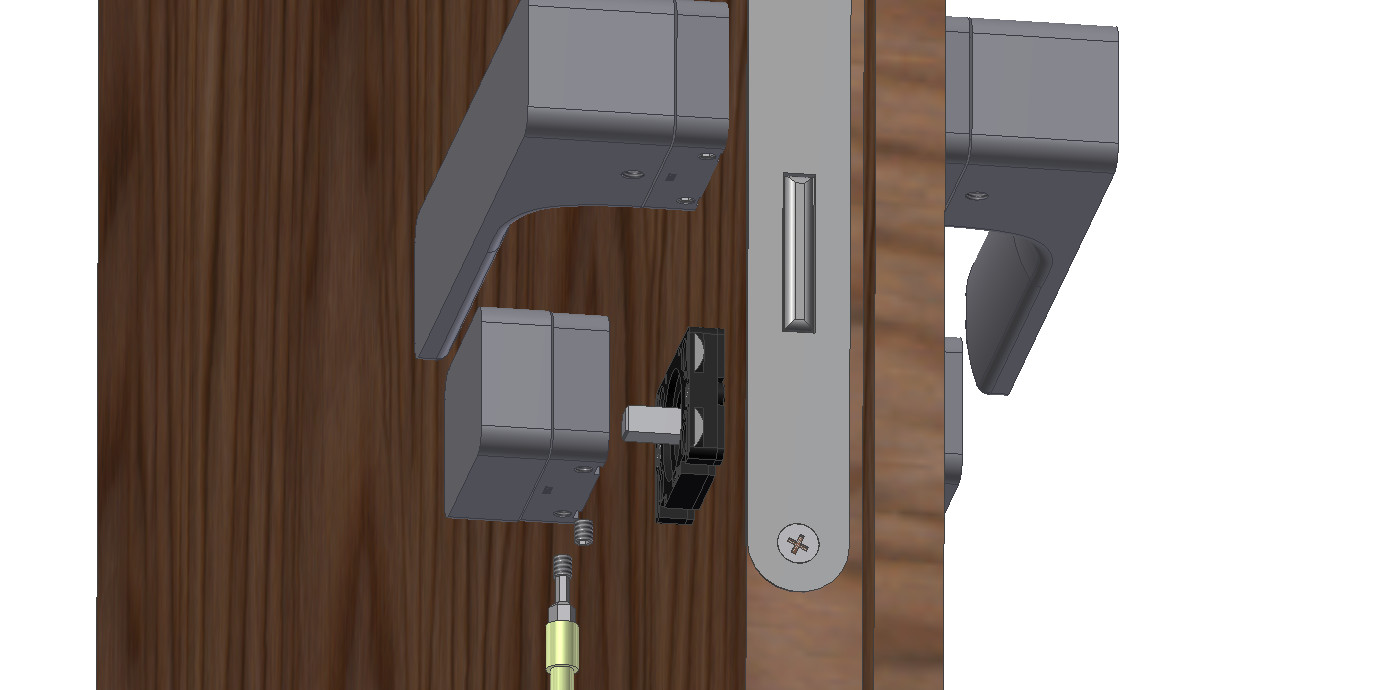

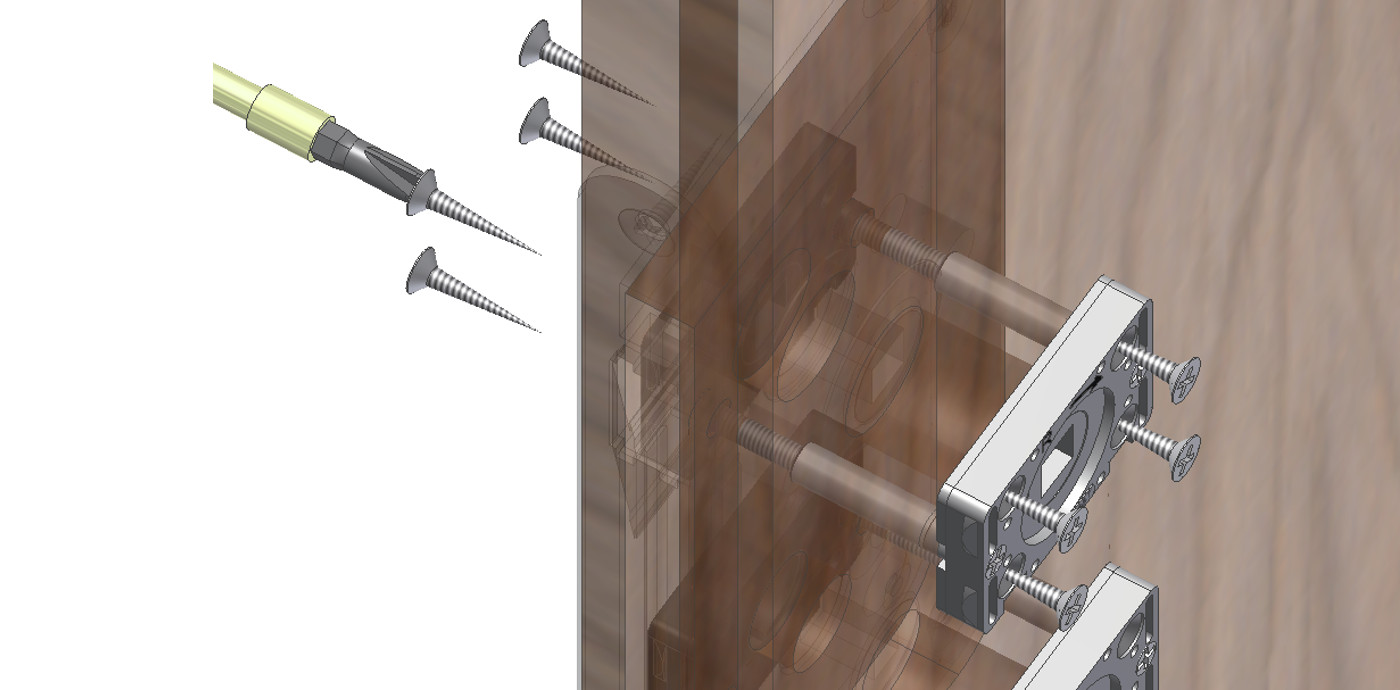

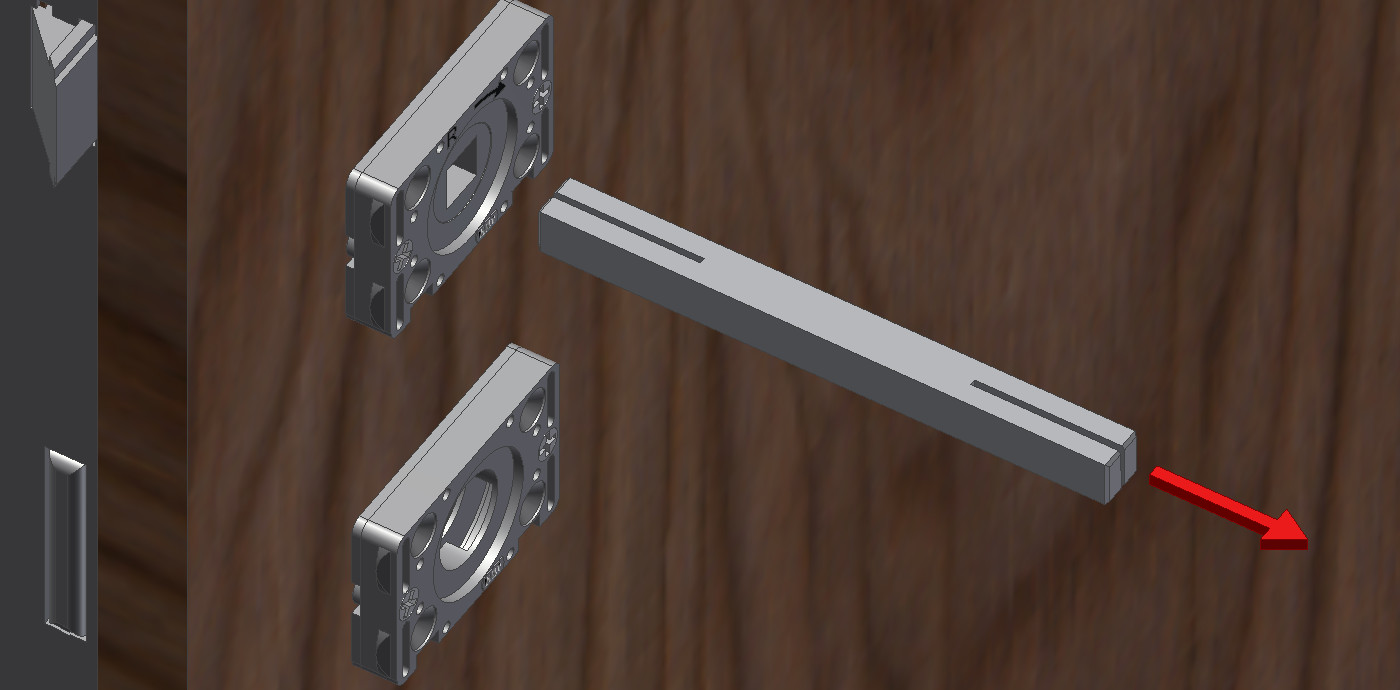

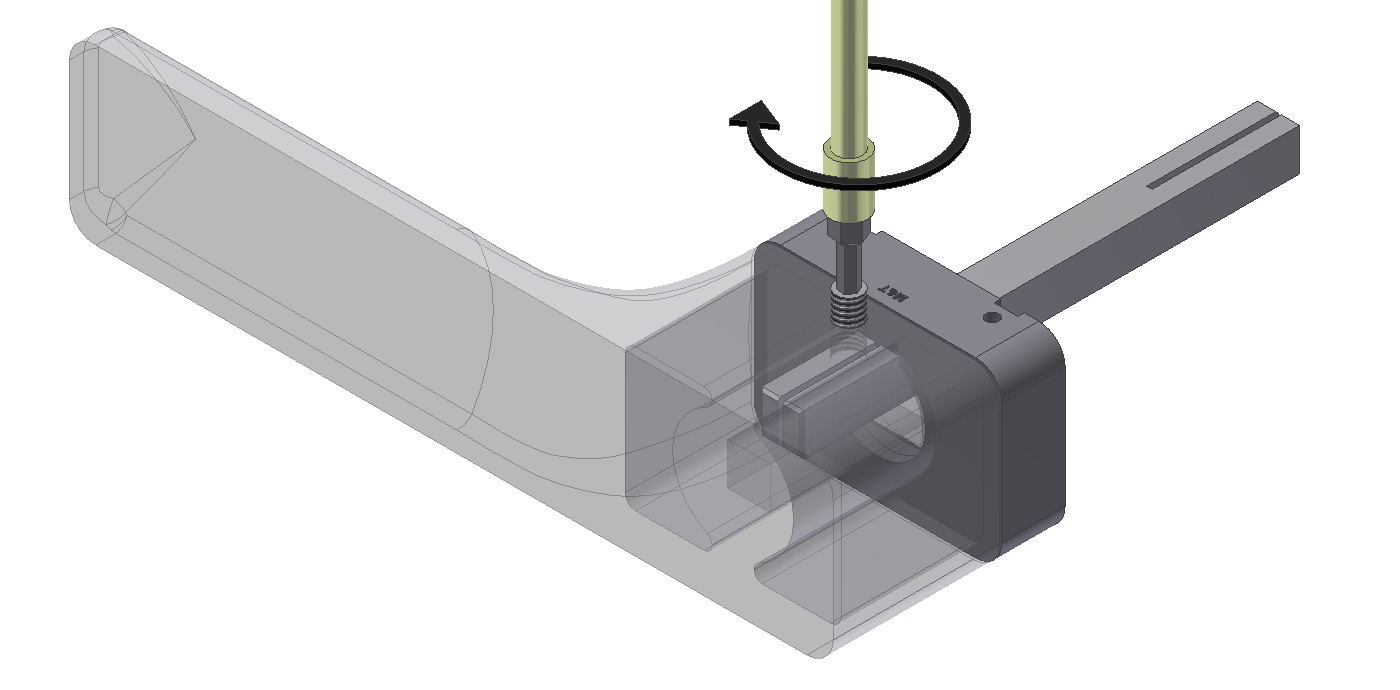

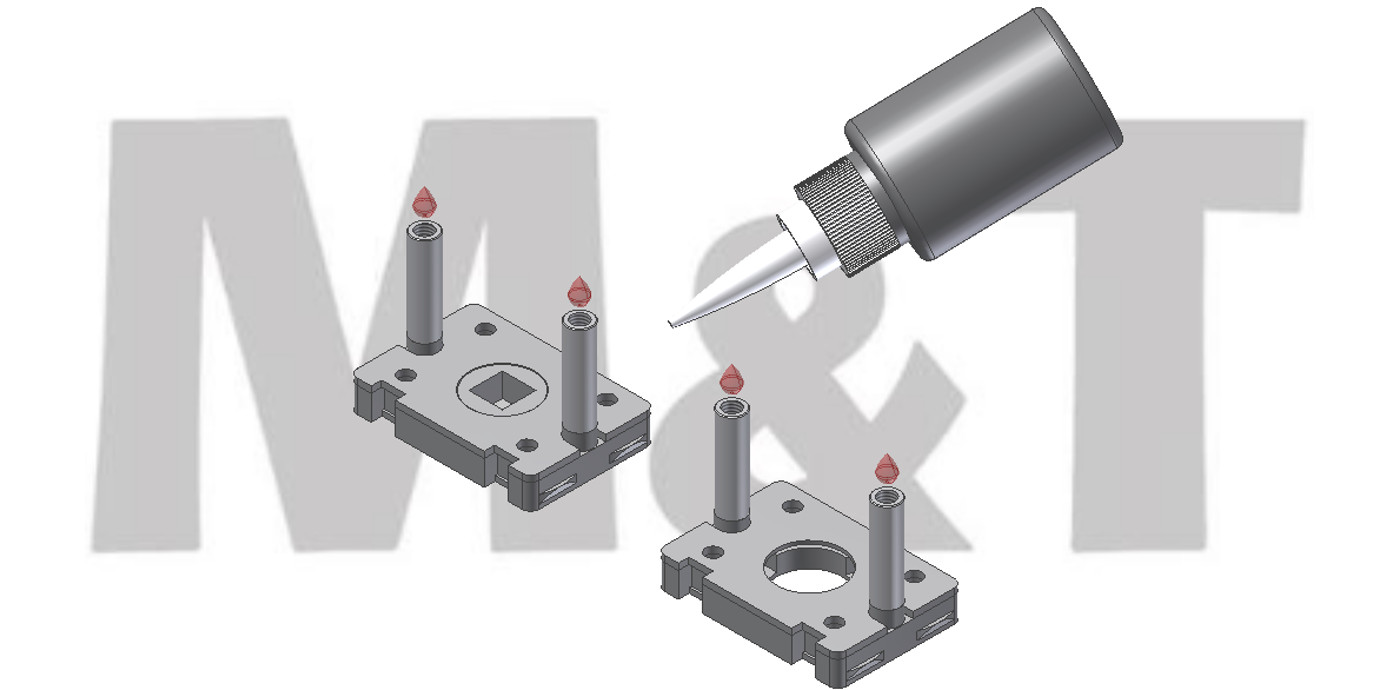

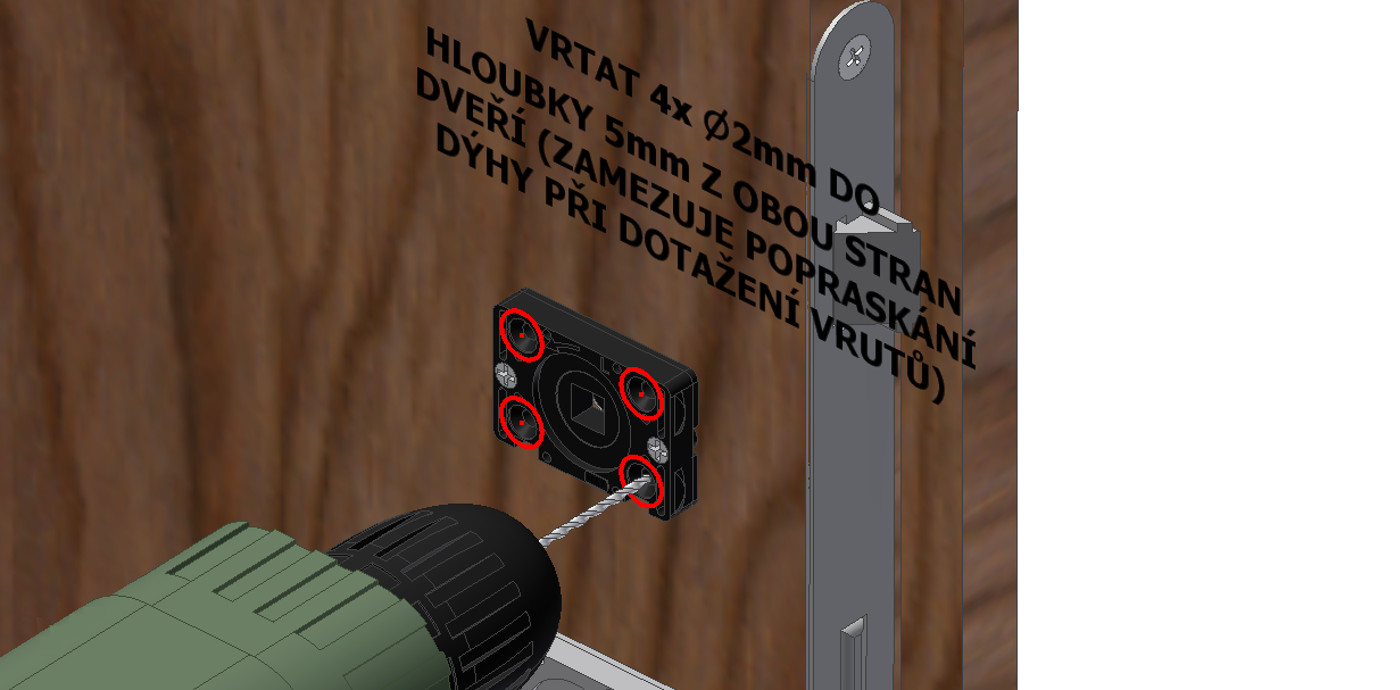

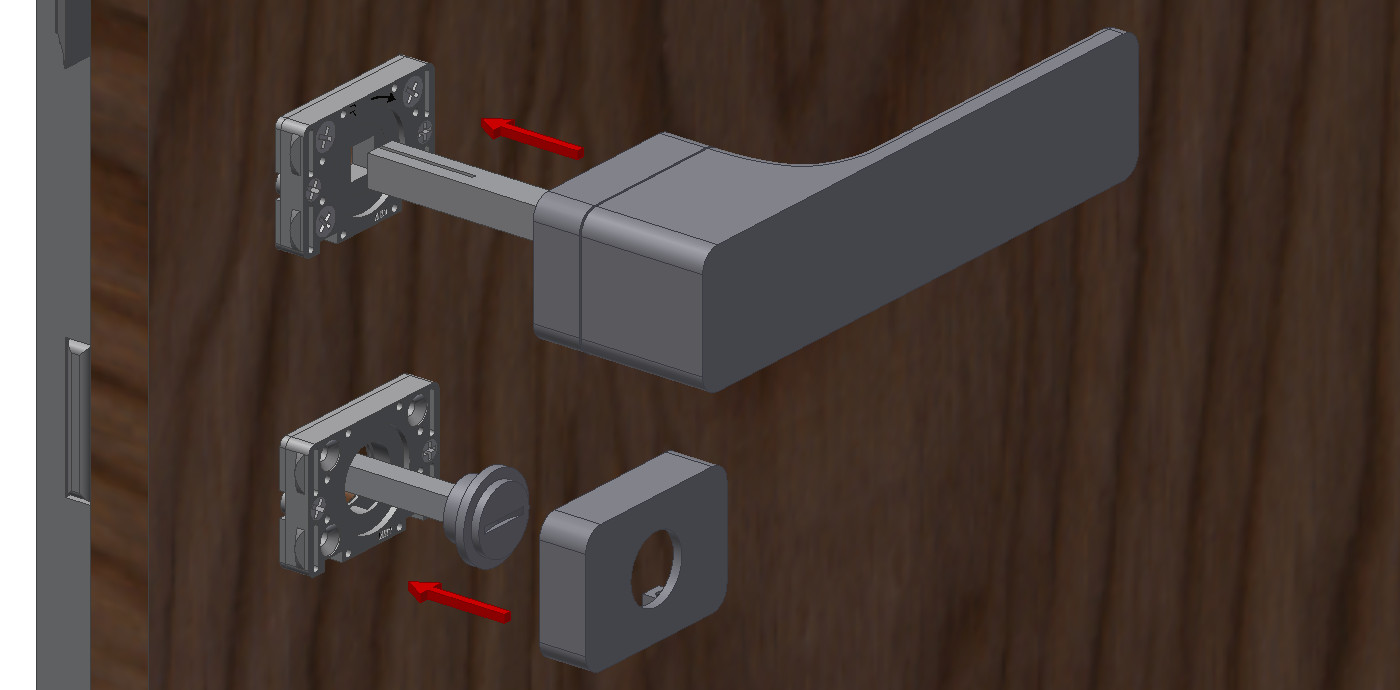

Assembly instructions of rosette fitting with bottom WC rosette.
There is a drawing of the drilling template I. generation. Now we use the drilling template II. generation that is absolutely universal and should not be missed by any assembly company selling products M&T.
