Door handle Minimal

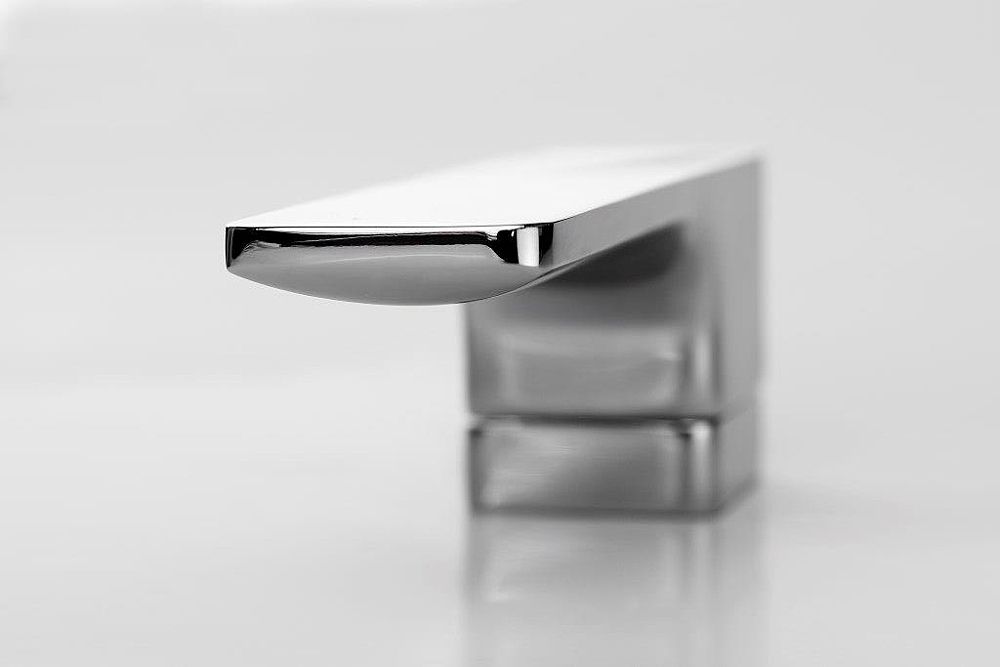

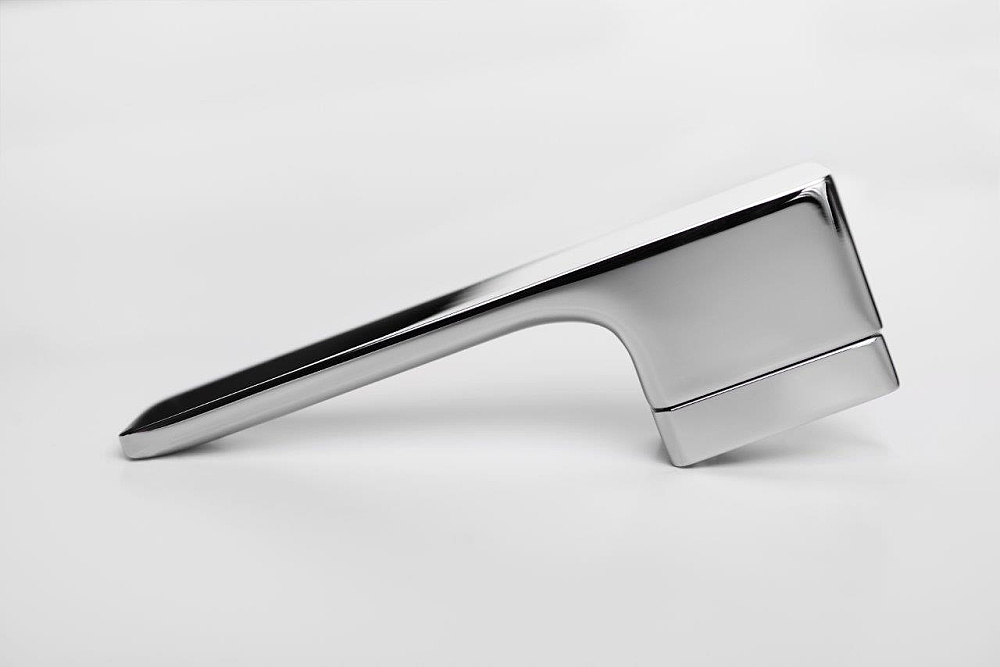

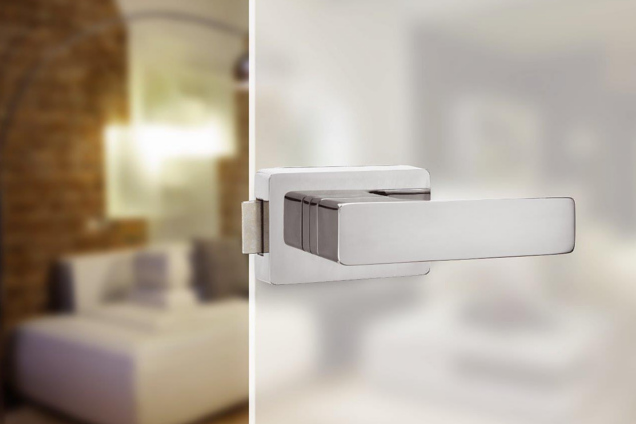

Door handle MINIMAL

TiN-K titanium black matt Filling metal gray pearl Design: Roman Ulich

The fitting Minimal is designed and constructed with an invisible flowing rosette, made of massive brass, with a choice of 17 colours & surfaces, with a wide range of complementary products at the same design and colours used for all types of doors and windows, guaranteed by 3-15 years depending on the type design, with a quality mechanics M 2011 used for the interior and exterior doors, with a wide range of inserted fillings made of metal, effect "glass", leather and wood.
News - natural brass with a lifetime guarantee.

Technical information

MATERIAL

The massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

Nickel matt, nickel matt - grinded, glossy chrome and titanium surfaces, brass natural

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, recommended tightening torque 3-4 Nm.

MECHANICS

M 2011 with the pressed spring system and with the screw-together cases system

DIMENSIONAL APPLICATIONS

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

mechanics 3 years
surfaces 3 years nickel and chrome, titanium 15 years, brass natural lifetime guarantee

APPLICATIONS

According to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

Design set without bottom lock rosettes. The bottom lock rosettes are to order extra

3D model for visualization

Door handle Minimal (DWG)
Door hand grip Minimal (DWG)

Rosette Minimal keyhole (DWG)
Rosette Minimal cylindrical (DWG)
Rosette Minimal WC IN (DWG)
Rosette Minimal WC EX (DWG)
Rosette Minimal WC IN 47×47 mm (DWG)
Rosette Minimal WC EX 47×47 mm (DWG)

Order numbers

MINIMAL	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D	TiN-M	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
MINIMAL	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Handle / handle	000009	000016	000023	055115	152531	055146	087567	176995	177053	000030	000054	177084	000047	177022	000061	177114	177145
Grip / handle L	000146	000153	000160	055139	152555	055160	087581	177015	177077	000177	000191	177107	000184	177046	000207	177138	177169
Grip / handle R	000078	000085	000092	055122	152548	055153	087574	177008	177060	000108	000122	177091	000115	177039	000139	177121	177152

BOTTOM ROSETTES	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-A titanium brass matt
BOTTOM ROSETTES	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Key hole rosettes	000467	000474	000481	055177	152593	055252	087680	000498	000511	000504	000528
Cylindrical rosettes 47×47 mm	000535	000542	000559	055191	148503	055276	087703	000566	000580	000573	000597
Key hole rosettes 47 × 47 mm	068429	068436	068443	068450	152654	069198	087710	068467	068481	068474	-
WC Maximal	000672	000689	000696	055221	152616	055306	-	000702	000726	000719	000733
WC Maximal double	022681	022698	022704	055245	152647	055320	-	022711	022735	022728	022742
WC Maximal on rosettes 47×47 mm	066753	066760	066777	066784	152678	068665	-	066791	066814	066807	-
WC Minimal	000603	000610	000627	055214	152609	055290	087734	000634	000658	000641	000665
WC Minimal double	022612	022629	022636	055238	152630	055313	087741	022643	022667	022650	022674
WC Minimal on rosettes 47×47 mm	066685	066692	066708	066715	152661	068658	087758	066722	066746	066739	-
Blind rosettes 47×47 mm	022421	022438	022445	055207	152623	055283	087727	022452	022476	022469	022483

ROSETTES 33×47 MM	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-A titanium brass matt
ROSETTES 33×47 MM	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Blind	022353	022360	022377	055184	055269	022384	022407	022391	022414

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2011

About the mechanics

Mechanics M 2011 - designed, manufactured and assembled at M&T - with its own patent with the system of pressed springs and active slip system preventing from bending and cracking the door in the lock area, with a minimal dimension of mechanics
