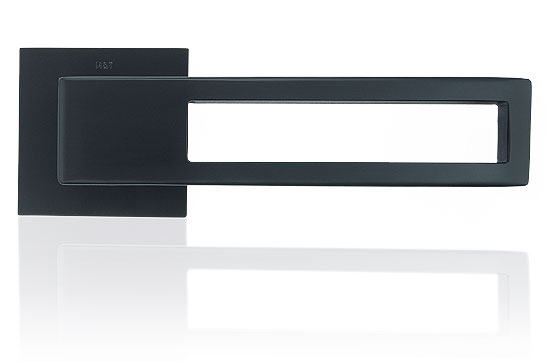

Door handle Entry, square rosette

Door handle ENTRY

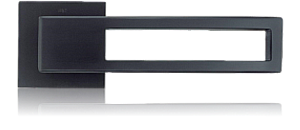

TiN-K titanium black matt Design: Roman Ulich

A massive brass handle with a choice of 7 colours & surfaces, with a guarantee of 3-15 years, depending on the design, with good mechanics M 2006, used for interior and exterior doors. News - natural brass with a lifetime guarantee.

MATERIAL

The massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

nickel matt, nickel matt - grinded, glossy chrome, titanium surfaces, brass natural

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, recommended tightening torque 3-4 Nm.

MECHANICS

M 2006 with the system of pressed springs and with the screw-together cases system

DIMENSIONAL APPLICATIONS

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

mechanics 3 years
surfaces 3 years nickel and chrome, titanium 15 years, brass natural lifetime guarantees

APPLICATIONS

according to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

Design set without bottom rosettes, the bottom rosettes are to order extra

Rozměry

Order numbers

ENTRY SQUARE ROSETTE 54×54 MM	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt
ENTRY SQUARE ROSETTE 54×54 MM	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Handle / handle	91405	78710	78741	053838	053869	78802	78833
Grip / handle L	91429	78734	78765	053852	053883	78826	78871
Grip / handle R	91412	78727	78758	053845	053876	78819	78857

BOTTOM SQUARE ROSETTES 54×54 MM	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt
BOTTOM SQUARE ROSETTES 54×54 MM	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Key hole rosettes	91559	79465	79502	054132	152715	054170	79526	79533	043099
Cylindrical rosettes	91566	79434	79441	054149	152722	054187	68414	79472	043105
Toilet / bathroom	91580	79557	79564	054163	152739	054200	79588	79595	043129
Blind	91573	83516	83523	054156	152746	054194	83547	83554	043112

Manufactory mechanics M 2006

About the mechanics

Mechanics M 2006 - designed, manufactured and assembled at M&T - with its own patented slip system of pressed spings and active slip system which prevents bending and cracking the door in lock area, simple and fast assembly.
