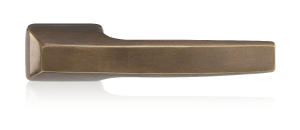

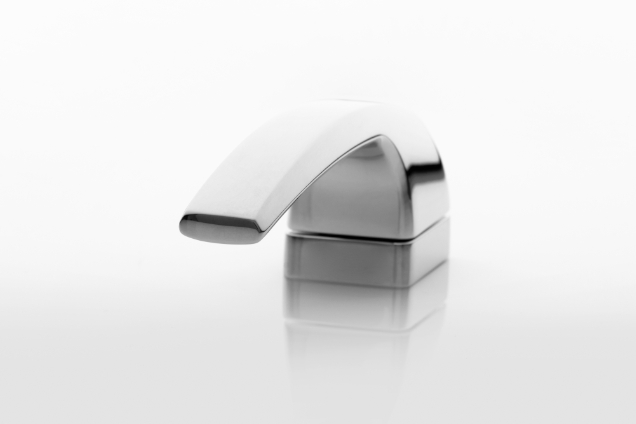

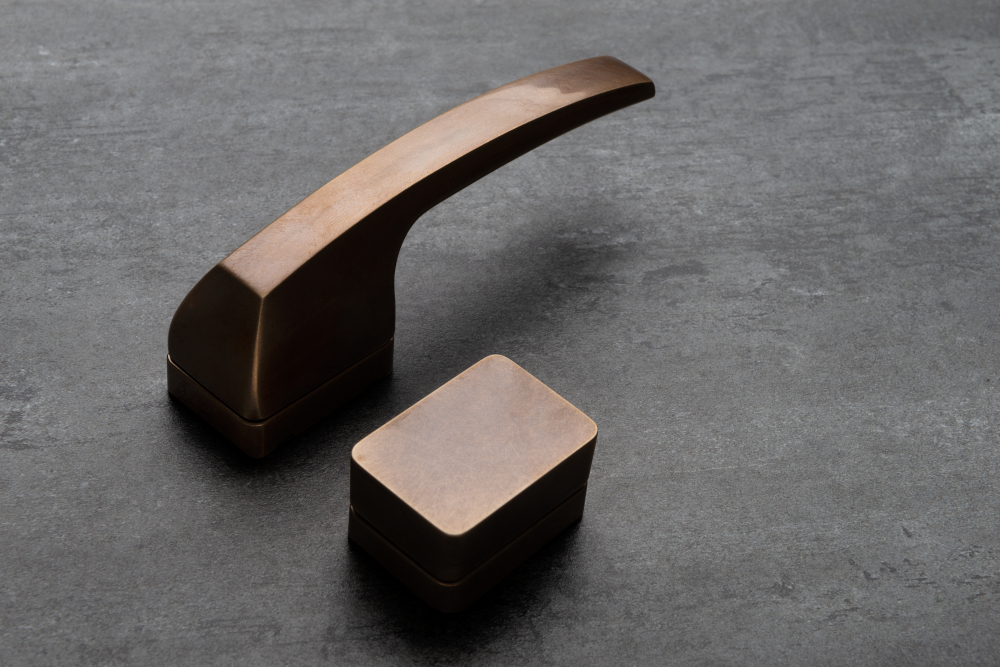

Door handle Autoklika | Catalogue M&T

Technical information

MATERIAL

Solid brass, brushed and polished

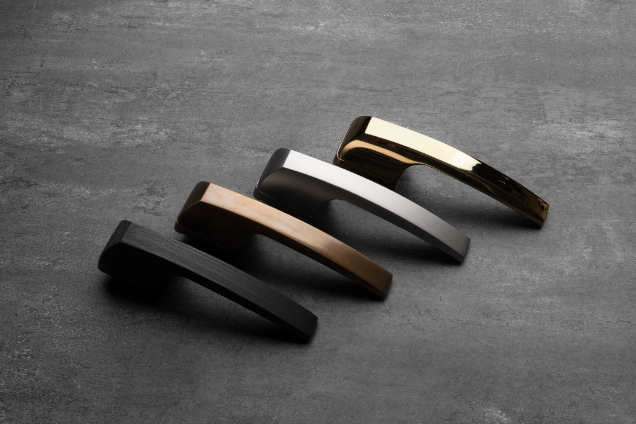

AVAILABLE SURFACES FINISHES

Nickel matt, nickel matt - brushed, bright chrome and titanium surfaces, natural brass, brass antique, brass polished, brass old wood, black chrome brushed

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.
The groove on the toilet EX is a technical groove to provide an emergency opening. The groove has no further justification and does not carry any additional information, e.g. about the position in relation to the open/closed function.

MECHANICS

M 2011 with the pressed spring system and with the screw-together cases system

DIMENSIONAL APPLICATIONS

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

mechanics 3 years
surfaces 3 years nickel and chrome, titanium 15 years, brass natural lifetime guarantee

APPLICATIONS

According to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

Design set without bottom lock rosettes. The bottom lock rosettes are to order extra

3D model for visualization

Door handle Autoklika (DWG)

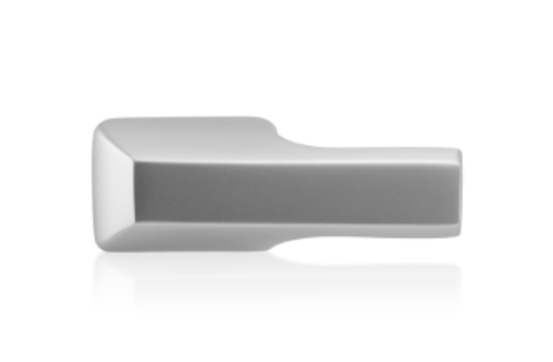

Door hand grip Autoklika (DWG)

Rosette Minimal keyhole (DWG)
Rosette Minimal cylindrical (DWG)

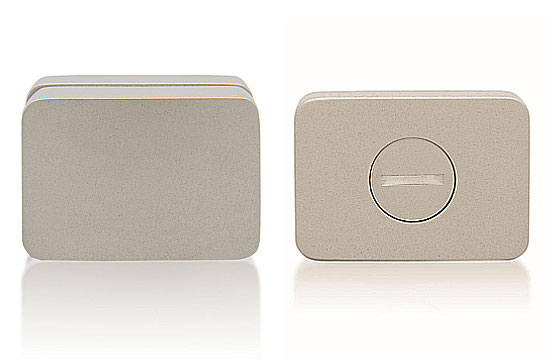

Rosette Minimal WC IN (DWG)
Rosette Minimal WC EX (DWG)
Rosette Minimal WC IN 47×47 mm (DWG)
Rosette Minimal WC EX 47×47 mm (DWG)

Požární odolnost

order numbers

AUTOKLIKA (CARHANDLE)	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded
AUTOKLIKA (CARHANDLE)	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	177299	177329	177350	177381	177411	177442	177473	177503	177534
Grip / handle R	177305	177336	177367	177398	177428	177459	177480	177510	177541
Grip / handle L	177312	177343	177374	177404	177435	177466	177497	177527	177558

AUTOKLIKA (CARHANDLE)	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
AUTOKLIKA (CARHANDLE)	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	177565	177596	177626	177657	177688	177718	177749	177770
Grip / handle R	177572	177602	177633	177664	177695	177725	177756	177787
Grip / handle L	177589	177619	177640	177671	177701	177732	177763	177794

BOTTOM ROSETTES	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded
BOTTOM ROSETTES	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	000467	000474	000481	055177	152593	055252	087680	187618	187717
Cylindrical rosettes 47×47 mm	000535	000542	000559	055191	148503	055276	087703	187625	187724
Key hole rosettes 47 × 47 mm	068429	068436	068443	068450	152654	069198	087710	187632	187731
WC Maximal	000672	000689	000696	055221	152616	055306	-	187649	-
WC Maximal double	022681	022698	022704	055245	152647	055320	-	187656	-
WC Maximal on rosettes 47×47 mm	066753	066760	066777	066784	152678	068665	-	187663	-
WC Minimal	000603	000610	000627	055214	152609	055290	087734	187670	187748
WC Minimal double	022612	022629	022636	055238	152630	055313	087741	187687	187755
WC Minimal on rosettes 47×47 mm	066685	066692	066708	066715	152661	068658	087758	187694	187762
Blind rosettes 47×47 mm	022421	022438	022445	055207	152623	055283	087727	187700	187779

BOTTOM ROSETTES	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
BOTTOM ROSETTES	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	000498	000511	187786	000504	187885	000528	186888	187984
Cylindrical rosettes 47×47 mm	000566	000580	187793	000573	187892	000597	186895	187991
Key hole rosettes 47 × 47 mm	068467	068481	187809	068474	187908	188080	186901	188004
WC Maximal	000702	000726	187816	000719	187915	000733	186918	188011
WC Maximal double	022711	022735	187823	022728	187922	022742	186925	188028
WC Maximal on rosettes 47×47 mm	066791	066814	187830	066807	187939	188097	186932	188035
WC Minimal	000634	000658	187847	000641	187946	000665	186949	188042
WC Minimal double	022643	022667	187854	022650	187953	022674	186956	188059
WC Minimal on rosettes 47×47 mm	066722	066746	187861	066739	187960	188103	186963	188066
Blind rosettes 47×47 mm	022452	022476	187878	022469	187977	022483	186970	188073

ROSETTES 33×47 MM	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded
ROSETTES 33×47 MM	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Blind	022353	022360	022377	060799	188110	060829	087697	188134	188141

ROSETTES 33×47 MM	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt	TiN-A titanium brass matt	K-industrial	Wh white matt
ROSETTES 33×47 MM	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Blind	022384	022407	188158	022391	188165	022414	186987	188172

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.
