Door handles of stainless steel, with a choice of 3 surfaces and colours, with a guarantee of 5-15 years depending on the design,
used for aluminium, steel, plastic and wooden doors and exterior gates.
New construction with the perfect mechanics
| Object | |||||||
|---|---|---|---|---|---|---|---|
| 3 | 6 | - | 0 | 0 | 3 | 1 | B |
| 3 | Category of using.. |
| High frequency of use by the public or others with little incentive for careful use and where there is a high probability of improper use, eg. the door for public office | |
| 6 | Service life.. |
| medium frequency of using: 100 000 cycles | |
| - | Door weight.. |
| (without classification) | |
| 0 | Fire resistance.. |
| (resistance is not required)
|
|
| 0 | Protection.. |
| normal using | |
| 3 | Corrosion resistance.. |
| high resistance | |
| 1 | Safety.. |
| slight burglary resistance | |
| B | Type of control.. |
| Type of control.. fitting with reversible spring |
| Project class 4 | |||||||
|---|---|---|---|---|---|---|---|
| 4 | 7 | - | D1 | 1 | 4 | 1 | B |
| 4 | Category of using.. |
| high frequency of using doors in the public, eg. football stadiums, barracks, public toilets, etc.
|
|
| 7 | Service life .. |
| high fequency of using: 200 000 cycles | |
| - | Door weight.. |
| (without classification) | |
| D1 | Fire resistance.. |
| for using in smoke control and fire-resistant doors with special requirements in the middle of the handle/knob, tested with 200,000 cycles on test doors. | |
| 1 | Protection.. |
| using in situations requiring protection | |
| 4 | Corrosion resistance.. |
| very high resistance | |
| 1 | Safety.. |
| slight burglary resistance | |
| B | Type of control.. |
| Type of control.. fitting with reversible spring |

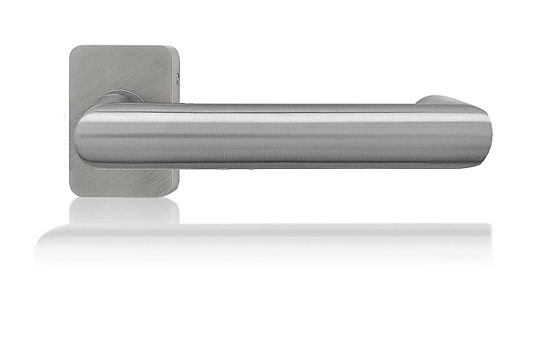

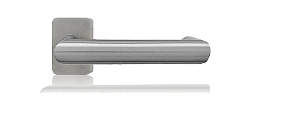

 | HANNA |  Object stainnless steel NRz |  Object titanium black TiN-K |  Object K-industrial |  Project class 4 stainless steel NRz |  Project class 4 titanium black TiN-K |
|---|---|---|---|---|---|---|
| EAN | EAN | EAN | EAN | EAN | ||
| Handle / handle | 046861 | 102048 | 144307 | 102079 | 102109 | |
| Grip / handle L | 046885 | 102062 | 144321 | 102093 | 102123 | |
| Grip / handle R | 046878 | 102055 | 144314 | 102086 | 102116 |
 | ROSETTES 33×49 MM |  NRz stainless steel |  TiN-K titanium black |  K-industrial |
|---|---|---|---|---|
| EAN | EAN | EAN | ||
| Cylindrical rosettes | 024098 | 024111 | 034059 | |
| Cylindrical rosettes with cover | 030952 | 030969 | 034066 | |
| Blind | 024104 | 024128 | 034073 |
For the grip/handle combination, we supply a fixed - non-rotating Entero handle as standard.
We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.
We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.
You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.
Mechanics M 2013 – designed, manufactured and assembled at M&T. With its own patent with system of pressed springs, a nut of stainless steel, a pair of riveting nuts with M4 screws and four self tapping screws with a dril for maximum fixation.
Suitability of individual designs - the shapes of handles for a specific order must be verified by the manufacturer of the doors according the Dornmas dimension of the selected lock. For a lock with the Dornmas dimension of 40 mm and more can be used all of the M&T handles for aluminum and steel doors.
