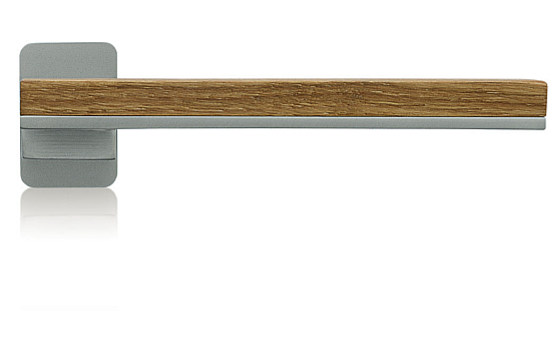

Handle Mimolimit for aluminium and steel doors

Handle surfaces
7 surfaces

SNi - grinded

Ms-L

TiN-C

TiN-K

TiN-B

more about the surface

New construction with the perfect mechanics

Technical informations

Specifications
Dimensions

MATERIAL

Massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

Nickel matt, nickel matt - grinded, glossy chrome, titanium surfaces, brass natural

MOUNTING

Using up to 12 self-tapping screws or a combination of screws with a rivet nut. Another fixation of handles and rosettes using set screws M6 and M4.

MECHANICS

M 2013 with the pressed springs system

DIMENSIONAL APPLICATION

Standard for door thickness 38-45 mm, possibility for door thickness 38-126 mm

ACCESSORIES

The package includes:
- spindle
- set screws
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

Mechanics 3 years.
Surfaces 3 years for nickel and chrome, titanium 15 years, brass natural life time guarantee

APPLICATIONS

According the type of the surface, for interior and exterior doors, for door weight up to 60 kg.

SET

The set is without lower rosettes. The bottom rosettes and the wooden are to order extra.

Dimension

Ceny

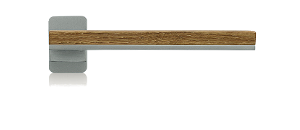

MIMOLIMIT	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt
MIMOLIMIT	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Handle / handle	65031	65062	060614	060645	055399	65093	84339
Grip / handle L	65055	65086	060638	060669	055412	65116	84353
Grip / handle R	65048	65079	060621	060652	055405	65109	84346

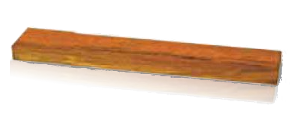

WOODEN PARTS FOR MIMOLIMIT	Teak	Elm	Nut	Oak	Bleached oak	Alu compact
WOODEN PARTS FOR MIMOLIMIT	EAN	EAN	EAN	EAN	EAN	EAN
Plate	83844	83868	83851	83882	83875	83899

ROSETTES 33×47 MM	SNi nickel matt	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-K brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-B titanium brown matt	TiN-A titanium brass matt	K-industrial
ROSETTES 33×47 MM	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Cylindrical rosettes	001952	001969	001976	060775	082708	082692	087390	088021	001983	002676	002669	002683	137941
Cylindrical rosettes with cover	030884	030891	030907	060782	-	-	060812	-	030914	030938	030921	030945	-
Blind	022353	022360	022377	060799	-	-	060829	-	022384	022407	022391	022414	-

For the handle/knob combination, we supply the Minimal fixed - non-rotating handle as standard. On request, the Entero handle is fixed - non-rotating. An Entero swivel handle with handle function can be supplied.

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufacture mechanics M 2013

More about the mechanics

Mechanics M 2013 – designed, manufactured and assembled at M&T. With its own patent with system of pressed springs, a nut of stainless steel, a pair of riveting nuts with M4 screws and four self tapping screws with a dril for maximum fixation.

Suitability of individual designs - the shapes of handles for a specific order must be verified by the manufacturer of the doors according the Dornmas dimension of the selected lock. For a lock with the Dornmas dimension of 40 mm and more can be used all of the M&T handles for aluminum and steel doors.
