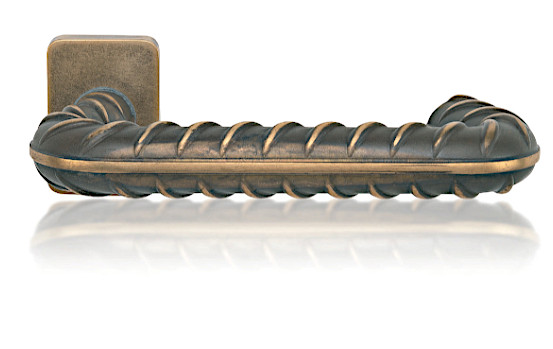

Handle Rocksor U for aluminium and steel doors

HANDLES SURFACES
6 surfaces

Ms-K

Ms-A

Ms-L

TiN-C

TiN-K

K-industrial

more about the surface

New construction with the perfect mechanics

Technical informations

Specification
Dimensions

MATERIAL

Massive brass

AVAILABLE SURFACE FINISHES

Brass natur, brass antique, brass polished, titanium chrome matt, titanium black matt, black matt structured

MOUNTING

Using up to 12 self-tapping screws or a combination of screws with a rivet nut. Another fixation of handles and rosettes using set screws M6 and M4.

MECHANICS

M 2013 with the pressed springs system

DIMENSIONAL APPLICATION

Standard for door thickness 38-45 mm, possibility for door thickness 38-126 mm

ACCESSORIES

The package includes:
- spindle
- set screws
- glue gel
- fasteners
- assembly instructions
- warranty card

WARANTY

Mechanics 3 years.
Surface black matt structured 5 years, titanium 15 years, life-time guarantee for brass products.

APPLICATIONS

According the type of the surface, for interior and exterior doors, for door weight up to 60 kg.

SET

The set is without bottom rosettes, they are to order extra.

Dimensions

Order numbers

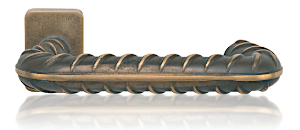

HANDLE ROCKSOR U FOR ALUMINIUM PROFILES	Ms-K brass natural	Ms-A brass antique	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	K-industrial
HANDLE ROCKSOR U FOR ALUMINIUM PROFILES	EAN	EAN	EAN	EAN	EAN	EAN
Handle / handle	082319	082159	087451	094893	094930	137958
Grip / handle L	082326	082166	087468	094909	094947	137965
Grip / handle R	082333	082173	087475	094916	094954	137972

Protipožární provedení (kovové podrozety + nerezové spojovací prvky, čtyřhran) ... příplatek 380,- Kč ... EAN 082289

ROSETTES 33×47 MM	Ms-K brass natural	Ms-A brass antique	Ms-L brass polished	Cr-K chrome black brushed 3D	TiN-C titanium chrome matt	TiN-K titanium black matt	K-industrial
ROSETTES 33×47 MM	EAN	EAN	EAN	EAN	EAN	EAN	EAN
Cylindrical rosettes	082708	082692	087390	088021	001983	002676	137941

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufacture mechanics M 2013

More about the mechanics

Mechanics M 2013 – designed, manufactured and assembled at M&T. With its own patent with system of pressed springs, a nut of stainless steel, a pair of riveting nuts with M4 screws and four self tapping screws with a dril for maximum fixation.

Suitability of individual designs - the shapes of handles for a specific order must be verified by the manufacturer of the doors according the Dornmas dimension of the selected lock. For a lock with the Dornmas dimension of 40 mm and more can be used all of the M&T handles for aluminum and steel doors.
