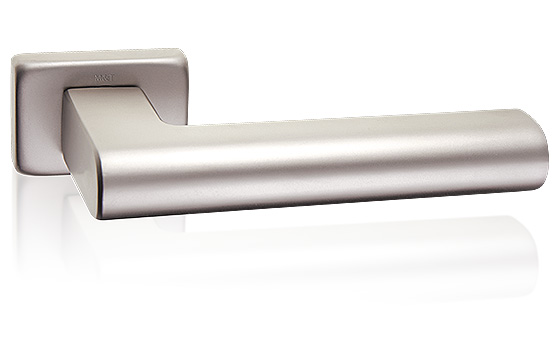

Door handle Mini-C, square rosette

Door handle MINI-C

SNi nickel matt Design: Roman Ulich

The fitting is designed with the MINI rosette, made of massive brass, with a choice of 8 colours & surfaces, with a wide range of complementary products in the same design and colours, with a guarantee of 3-15 years, depending on the design, with good mechanics M 2011 used for interior and exterior doors.

MATERIAL

The massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

nickel matt, glossy chrome and black matt titanium, brass natural

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.

MECHANICS

M 2011 with the system of pressed spings and with the screw-together cases system

DIMENSIONAL APPLICATIONS

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

mechanics 3 years
surfaces 3 years nickel and chrome, titanium 15 years, brass natural lifetime guarantee

APPLICATIONS

according to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

design set without bottom rosettes, the bottom rosettes are to order extra

Order numbers

MINI-C	SNi nickel matt	Cr glossy chrome	Ms brass natural	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded	TiN-K titanium black matt	TiN-A titanium brass matt
MINI-C	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Handle / handle	86395	86449	054736	054774	203394	203431	203479	86494	251623
Handle / handle on rosettes 47×47 mm	86401	86456	054743	054781	203400	203448	203486	86500	251630
Grip / handle R on rosettes 47×47 mm	86425	86470	054767	054804	203417	203455	203493	86524	251647
Grip / handle L on rosettes 47×47 mm	86418	86463	054750	054798	203424	203462	203509	86517	251654

ROSETTES MINI	SNi nickel matt	Cr glossy chrome	Ms brass natural	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded	TiN-K titanium black matt	TiN-S titanum bronze matt
ROSETTES MINI	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	86845	86869	054972	055009	203882	203912	203943	86883	261141
Toilet / bathroom	86852	86876	054996	055023	203899	203929	203950	86890	261158
Blind	021936	021943	054989	055016	203905	203936	203967	021950	261165

	ROSETTES MINI	TiN-A titanium brass matt
	ROSETTES MINI	pair EAN
	Key hole rosettes	251661
	Toilet / bathroom	251678
	Blind	251685

ROSETTES SQUARE 47×47 MM	SNi nickel matt	Cr glossy chrome	Ms brass natural	Ms-L brass polished	Cr-K chrome black brushed 3D	Ms-D brass old wood	TiN-M titanium cooper grinded	TiN-K titanium black matt	TiN-S titanum bronze matt
ROSETTES SQUARE 47×47 MM	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	86906	86937	055030	055078	203974	204018	204056	86968	261172
Cylindrical rosettes	86913	86944	055047	055085	203981	204025	204063	86975	261189
Toilet / bathroom	021967	021974	055061	055108	203998	204032	204070	021981	261196
Blind	86920	86951	055054	055092	204001	204049	204087	86982	261202

	ROSETTES SQUARE 47×47 MM	TiN-A titanium brass matt
	ROSETTES SQUARE 47×47 MM	pair EAN
	Key hole rosettes	251692
	Cylindrical rosettes	251708
	Toilet / bathroom	251715
	Blind	251722

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2011

About the mechanics

Mechanics M 2011 - designed, manufactured and assembled at M&T - with its own patented system of pressed springs and active slip system which prevents bending and cracking the door in lock area, with a minimal mechanics.

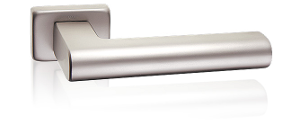

Door handle MINI-C
