Door handle Mini-S, square rosette

Door handle MINI-S

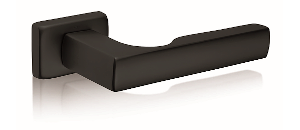

TiN-K titanium black matt Design: Roman Ulich

The fitting is designed with the MINI rosette, made of massive brass, with a choice of 5 colours & surfaces, with a wide range of complementary products in the same design and colours, with a guarantee of 3-15 years, depending on the design, with good mechanics M 2011 used for interior and exterior doors.

MATERIAL

The massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

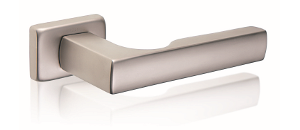

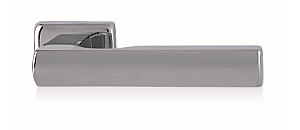

nickel matt, glossy chrome and black matt titanium, brass natural

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, recommended tightening torque 3-4 Nm.

MECHANICS

M 2011 with the system of pressed springs and with the screw-together cases system

DIMENSIONAL APPLICATIONS

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

mechanics 3 years
surfaces 3 years nickel and chrome, titanium 15 years, brass natural lifetime guarantee

APPLICATIONS

according to the type of surface for the interior and exterior doors, for door weight up to 60 kg

SET

design set without bottom rosettes, the bottom rosettes are to order extra

Order numbers

MINI-S	SNi nickel matt	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-K titanium black matt
MINI-S	EAN	EAN	EAN	EAN	EAN
Handle / handle	86548	86593	054811	054859	86647
Handle / handle on rosettes 47×47 mm	86555	86609	054828	054866	86654
Grip / handle L on rosettes 47×47 mm	86562	86616	054835	054873	86661
Grip / handle R on rosettes 47×47 mm	86579	86623	054842	054880	86678

ROSETTES MINI	SNi nickel matt	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-K titanium black matt
ROSETTES MINI	EAN	EAN	EAN	EAN	EAN
Key hole rosettes	86845	86869	054972	055009	86883
Toilet / bathroom	86852	86876	054996	055023	86890
Blind	021936	021943	054989	055016	021950

ROSETTES SQUARE 47×47 MM	SNi nickel matt	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-K titanium black matt
ROSETTES SQUARE 47×47 MM	EAN	EAN	EAN	EAN	EAN
Key hole rosettes	86906	86937	055030	055078	86968
Cylindrical rosettes	86913	86944	055047	055085	86975
Toilet / bathroom	021967	021974	055061	055108	021981
Blind	86920	86951	055054	055092	86982

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2011

About the mechanics

Mechanics M 2011 - designed, manufactured and assembled at M&T - with its own patented system of pressed springs and active slip system which prevents bending and cracking the door in lock area, with a minimal mechanics.

Door handle MINI-S

Handle
surfaces
5 surfaces
