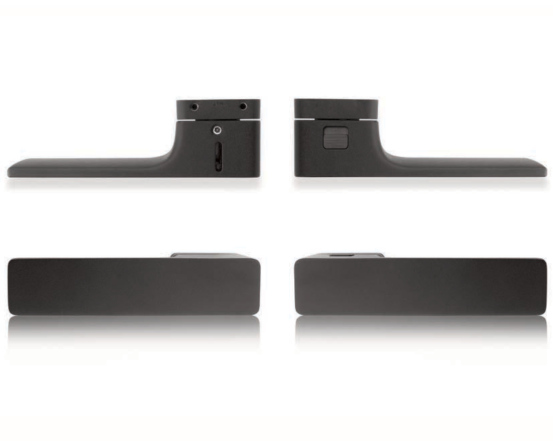

Door handle MINIMAL WC integrated
Minimal WC integrated door handle .. in an impressive whole, a comfortable locking system and a hidden emergency opening system are integrated in a watchmaker's style
with a comfortable locking system and a concealed emergency opening mechanism. The handle is designed
and constructed with an invisible flush rosette, with the option of a replaceable control/locking segment,
made of solid brass, with a choice of 16 finishes & colors, with a 3-15 year warranty depending on the type of design,
with high-quality M 2011 mechanics, for use on interior and exterior doors.
Design: Roman Ulich
Handle
surfaces
16 surfaces
Technical information
MATERIAL
- The massive brass, grinded and polished
AVAILABLE SURFACE FINISHES
- Nickel matt, nickel matt - grinded, glossy chrome and titanium surfaces, brass natural
MOUNTING
- Drilling with profi template M&T, screwing through with screw-together cases system, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.
MECHANICS
- M 2011 with the pressed spring system and with the screw-together cases system
DIMENSIONAL APPLICATIONS
- Standard for door thickness 38,5-44 mm, mounting options for door thickness from 38 to 89 mm, precise mounting material in 5 mm increments
ACCESSORIES
- The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card
WARRANTY
- Lifetime free service for mechanics
- Surfaces: 3 years for nickel and chrome, 5 years for black chrome, 15 years for titanium, natural brass, polished brass, and antique brass with a lifetime warranty.
APPLICATIONS
- According to the type of surface for the interior and exterior doors, for door weight up to 60 kg
SET
- design set without bottom rosettes, bottom rosettes must be ordered separately, set includes precise mounting hardware in 5 mm increments according to door thickness
3D model for visualization
Door handle Minimal WC integrated IN (DWG)Door handle Minimal WC integrated EX (DWG)
Order numbers

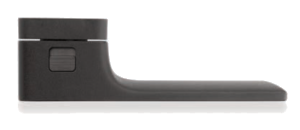

 | MINIMAL WC INTERATED |  SNi nickel matt |  SNi nickel matt brushed |  Cr glossy chrome |  Ms-A brass antique |  Ms-L brass polished |  Cr-K chrome black brushed 3D |  Ms-D brass old wood |  TiN-M titanium cooper grinded |  TiN-C titanium chrome matt |
|---|---|---|---|---|---|---|---|---|---|---|
| pair EAN | pair EAN | pair EAN | pair EAN | pair EAN | pair EAN | pair EAN | pair EAN | pair EAN | ||
| Handle / handle R WC integrated | 242010 | 242034 | 242058 | 242072 | 242096 | 242119 | 242133 | 242157 | 242171 | |
| Handle / handle L WC integrated | 242027 | 242041 | 242065 | 242089 | 242102 | 242126 | 242140 | 242164 | 242188 |
| MINIMAL WC INTERATED |  TiN-K titanium black matt |  TiN-G titanium graphite matt |  TiN-B titanium brown matt |  TiN-S titanum bronze matt |  TiN-A titanium brass matt |  K-industrial |  Wh white matt |
|---|---|---|---|---|---|---|---|---|
| pair EAN | pair EAN | pair EAN | pair EAN | pair EAN | pair EAN | pair EAN | ||
| Handle / handle R WC integrated | 242195 | 242218 | 242232 | 242256 | 242270 | 242294 | 242317 | |
| Handle / handle L WC integrated | 242201 | 242225 | 242249 | 242263 | 242287 | 242300 | 242324 |
Uváděné ceny - doporučené konečné ceny v € bez DPH.
SPARE PARTS
We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.
EXTENDED WARRANTY
We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.
REPEATED PRODUCTION
You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
SUSTAINABILITY
we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.
Manufactory mechanics M 2011
About the mechanics
Mechanics M 2011 - designed, manufactured and assembled at M&T - with its own patent with the system of pressed springs and active slip system preventing from bending and cracking the door in the lock area, with a minimal dimension of mechanics
