MOUNTING DOOR HANDLE MINIMAL WC integrated

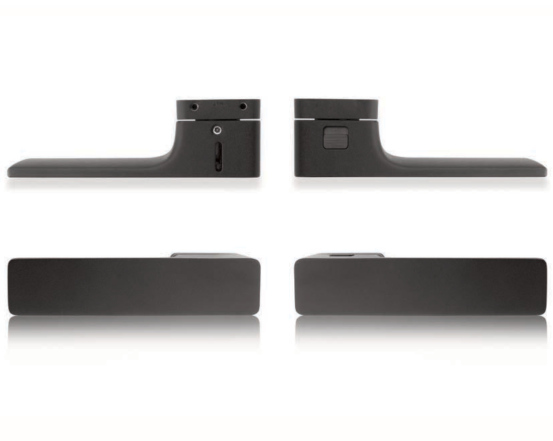

Door handle Minimal WC integrated

Product dimensions

Rozměry výrobků

close

Preparation for doors

Holes for mounting rosette fittings
Otvory pro montáž rozetového kování bez spodních rozet

File available for download in PDF format

close

Assembly animation

close

Using the PROFI template M&T

close

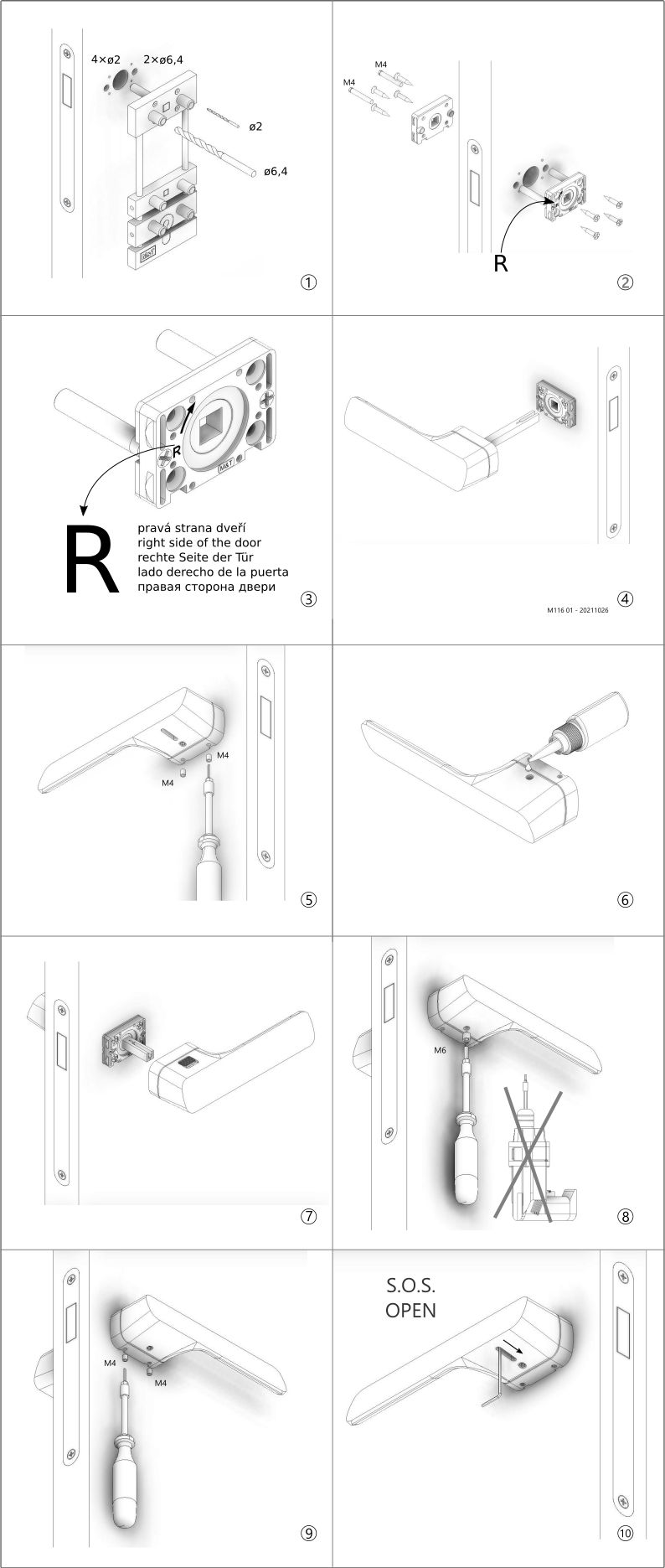

Mounting instructions

Professional installation using the PROFI drilling template is essential. The drilling template allows you to drill precise holes in the door, where the casings (rollers) of both halves of the hardware are firmly fixed through the lock, preventing the handles from loosening and wobbling later on.

Do not underestimate this recommendation and only install M&T fittings using the M&T PROFI drilling template. You will then be satisfied with your M&T fittings for a long time.

Montážní návod

Download in PDF format
