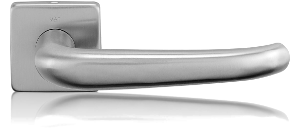

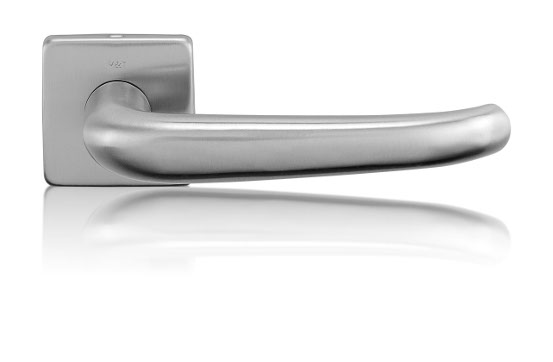

Stainless steel door handle Cesan, square rosette

Handle surfaces
3 surfaces

NRz

TiN-K

K-industrial

more about the surface

zoom

Material with a long service life

Technical informations

MATERIAL

The stainless steel

AVAILABLE SURFACE FINISHES

The stainless steel - grinded, titanium black matt, black matt structured

MOUNTING

Drilling with profi template M&T, screwing through with screw-together cases system, tightening torque 0.7-1 Nm depending on the door design according to the door manufacturer's recommendations, 5-6 Nm maximum tightening of the locking worm into the steel square.

MECHANICS

M 2004 with the reversible spring system and with the screw-together cases system

DIMENSIONAL APPLICATIONS

Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm

ACCESSORIES

The package includes:
- spindle
- set screw
- glue gel
- fasteners
- assembly instructions
- warranty card

WARRANTY

mechanics 3 years
surfaces 5 years for stainless steel, black matt structured 5 years, titanium 15 years

APPLICATIONS

For the interior and exterior doors, for door weight up to 60 kg (design Economy and Object), for door weight up to 80 kg (design Project)

SET

Complete set with bottom lock rosettes.

Rozměry

Economy

fitting with reversible spring
set included bottom rosettes
screwing sleeves against each other
plastic underrosettes
fasten gel against loosening the screws
drilling with our PROFI template M&T with the drill ø 6,4 mm
animation of the mounting at Mounting of fittings
use category - class 3
guaranty 5 years, titanium 15 years
mounting for the door thickness 38 - 126 mm
set included mounting material for the door thickness 38 - 45 mm

Classifications of fittings according to the norms
EN 1906:2012, ČSN EN 1906 16 5776.

Economy
2	6	-	0	0	3	0	B

2	Category of using..
	medium frequency use by people who are motivated to use them carefully but where there is a certain probability of improper use, eg internal office doors
6	Service life..
	medium frequency of using: 100 000 cycles
-	Door weight..
	(without classification)
0	Fire resistance..
	(resistance is not required)
0	Protection..
	normal using
3	Corrosion resistance..
	high resistance
0	Safety..
	resistance is not defined
B	Type of control..
	Type of control.. fitting with reversible spring

Object

fitting with reversible spring
set included bottom rosettes with sleeves
screwing sleeves against each other
metal underrosettes
fasten gel against loosening the screws
drilling with our PROFI template M&T with the drill ø 6,4 mm
use category - class 3
guarantee 5 years, titanium 15 years
mounting for the door thickness 38 - 126 mm
set included mounting material for the door thickness 38 - 45 mm

Classifications of fittings according to the norms
EN 1906:2012, ČSN EN 1906 16 5776.

Object
3	6	-	0	0	3	1	B

3	Category of using..
	High frequency of use by the public or others with little incentive for careful use and where there is a high probability of improper use, eg. the door for public office
6	Service life..
	medium frequency of using: 100 000 cycles
-	Door weight..
	(without classification)
0	Fire resistance..
	(resistance is not required)
0	Protection..
	normal using
3	Corrosion resistance..
	high resistance
1	Safety..
	slight burglary resistance
B	Type of control..
	Type of control.. fitting with reversible spring

Project class 4

hardware with a return spring
set includes bottom escutcheons with sleeves
sleeve assembly screwed together
metal escutcheons
secure double-sided connection of the handle to the sub-rosette
right handle with solid rosette and sleeves, left handle with slip-on rosette
marked M&T square for proper centering during installation
M&T stainless steel screw with nose
locking gel
drilling with M&T PROFI template using ø 6.4 mm drill bit
7-year warranty, 15-year warranty on titanium
installation for door thicknesses 38 – 126 mm
package includes mounting hardware for door thicknesses 38 – 45 mm

Classifications of fittings according the norms
EN 1906:2012, ČSN EN 1906 16 5776.

Project class 4
4	7	-	D1	1	4	1	B

4	Category of using..
	high frequency of using doors in the public, eg. football stadiums, barracks, public toilets, etc.
7	Service life ..
	high fequency of using: 200 000 cycles
-	Door weight..
	(without classification)
D1	Fire resistance..
	for using in smoke control and fire-resistant doors with special requirements in the middle of the handle/knob, tested with 200,000 cycles on test doors.
1	Protection..
	using in situations requiring protection
4	Corrosion resistance..
	very high resistance
1	Safety..
	slight burglary resistance
B	Type of control..
	Type of control.. fitting with reversible spring

Orders number

CESAN	Economy stainless steel NRz	Object stainless steel NRz	Object titanium black TiN-K	Object K-industrial	Project class 4 stainless steel NRz	Project class 4 titanium black TiN-K
CESAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN	pair EAN
Key hole rosettes	023640	023695	023749	032031	023794	023848
Cylindrical rosettes	023657	023701	023756	032048	023800	023855
Toilet / bathroom	023664	023718	023763	032055	023817	023862
Grip / handle R	023671	023725	023770	032062	023824	023879
Grip / handle L	023688	023732	023787	032079	023831	023886

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2004

About the mechanics

Mechanics M 2004 – designed, manufactured and assembled at M & T with its own patent with active slip preventing from bending and cracking the door in the lock area, simple and fast installation.
