Door handle NOVA

NRz stainless steel - grinded

Stainless steel handle with a choice of 3 surfaces, with a guarantee of 5-15 years depending on the design, with a quality mechanics M 2004 used for interiors and exteriors.

Nerezová dveřní klika Nova

Handle surfaces
3 surfaces

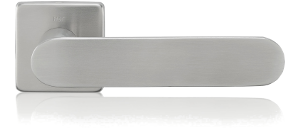

NRz
NRz
TiN-K
TiN-K
K-industrial
K-industrial

Material with a long service life

Technical informations

MATERIAL
  • The stainless steel
AVAILABLE SURFACE FINISHES
  • The stainless steel - grinded, titanium black matt, black matt structured
MOUNTING
  • Drilling with profi template M&T, screwing through with screw-together cases system, recommended tightening torque 3-4 Nm.
MECHANICS
  • M 2004 with the reversible spring system and with the screw-together cases system
DIMENSIONAL APPLICATIONS
  • Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm
ACCESSORIES
  • The package includes:
    • spindle
    • set screw
    • glue gel
    • fasteners
    • assembly instructions
    • warranty card
WARRANTY
  • mechanics 3 years
  • surfaces 5 years for stainless steel, black matt structured 5 years, titanium 15 years
APPLICATIONS
  • For the interior and exterior doors, for door weight up to 60 kg (design Economy and Object), for door weight up to 80 kg (design Project)
SET
  • Complete set with bottom lock rosettes.


Rozměry

Economy

  • fitting with reversible spring
  • set included bottom rosettes
  • screwing sleeves against each other
  • plastic underrosettes
  • fasten gel against loosening the screws
  • drilling with our PROFI template M&T with the drill ø 6,4 mm
  • animation of the mounting at Mounting of fittings
  • use category - class 3
  • guaranty 5 years, titanium 15 years
  • mounting for the door thickness 38 - 126 mm
  • set included mounting material for the door thickness 38 - 45 mm



Classifications of fittings according to the norms
EN 1906:2012, ČSN EN 1906 16 5776.


Economy
2 6 - 0 0 3 0 B

2 Category of using..
medium frequency use by people who are motivated to use them carefully but where there is a certain probability of improper use, eg internal office doors

6 Service life..
medium frequency of using: 100 000 cycles
- Door weight..
(without classification)
0 Fire resistance..
(resistance is not required)



0 Protection..
normal using
3 Corrosion resistance..
high resistance
0 Safety..
resistance is not defined
B Type of control..
Type of control.. fitting with reversible spring

Object

  • fitting with  reversible spring
  • set included bottom rosettes with sleeves
  • screwing sleeves against each other
  • metal underrosettes
  • fasten gel against loosening the screws
  • drilling with our PROFI template M&T with the drill ø 6,4 mm
  • use category - class 3
  • guarantee 5 years, titanium 15 years
  • mounting for the door thickness 38 - 126 mm
  • set included mounting material for the door thickness 38 - 45 mm




Classifications of fittings according to the norms
EN 1906:2012, ČSN EN 1906 16 5776.


Object
3 6 - 0 0 3 1 B

3 Category of using..
High frequency of use by the public or others with little incentive for careful use and where there is a high probability of improper use, eg. the door for public office
6 Service life..
medium frequency of using: 100 000 cycles
- Door weight..
(without classification)
0 Fire resistance..
(resistance is not required)



0 Protection..
normal using
3 Corrosion resistance..
high resistance
1 Safety..
slight burglary resistance
B Type of control..
Type of control.. fitting with reversible spring

Project class 4

  • fitting with reversible spring
  • set included bottom rosettes with sleeves
  • screwing sleeves against each other
  • metal underrosettes
  • stainless steel design inc. neck
  • stainless steel spindle
  • stainless steel set screw
  • fasten gel
  • drilling with our PROFI template M&T with the drill ø 6,4 mm
  • guarantee 7 years, titanium 15 years
  • mounting for the door thickness 38 - 126 mm
  • set included mounting material for door thickness 38 - 45 mm


Classifications of fittings according the norms
EN 1906:2012, ČSN EN 1906 16 5776.


Project class 4
4 7 - D1 1 4 1 B

4 Category of using..
high frequency of using doors in the public, eg. football stadiums, barracks, public toilets, etc.

7 Service life ..
high fequency of using: 200 000 cycles
- Door weight..
(without classification)
D1 Fire resistance..
for using in smoke control and fire-resistant doors with special requirements in the middle of the handle/knob, tested with 200,000 cycles on test doors.
1 Protection..
using in situations requiring protection
4 Corrosion resistance..
very high resistance
1 Safety..
slight burglary resistance
B Type of control..
Type of control.. fitting with reversible spring

3D model for visualization

Door handle Nova (DWG)

Orders number

NOVA

NOVA

Povrch kliky
Economy
stainless steel NRz
Povrch kliky
Object
stainless steel NRz
Povrch kliky
Object
titanium black TiN-K
Povrch kliky
Object
K-industrial
Povrch kliky
Project
class 4 stainless steel NRz
Povrch kliky
Project
class 4 titanium black TiN-K
EANEANEANEANEANEAN
Key hole rosettes012996016307016352031782016406016451
Cylindrical rosettes013009016314016369031799016413016468
Toilet / bathroom013016016321016376031805016420016475
Grip / handle L013030016345016390031829016444016499
Grip / handle R013023016338016383031812016437016482

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2004

Manufakturní mechanika M 2004

About the mechanics

Mechanics M 2004 – designed, manufactured and assembled at M & T with its own patent with active slip preventing from bending and cracking the door in the lock area, simple and fast installation.
