Door handle JAMESON

NRz stainless steel - grinded

Stainless steel handle with a choice of 3 surfaces, with a guarantee of 5-15 years depending on the design, with a quality mechanics M 2000 used for interiors and exteriors.

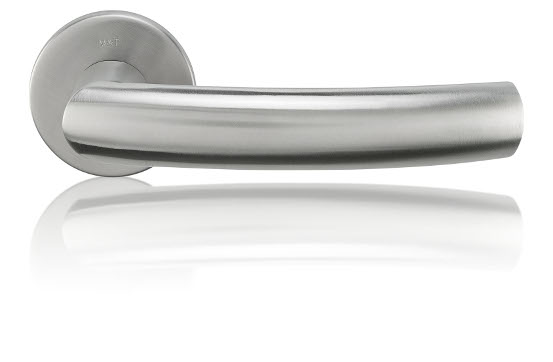

Nerezová dveřní klika Jameson

Handle surfaces
3 surfaces

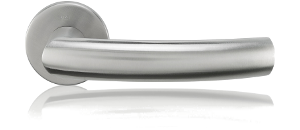

NRz
NRz
TiN-K
TiN-K
K-industrial
K-industrial

Material with a long service life

Technical informations

MATERIAL
  • The stainless steel
AVAILABLE SURFACE FINISHES
  • The stainless steel - grinded, titanium black matt, black matt structured
MOUNTING
  • Drilling with profi template M&T, screwing through with screw-together cases system, recommended tightening torque 3-4 Nm.
MECHANICS
  • M 2000 with the reversible spring system and with the screw-together cases system
DIMENSIONAL APPLICATIONS
  • Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm
ACCESSORIES
  • The package includes:
    • spindle
    • set screw
    • glue gel
    • fasteners
    • assembly instructions
    • warranty card
WARRANTY
  • mechanics 3 years
  • surfaces 5 years for stainless steel, black matt structured 5 years, titanium 15 years
APPLICATIONS
  • For the interior and exterior doors, for door weight up to 60 kg (design Economy and Object), for door weight up to 80 kg (design Project)
SET
  • Complete set with bottom lock rosettes.


Rozměry

Economy

  • fitting with reversible spring
  • set included bottom rosettes
  • screwing sleeves against each other
  • plastic underrosettes
  • fasten gel against loosening the screws
  • drilling with our PROFI template M&T with the drill ø 6,4 mm
  • animation of the mounting at Mounting of fittings
  • use category - class 3
  • guaranty 5 years, titanium 15 years
  • mounting for the door thickness 38 - 126 mm
  • set included mounting material for the door thickness 38 - 45 mm



Classifications of fittings according to the norms
EN 1906:2012, ČSN EN 1906 16 5776.


Economy
2 6 - 0 0 3 0 B

2 Category of using..
medium frequency use by people who are motivated to use them carefully but where there is a certain probability of improper use, eg internal office doors

6 Service life..
medium frequency of using: 100 000 cycles
- Door weight..
(without classification)
0 Fire resistance..
(resistance is not required)



0 Protection..
normal using
3 Corrosion resistance..
high resistance
0 Safety..
resistance is not defined
B Type of control..
Type of control.. fitting with reversible spring

Object

  • fitting with  reversible spring
  • set included bottom rosettes with sleeves
  • screwing sleeves against each other
  • metal underrosettes
  • fasten gel against loosening the screws
  • drilling with our PROFI template M&T with the drill ø 6,4 mm
  • use category - class 3
  • guarantee 5 years, titanium 15 years
  • mounting for the door thickness 38 - 126 mm
  • set included mounting material for the door thickness 38 - 45 mm




Classifications of fittings according to the norms
EN 1906:2012, ČSN EN 1906 16 5776.


Object
3 6 - 0 0 3 1 B

3 Category of using..
High frequency of use by the public or others with little incentive for careful use and where there is a high probability of improper use, eg. the door for public office
6 Service life..
medium frequency of using: 100 000 cycles
- Door weight..
(without classification)
0 Fire resistance..
(resistance is not required)



0 Protection..
normal using
3 Corrosion resistance..
high resistance
1 Safety..
slight burglary resistance
B Type of control..
Type of control.. fitting with reversible spring

Project class 4

  • fitting with reversible spring
  • set included bottom rosettes with sleeves
  • screwing sleeves against each other
  • metal underrosettes
  • stainless steel design inc. neck
  • stainless steel spindle
  • stainless steel set screw
  • fasten gel
  • drilling with our PROFI template M&T with the drill ø 6,4 mm
  • guarantee 7 years, titanium 15 years
  • mounting for the door thickness 38 - 126 mm
  • set included mounting material for door thickness 38 - 45 mm


Classifications of fittings according the norms
EN 1906:2012, ČSN EN 1906 16 5776.


Project class 4
4 7 - D1 1 4 1 B

4 Category of using..
high frequency of using doors in the public, eg. football stadiums, barracks, public toilets, etc.

7 Service life ..
high fequency of using: 200 000 cycles
- Door weight..
(without classification)
D1 Fire resistance..
for using in smoke control and fire-resistant doors with special requirements in the middle of the handle/knob, tested with 200,000 cycles on test doors.
1 Protection..
using in situations requiring protection
4 Corrosion resistance..
very high resistance
1 Safety..
slight burglary resistance
B Type of control..
Type of control.. fitting with reversible spring

Orders number

JAMESON

JAMESON

Povrch kliky
Economy
stainless steel NRz
Povrch kliky
Object
stainnless steel NRz
Povrch kliky
Object
titanium black TiN-K
Povrch kliky
Object
K-industrial
Povrch kliky
Project
class 4 stainless steel NRz
Povrch kliky
Project
class 4 titanium black TiN-K
EANEANEANEANEANEAN
Key hole rosettes012590014013014068031171014112014167
Cylindrical rosettes012606014020014075031188014129014174
Toilet / bathroom012613014037014082031195014136014181
Knob / handle R012620014044014099031201014143014198
Knob / handle L012637014051014105031218014150014204

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufactory mechanics M 2000

Manufakturní mechanika M 2000

About the mechanics

Mechanics M 2000 - designed, manufactured and assembled at M & T - with own patented slip system which prevents bending and cracking the door in lock area, simple and fast assembly.

view more
