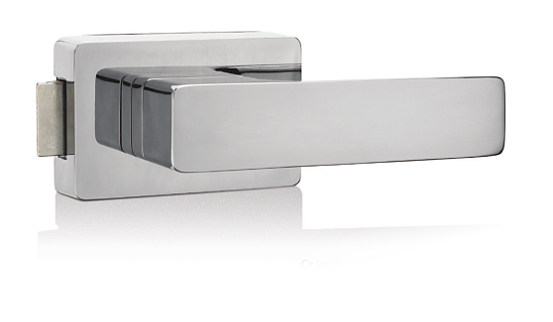

Lock for glass Minimal

Cr glossy chrome
Design: Roman Ulich

Locks made of massive brass with a choice of 9 colours & surfaces, with a guarantee of 3-15 years, depending on the design, used for the glass thickness of 8 ‑ 10 mm. News - natural brass with a lifetime guarantee.

Zámek na sklo Minimal

LOCK SURFACES
9 surfaces

SNi
SNi
SNi - broušeno
SNi - grinded
Cr
Cr
Ms
Ms
Ms-L
Ms-L
TiN-C
TiN-C
TiN-K
TiN-K
TiN-B
TiN-B
TiN-A
TiN-A

Exceptional choice of surfaces &  colours

Technical informations

MATERIAL
  • Massive brass, grinded and polished
AVAILABLE SURFACE FINISHES
  • Nickel matt, nickel matt - grinded, glossy chrome, titanium surfaces, brass natural
MOUNTING
  • Screwing locks with screws into prepared holes in the glass. The handles are fixed with set screw.
MECHANICS
  • Construction of the lock with a reversible spring + a set of rosettes with the mechanics M 2011
DIMENSIONAL APPLICATION
  • The locks can be used for the door thickness 8 - 10 mm. For a door thickness of 10 mm, locks with reduced / narrower latches are prepared for a surcharge. The exact thickness must be specified.
ACCESSORIES
  • The package includes:
    • fasteners by sleeves variant
    • assembly instructions
    • warranty card
WARRANTY
  • Mechanics of the lock and rosettes 3 years.
    Surfaces 3 years for nickel and chrome, titanium 15 years, brass natural life time guarantee
APPLICATIONS
  • For glass doors, for door weight up to 60 kg
SET
  • Lock for glass. Handles are to order extra.


Rozměry

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.

SUSTAINABILITY

we protect our planet, so we design and manufacture products products with a lifetime warranty - innovative products that will survive us.

Manufacture mechanics M 2011

Manufakturní mechanika M 2011

About the mechanics

Mechanics M 2011 – designed, manufactured and assembled at M&T – with its own patent pressed springs and slip active system which prevents bending and cracking the door in lock area, with a minimal mechanics.
