Hand grip long ENTERO
 30/30 mm asymmetric

NRz stainless steel - grinded

Hand grips made of stainless steel with a choice of 4 colours & surfaces, with a guarantee of 3-15 years, depending on the design, used for wooden, aluminium and glass doors in an option of straight or asymmetrical, with possibility to order an individual length

Madlo dlouhé Entero  30/30 mm

Hand grip surfaces
4 surfaces

NRz
NRz
TiN-C
TiN-C
TiN-A
TiN-A
K-industrial
K-industrial

Unique design even on long hand grips

Technical informations

MATERIAL
  • Stainless steel
AVAILABLE SURFACE FINISHES
  • Stainless steel - grinded, titanium black matt, titanium chrome, titanium brass (titanium up to length 1000 mm), black matt structured (up to length 1900 mm)
MOUNTING
  • There are two mounting variants: Either in a blind hole, when it is necessary to specify the material of the door (plastic, wood, aluminium) or mounting with screws through the door, when there is a mounting possibility for a glass doors.
MECHANICS
  • From the inner side of the door there is a possibility of mounting one-sided handle from the Stainless steel series with mechanics M 2013 and with a spindle.
DIMENSIONAL APPLICATION
  • For a wooden, plastic and aluminium doors for the standard door thickness 38-126 mm, for glass doors 8-12 mm
ACCESSORIES
  • The package includes:
    • fasteners according to the price list
    • assembly instructions
    • warranty card
WARRANTY
  • Surfaces 5 years for stainless steel, black matt structured 5 years, titanium 15 years
APPLICATIONS
  • According the type of surface for the interior and exterior doors, for door weight up to 60 kg
SET
  • Set of hand grips or one sided hand grip. It is needed to order extra the right mounting material according the type of door, eventually the spindle to one sided handle.

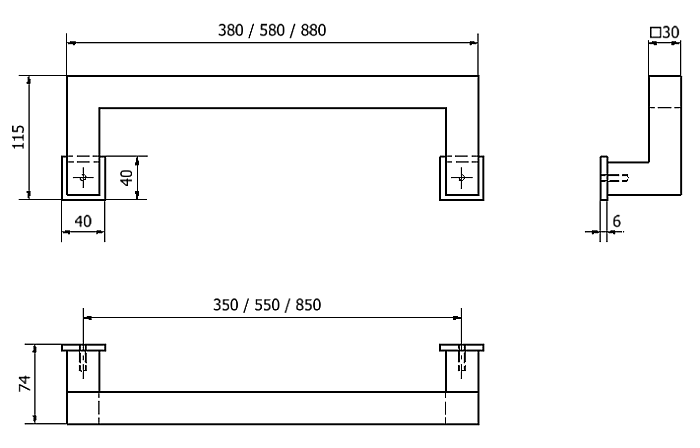

Rozměry

Order numbers

HAND GRIP ENTERO 30/30 MM ASSYMETRIC

HAND GRIP ENTERO 30/30 MM ASSYMETRIC

Povrch kliky
NRz
stainless steel
Povrch kliky
TiN-C
titanium chrome matt
Povrch kliky
TiN-A
titanium brass matt
Povrch kliky
K-industrial
EANEANEANEAN
distance 350 mm030624030655030716030686
distance 550 mm030631030662030723030693
distance 850 mm030648030679030730030709



MOUNTING MATERIAL FOR HAND GRIPS

MOUNTING MATERIAL FOR HAND GRIPS

Povrch kliky
EAN
One-sided to blind hole - wood030228
One-sided to blind hole - aluminium030211
One-sided to blind hole - plastic030204
One-sided for glas with screwing through and blind cover003031
One-sided with screwing through and blind cover003024
Double sided003048
Double sided for glass003055
