Hand grip Mimolimit long

Hand grip surfaces
7 povrchů

SNi - grinded

Ms-L

TiN-C

TiN-K

TiN-B

TiN-A

more about the surface

zoom

Unique design even on long hand grips

Technical informations

Specifications
Dimensions

MATERIAL

Massive brass, grinded and polished

AVAILABLE SURFACE FINISHES

Nickel matt - grinded, glossy chrome, titanium surfaces, brass natural

MOUNTING

There are two mounting variants: Either in a blind hole, when it is necessary to specify the material of the door (plastic, wood, aluminium) or mounting with screws through the door, when there is a mounting possibility for a glass doors.

MECHANICS

From the inner side of the door there is a possibility of mounting handle Mimoliit with Mechanics M 2006 and with a spindle.

DIMENSIONAL APPLICATION

For a wooden, plastic and aluminium doors for the standard door thickness 38-126 mm, for glass doors 8-12 mm

ACCESSORIES

The package includes:
- fasteners according to the price list
- assembly instructions
- warranty card

WARRANTY

Handle mechanics 3 years.
Surfaces 3 years nickel and chrome, titanium 15 years, brass nature life time guarantee

APPLICATIONS

According the type of surface for the interior doors, for door weight up to 60 kg

SET

Set of hand grips or one sided hand grip. It is needed to order the right mounting material according the type of door, eventually the spindle to one sided handle and the wooden part of the hand grip.

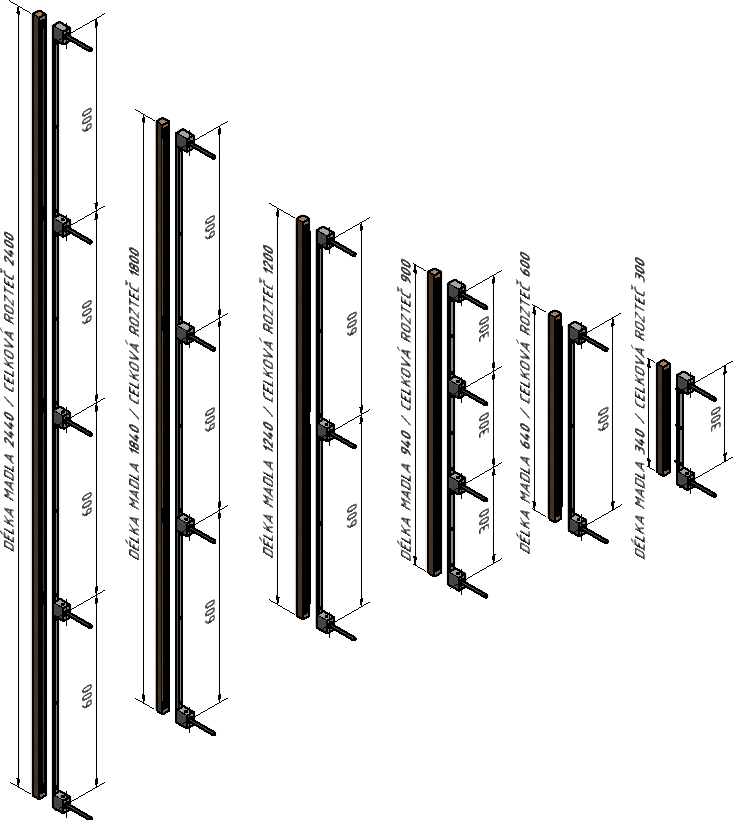

Rozměry

Order numbers

HAND GRIP LONG MIMOLIMIT	SNi nickel matt brushed	Cr glossy chrome	Ms brass natural	Ms-L brass polished	TiN-C titanium chrome matt	TiN-K titanium black matt	TiN-G titanium graphite matt	TiN-B titanium brown matt	TiN-S titanum bronze matt
HAND GRIP LONG MIMOLIMIT	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN
distance / length 300 / 340 mm	83301	022209	058895	058956	83349	83363	271287	83387	250626
distance / length 600 / 640 mm	83318	022216	058901	058963	83356	83370	271294	83394	250633
distance / length 900 / 940 mm	83974	022223	058918	058970	84018	84056	271300	84094	250640
distance / length 1200 / 1240 mm	83981	022230	058925	058987	84025	84063	271317	84100	250657
distance / length 1800 / 1840 mm	83998	022247	058932	058994	84032	84070	271324	84117	250664
distance / length 2400 / 2440 mm	84001	022254	058949	059007	84049	84087	271331	84124	250671

WOODEN PART OF HAND GRIP MIMOLIMIT	Teak	Elm	Nut	Oak	Bleached oak
WOODEN PART OF HAND GRIP MIMOLIMIT	pc EAN	pc EAN	pc EAN	pc EAN	pc EAN
distance / length 300 / 340 mm	83400	83424	83448	83936	83950
distance / length 600 / 640 mm	83417	83431	83929	83943	83967
distance / length 900 / 940 mm	84131	84179	84216	84254	84292
distance / length 1200 / 1240 mm	84148	84186	84223	84261	84308
distance / length 1800 / 1840 mm	84155	84193	84230	84278	84315
distance / length 2400 / 2440 mm	84162	84209	84247	84285	84322

	MOUNTING MATERIAL FOR HAND GRIPS
	MOUNTING MATERIAL FOR HAND GRIPS	EAN
	One-sided to blind hole - wood	030228
	One-sided to blind hole - aluminium	030211
	One-sided to blind hole - plastic	030204
	One-sided for glas with screwing through and blind cover	003031
	One-sided with screwing through and blind cover	003024
	Double sided	003048
	Double sided for glass	003055

Uváděné ceny - doporučené konečné ceny v € bez DPH.

SPARE PARTS

We supply you with separate the most used components and thus repeatedly extend the service life of the entire fitting.

EXTENDED WARRANTY

We have guarantee on all products at least 3 years, on mechanics 5 years, titan surfaces 15 years, handles from massive natural brass is lifetime guarantee.

REPEATED PRODUCTION

You like one model and you will want to buy the same model in years? No problem. As the main service for the customer, we have been offering all manufactured handle models in a long term.
